iTECH Model BS600 Heavy Duty Bandsaw

£2,595.00

The perfect bandsaw for high-precision and efficient machining, with a solid cast-iron structure, the iTECH Model BS600 Heavy-Duty Bandsaw is both a hugely robust and compact machine capable of fitting conveniently in workshops of all sizes.

Featuring a spacious, cast-iron work table, cast-iron wheels and a heavy-duty, double trunnion, flexible machining and easy operation are guaranteed. The double trunnion allows the operator to set a precise angle that ensures effective functionality alongside smooth and accurate movement.

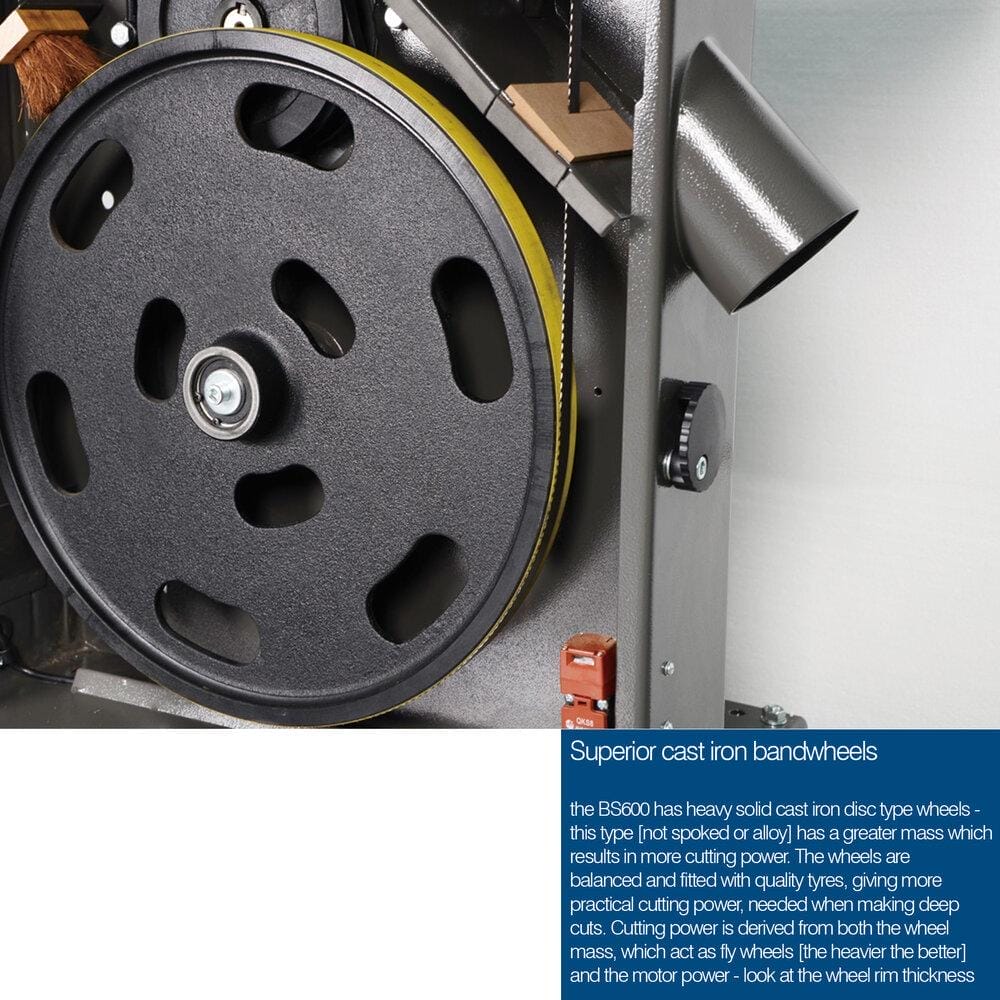

With the powerful 4.0kw motor and heavy-duty, cast-iron band wheels, the BS600 encompasses more mass and far greater cutting power – capable of granting you a flawless finished product. For precise and defect-free cutting. The wheels are accompanied by high-quality tyres for more effective machining.

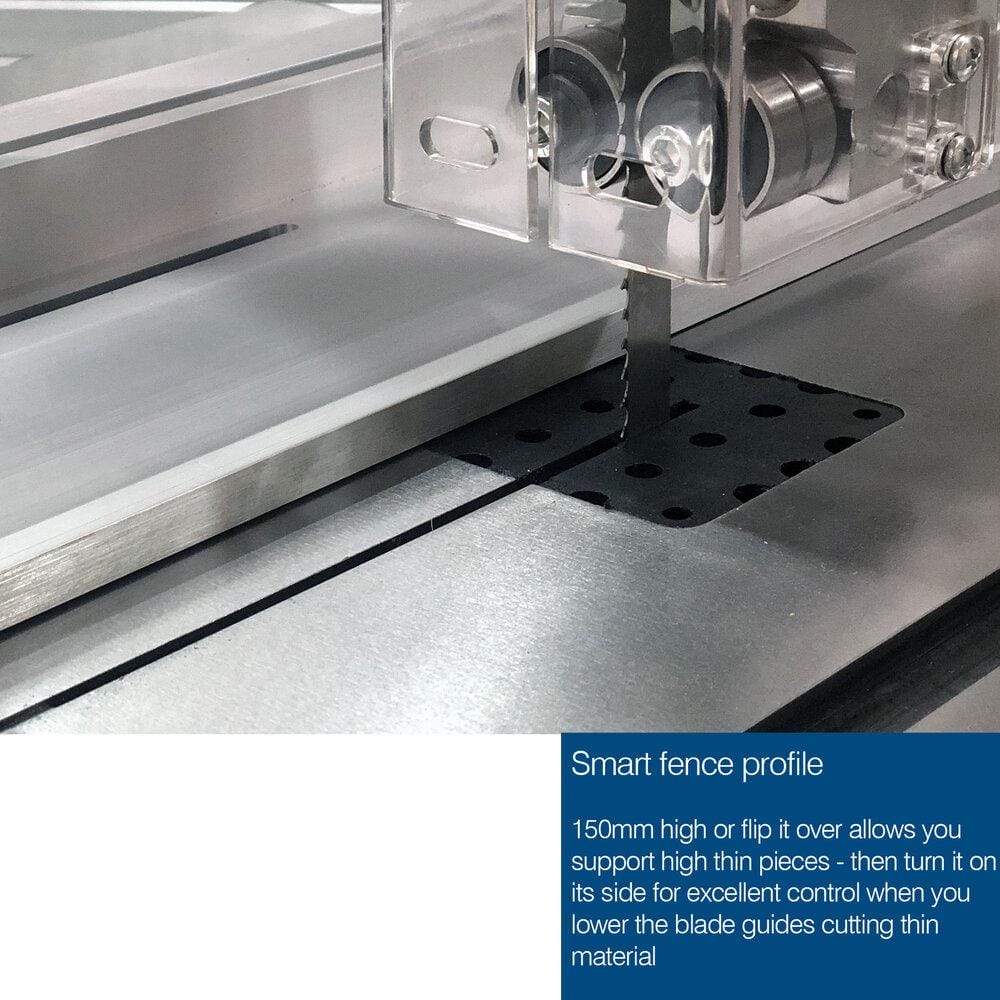

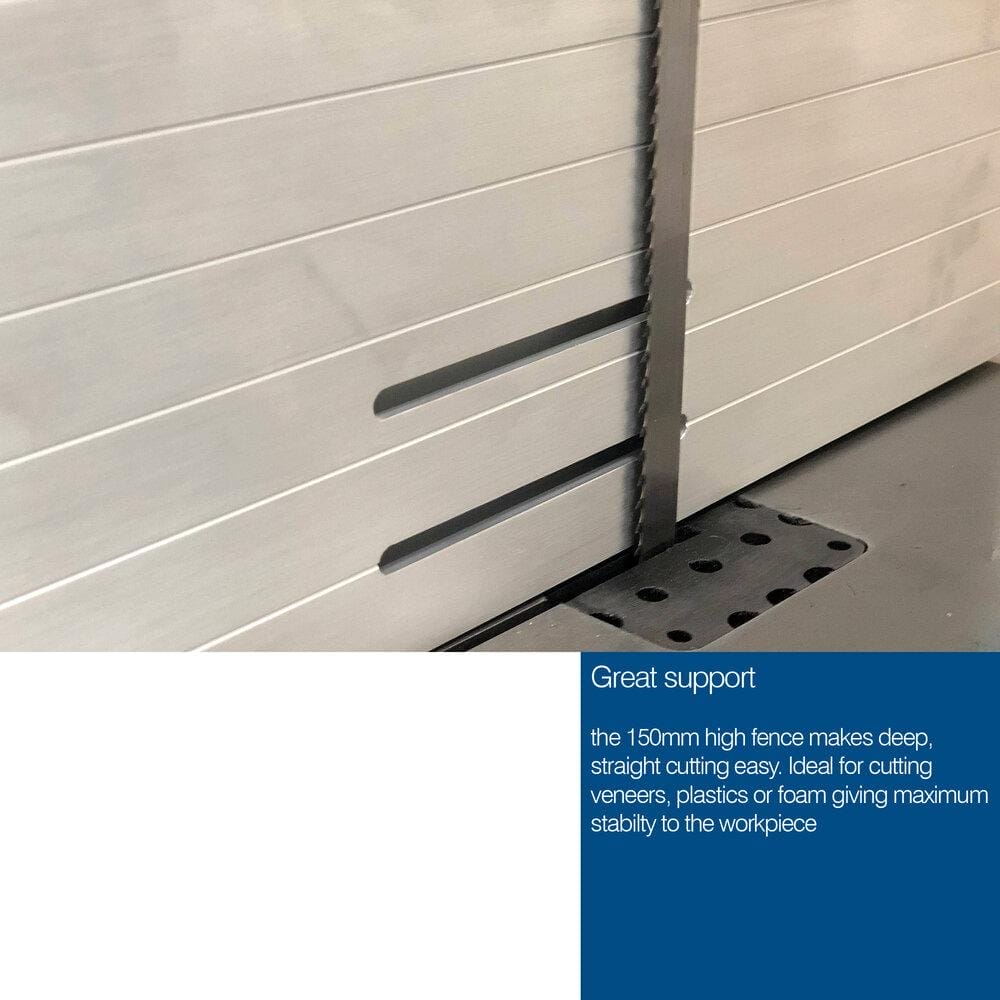

The addition of a 150mm-high rip fence mounted on a steel bar running the entire width of the table makes for easy and ergonomic use of the fences on each side of the blade.

Thanks to the cast-iron components and class-leading quality of iTECH, the BS600 is greatly reliable and will provide many years of service.

Features include:

  • Solid cast-iron frame
  • Solid cast-iron disc wheels
  • Quick release blade change
  • Blade tension indicator
  • Lockable Isolator
  • Safety interlocks on door

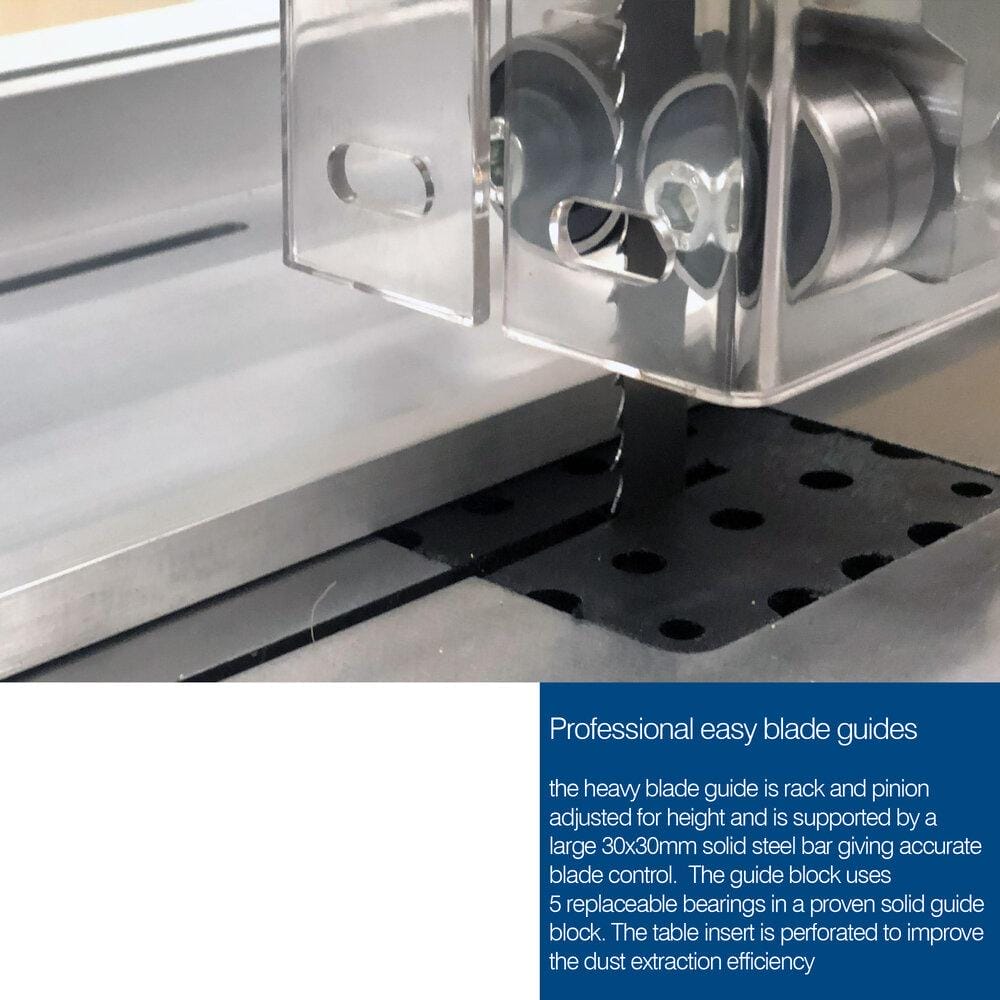

  • Industrial blade guides
  • TUV certified CE

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Specifications

– Cutting width 580 mm

– Cutting Depth 370 mm

– Motor power 4.0 kW 5.5hp [S1]

– Blade length 4470 mm (176″)

– Max blade width 35 mm

– Min blade width 10 mm

– Dust co 2 x 100 mm

– Wheel speed rpm

– Nett weight 330 kg

– Blade Speed 1500 m/min

– Table Size 700 x 608 mm

– Package Size (H x W x D) 2190 x 1130 x 780 mm

– Overall Size (H x W x D) 1970 x 1170 x 810 mm 389kg

– 600mm Wheel Diameter
