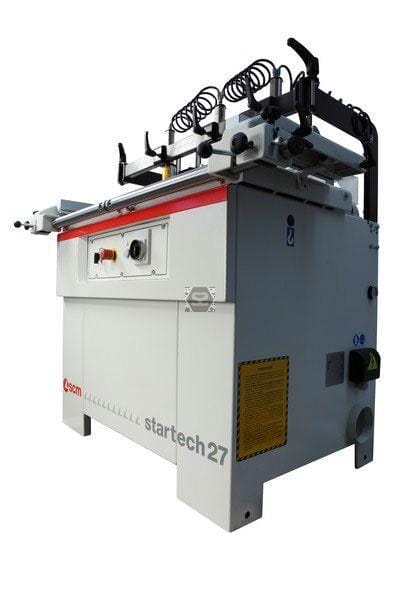

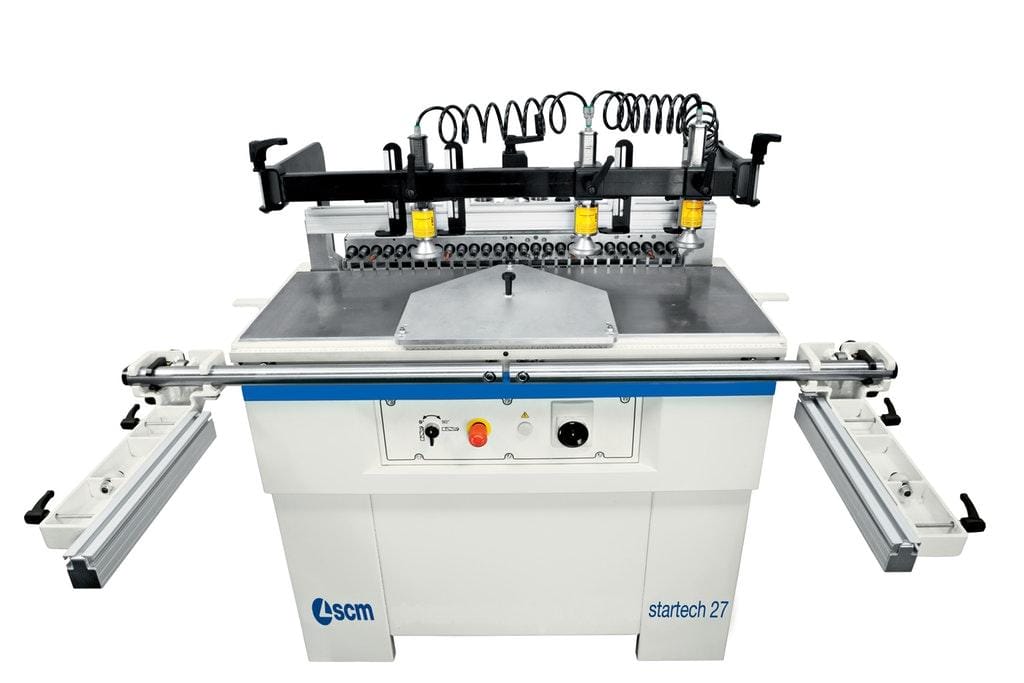

SCM Startech 27 Multi Borer

For craftsmen looking for a precise and accurate multi-boring machine, the SCM Startech 27 Multi Borer proves a fantastic choice. This boring machine can be used for an array of processes, including: line boring, hinge boring and dowel hole drilling. Versatility is granted via the 27 spindle Morbidelli quick-changing drilling head.

The machine is made of a solid cast iron table with a side fence, pneumatic clamps and has an ergonomic, easy-to-use, control setting system. For further flexibility, the horizontality and verticality of the boring head can be automatically adjusted – yet again, making for simple, hassle-free operation.

• Other features include:
• Spindles preset for quick change adaptors
• Shaving Suction
• 9 x drill bit-holder bushed (10mm)
• Right/Left extensions with retractable stops Length = 3000mm
• 3 x upper-pressure cylinders for the holding of workpieces
• Servo-assisted boring unit downstroke speed adjustment
• Available in single-phase

Specifications

• Number of spindles 27
• Centre distance between spindles 32 mm
• Spindles rotating speed 3000 rpm
• Spindles motor power 1,5 kW
• Number of Spindles
• 27
• Centre Distance of Spindles
• 32mm
• Motor Power
• 2hp
• Max Tool Length
• 80mm
• Max Tool Ø
• 40mm
• Max Panel Width within the Gantry
• 1025mm
• Min Panel Thickness
• 10mm
• Max Panel Thickness
• 60mm
