New Cehisa Model Flexy PC. Edgebander, Pre-Milling, End Saws, Top & Bottom Trimmers, Corner Rounding, Radius & Glue Scrapers
Original price was: £31,995.00.£27,995.00Current price is: £27,995.00.
The Cehisa Flexy PC Edgebander delivers heavy-duty, high-precision edging for a variety of sheet goods, including plyboard, polyester, Formica, and melamine. Its 5.6″ touch screen and high-frequency motors ensure ergonomic operation, flawless finishes, and reliable productivity. Features include diamond pre-milling, DUOMELT glue pot, end trimming, radius and corner rounding, edge and glue scrapers, and LED cabin lighting.
Product Features
Description

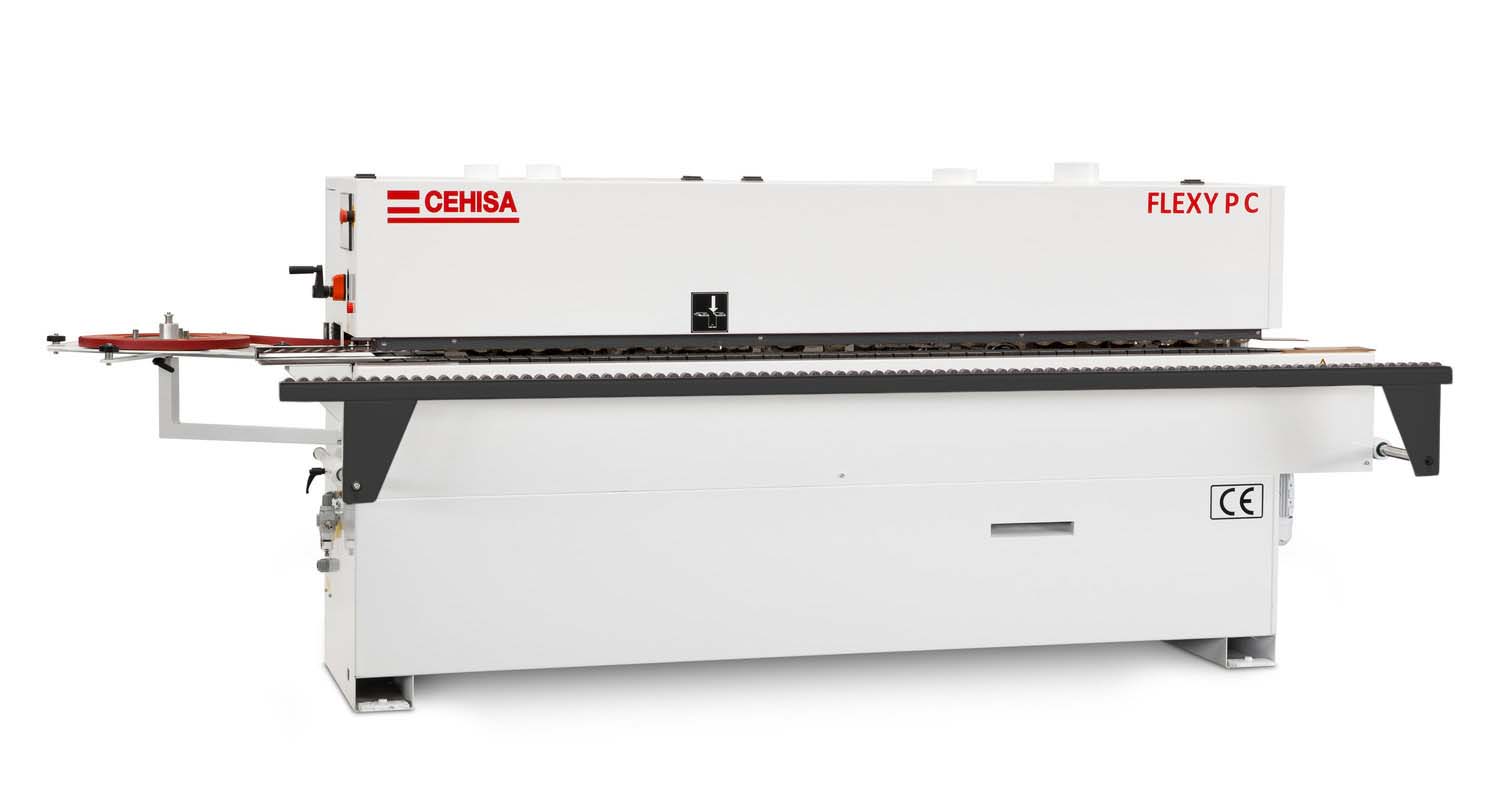

Part of Cehisa’s Flexy Series, the Cehisa Model Flexy PC. Edgebander, End Saws, Top & Bottom Trimmers is a heavy-duty edgebander that will make quick, high-precision work of the uneven and flawed edges of a variety of sheet goods including plyboard, polyester, Formica and melamine. This high-quality series of edgebander is an excellent choice for professional workshops with demanding workloads but with limited space.

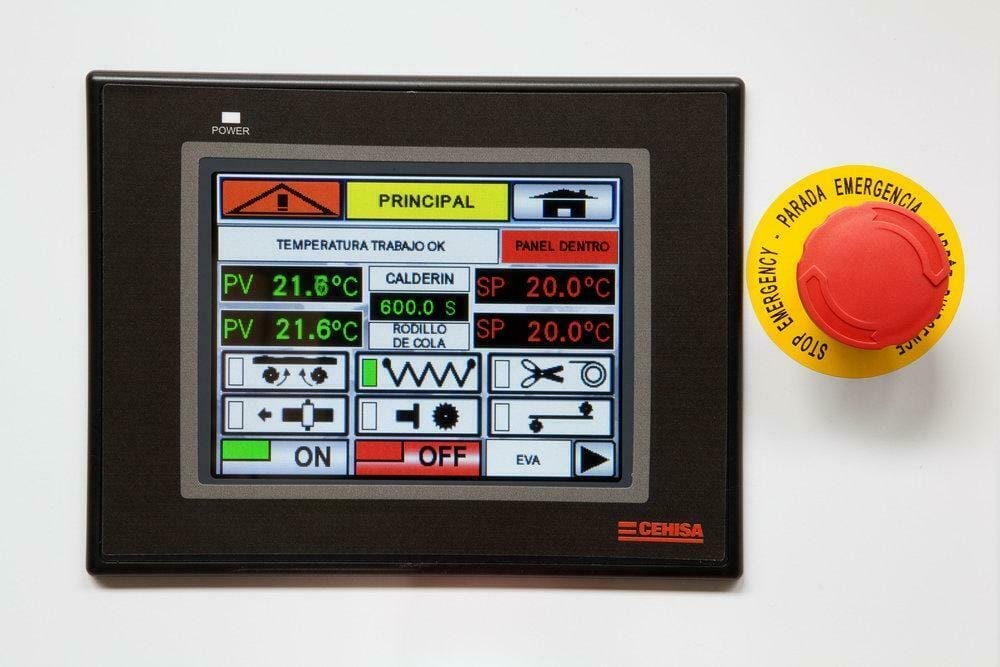

With the intuitive, 5.6” Omron touch screen control panel, all functions and adjustments can be performed ergonomically and with much ease. Settings include a stop/start function, parameter adjustments, alarm diagnostics and more.

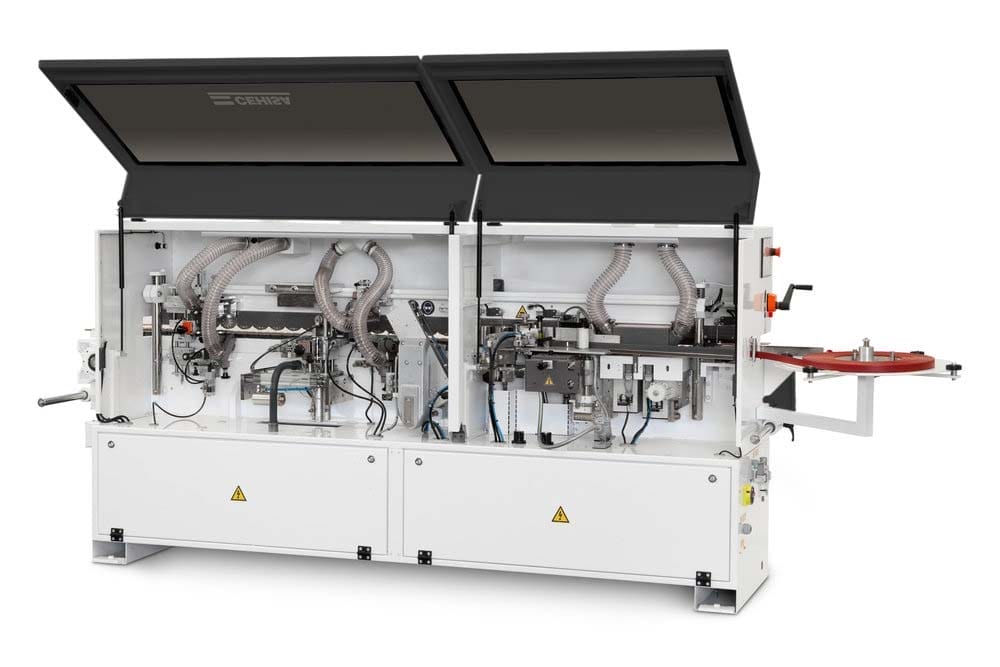

The enclosed cabinet structure makes for absolute safety during operation and is especially useful in smaller workshops since it will prevent any nearby machinery or objects from making contact with or affecting the interior systems.
Thanks to the addition of high-frequency motors, no matter what material you’re processing, an optimal, flawless finish is assured. The motors contribute largely to the high levels of productivity and reliability that the flexy series is capable of.
This model includes:
- Diamond pre-milling unit 55MM

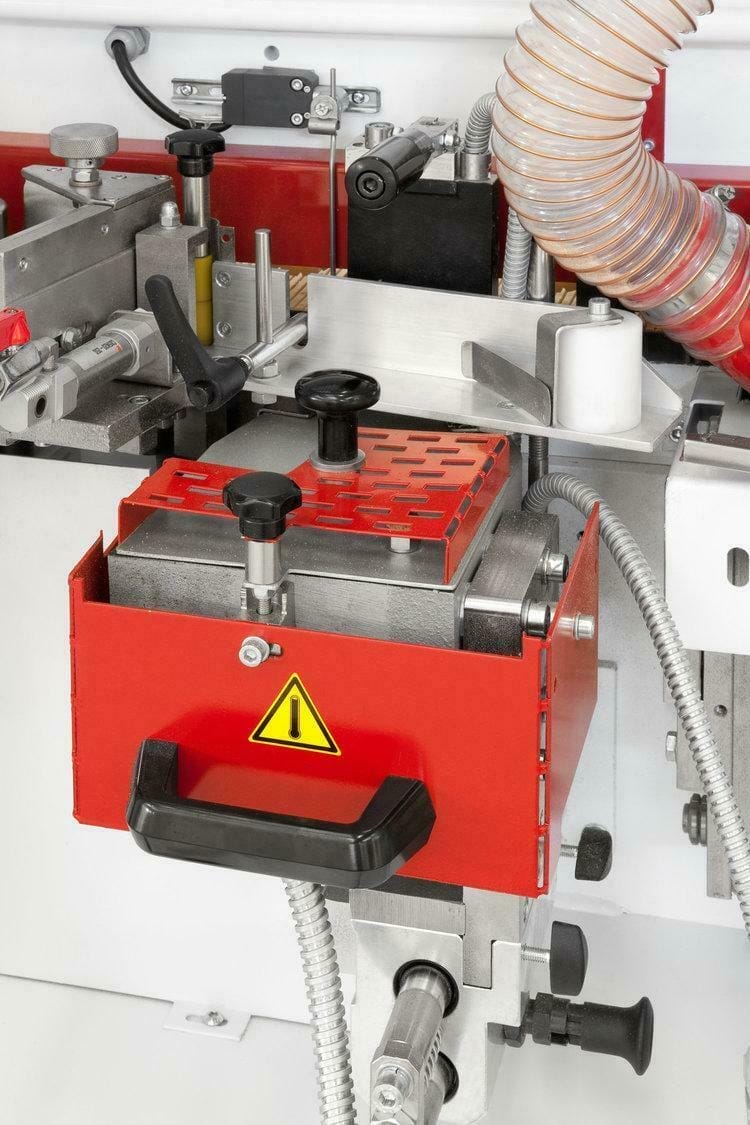

- Duomelt glue pot EVA-PUR
- Anti adhesive spray entrance
- Cleaning Agent spray exit

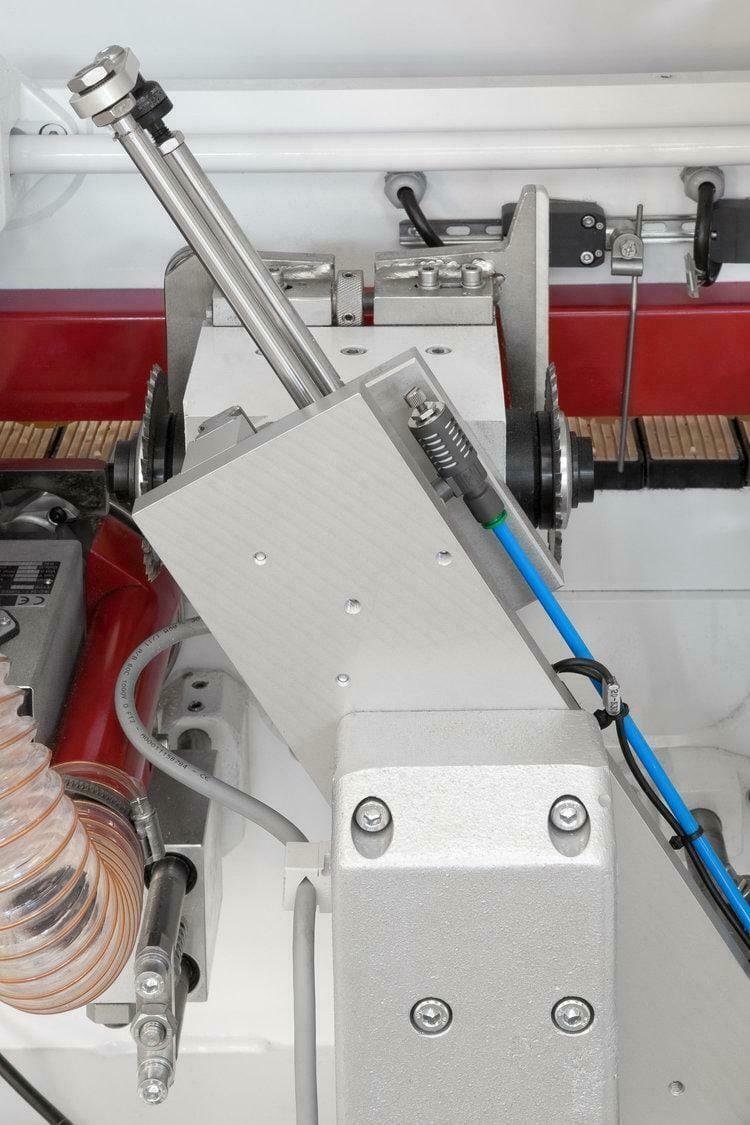

- V-2 end trim saws
- JC-2 T&B radius trim
- CR-2 corner rounder
- RB-3 edge scraping with pneumatic ON/OFF

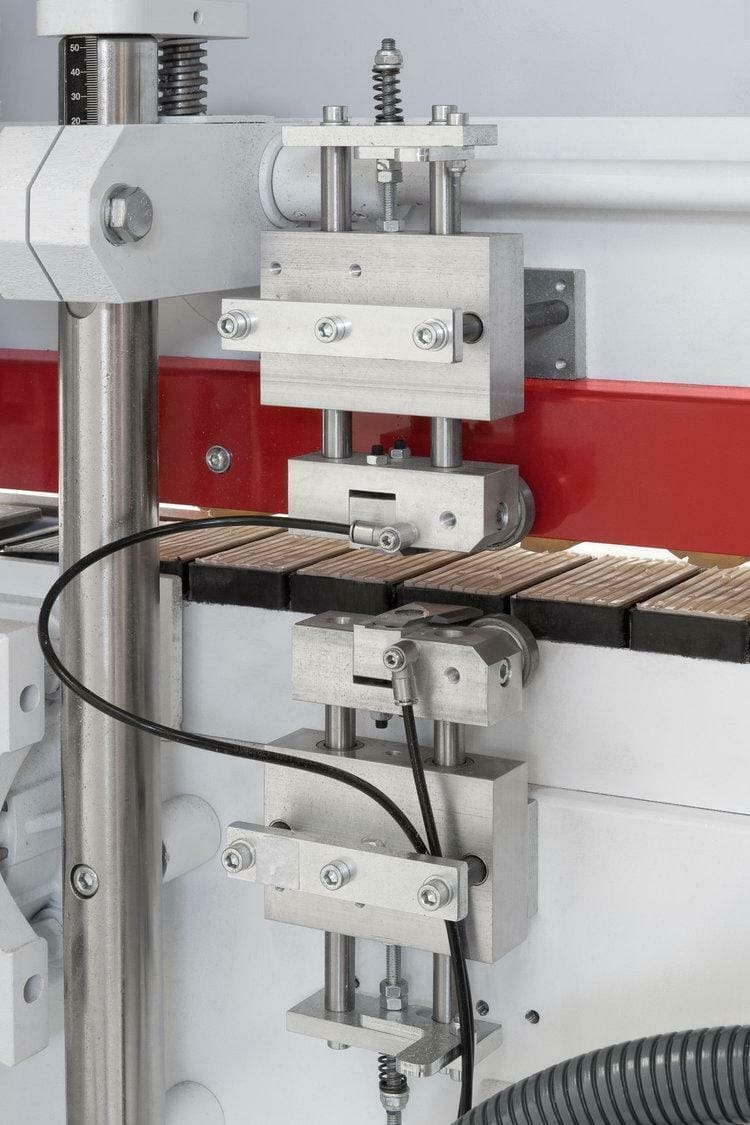

- Flat, glue scrapers with pneumatic ON/OFF
- Cabin LED lights
Specifications
Edgebander material
Melamine, PVC, Polyéster, Wood, Formica
Working speed
7 mts/min.
Thickness of edgebanding
0,4 – 2 mm
Thickness of the panel
8 – 50 mm
Min. Length of the panel
120 mm
Min. Width of the panel
75 mm
Dimensions
3535 * 630* 1370 mm
Net weight
795 Kg.
Control 5.6″ Omron Touch Screen
Diamond pre-milling units, 2 motors
Anti adhesive spray unit
Glue tank Teflon coated 1.5kg

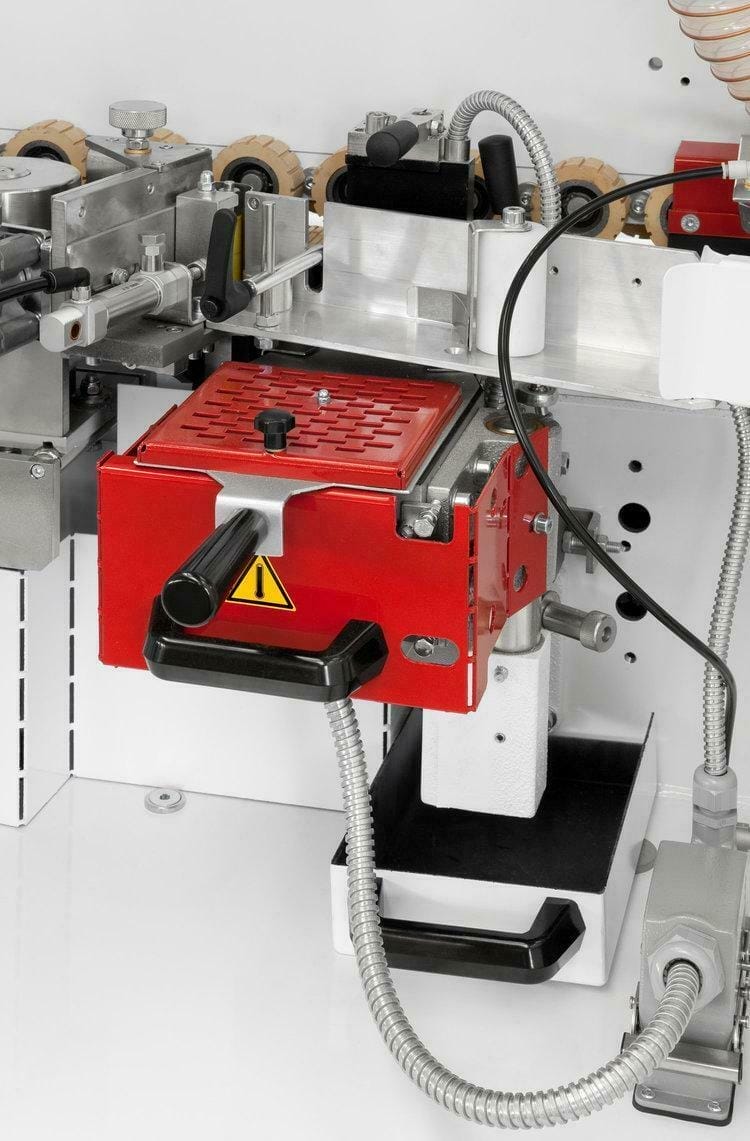

Duomelt Glue pot easy drain EVA PUR
End trim 1 motor 2 saws
Top + Bottom trimmers
CR2 Corner Rounding Unit
Radius scrapers with pneumatic on/oo
Glue scrapers with pneumatic on/off
Pull out extendable roller support for large panels
Cabin LED Lights
Additional Information
Product Video
CEHISA INTRODUCTION

Nationwide Delivery

Installation & Commisioning
Finance Available

Service & Support
