POA

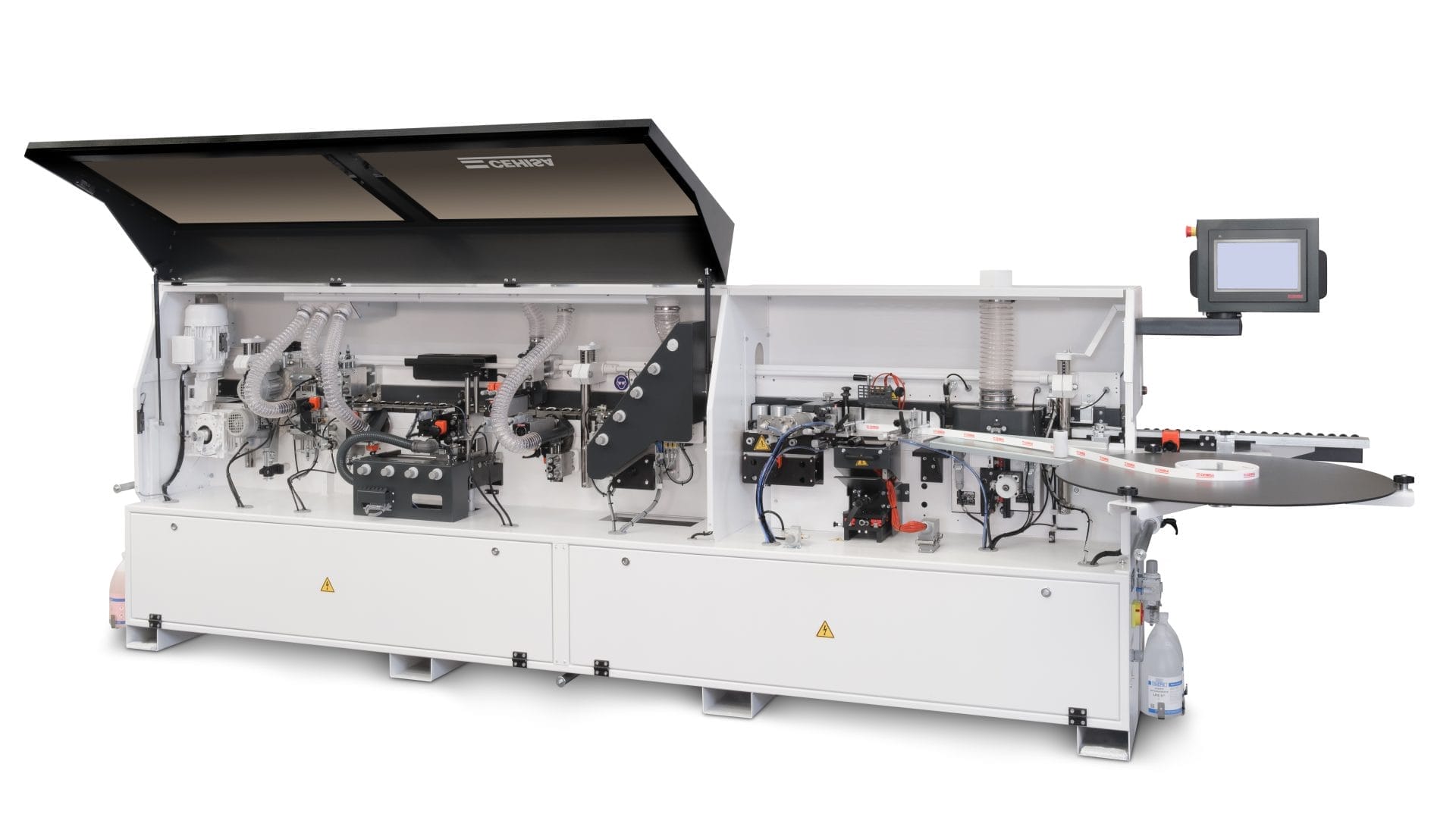

Of all products in the COMPACT series, the Cehisa Model Compact PCS-Plus Edgebander with Pre-Milling, Corner Rounding is the most advanced, cutting-edge of them all. Combining the best of both worlds, this edgebander is compactly designed for accommodation in small workshops as well as large ones. No functionality is lost via the dense design as the components of other elite, top quality edgebanders can be found in this model.
The effectiveness of the machining process has been greatly enhanced with this model thanks to the 10m/min drag chain speed, the ability to work 3mm thick edgebands and with both the corner rounding unit and the pre-milling unit.
Optionally, the infeed has been equipped with non-stick sprayers to make for stable machining that minimise the chances of any defects or imperfections. The outfeed has similarly been improved but with a cleaning spray which makes for a finished product like no other.
The ergonomically located LCD touchscreen and its simple to use, intuitive interface, functions and adjustments can be modified safely and with great ease.
Other Features Include:
Optional Features Included:
Radius scraper RB-6 w /pneumatic setting on/off
Glue scraper RR-8
Buffing unit PC-3
Duo melt eva-pur
New Quick Change Glue pot system
Non stick agent spray infeed
Cleaning agent spray at exit
3 x pneumatic positions on pressure rollers and T&B Trim
Pneumatic setting ON/OFF of V-8
Pneumatic setting ON/OFF of RR-8
2 X Pneumatic positions of CR-2
Pneumatic setting ON/OFF of CR-2
Extra large infeed fence
Cabin LED Lights
Infrared lamp
Diamond Pre-milling cutters H65
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
Edgebander material
Melamine, PVC, Polyester, Wood, Formica
8/12 mts/min. (8m/min with CR unit)
Thickness of edgebanding
0,4 – 3 mm
Thickness solid wood strips
up to 5mm
Thickness of the panel
8– 60 mm;
Min. Length of the panel
120 mm;
Min. Width of the panel
75 mm
Dimensions
4805 * 630 * 1385 mm
Net weight
1,150 Kg.
CONTROL PANEL 10″

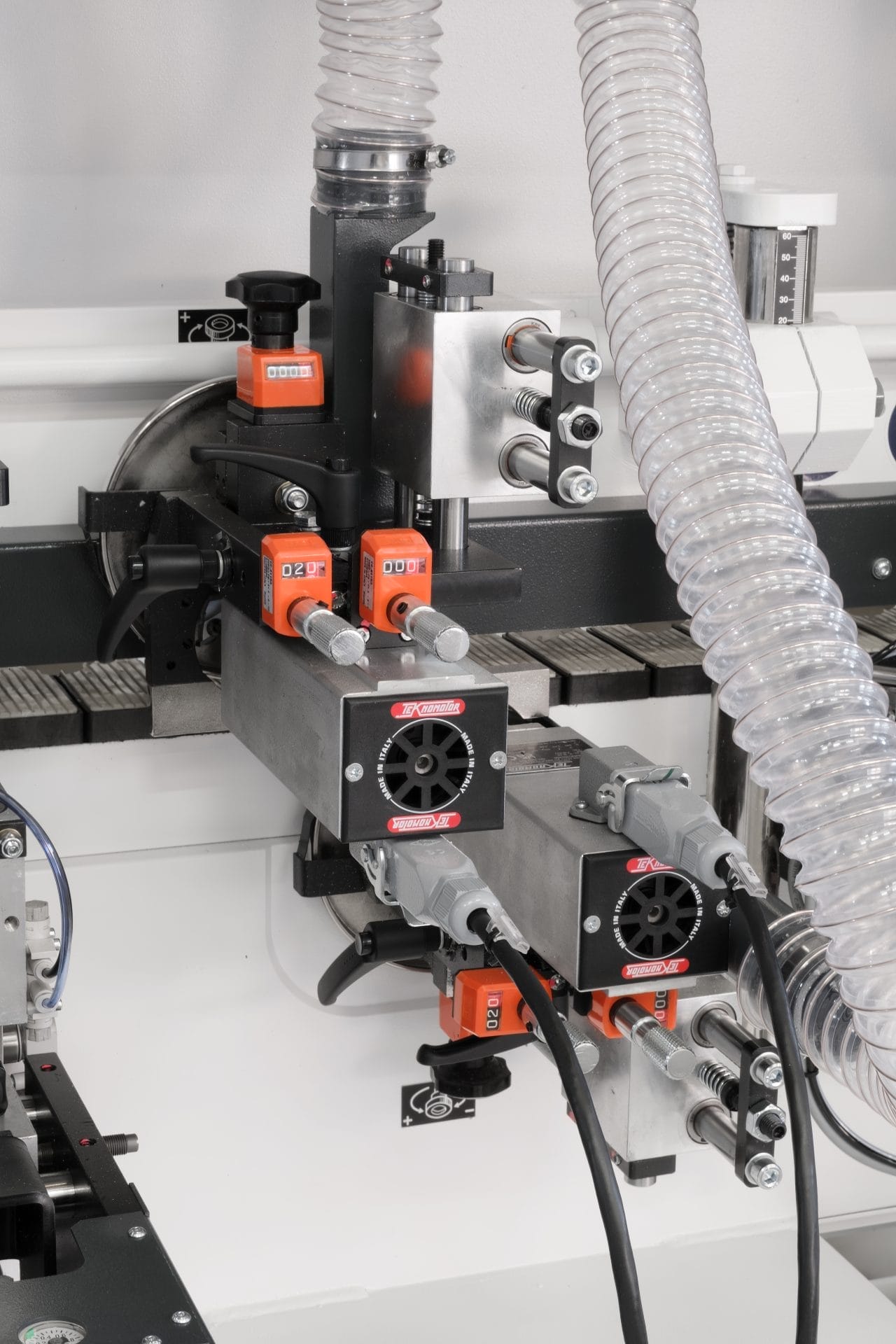

PF-12 PRE MILL. (diamond tools) H65mm
M2-NS GLUE UNIT

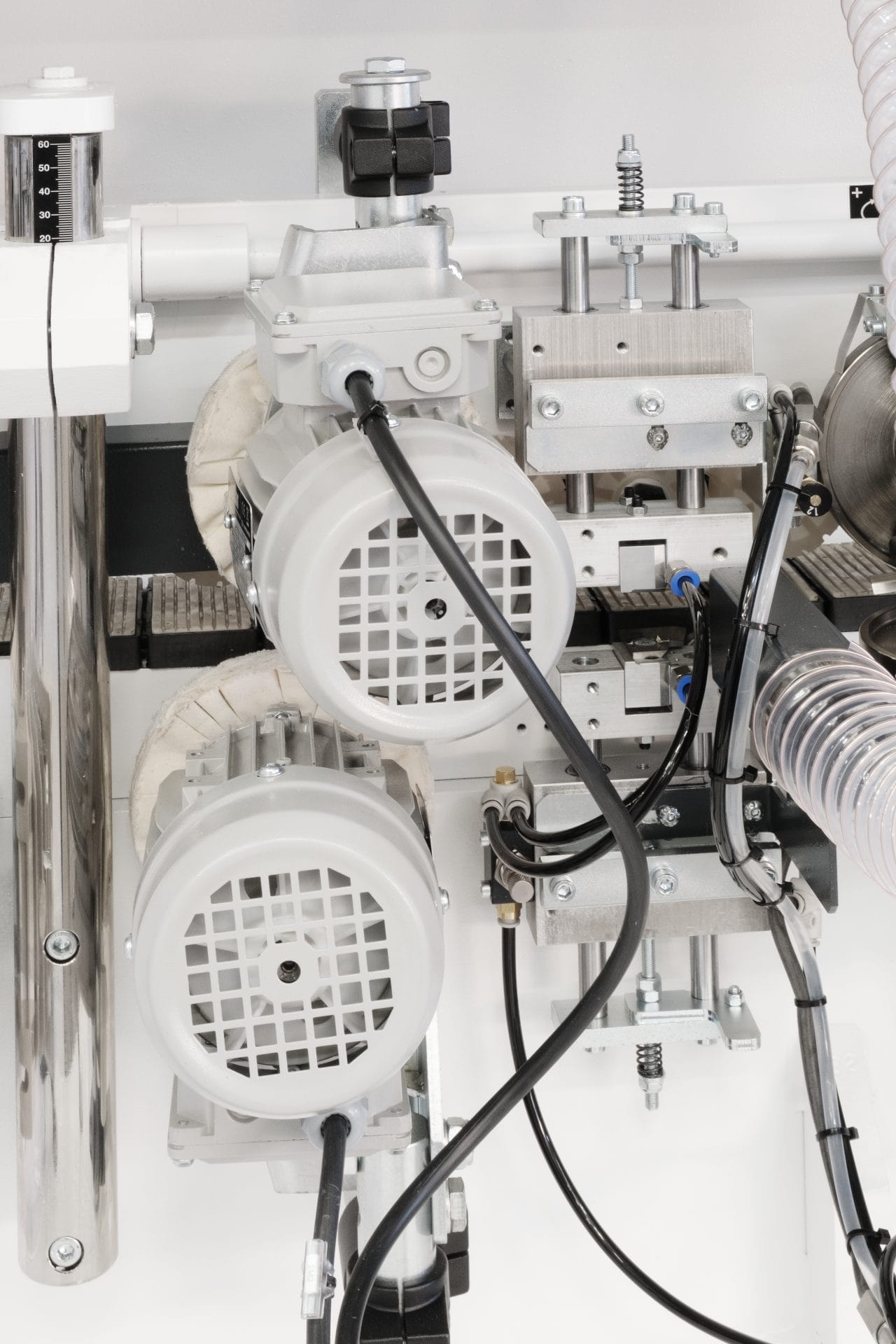

V-8 END TRIM UNIT 2 HF MOTORS

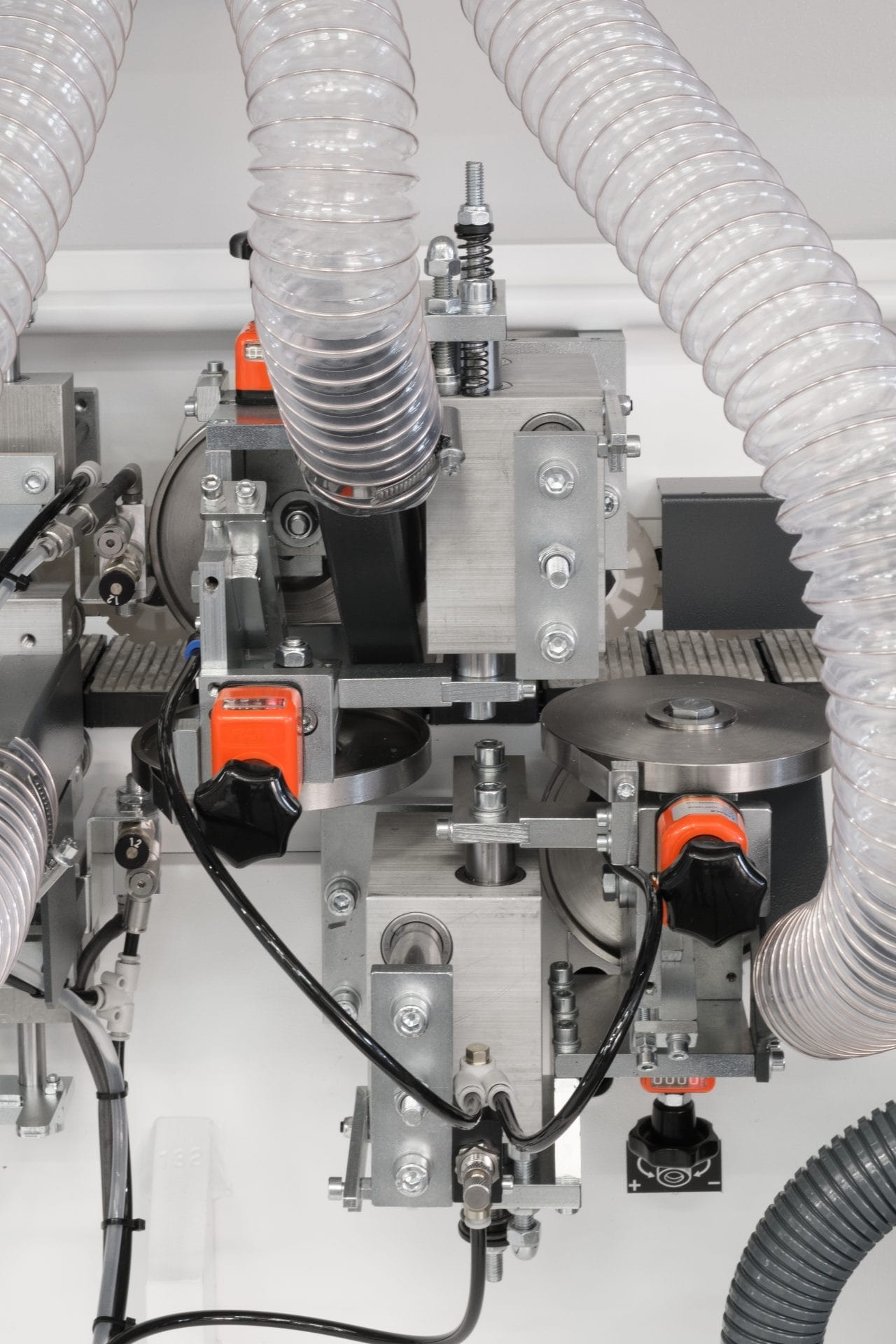

JC-3 T&B TRIM

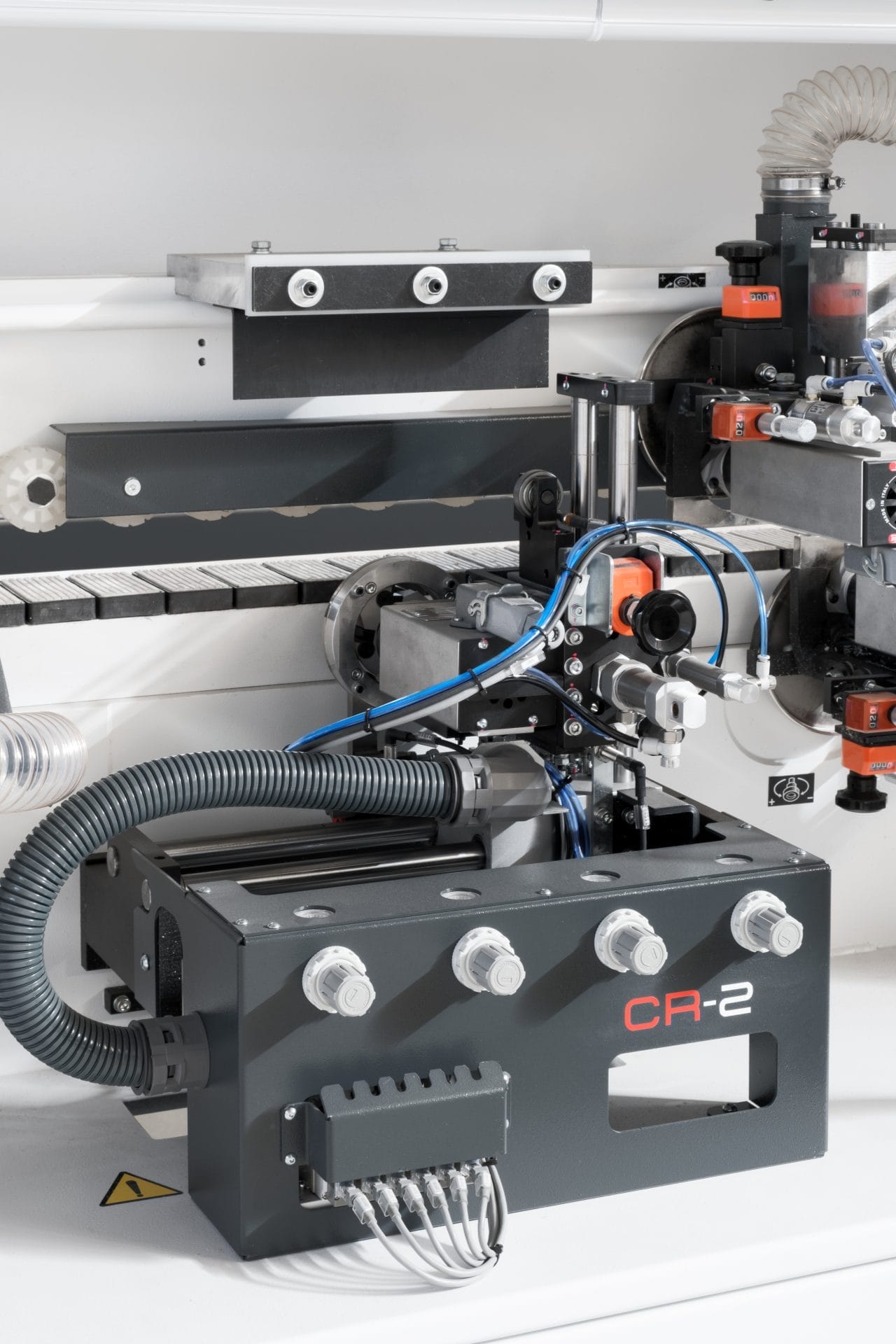

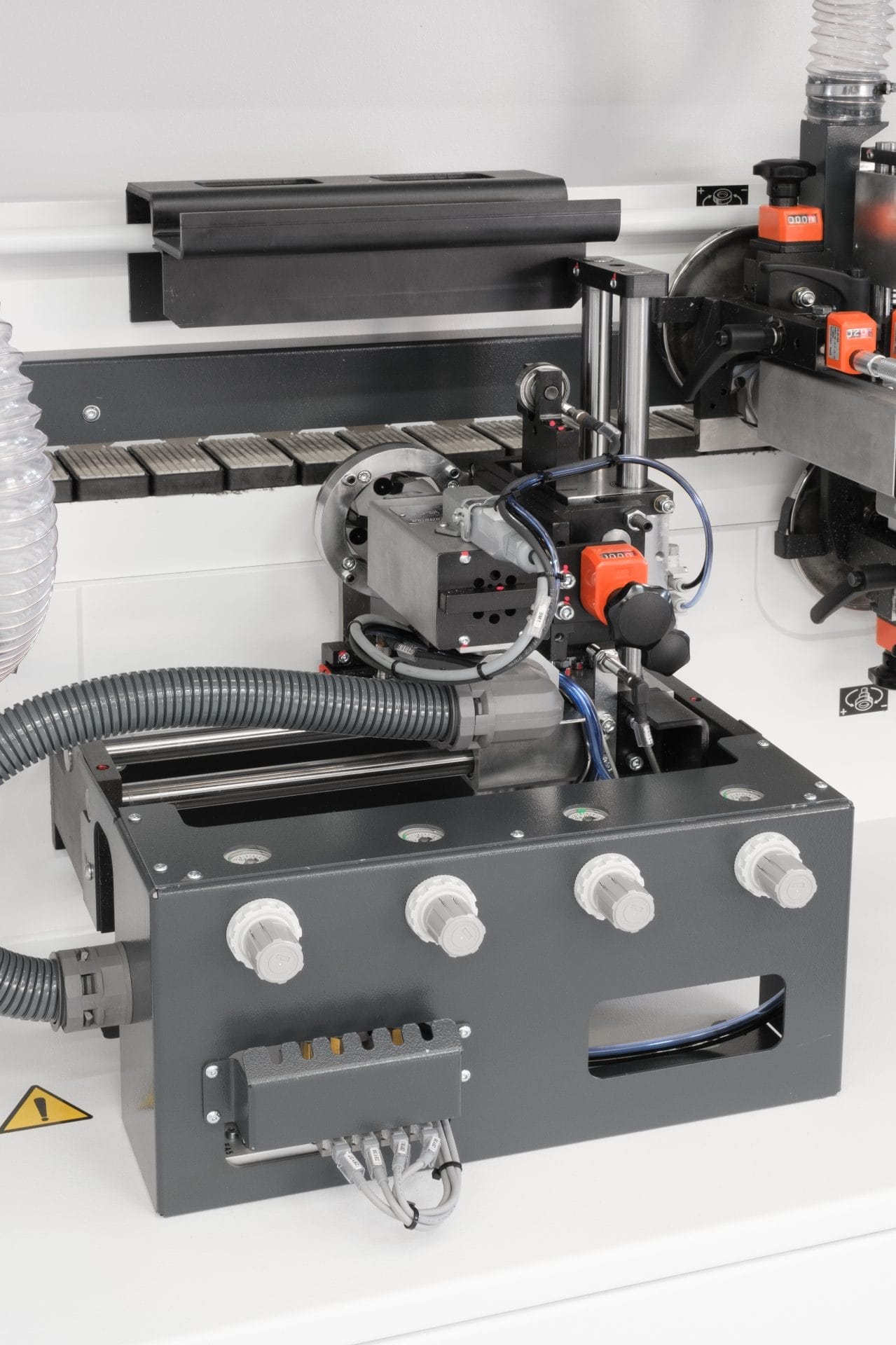

CR-2 CORNER RND
Radius scrapers RB-6
Glue scrapers RR-8
Buffers PC-3
Non-stick Agent spray at the infeed table
Cleaning Agent spray outfeed
Automatic positioning 2 pre-set positions included
Pneumatic on/off for Radius scrapers included
Pneumatic setting on/off for Glue scrapers included
DUOMELT Glue unit for fast and easy cleaning when changing from EVA to PUR and vice versa and different glue colours.Simple and efficient draining of the residual glue in the glue pot. Full Teflon coating of the whole assembly. 1.5kg capacity INCLUDED
