New Cehisa Model Dynamic 9 C-Motion Automatic Edgebander. Unbeatable Specification and Price
POA

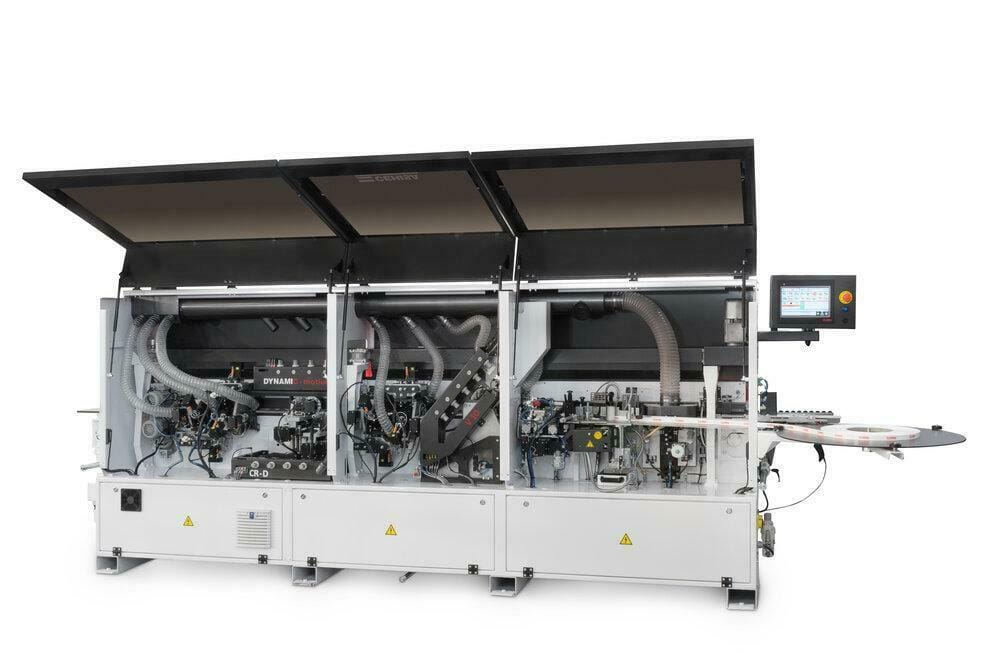

The Cehisa Dynamic 9 C-Motion Automatic Edgebander combines cutting-edge C-Motion technology with a compact design for maximum precision and efficiency. With motorised control over 18 axes, pre-milling, radius scrapers, and end trimming, it ensures flawless, high-quality edge finishes. Optional features include DUOMELT glue, pneumatic scrapers, buffing, preheating, and remote connectivity for professional workshop performance.
Product Features
- C-Motion technology with up to 18 motorised axes
- Motorised infeed fence control
- Pre-milling station (PF-2)
- Pressure roller station with motorised control
- Dual motor end trimming unit with pneumatic tilting
- Radius scraper with 6 motorised axes
- Multi-profile radius tooling
- Motorised pressure beam with encoder
- Automatic strip feed magazine (up to 6 mm lippings)
- Centralised dust extraction system
Description
Introducing the modern generation of Cehisa’s edgebanders, the Cehisa Model Dynamic 9 C-Motion Automatic Edgebander features innovative technology that has been combined with a smart, compact design to offer maximum versatility, efficiency and reliability.
Featuring C-Motion technology, absolute precision is guaranteed when adjusting the various processes and operational groups. The incorporation of C-motion technology means that this edgebander has cutting-edge software with a highly intuitive interface that allows the adjustment of up to 18 axes – granting absolute command of the edgebander. A sure-fire way to produce super-high-quality finishes.
For effective machining suitable for professional craftsmen, this elite model of Cehisa edgebander includes a variety of functions including:
- An infeed fence with motorised axis control
- Pre-milling station (PF-2)
- Pressure roller station with motorised axis control

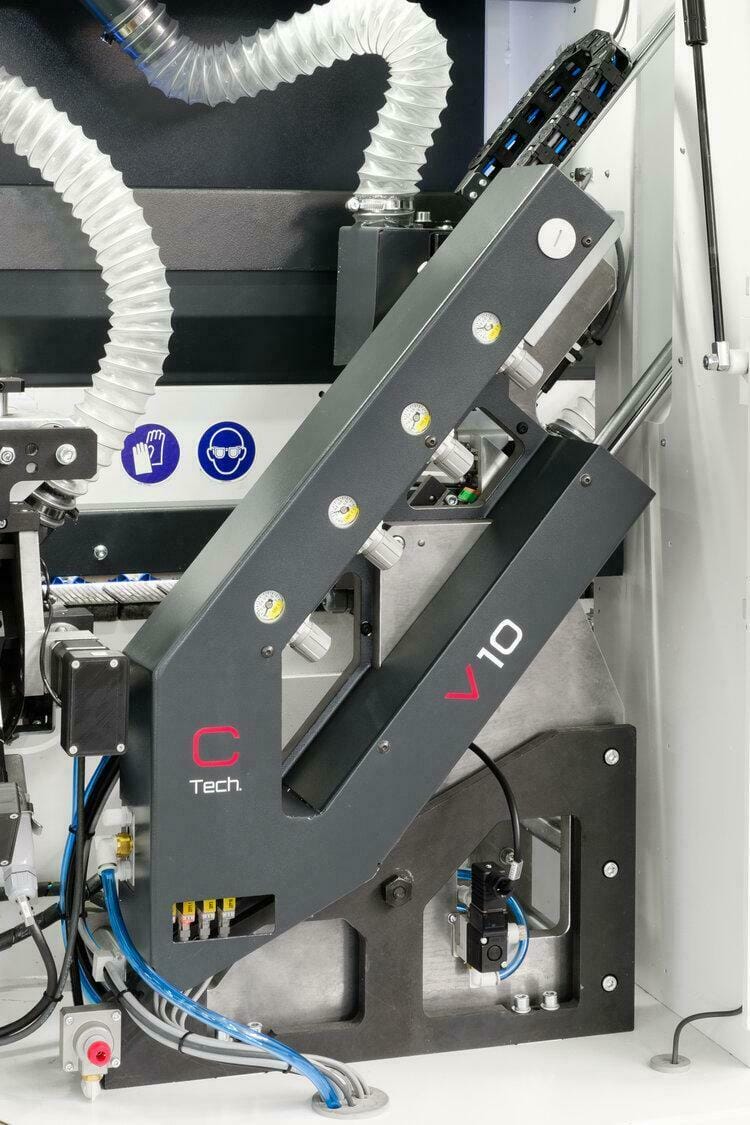

- 2 motor end trim with pneumatic tilting of saws (V-10N)
- Radius scraper with 6 motorised axis (RB-10M)
- Multi-profile radius tools on BC-6M and RB-10M
- Motorised pressure beam with encoder
- Pressure beam rollers with bearings
- Connectivity kit for remote control
- Automatic strip feed magazine (for up to 6mm lippings)
- A centralised dusting system
Optional Features Included:
- Glue Scraper with pneumatic activation
- Buffing unit

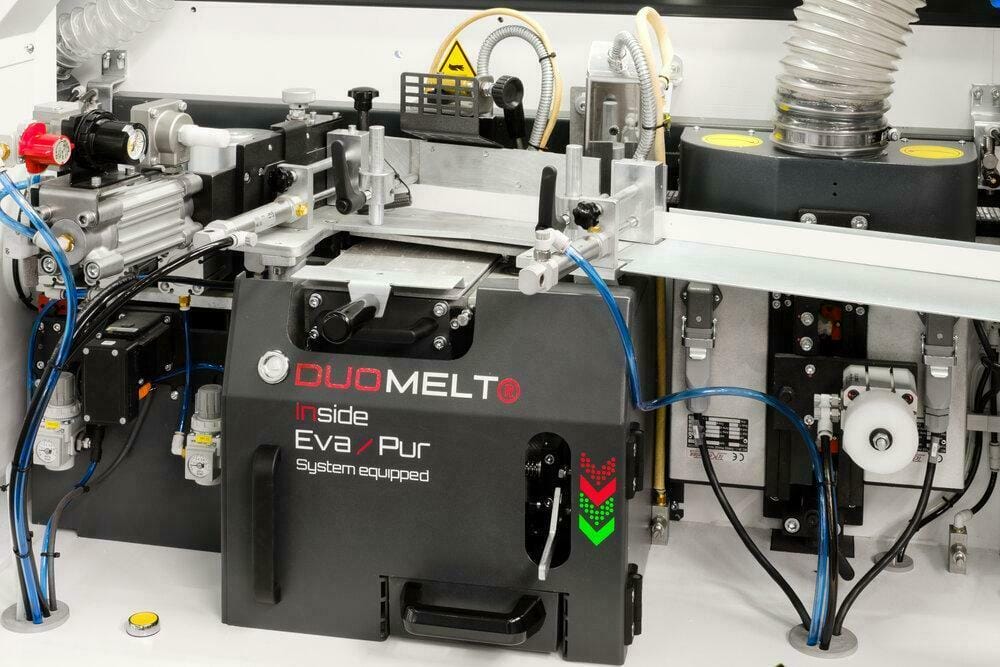

- Duo-melt pack
- New cylinder for interval improvement
- Non-stick agent spray
- Antistatic agent spray
- Cleaning agent spray
- Preheating at the entrance (infrared lamp)
- DIA tools H65mm on the pre-milling unit instead of H30mm
- Nesting tracers
Specifications
Infeed Fence with motorised axis control
Pre-Milling Station (PF-2)
Pressure Roller Station with motorised axis control
2 Motors End Trim with Pneum. tilting of saws (V-10N)
Top & Bottom Trim Station with 6 motorised axis (BC-6M)
2 Motors Corner Rounding with 4 motorised axis (CR-3M)
Radius Scraper with with 6 motorised axis (RB-10M)
Multi profile radius tools on BC-6M and RB-10M
Motorised pressure beam with encoder
Pressure beam rollers with bearings
Connectivity Kit for remote control
Automatic strip feed magazine (for up to 6mm lipings)
Centralised dusting system
Options INCLUDED
Glue Scraper with Pneumatic activation (RR-8N)
Buffing Unit (PC-5)
Duo-Melt Pack
New cylinder for interval improvement
Non-stick agent spray at entrance
Antistatic agent spray at middle
Cleaning agent spray at exit
Preheating at entrance (Infrared Lamp)
DIA tools H65mm on Pre-milling unit instead of H30mm
Nesting tracers
LED Cabin Lights
LED Motion system
