Accord 25 FX

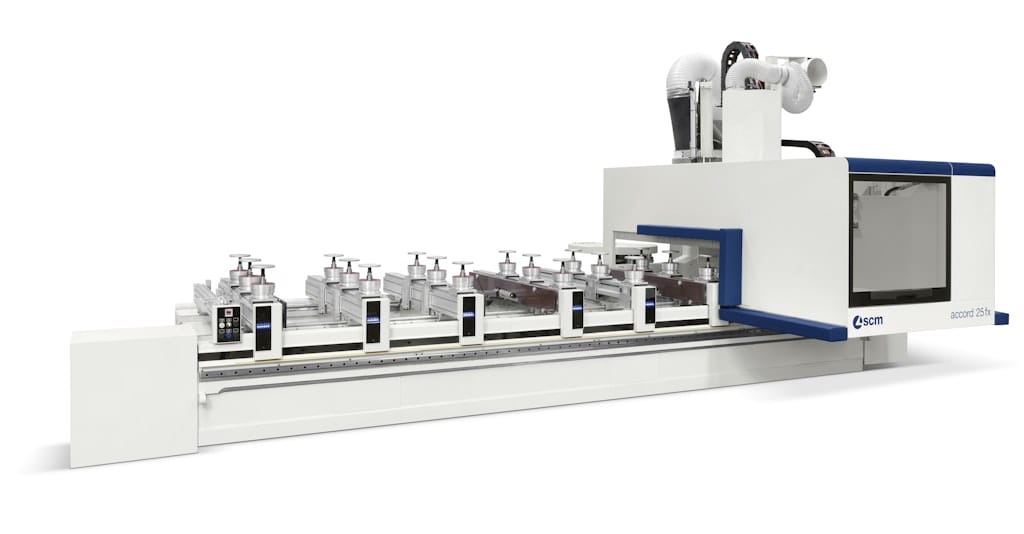

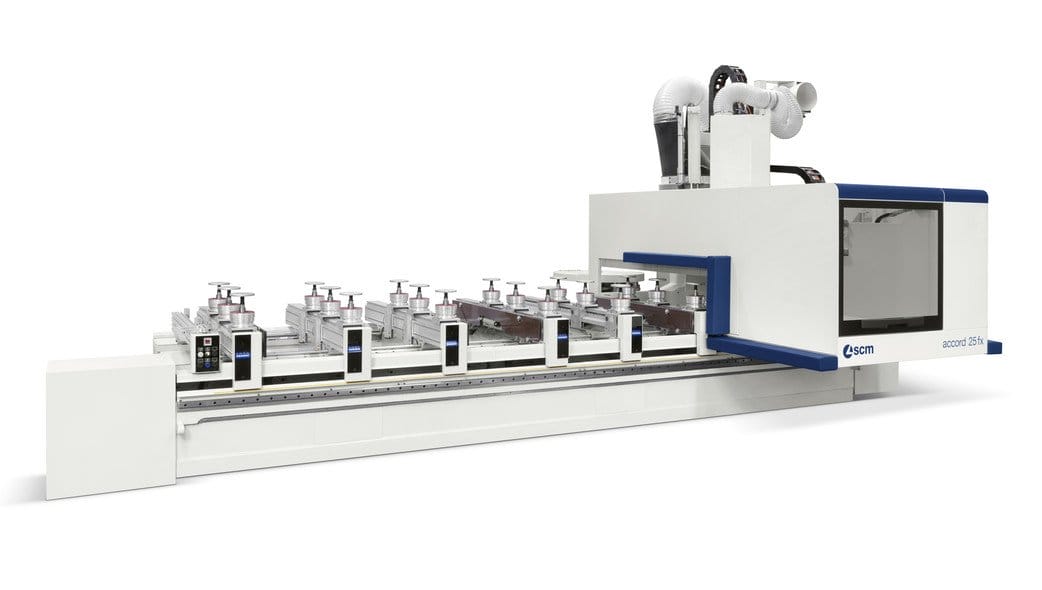

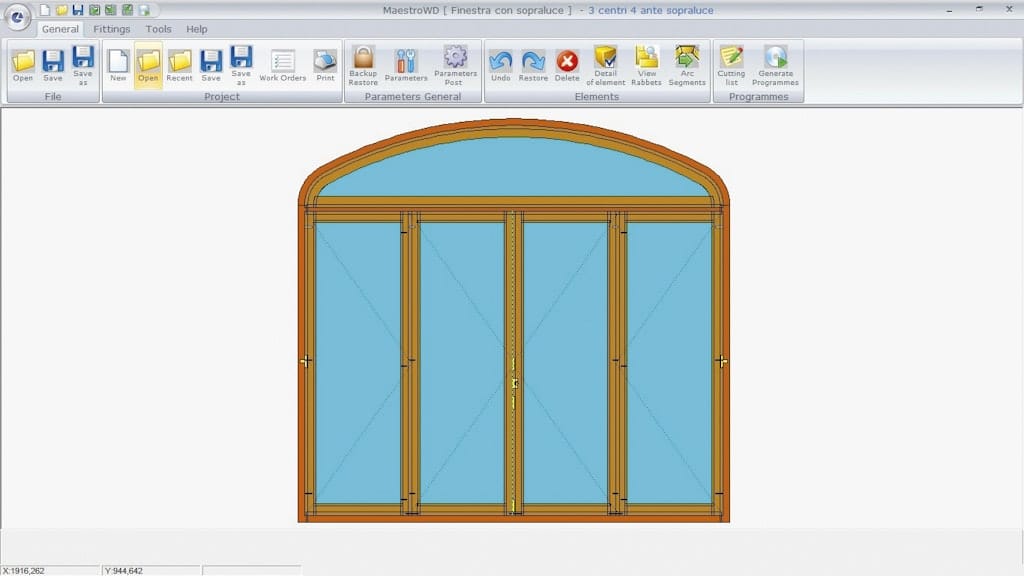

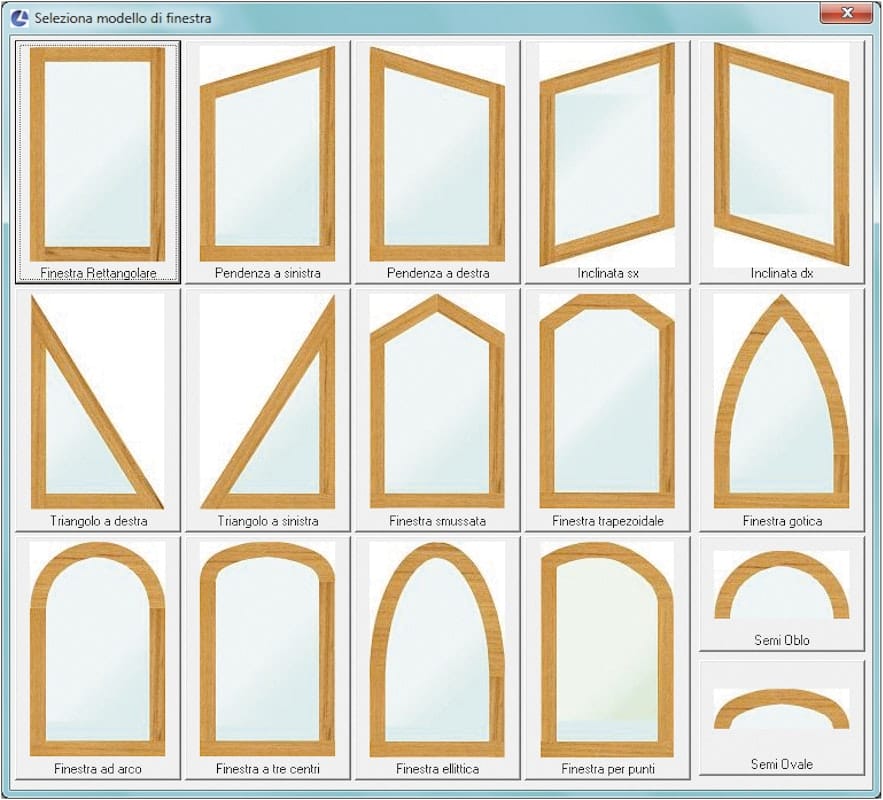

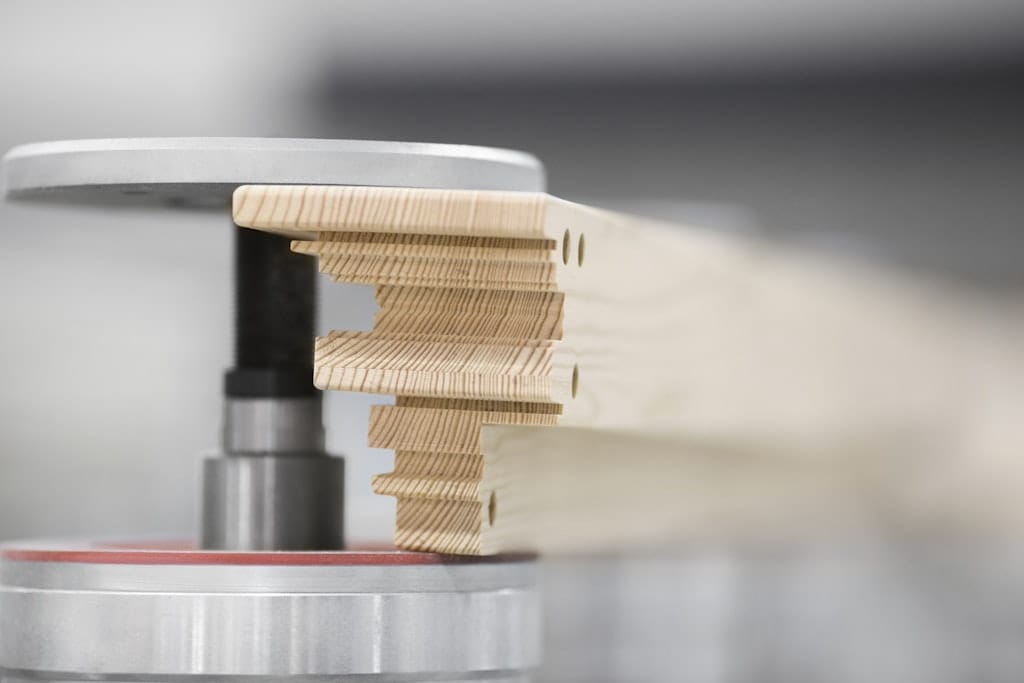

The SCM Accord 25 FX is a CNC machining centre designed to deliver high performance with minimal investment. Tailored for small to medium-sized workshops, it combines advanced technology with user-friendly operation, making it ideal for the flexible production of doors, windows, stairs, solid wood components, and the machining of wood and other materials.

Key Features:

• Versatile Production: Capable of handling various products due to its expanded machining dimensions and the availability of numerous tools within the machine.

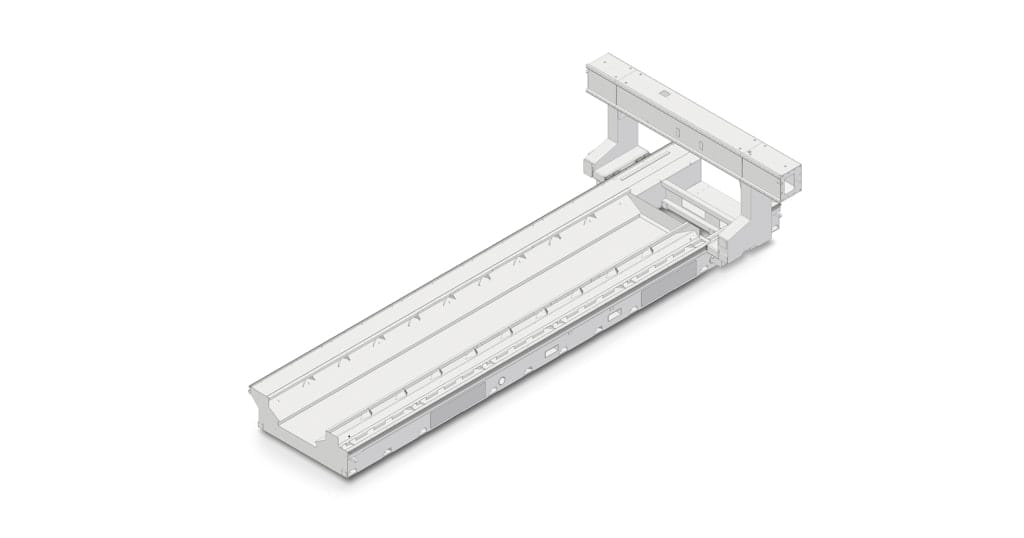

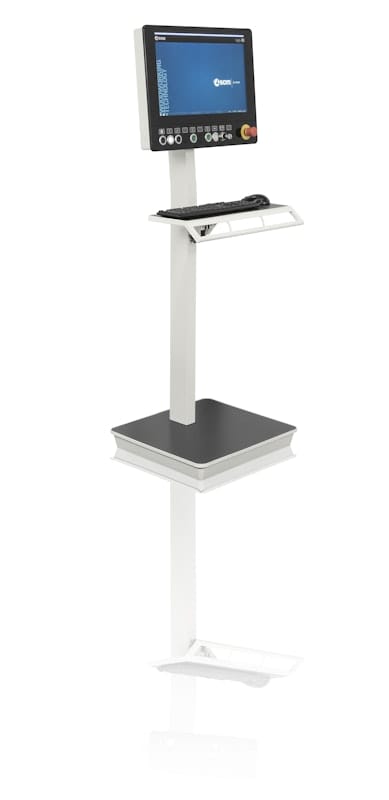

• High-Quality Finish: Ensures top-level precision and finishing across the entire machining area, thanks to its robust construction and advanced control systems.

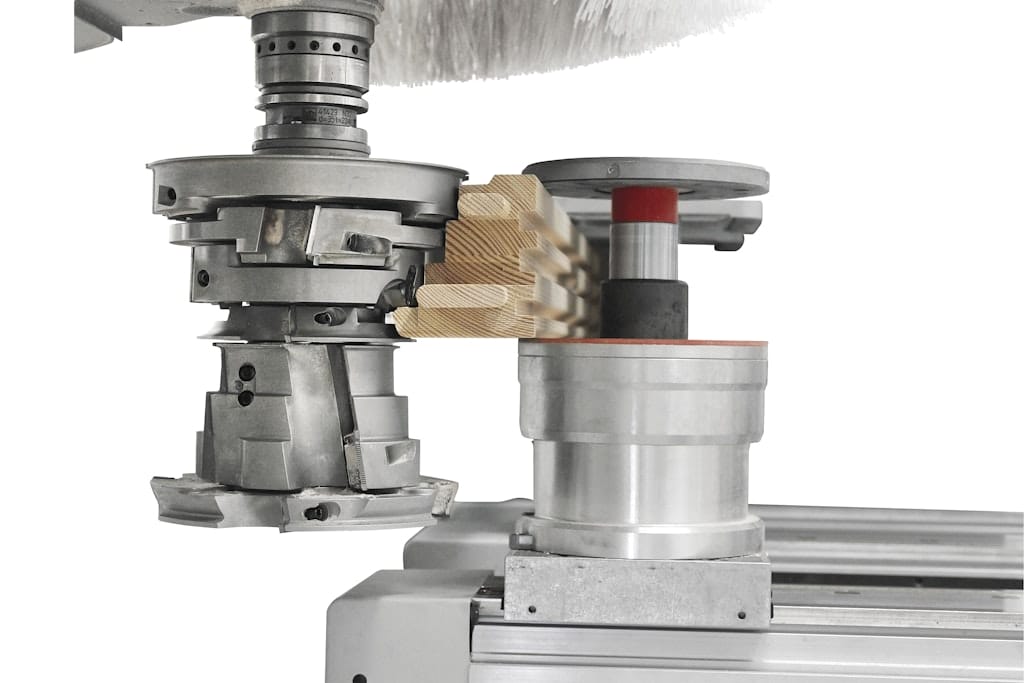

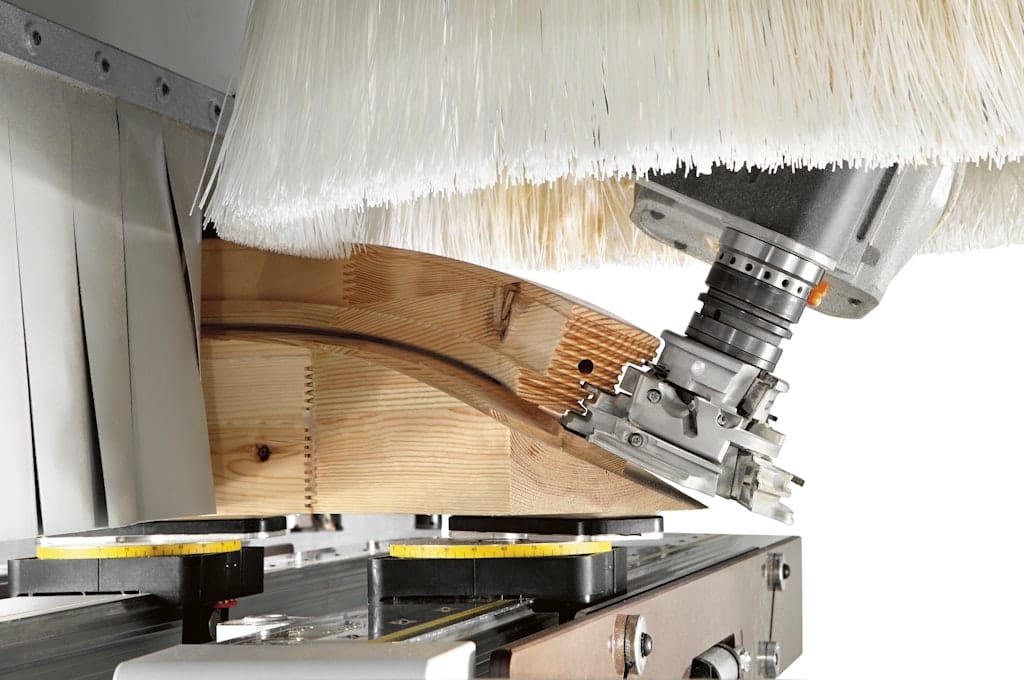

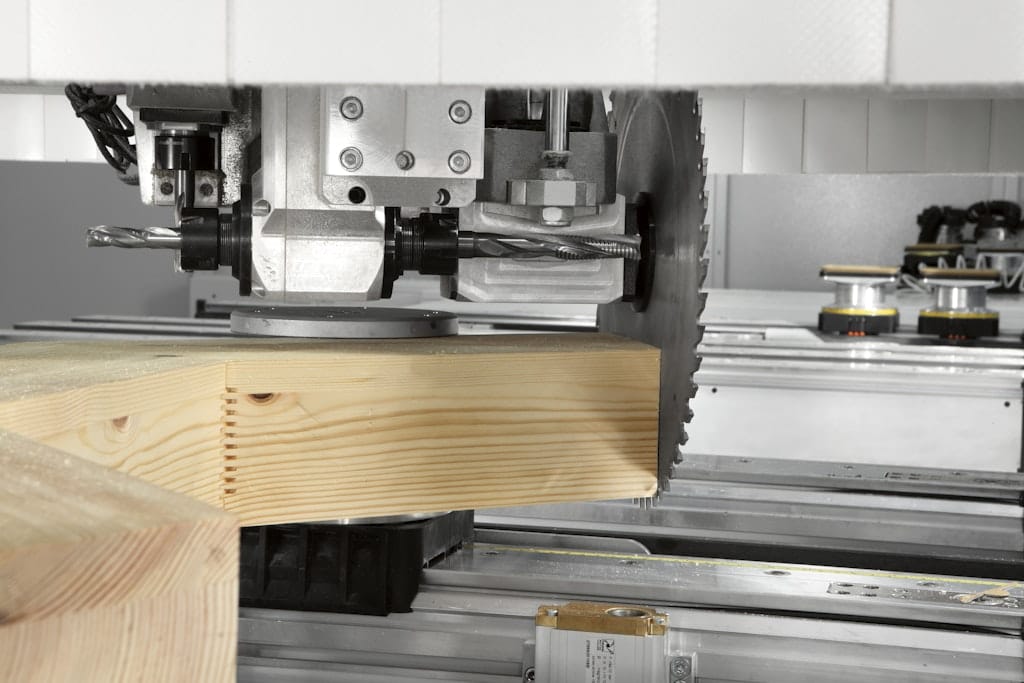

• Large Workpiece Machining: The significant vertical stroke allows for the machining of workpieces up to 250 mm in height using large tools.

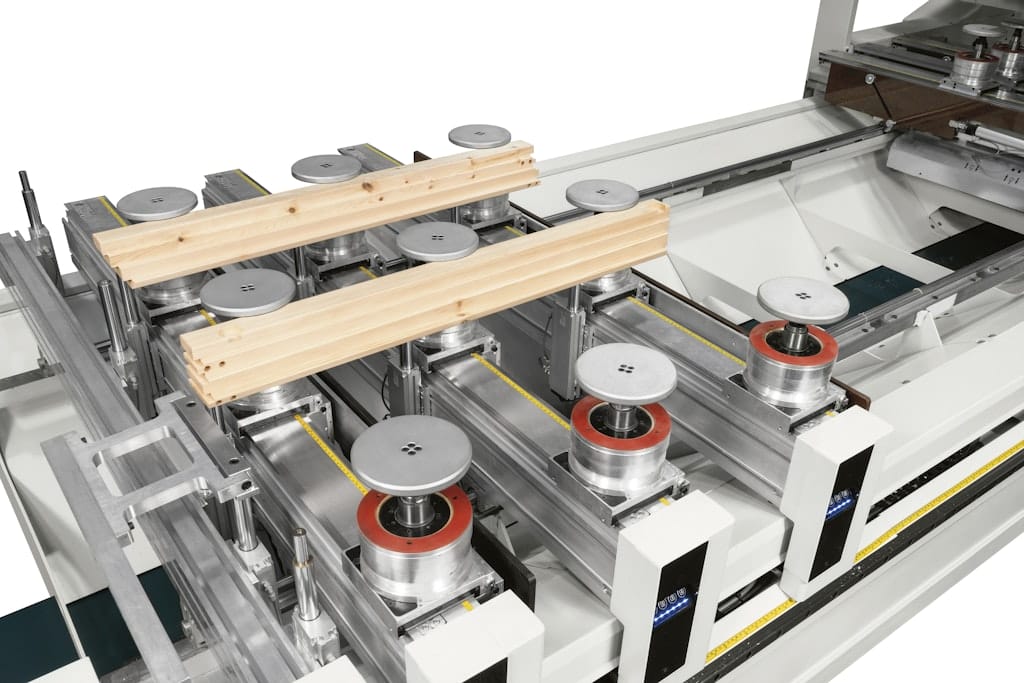

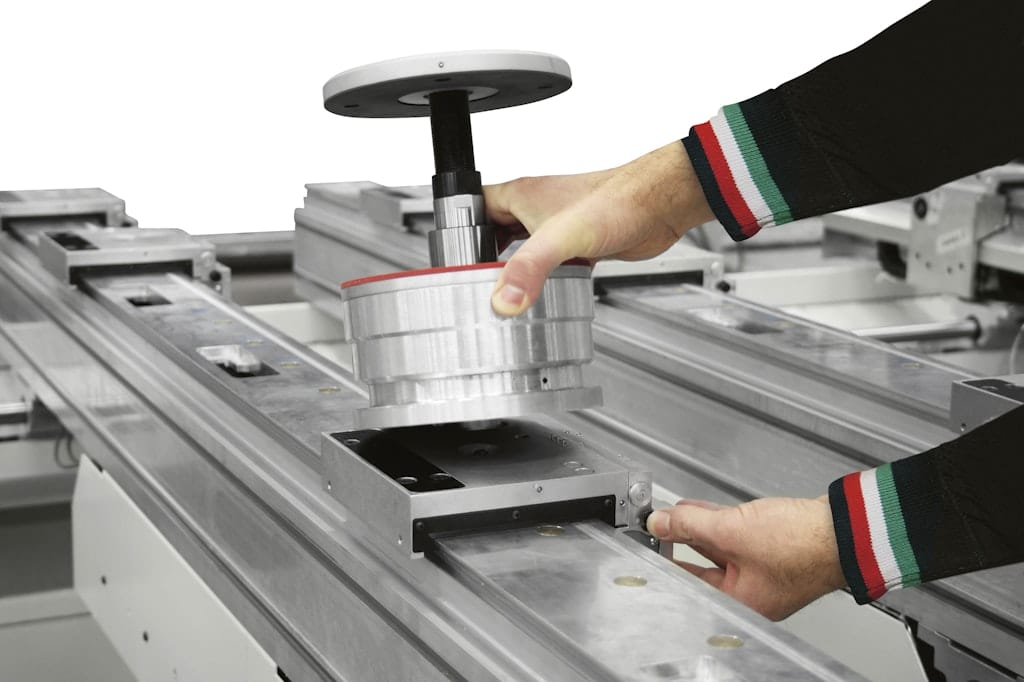

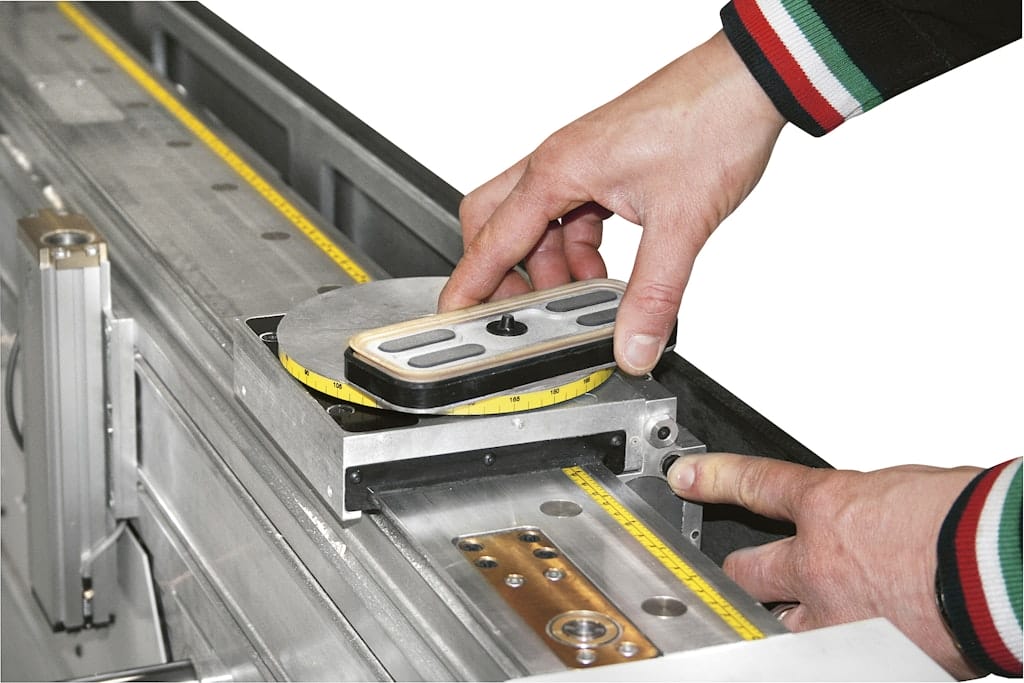

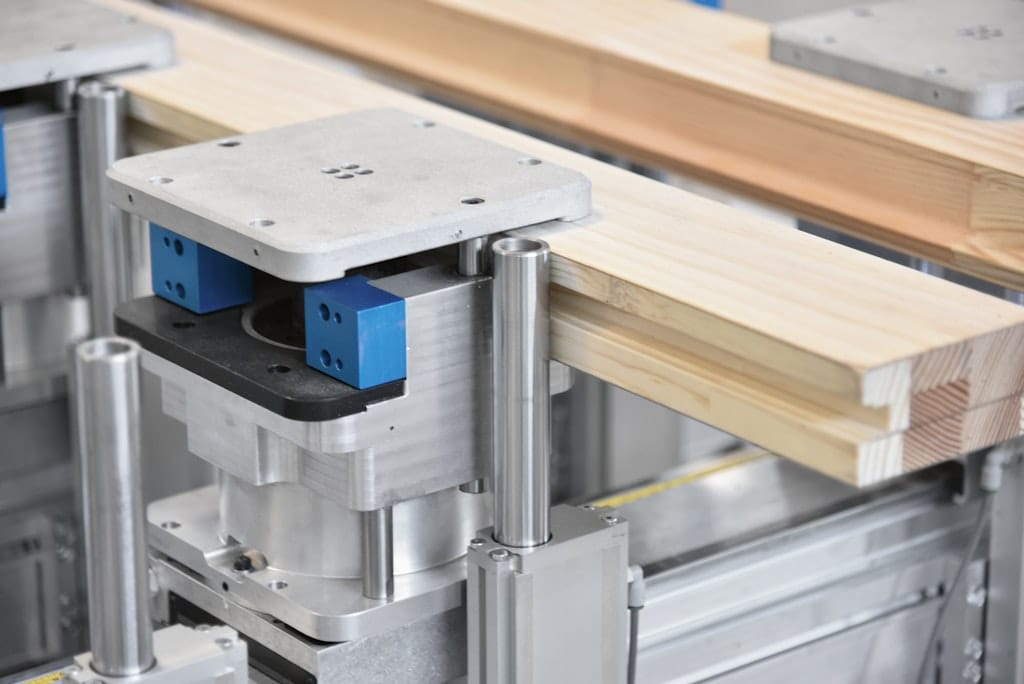

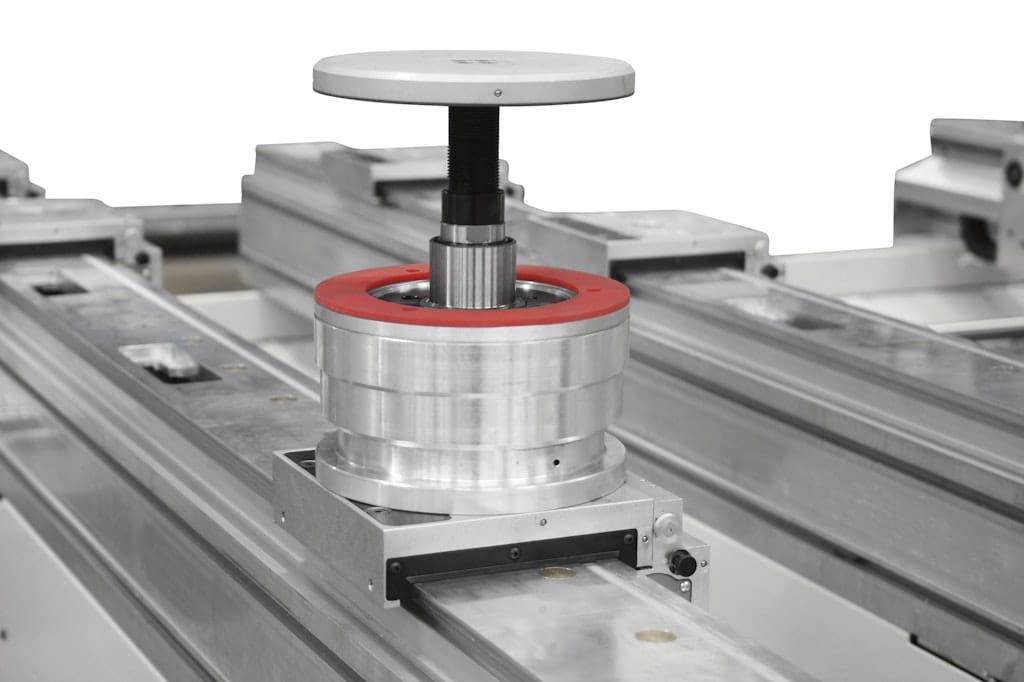

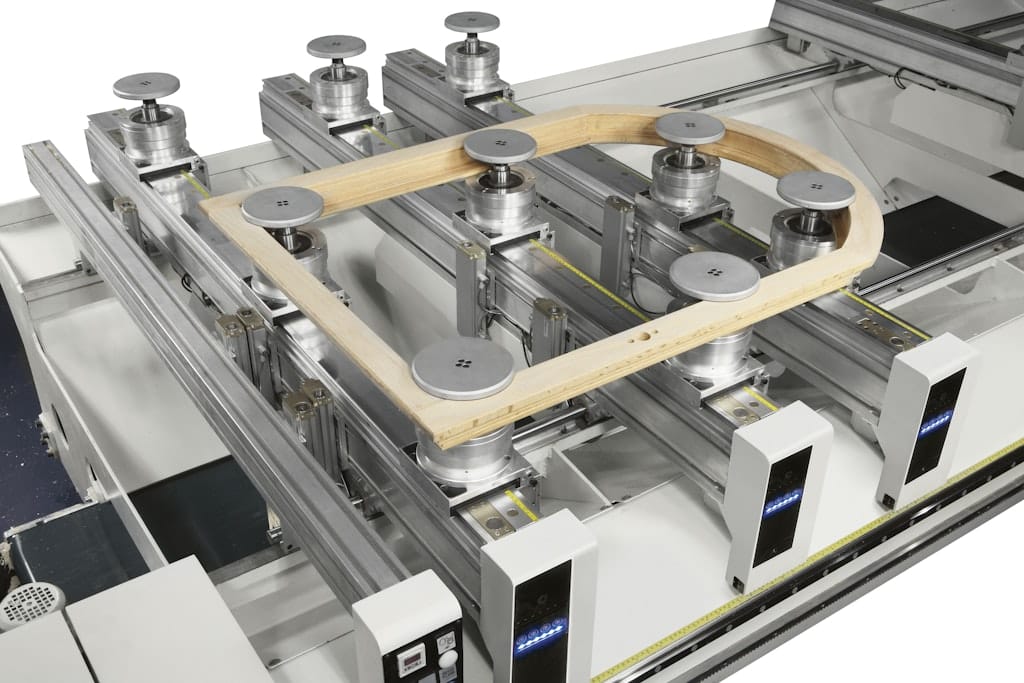

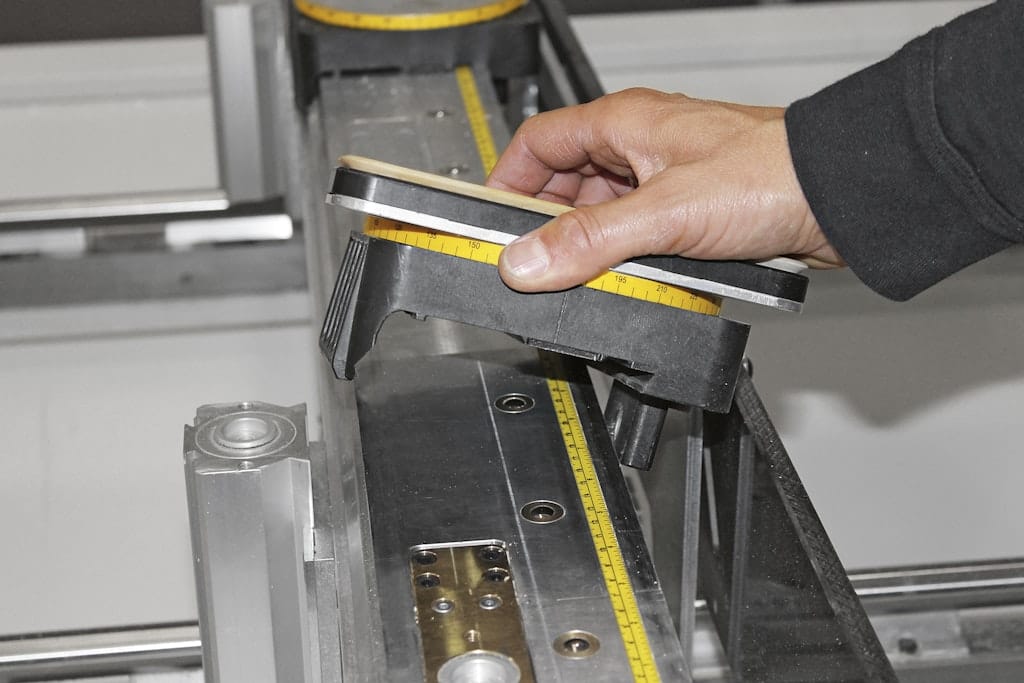

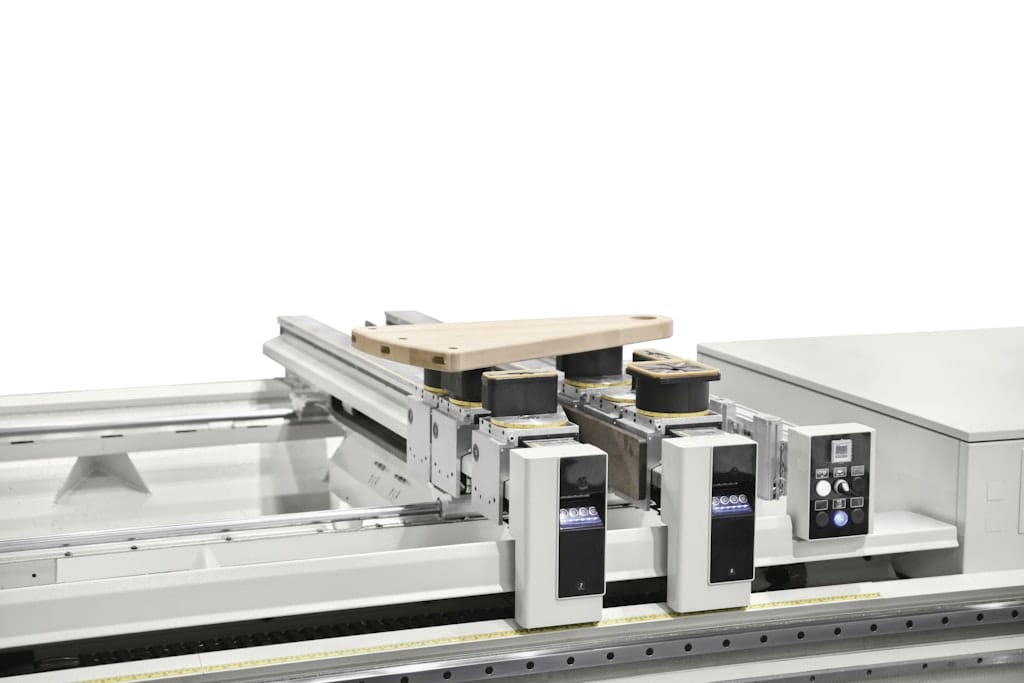

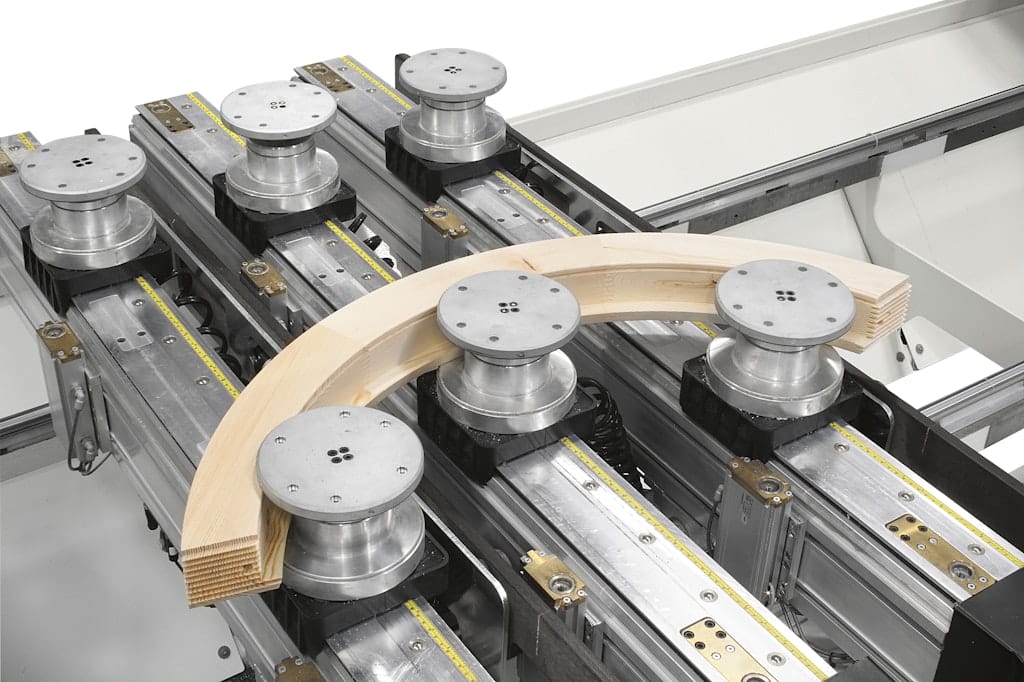

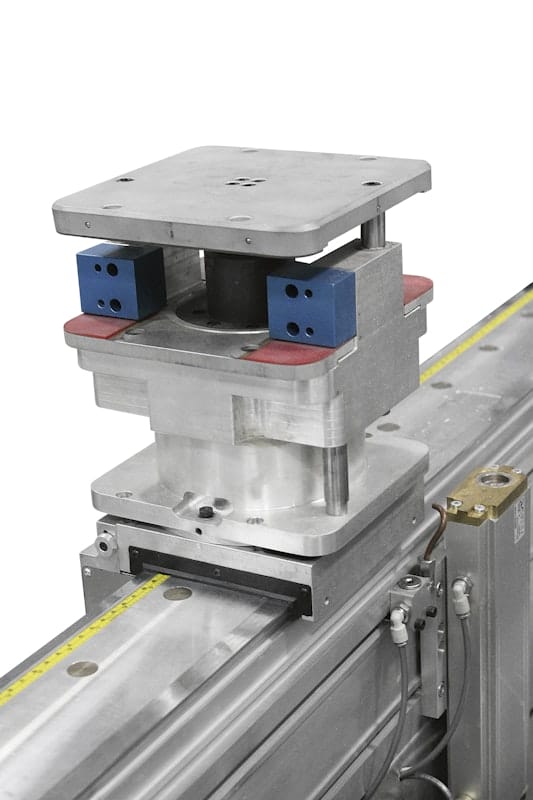

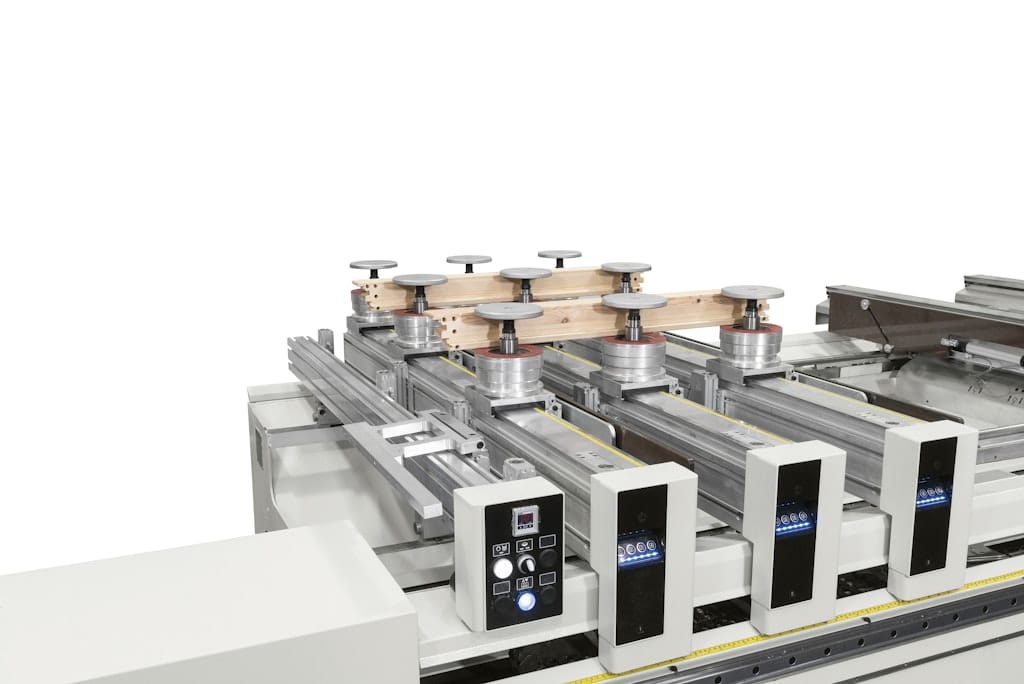

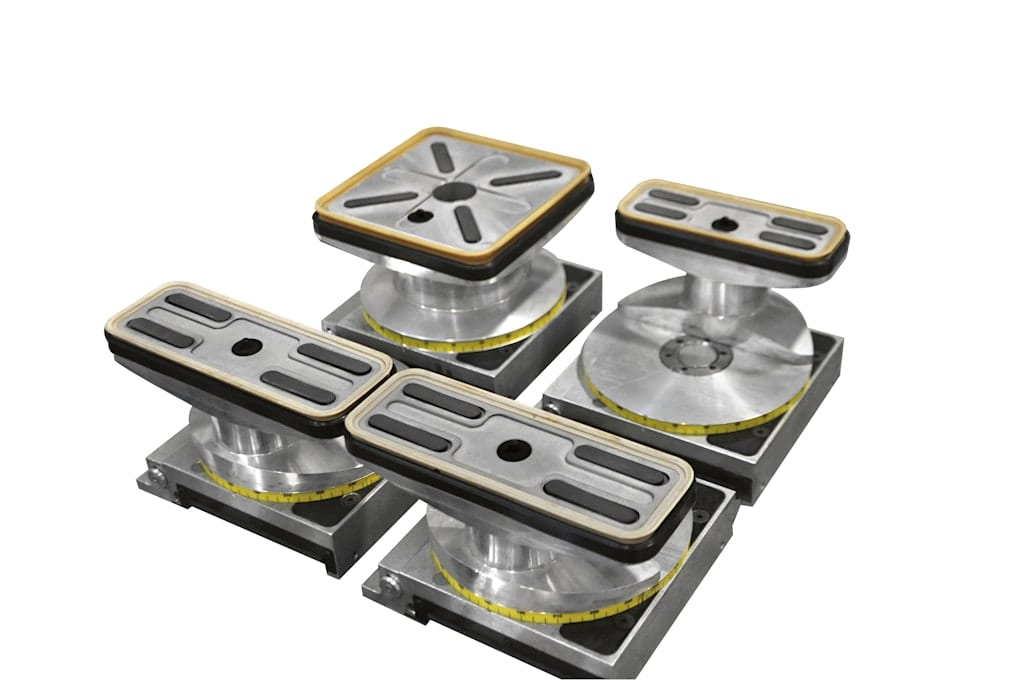

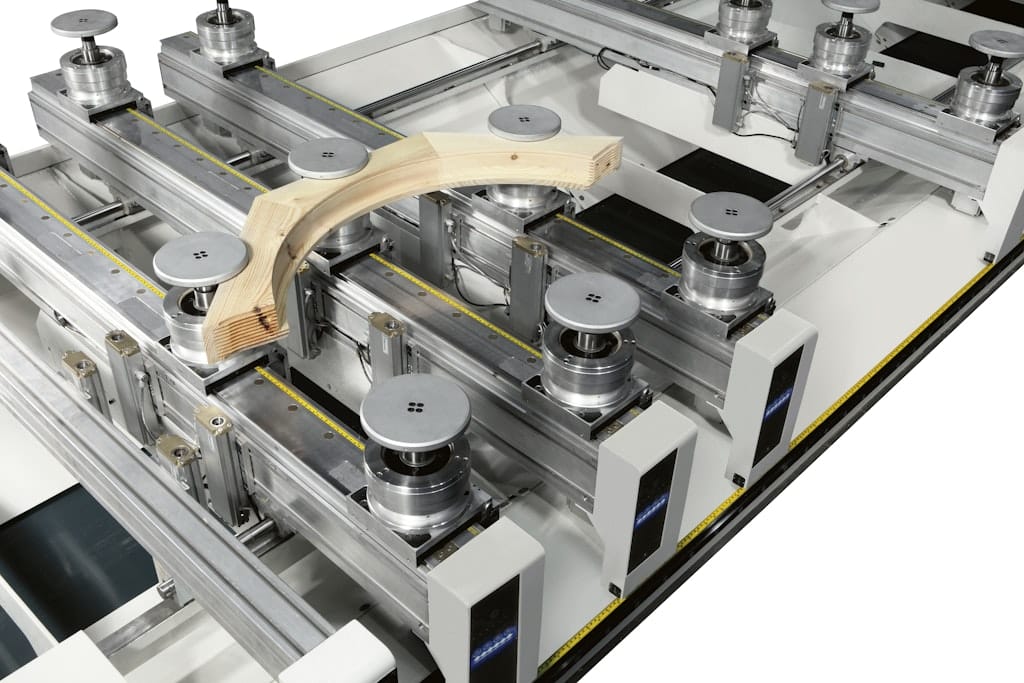

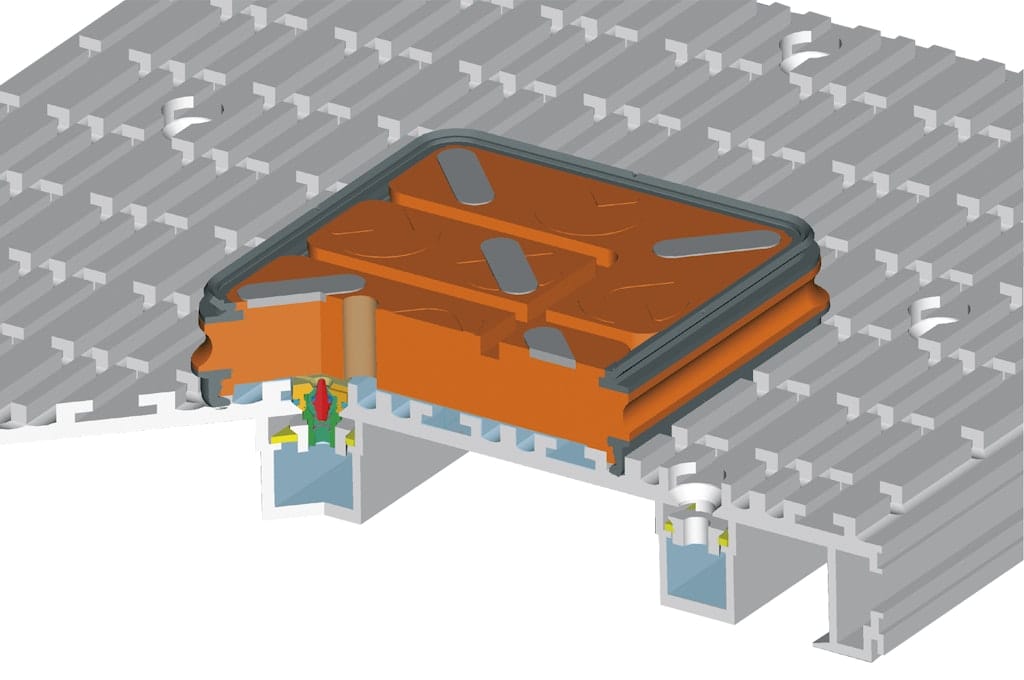

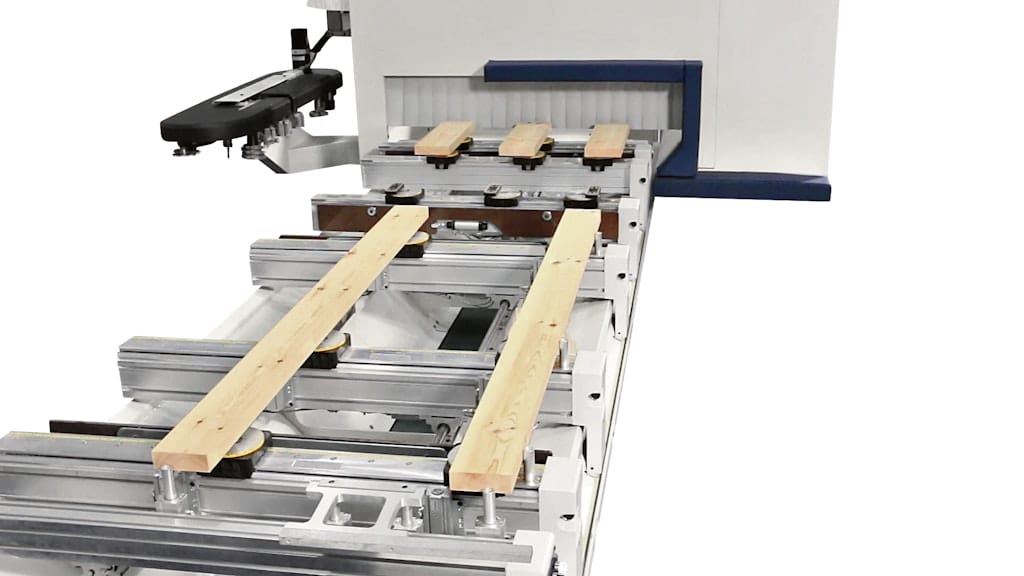

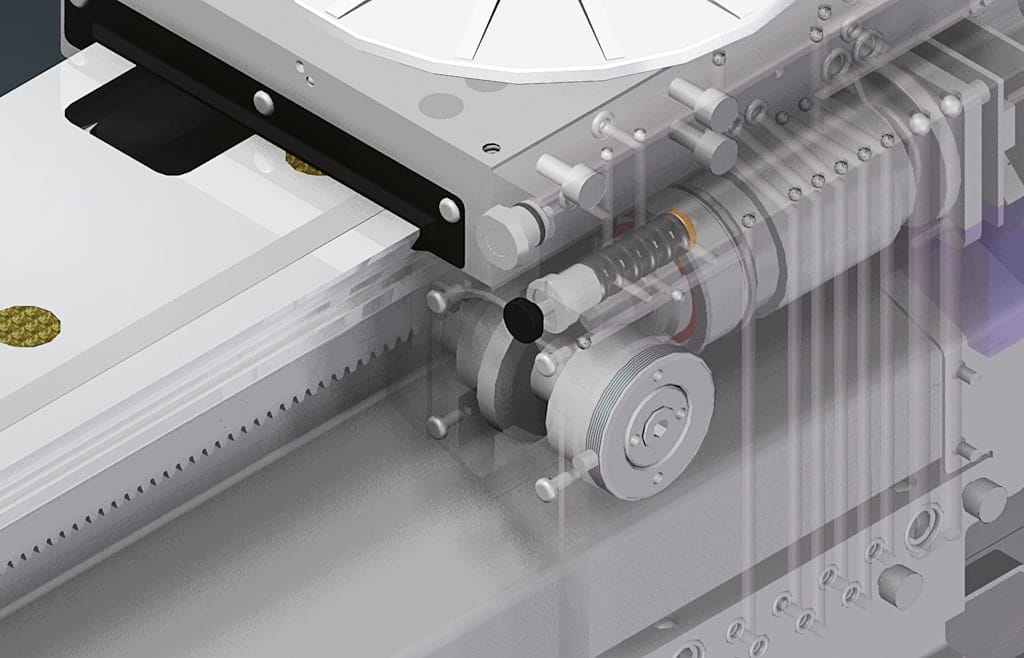

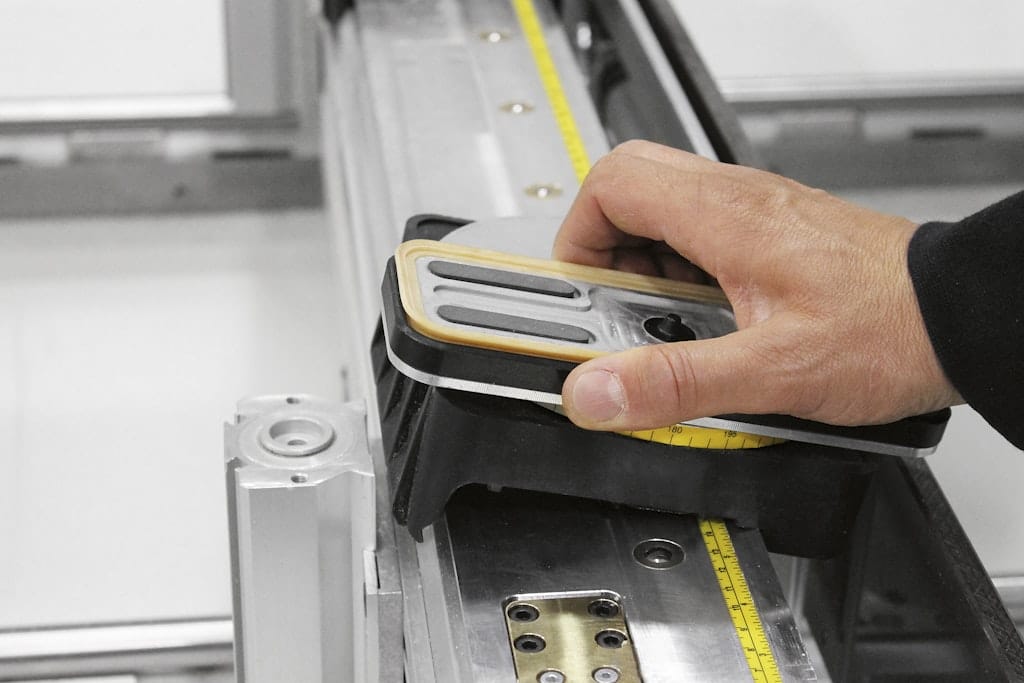

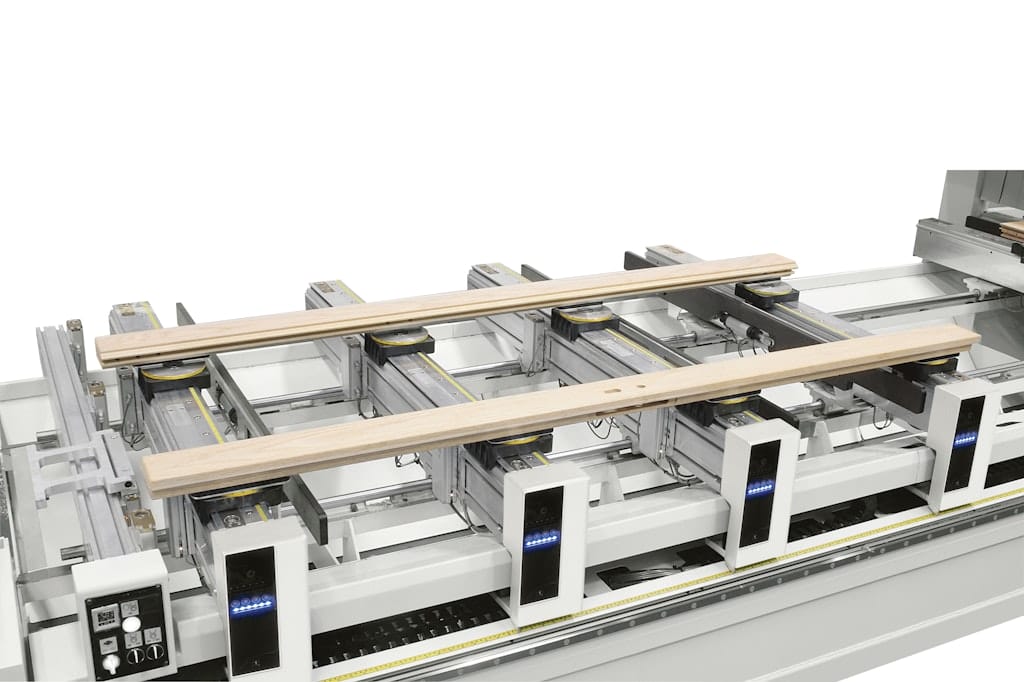

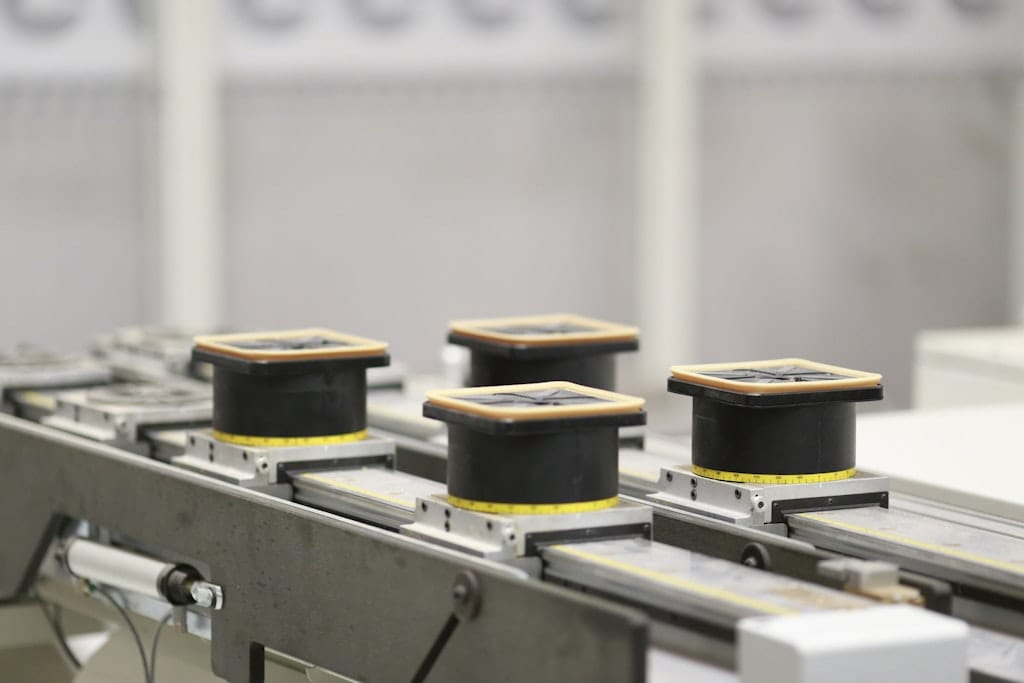

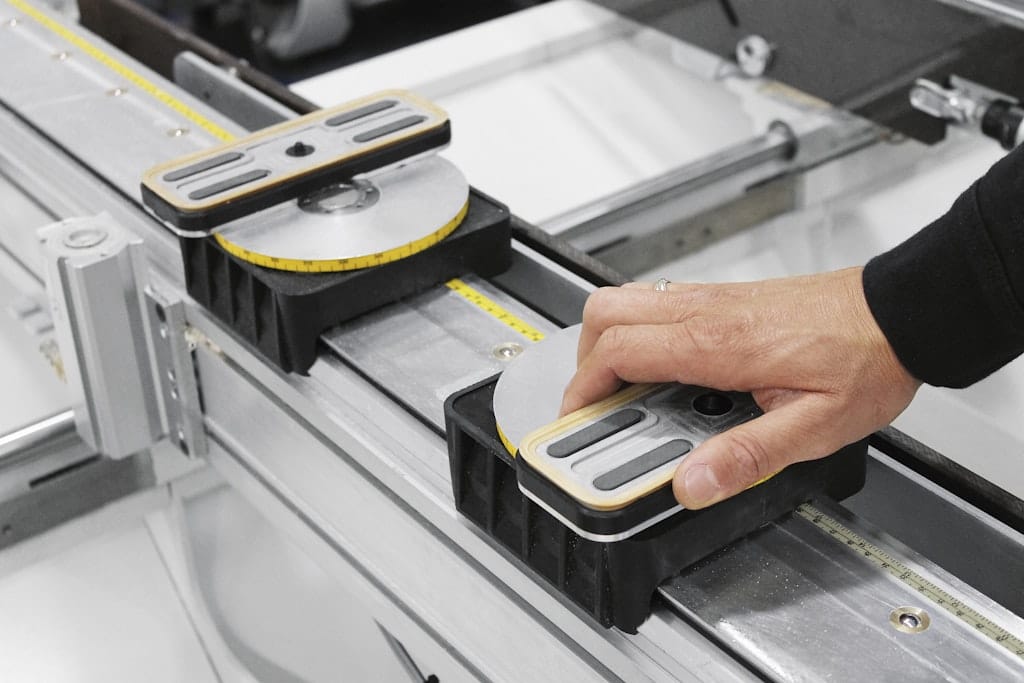

• Automatic Worktable Positioning: Features the MATIC worktable with automatic positioning, enabling rapid and precise setup of workpiece hold-down devices, enhancing efficiency and reducing manual intervention.

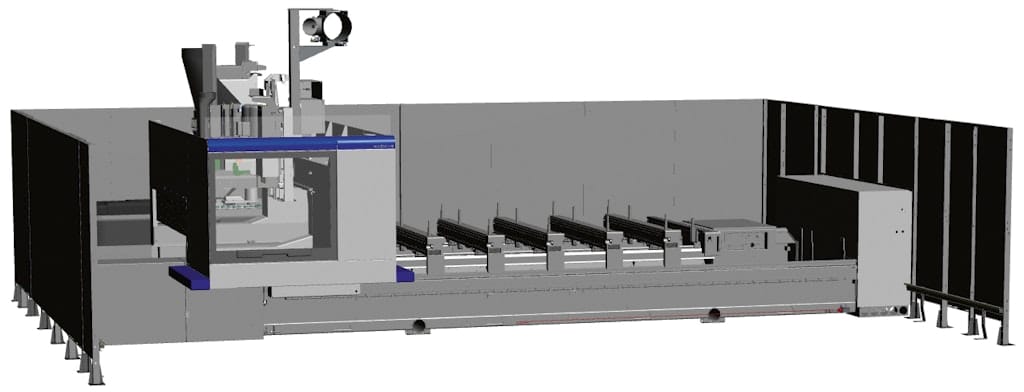

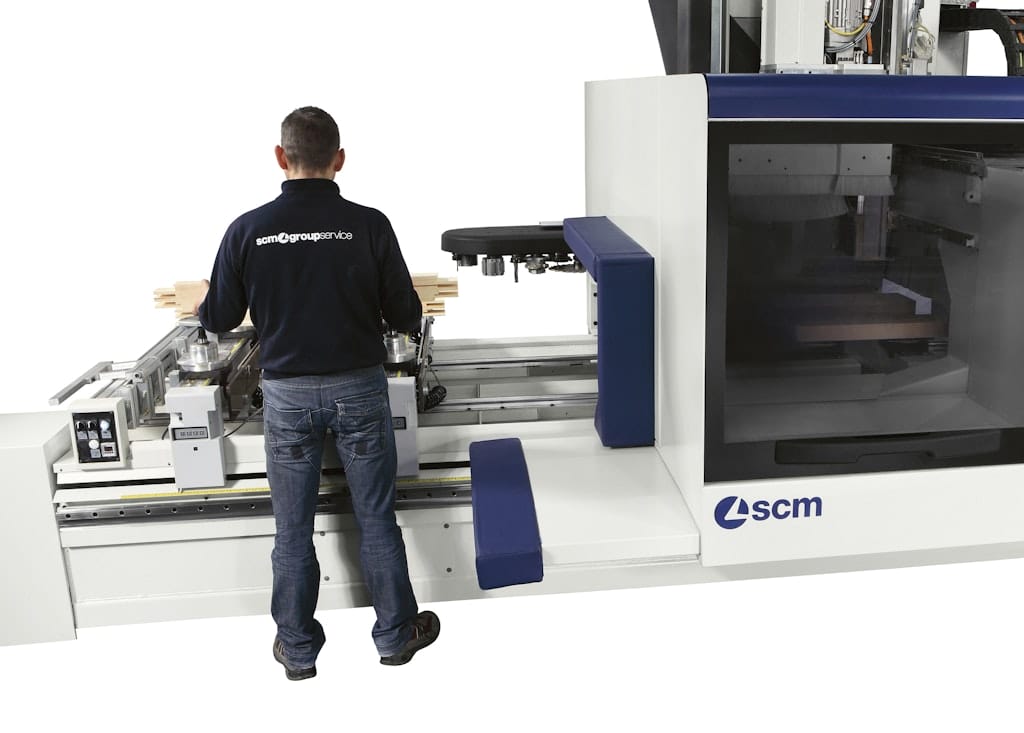

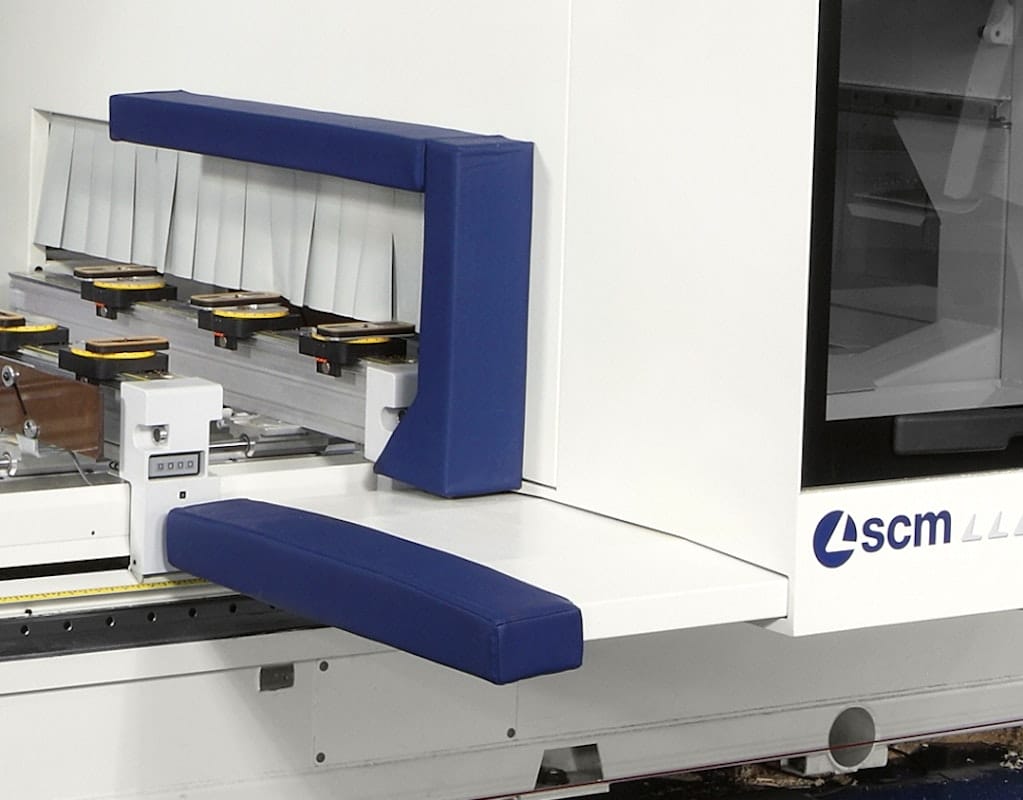

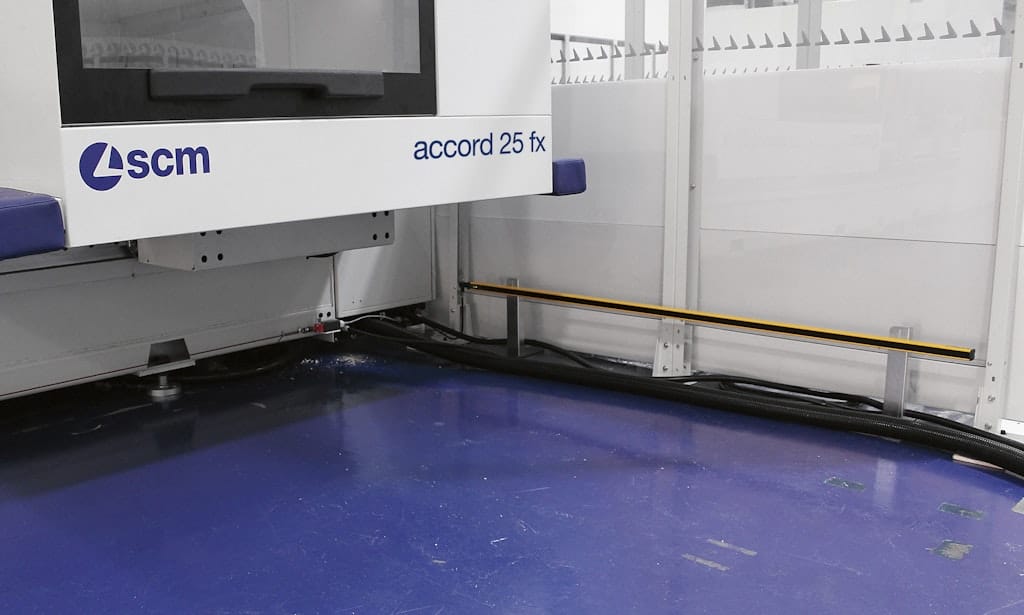

• Ergonomic and Safe Operation: Incorporates the Pro-Speed system with horizontal photocells and new bumpers on the movable guard, combining maximum access to the worktable with total operator safety during operations.

Technical Specifications:

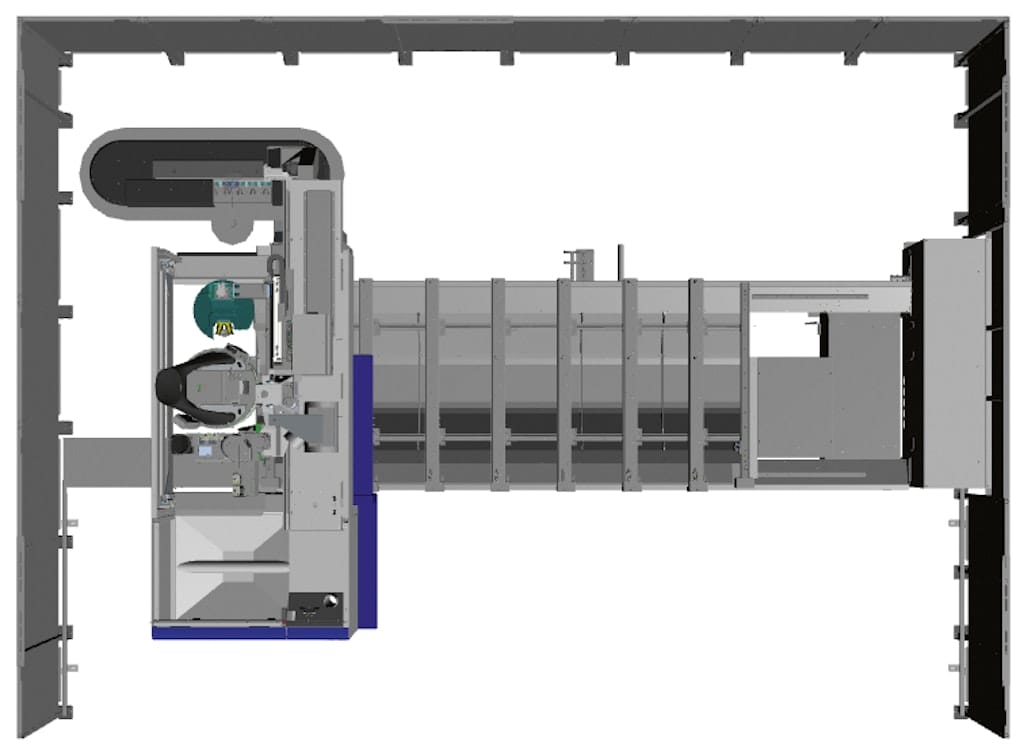

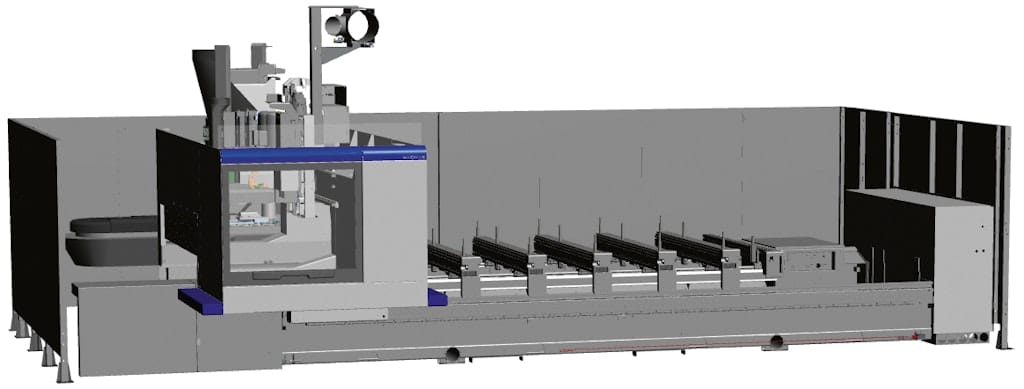

• Working Areas (X-Y-Z axes dimensions): Available configurations include 3680x1380x250 mm, 5020x1380x250 mm, and 6360x1380x250 mm, among others.

• Axes Maximum Speed: X and Y axes up to 60 m/min; Z axis up to 30 m/min.

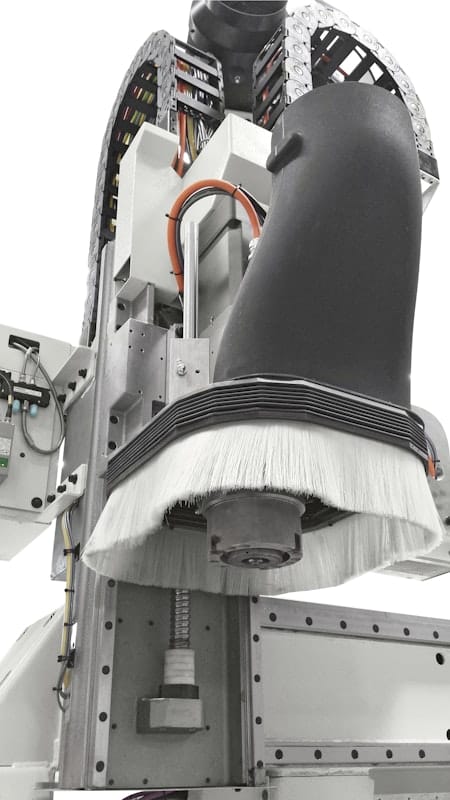

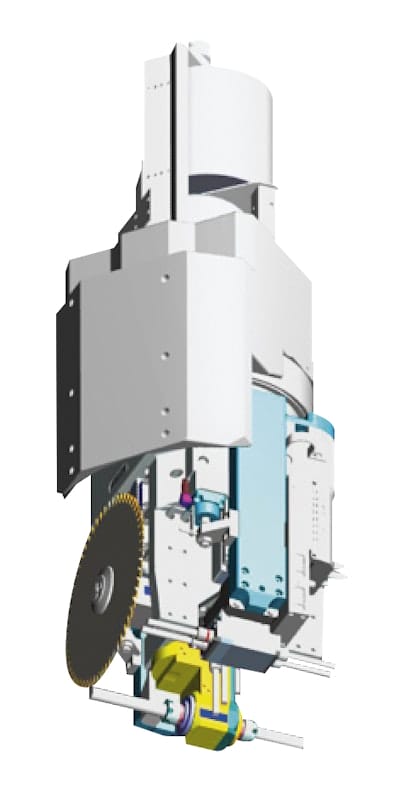

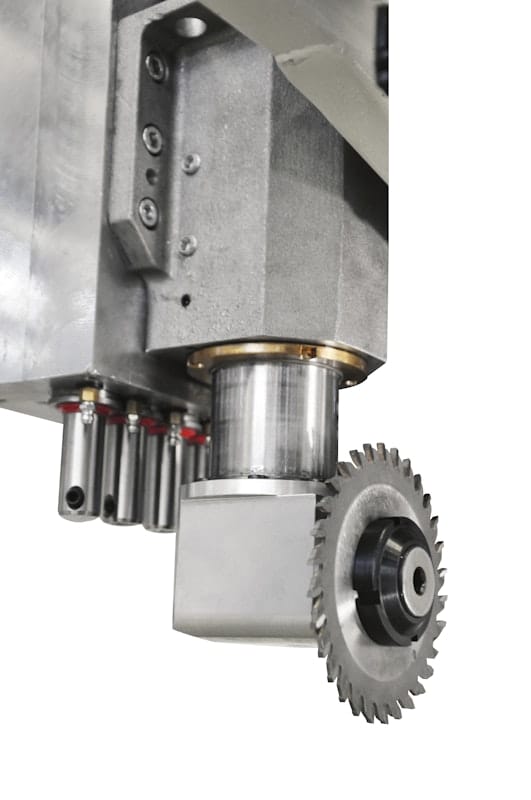

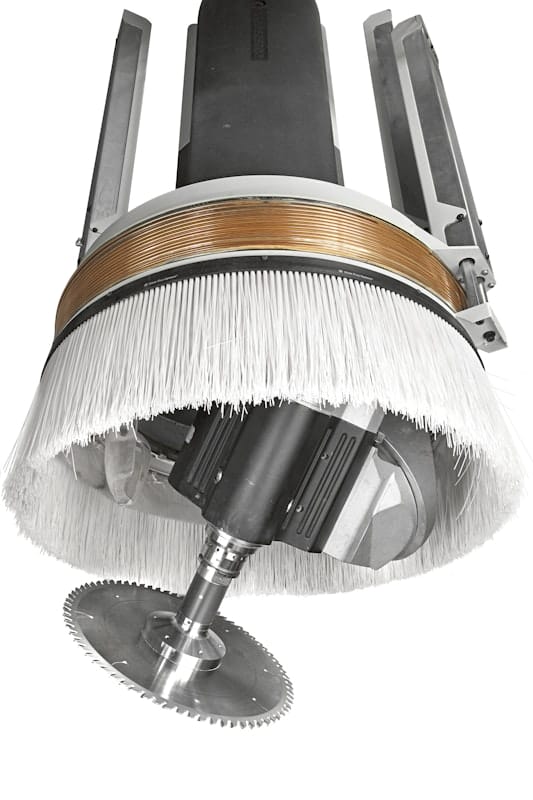

• Machining Head Options:

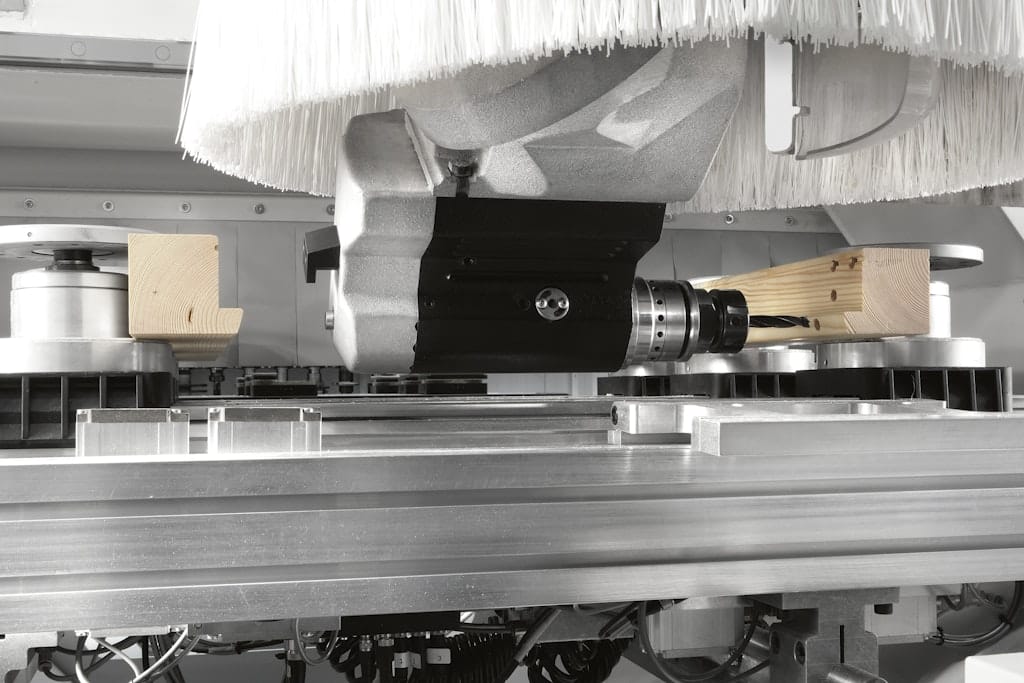

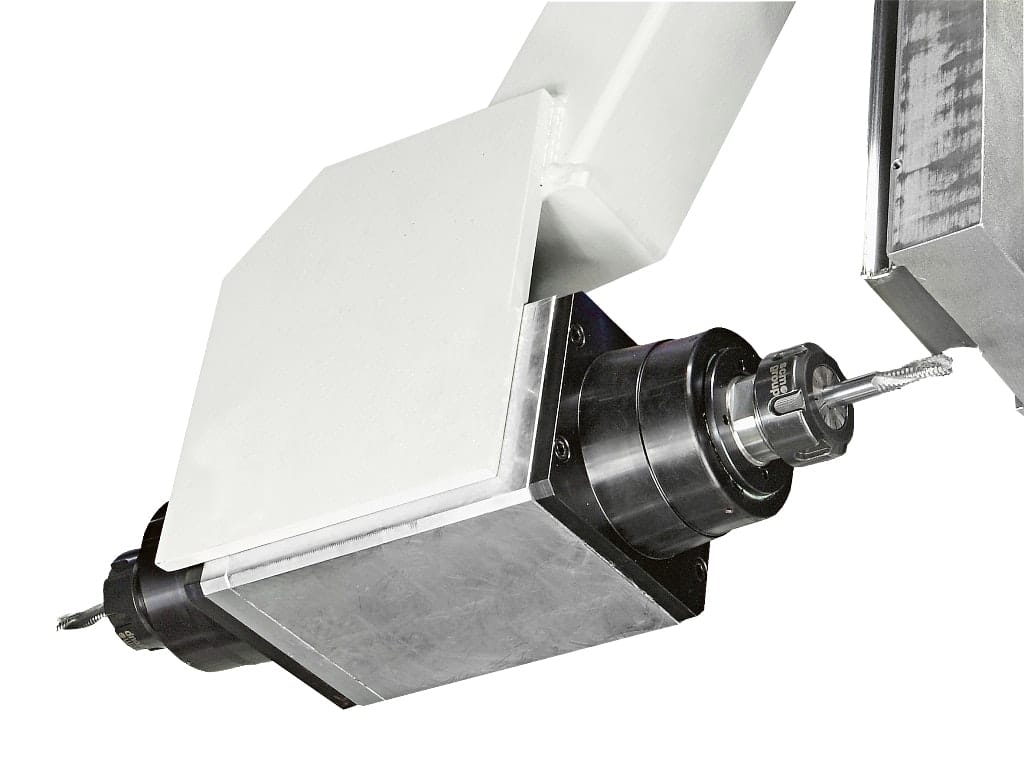

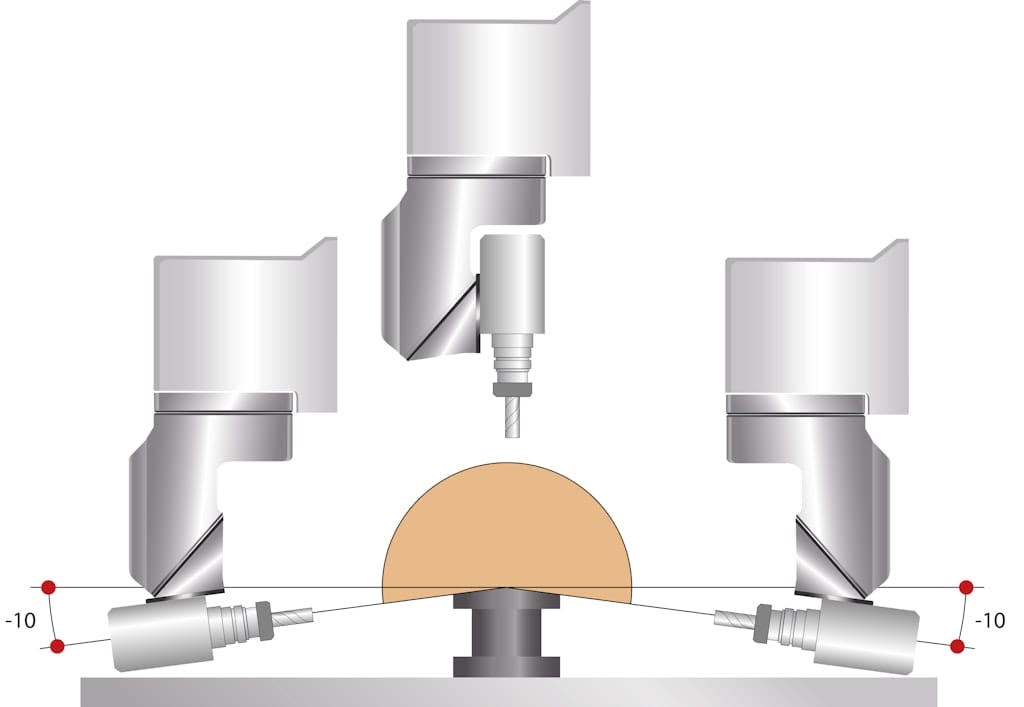

  • 5-Axis Electrospindle: Maximum motor power of 12 kW with a rotation speed up to 24,000 rpm.

  • 3/4-Axis Electrospindle: Maximum motor power of 15 kW with a rotation speed up to 24,000 rpm.

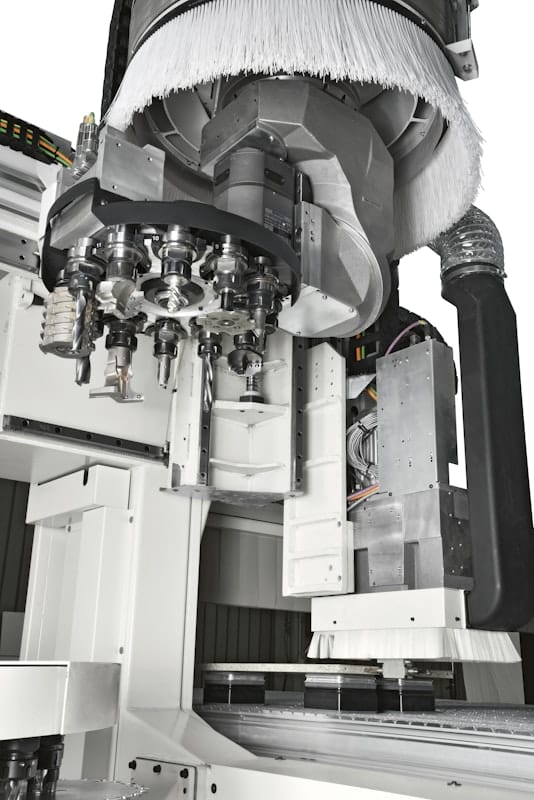

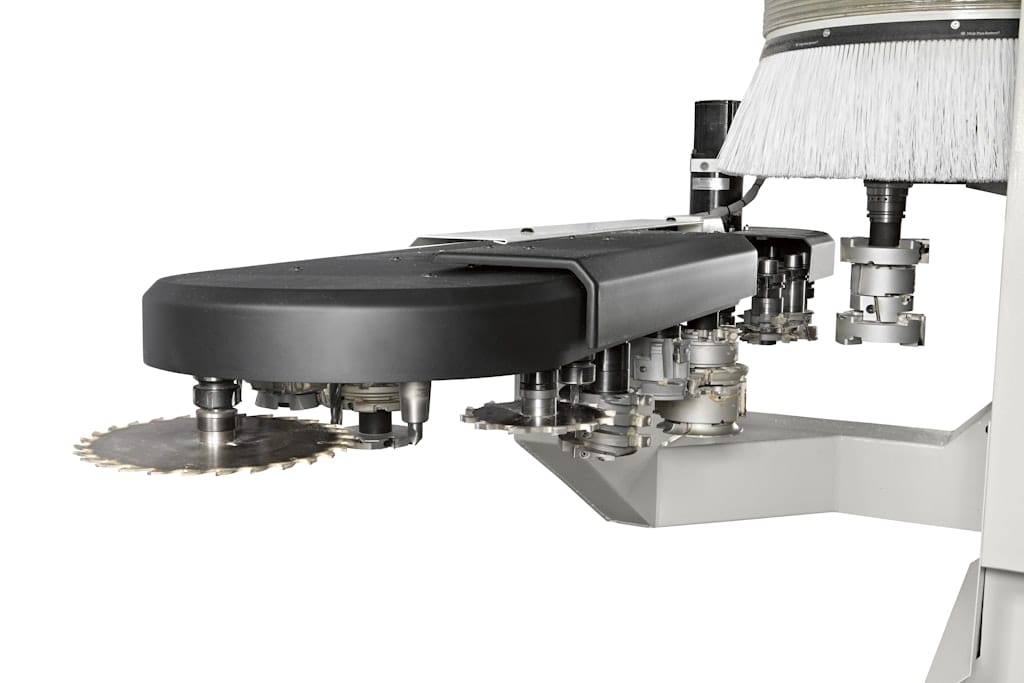

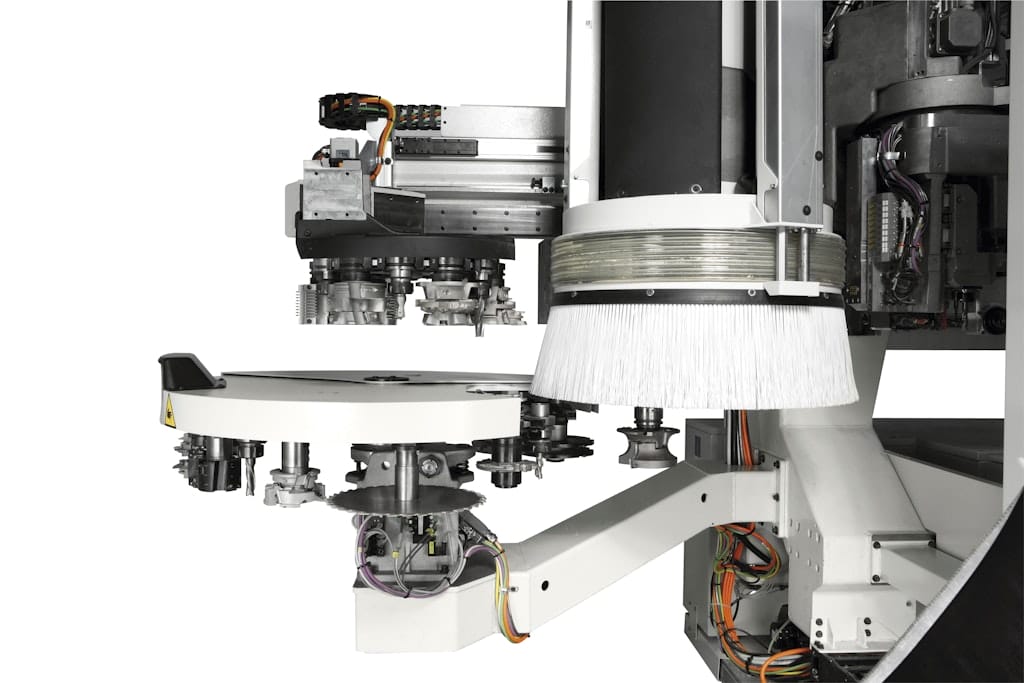

• Tool Stores:

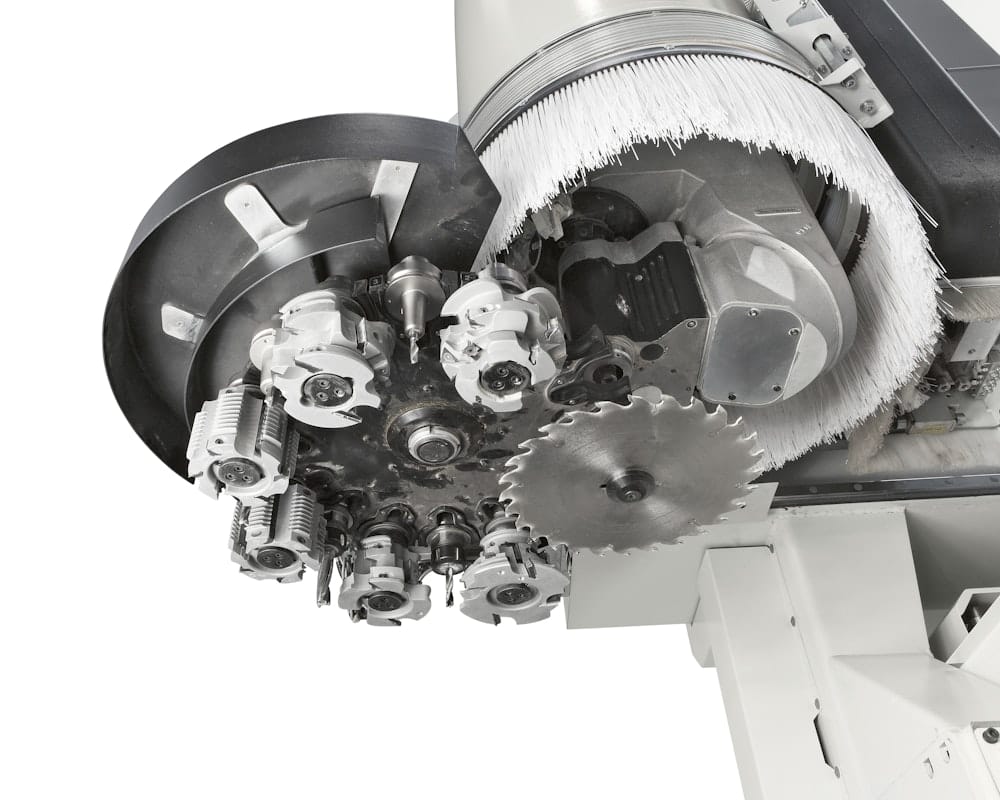

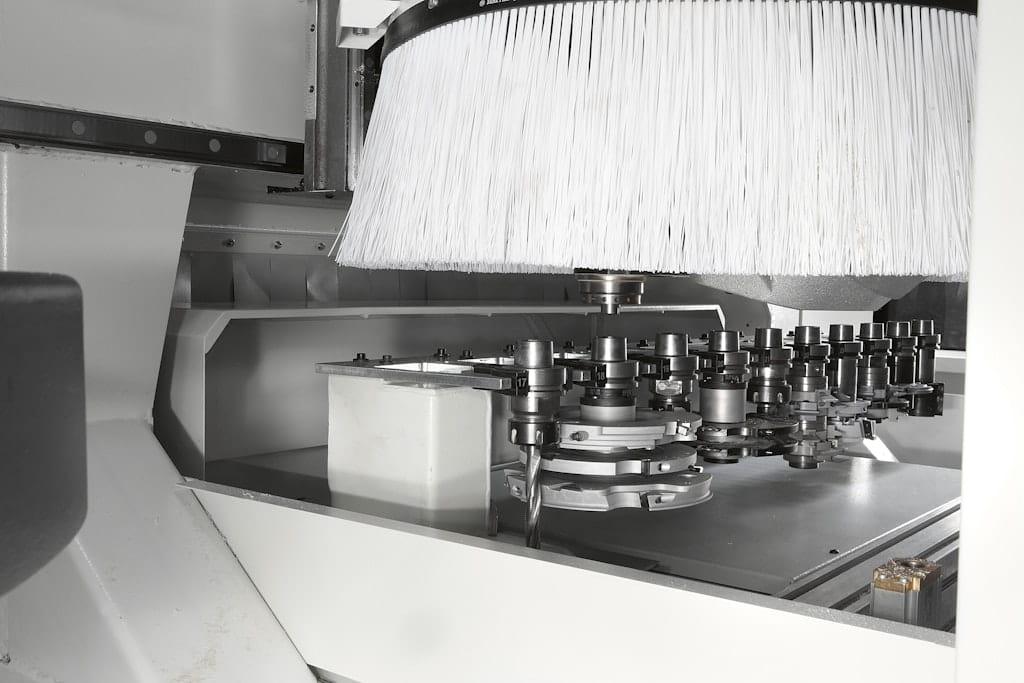

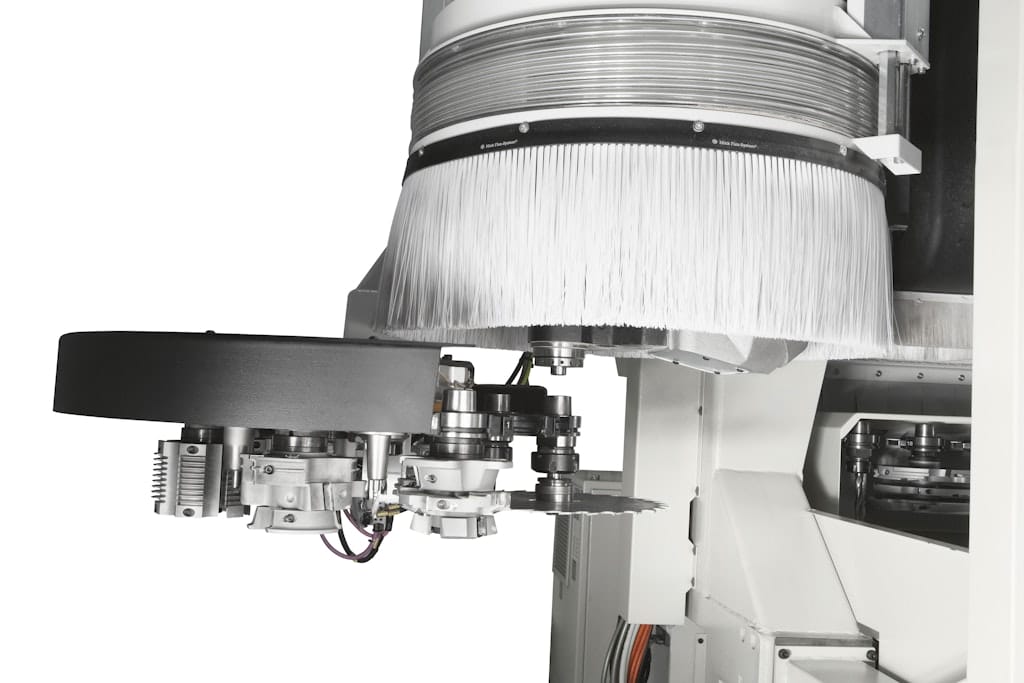

  • Tool store on machining head: 12 positions.

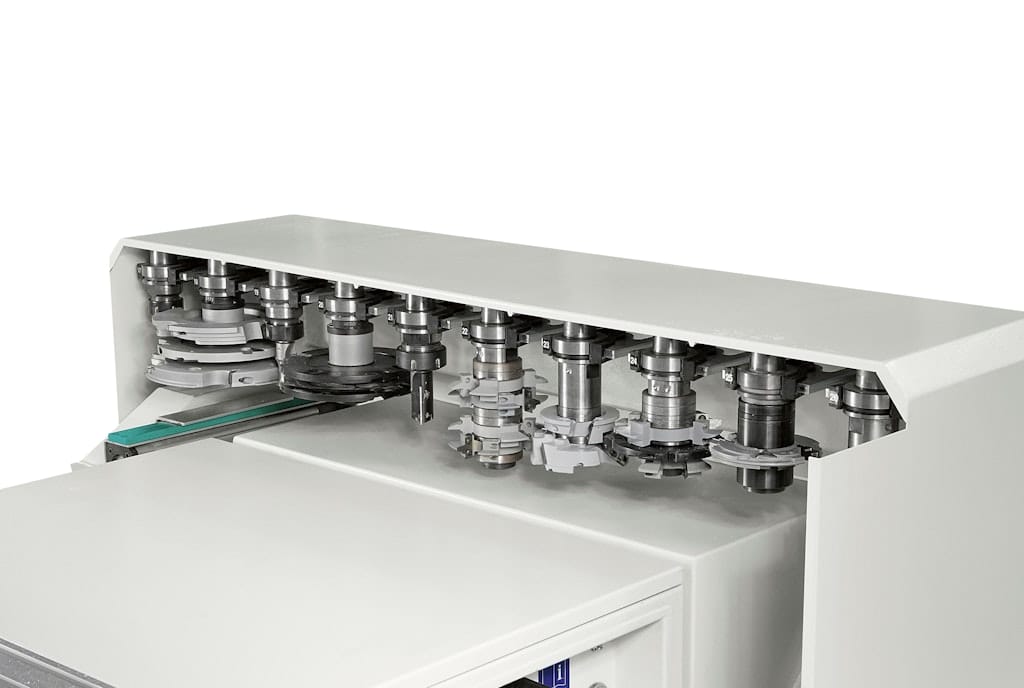

  • Rear tool store: 32 positions.

  • Side tool store: 12 positions.

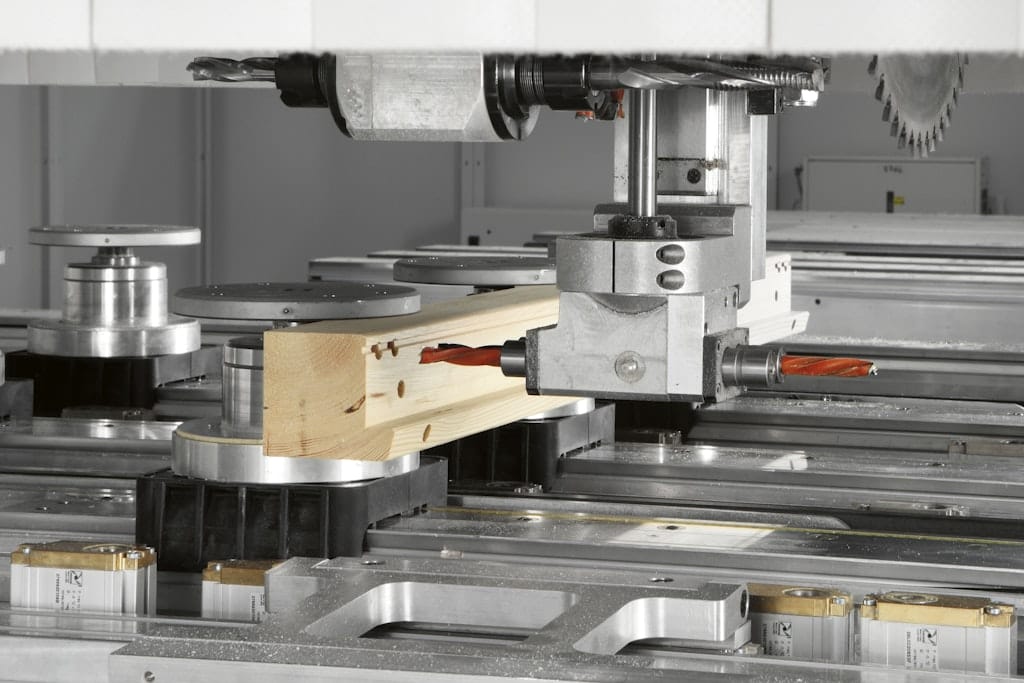

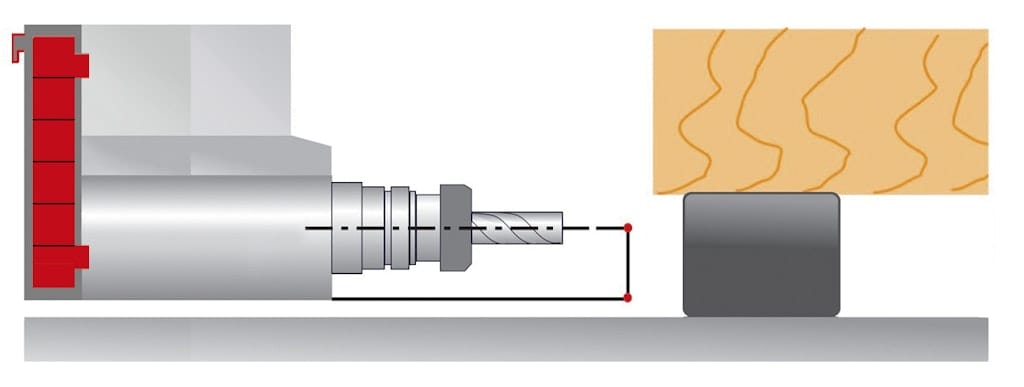

• Drilling Unit: Accommodates up to 30 vertical and horizontal spindles with a maximum rotation speed of 8,000 rpm.
