Accord 25 FXM

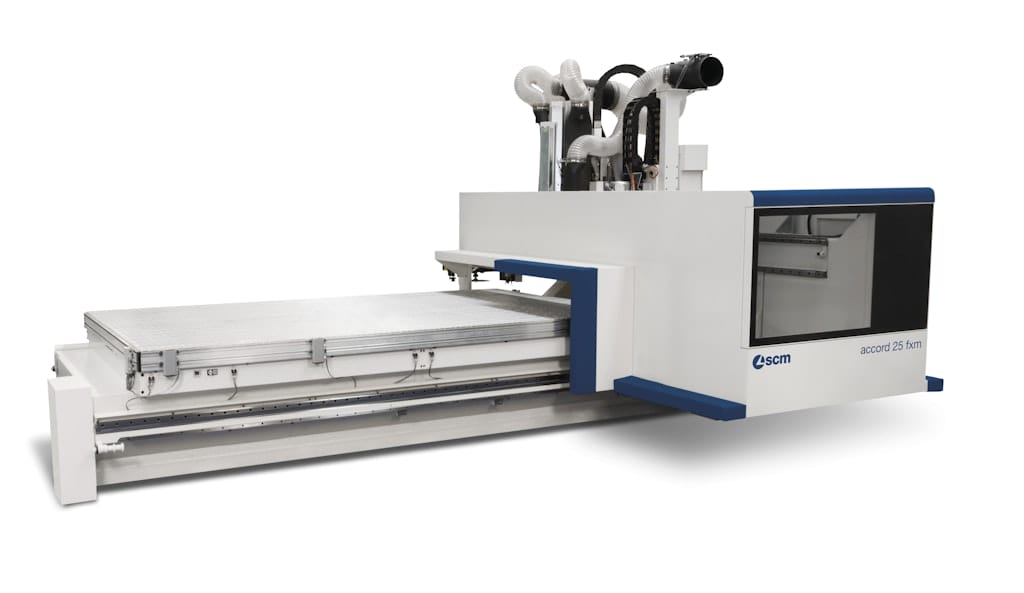

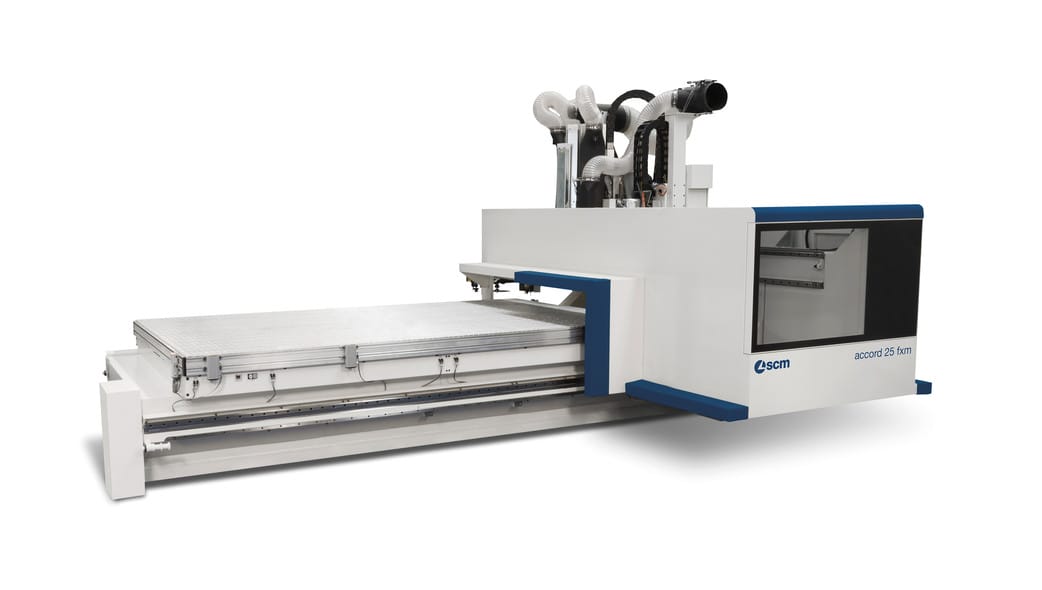

The SCM Accord 25 FXM is a heavy-duty 5-axis CNC machining centre designed for operations that demand precision, flexibility, and a flawless surface finish. Ideal for solid wood and panel processing, it’s built to handle complex routing, drilling, and shaping tasks with consistency and speed, even in multi-shift production environments.

Key Features & Advantages:

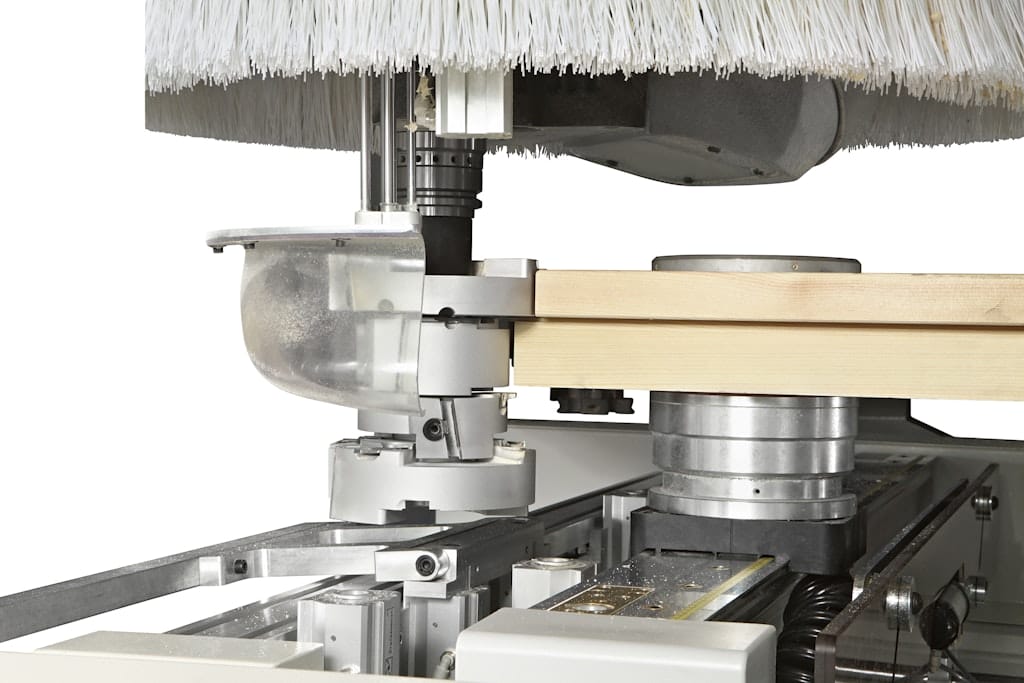

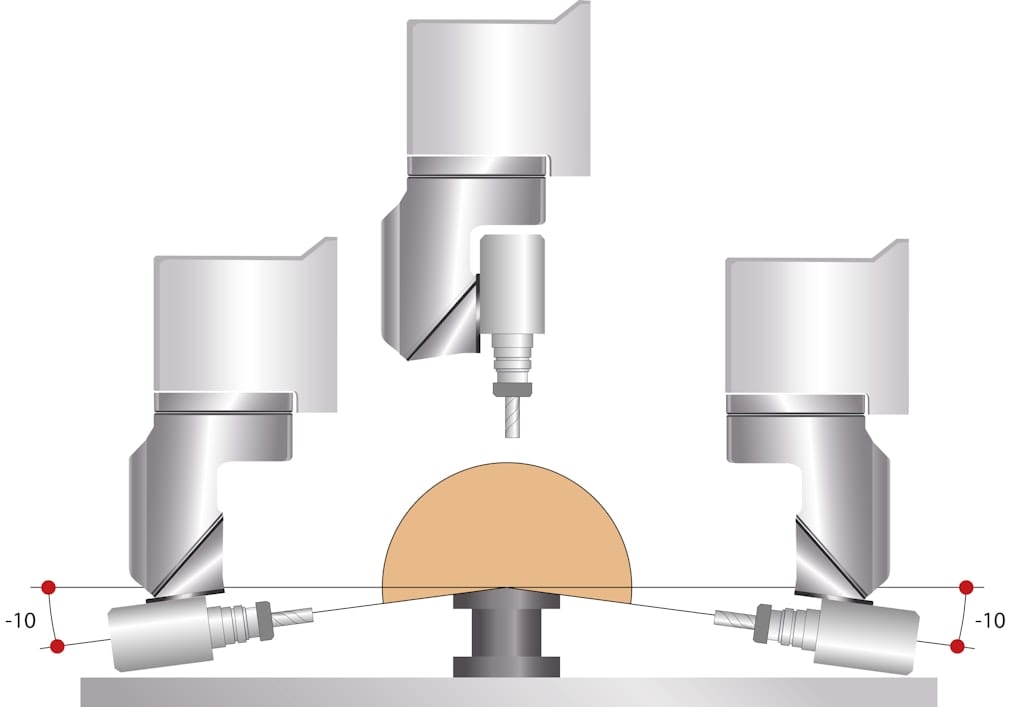

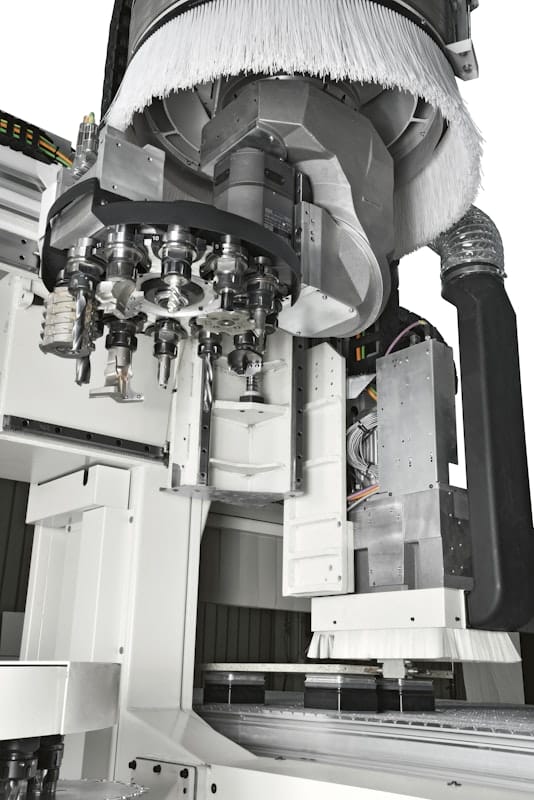

Heavy-Duty Profiling

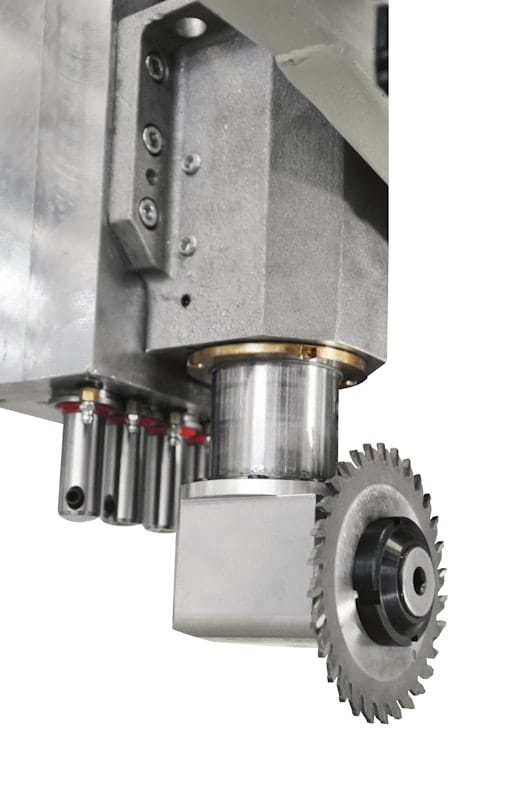

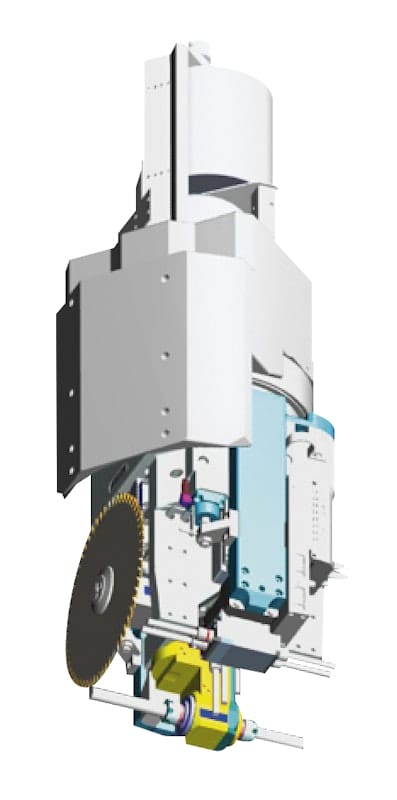

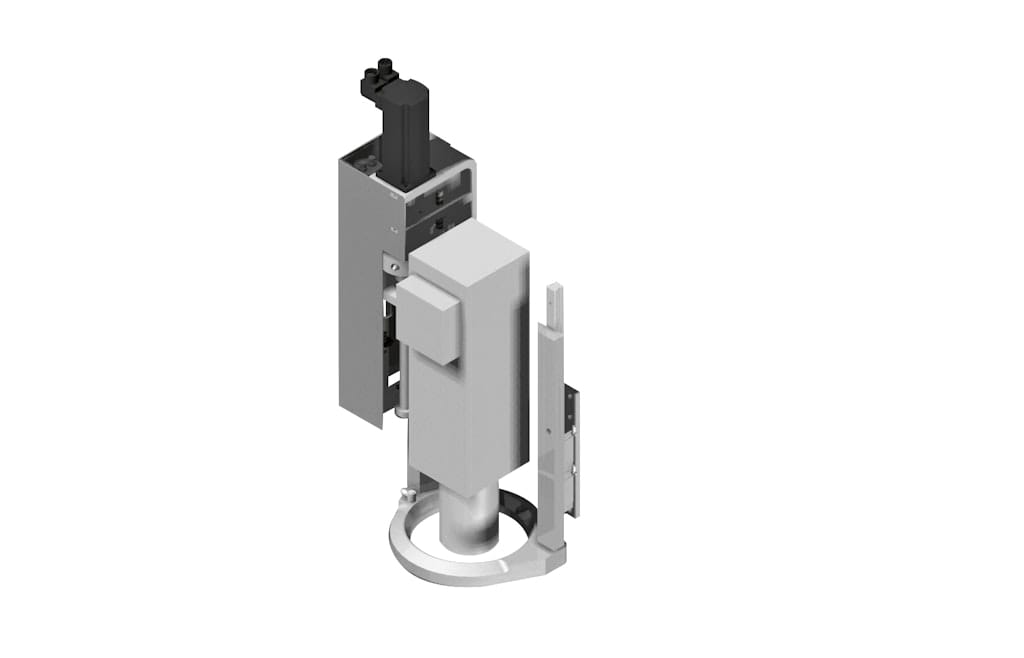

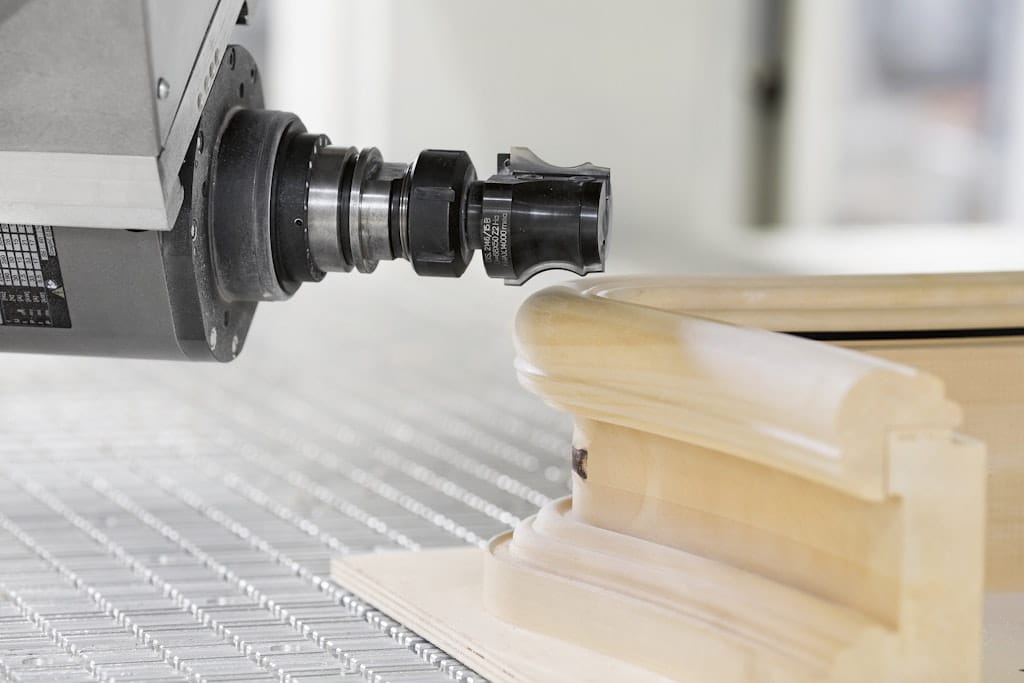

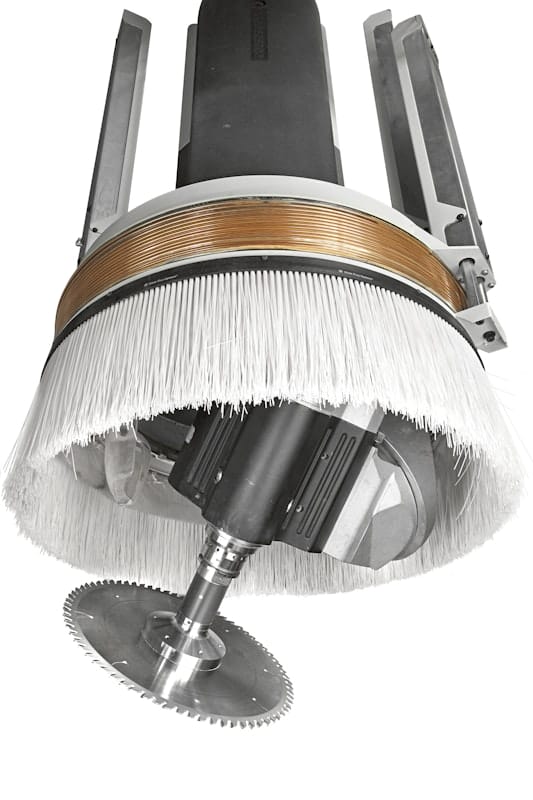

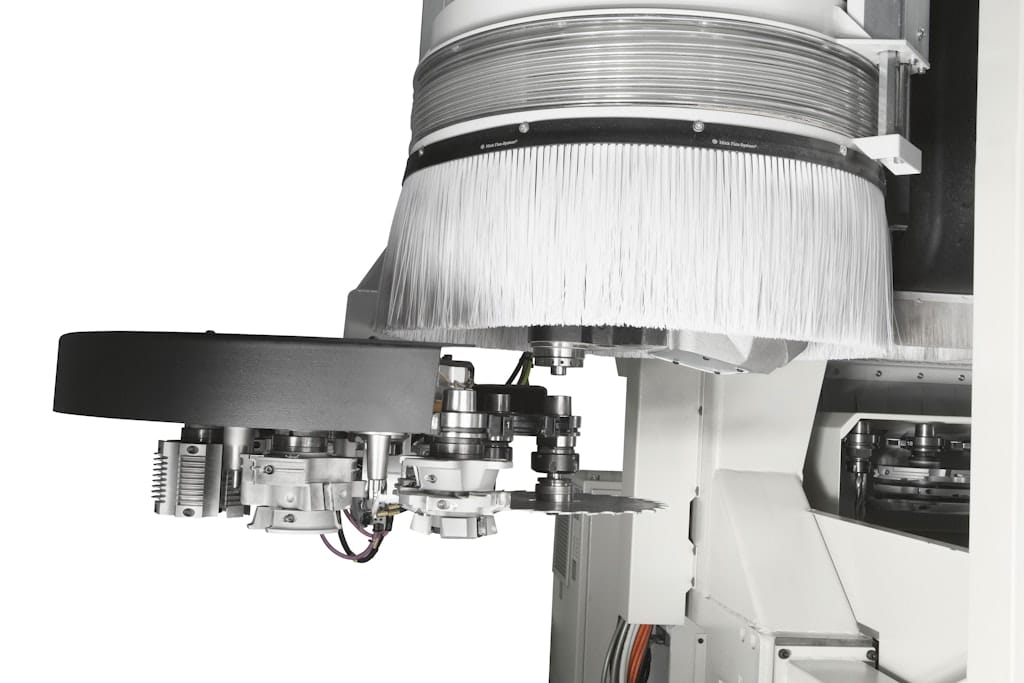

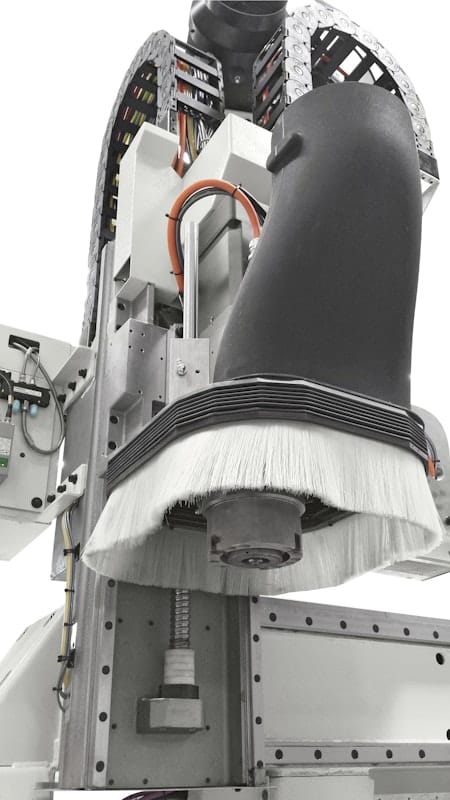

The Accord 25 FXM features PRISMA machining heads with 5 interpolating axes, specifically developed for high-speed, high-torque applications. This makes it ideal for producing doors, windows, stairs, and other solid wood components that require robust shaping and contouring.

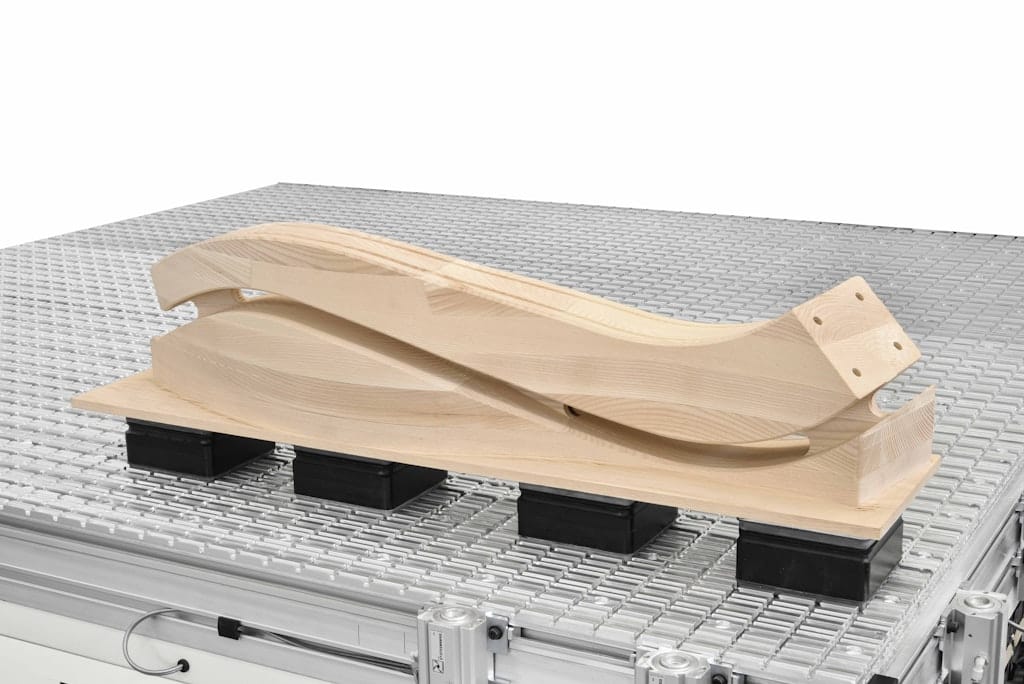

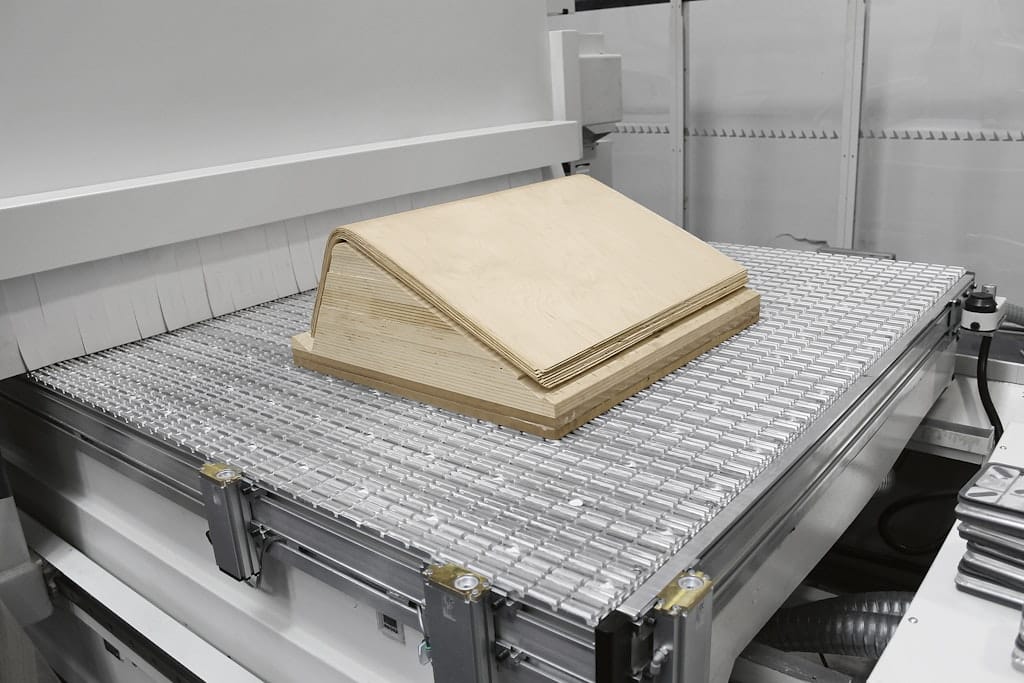

Reliable Worktable Design

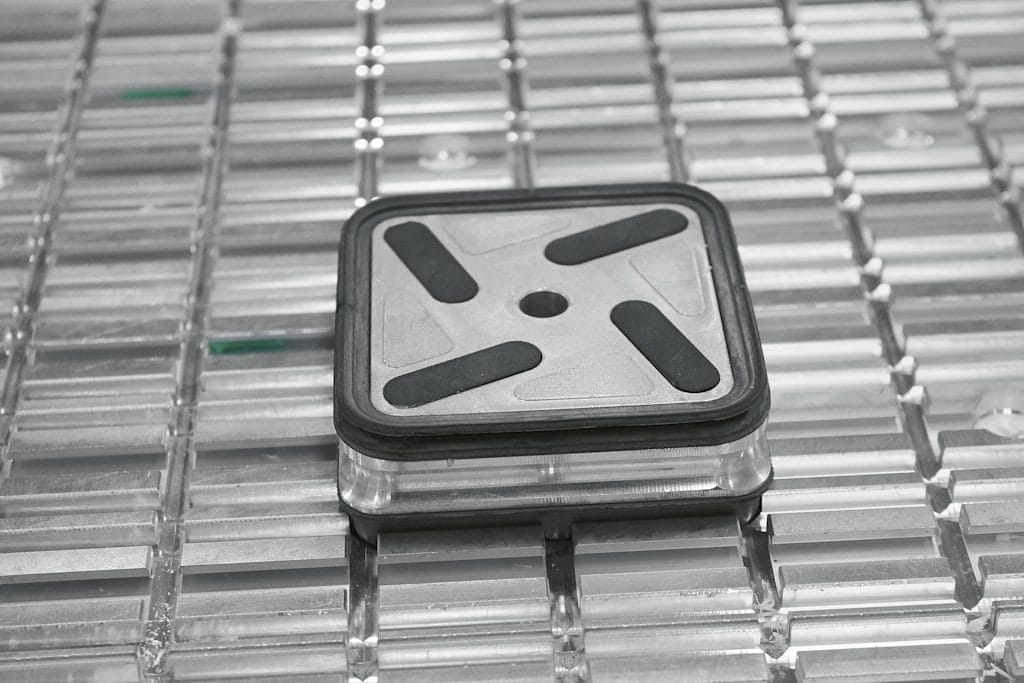

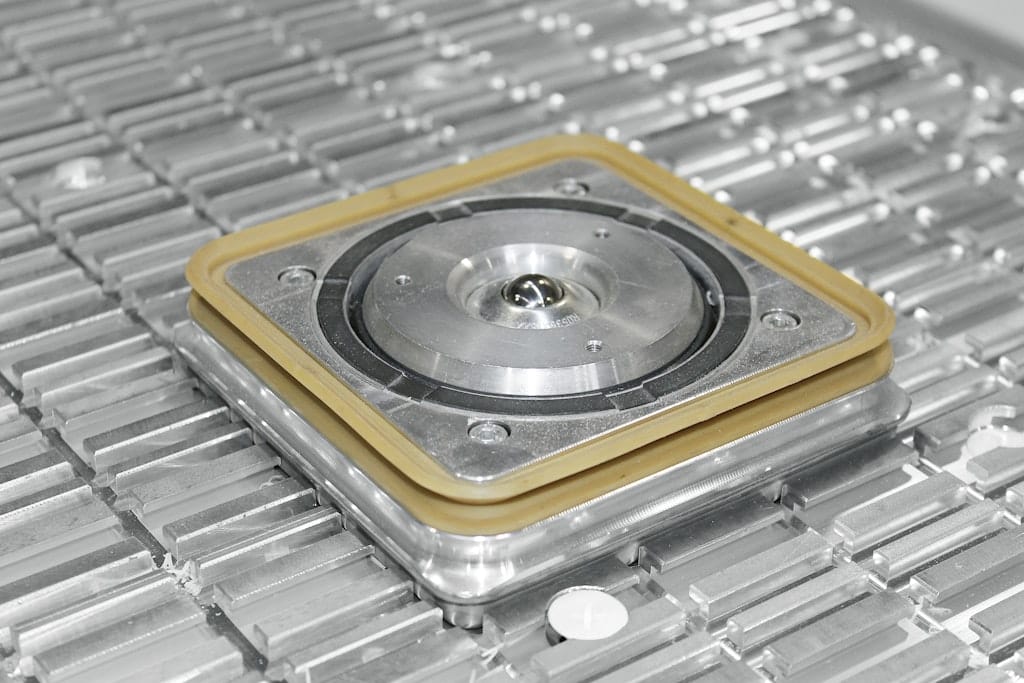

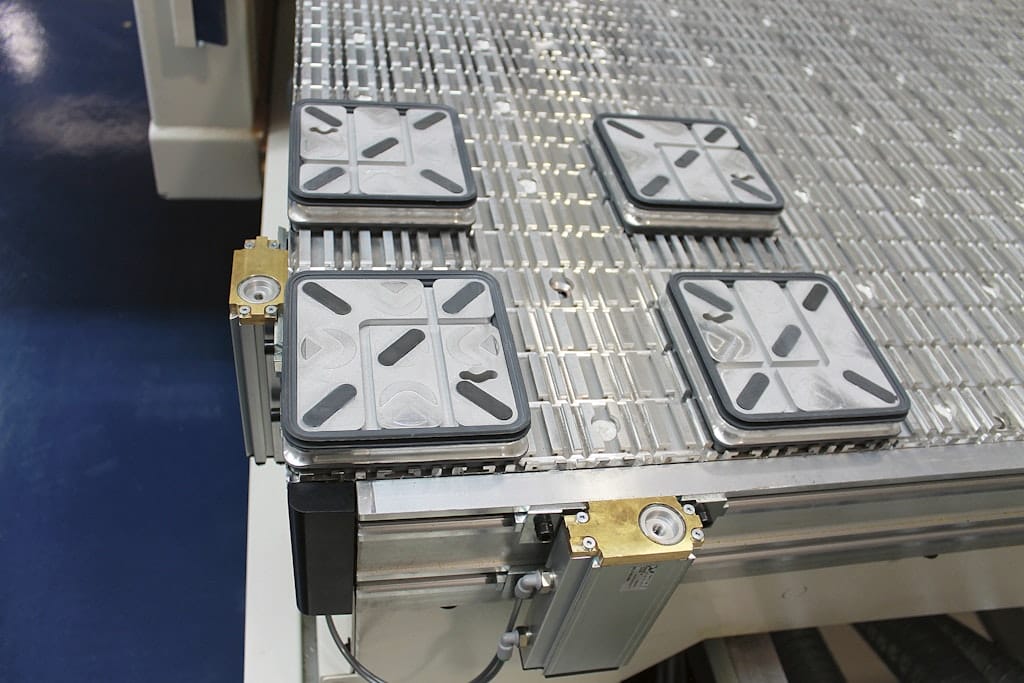

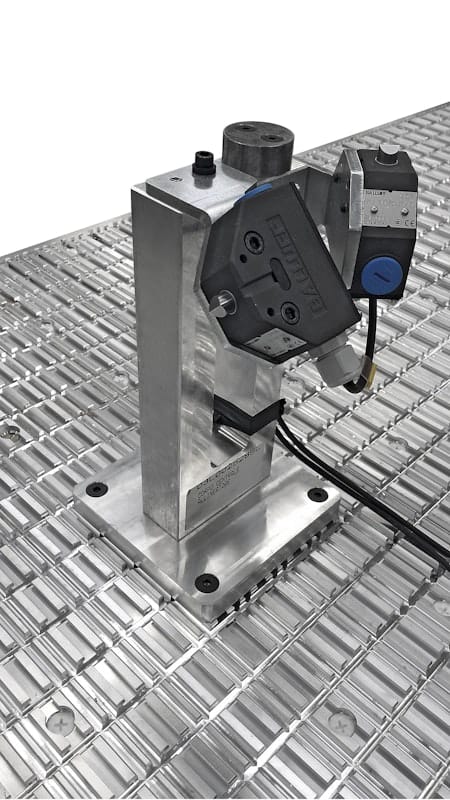

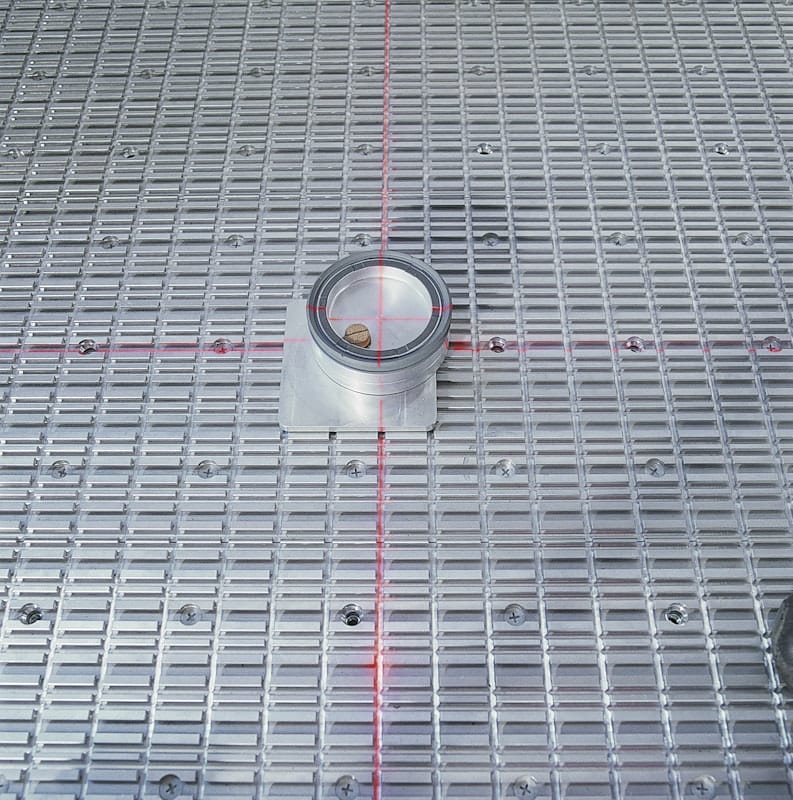

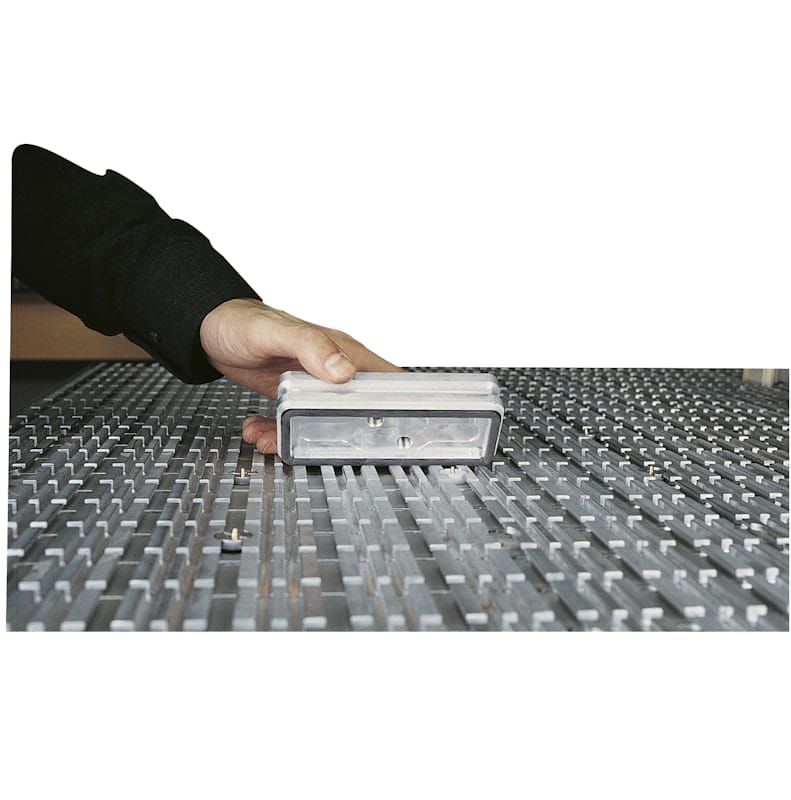

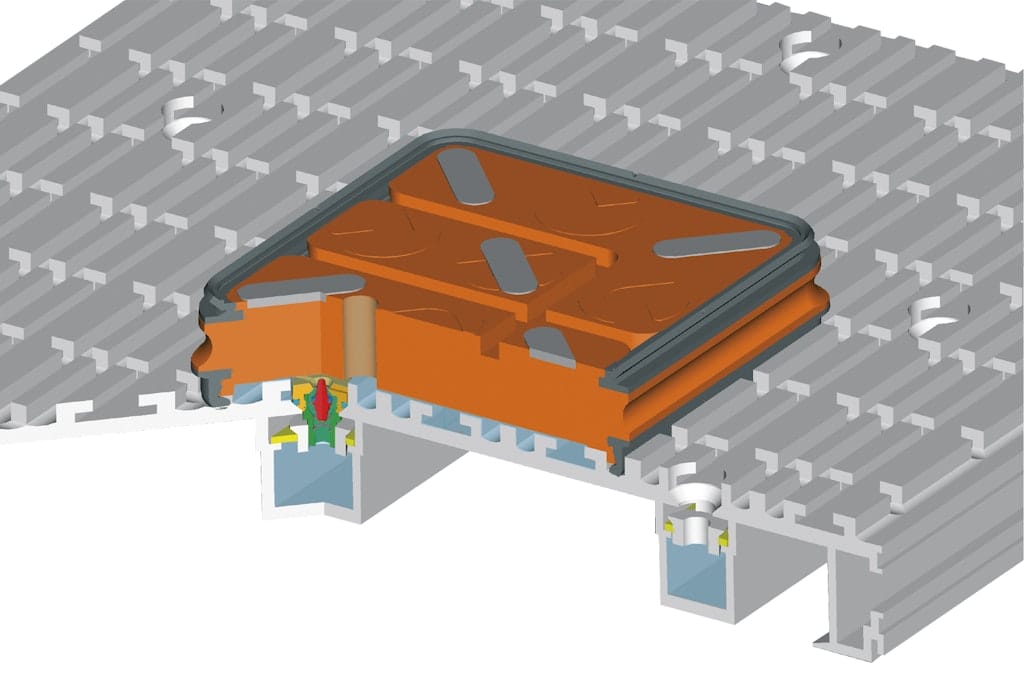

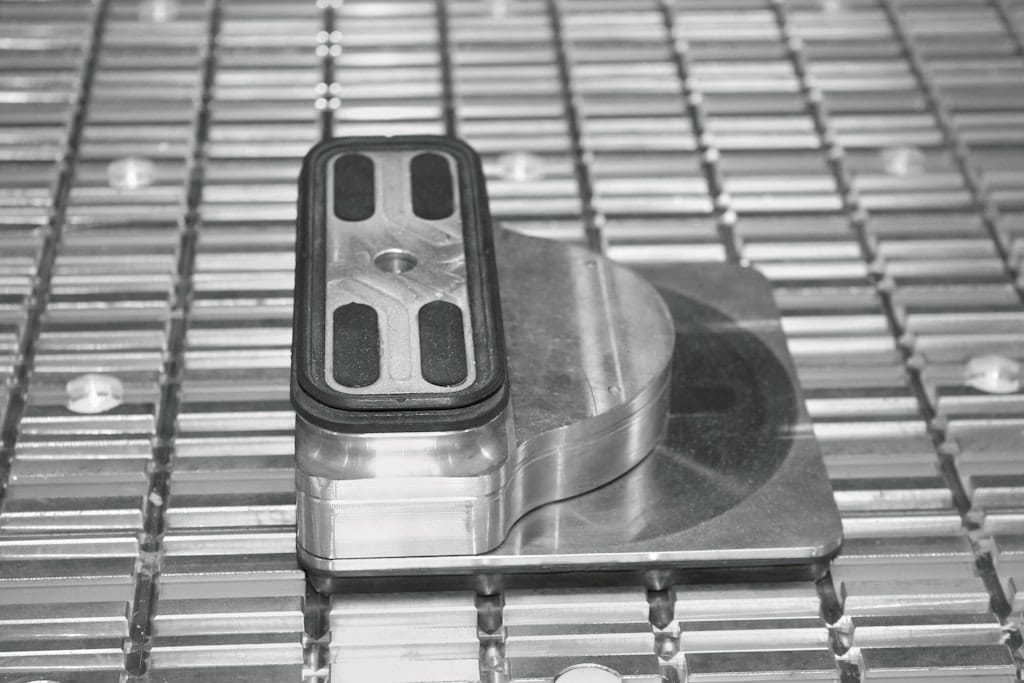

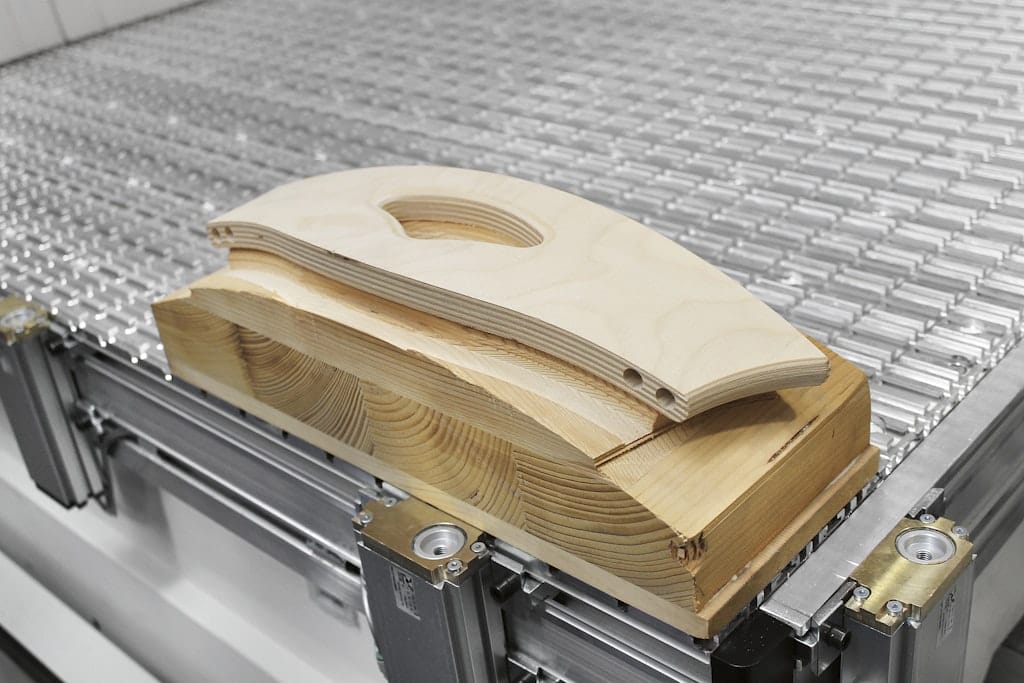

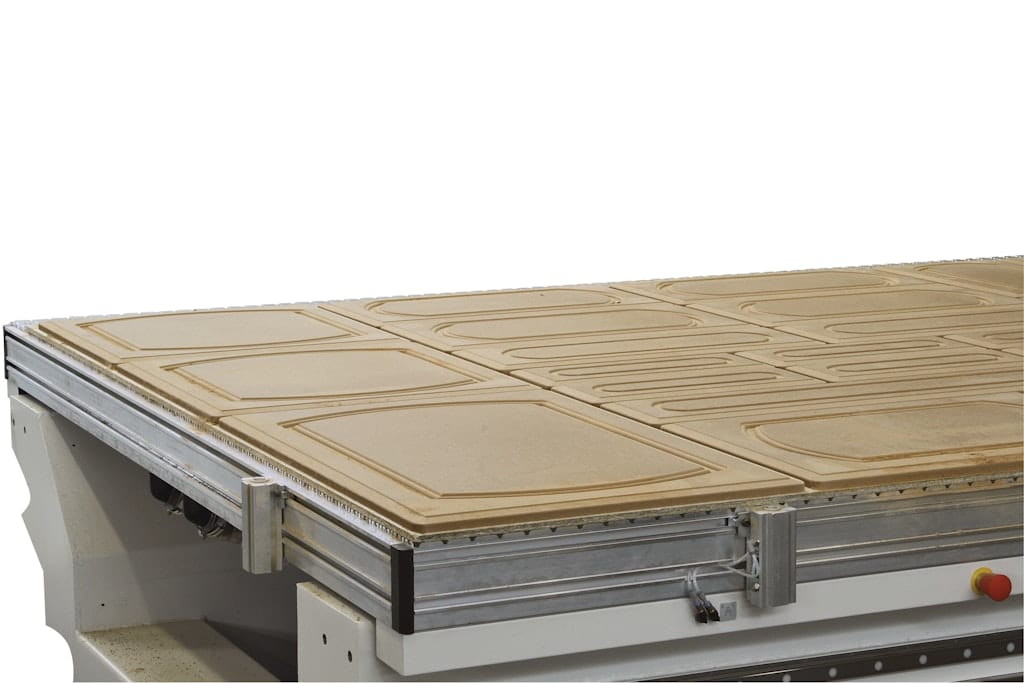

Its aluminium multi-function worktable guarantees long-term planarity and stability. Integrated vacuum systems and T-grooves support secure hold-down of various materials and enable mechanical clamping of irregularly shaped components.

Superior Finishing Quality

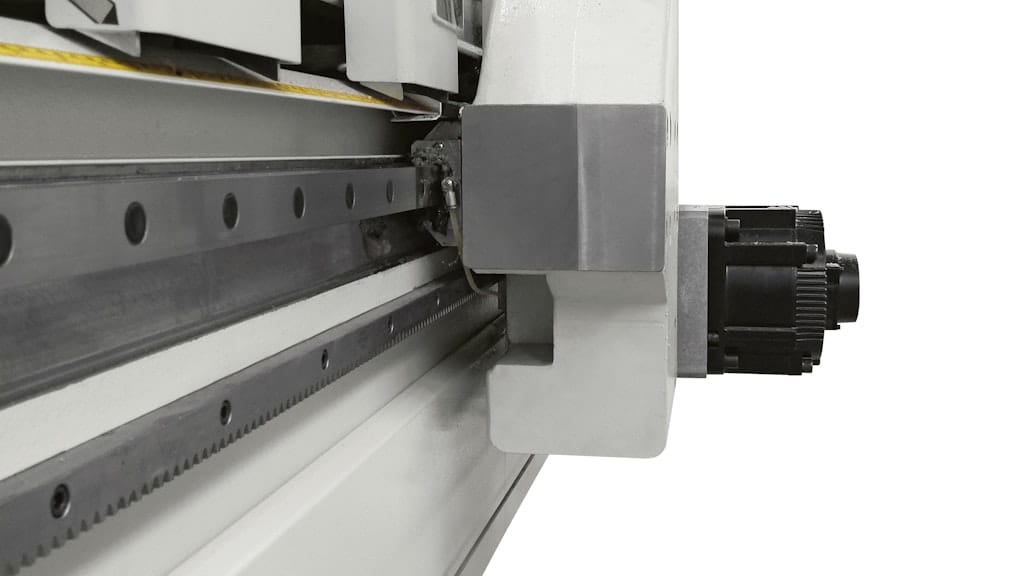

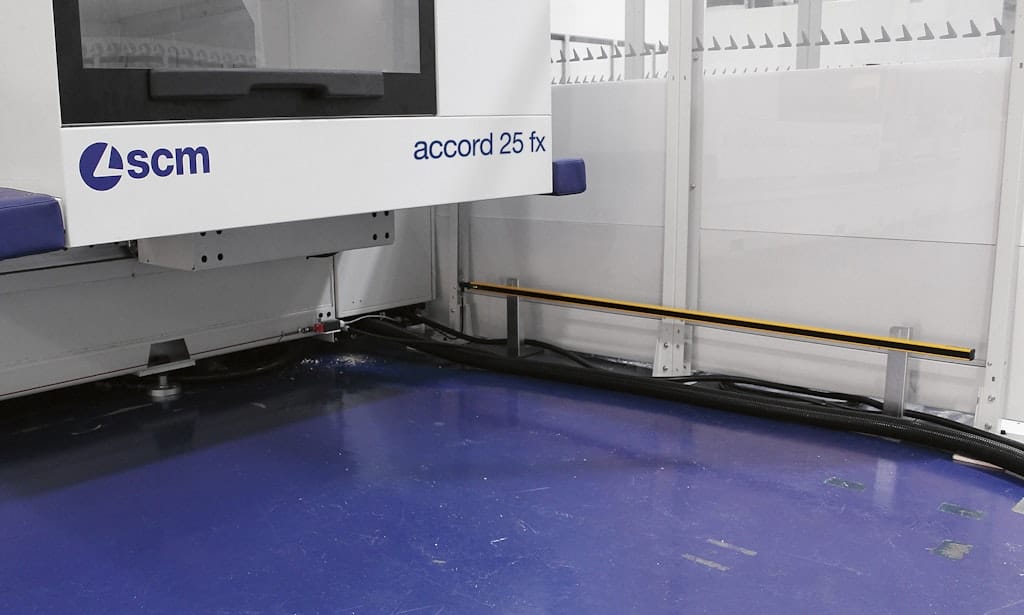

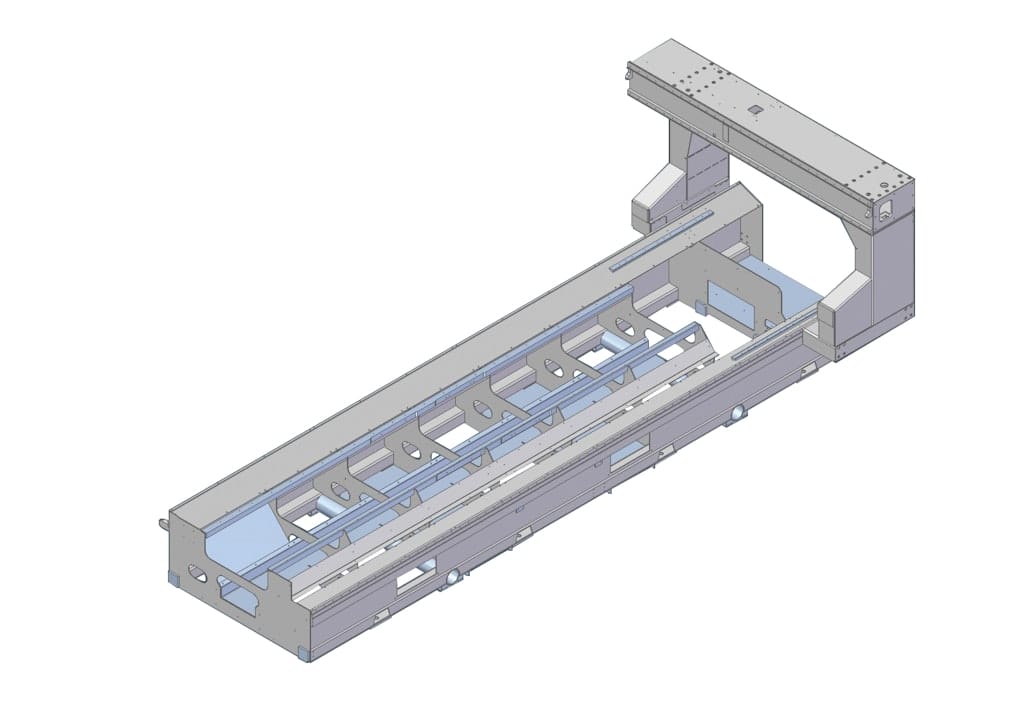

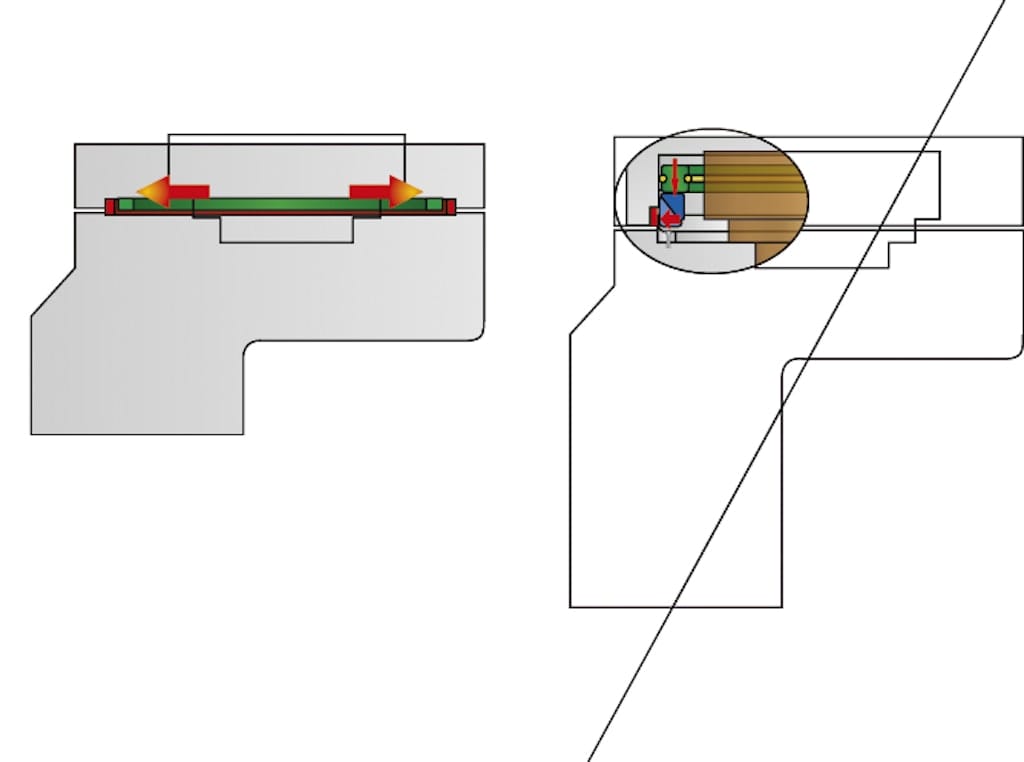

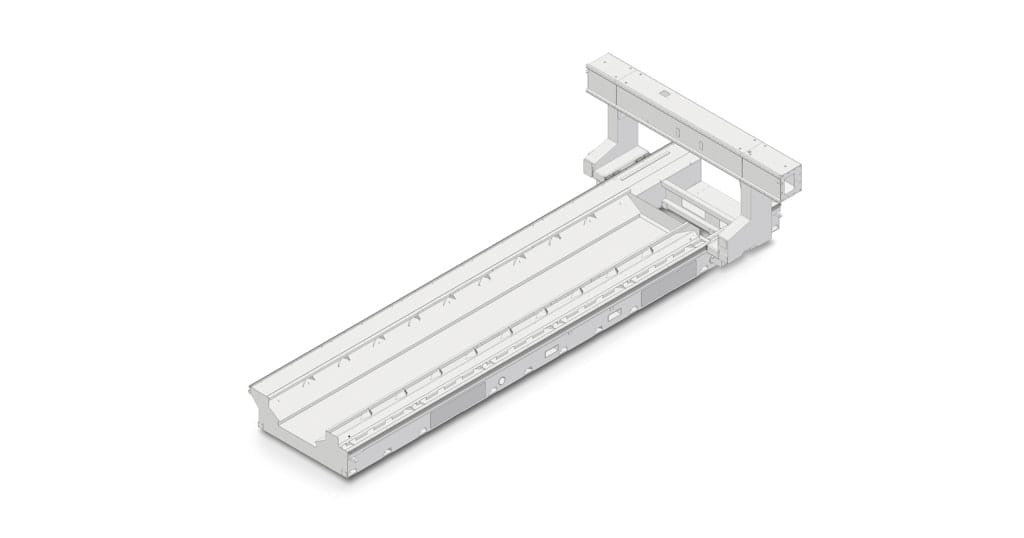

With a fixed table and mobile gantry structure, the machine delivers smooth movement and accurate results across the full work area. Sliding guides located at the front and rear further enhance rigidity and cutting precision, ensuring a top-tier finish every time.

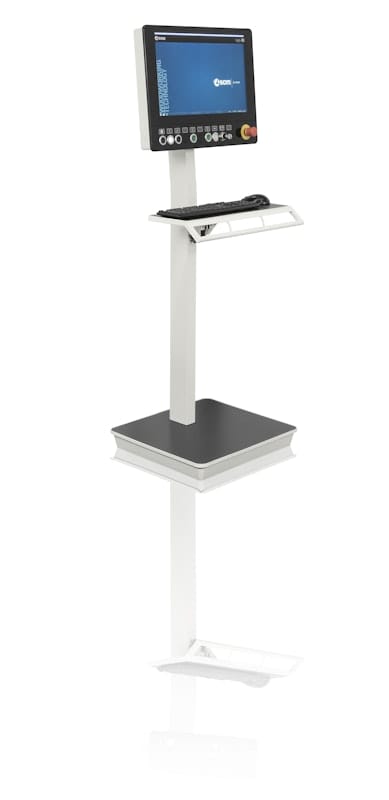

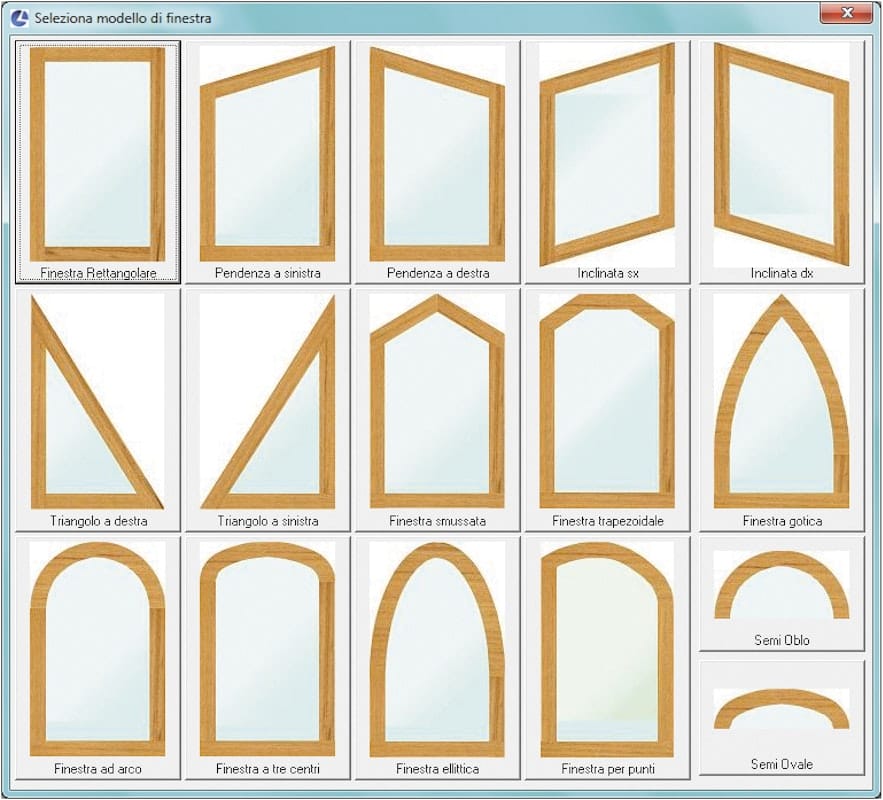

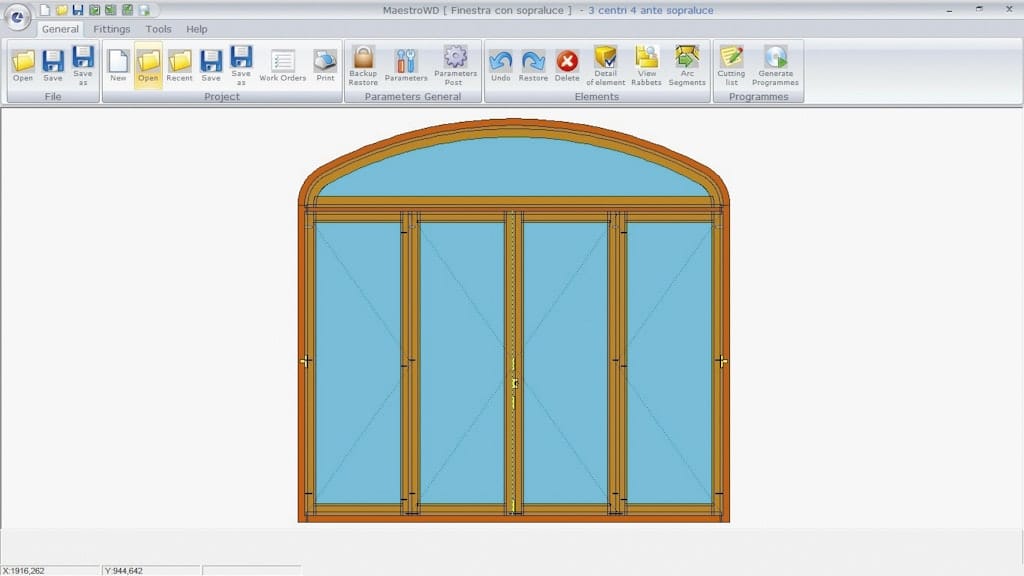

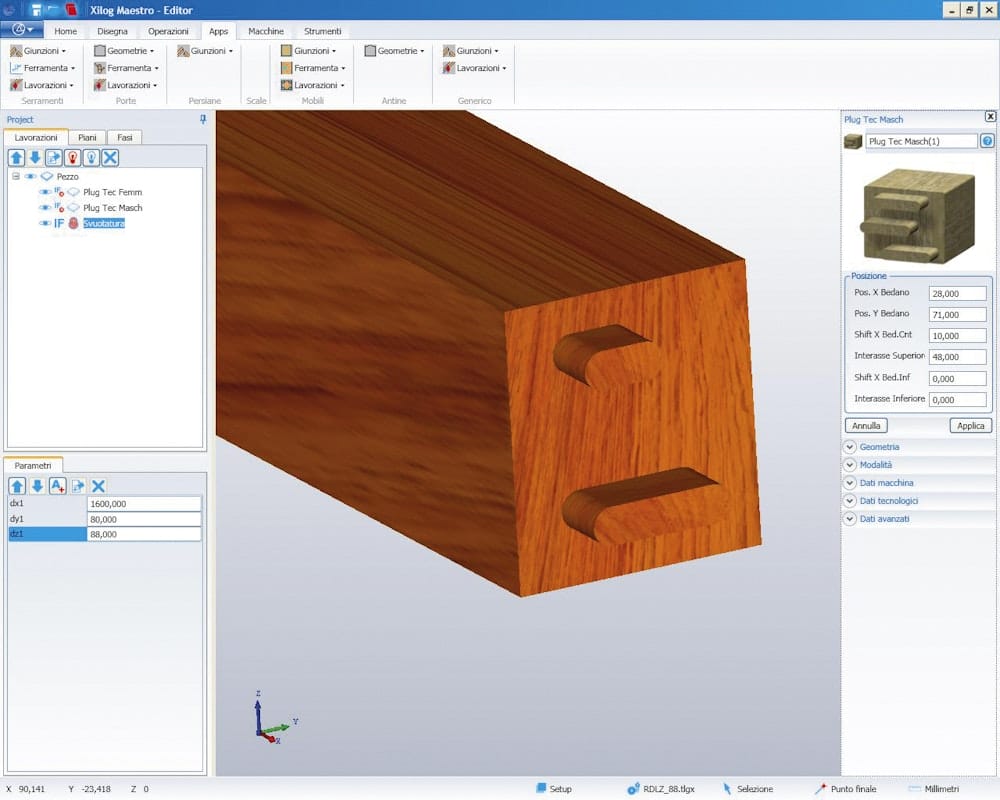

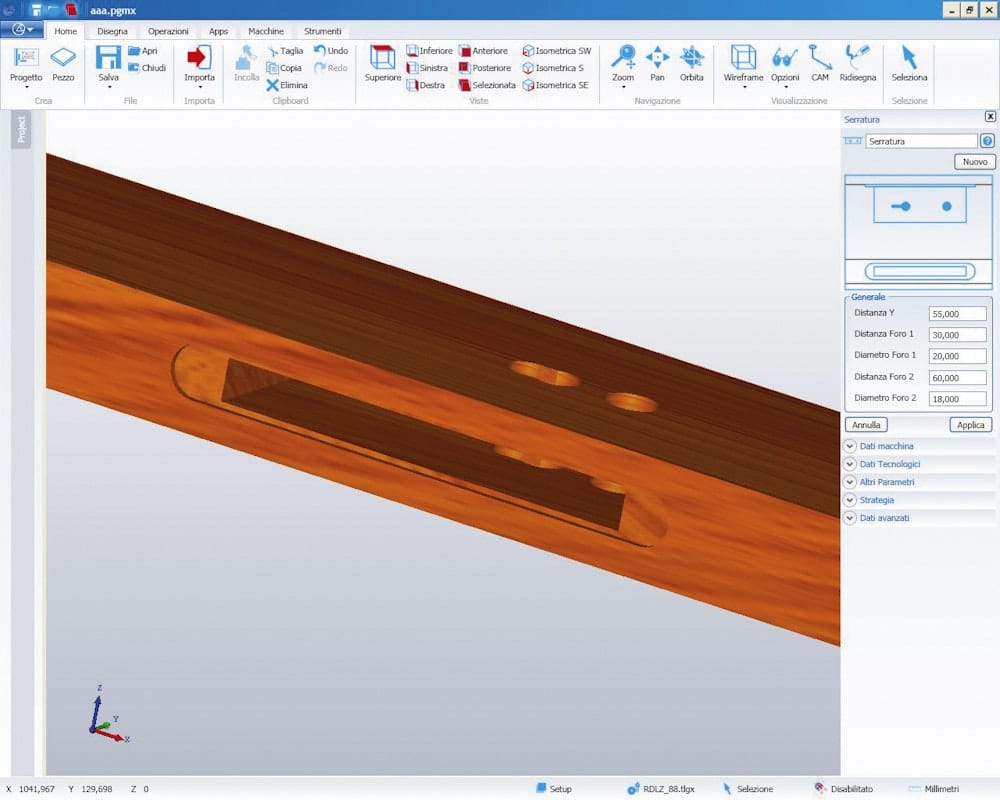

Efficient Programming with MAESTRO Software

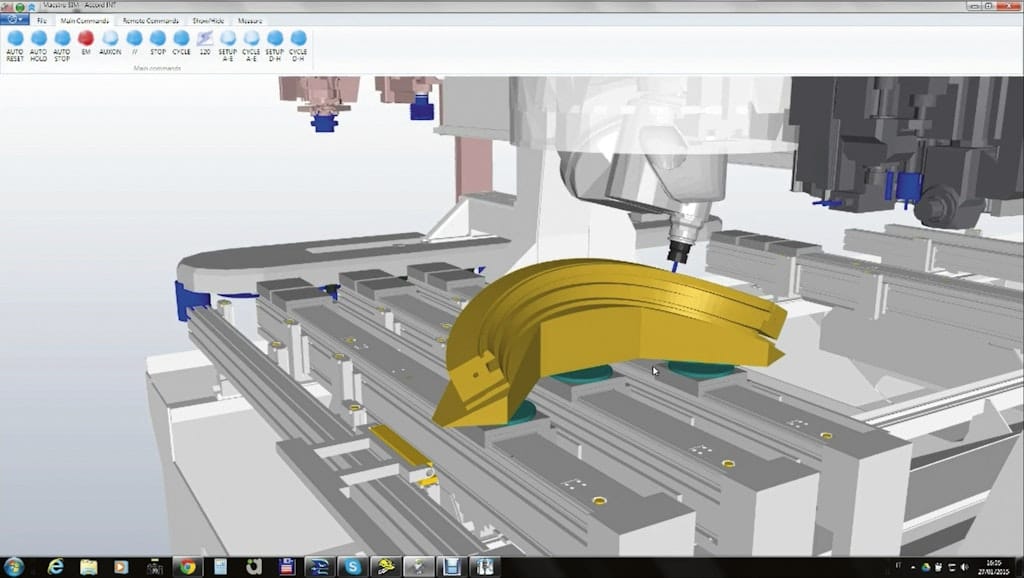

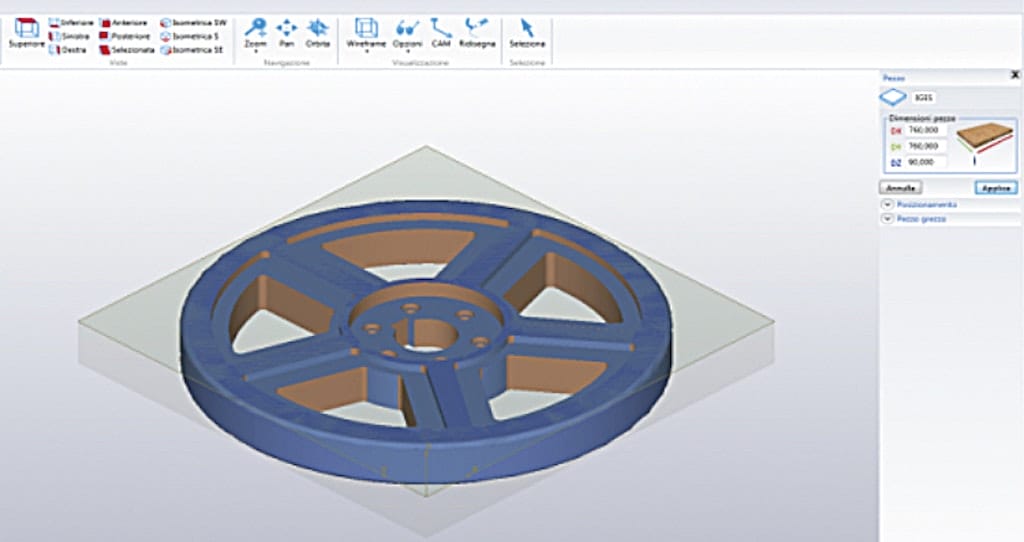

The Accord 25 FXM runs on SCM’s MAESTRO software suite, offering user-friendly, application-specific modules that streamline machine setup and optimise production efficiency. Programming is intuitive, even for complex operations.

Technical Highlights:

• Working areas (X-Y-Z axis): Available in multiple sizes, including 3650x1320x250 mm, 4970x1320x250 mm, and 6170x1320x250 mm

• Axes speed: Up to 60 m/min on X and Y, and 30 m/min on Z

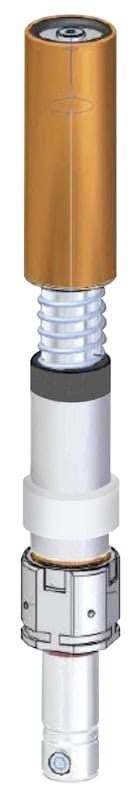

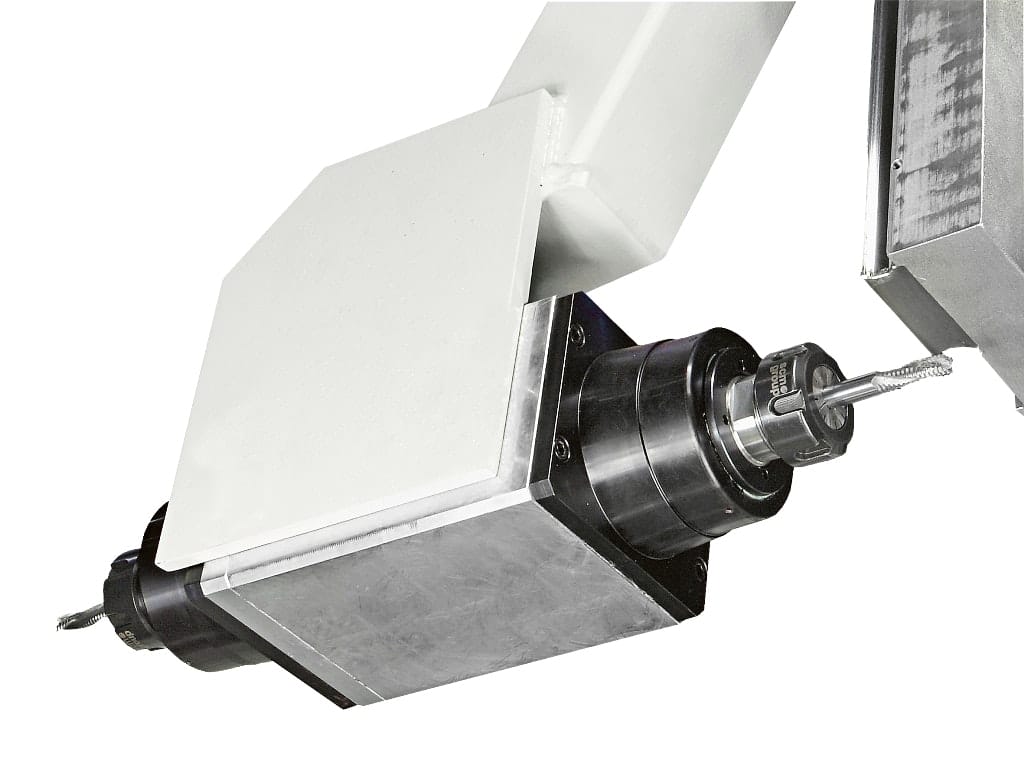

• 5-axis electrospindle: Up to 12 kW power, 24,000 rpm

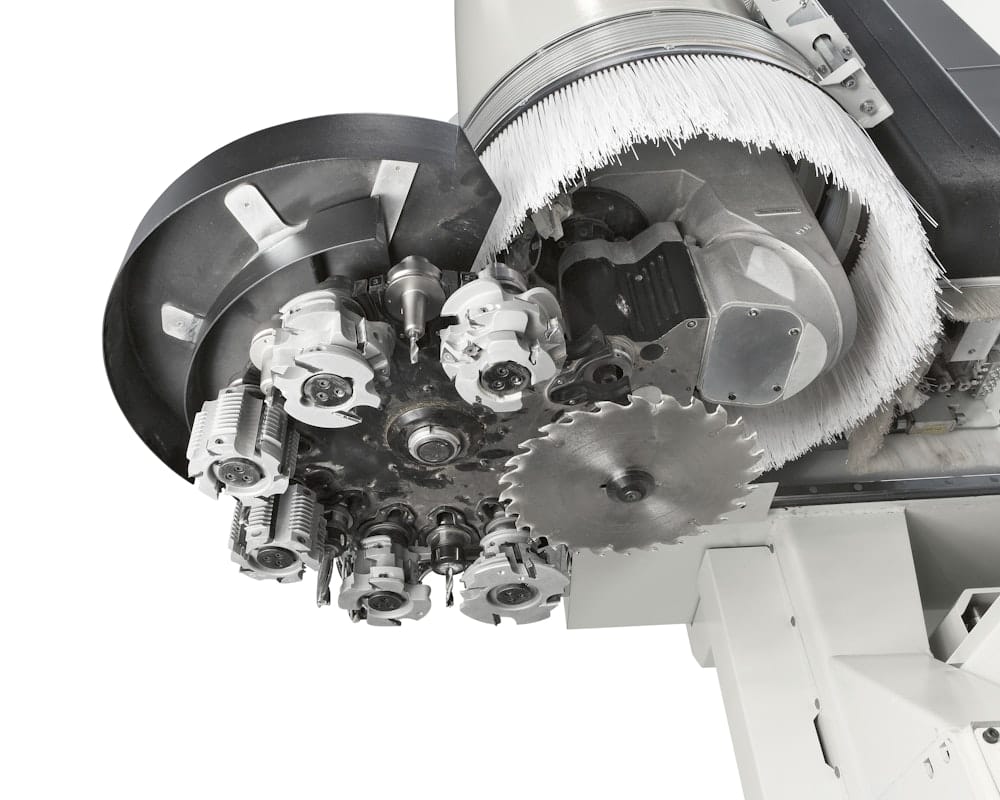

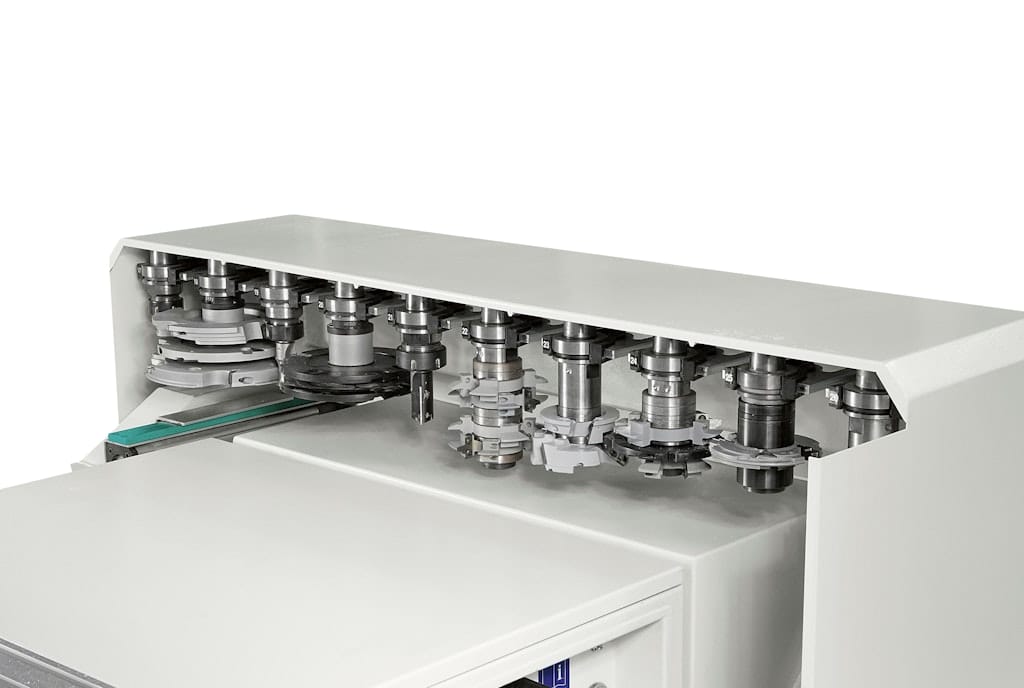

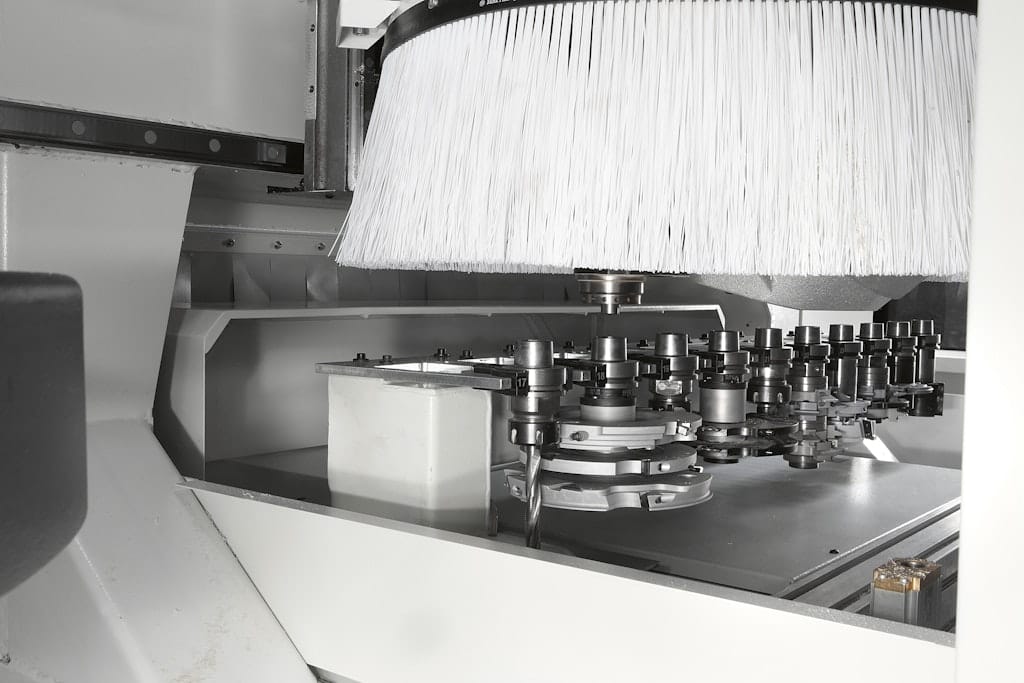

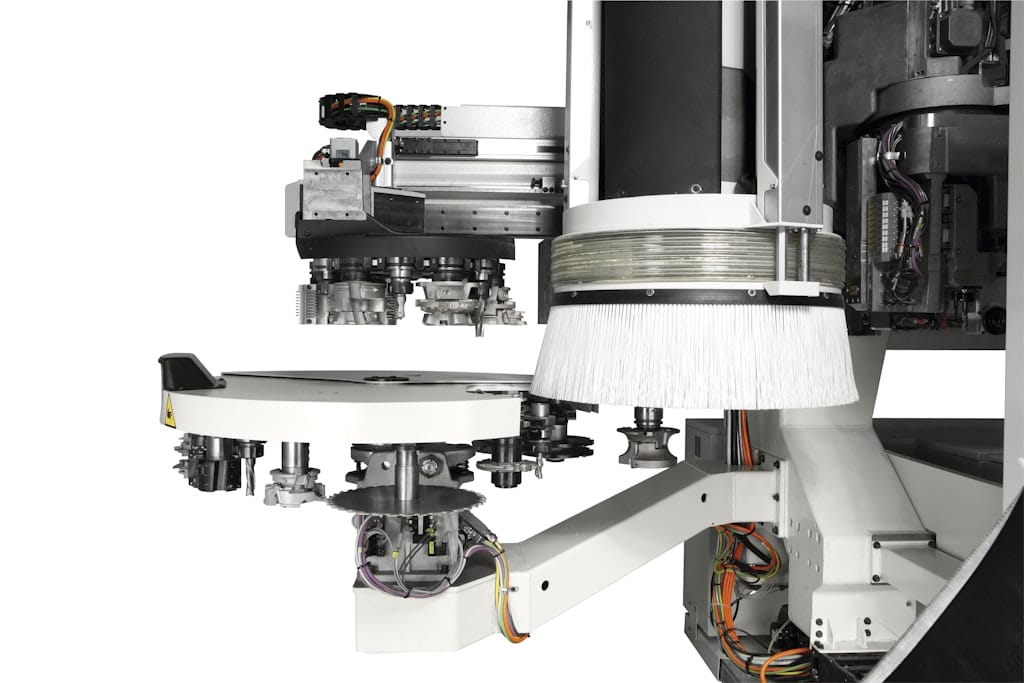

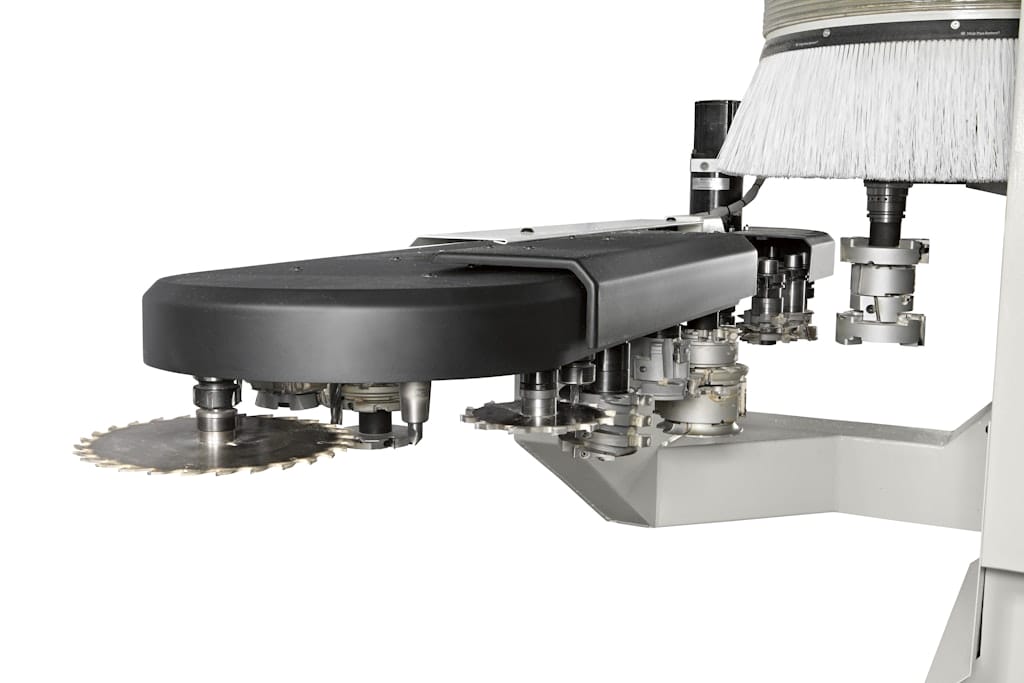

• Tool changers: Available configurations include 12-position on head, 12-position side, and 32-position rear carousel

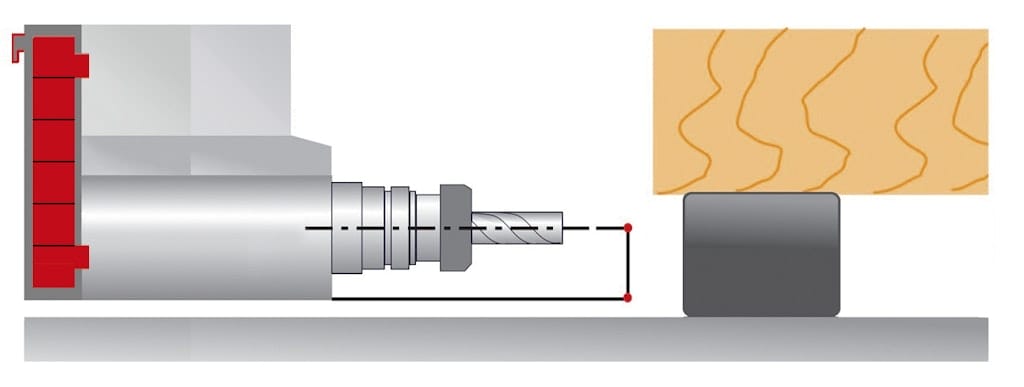

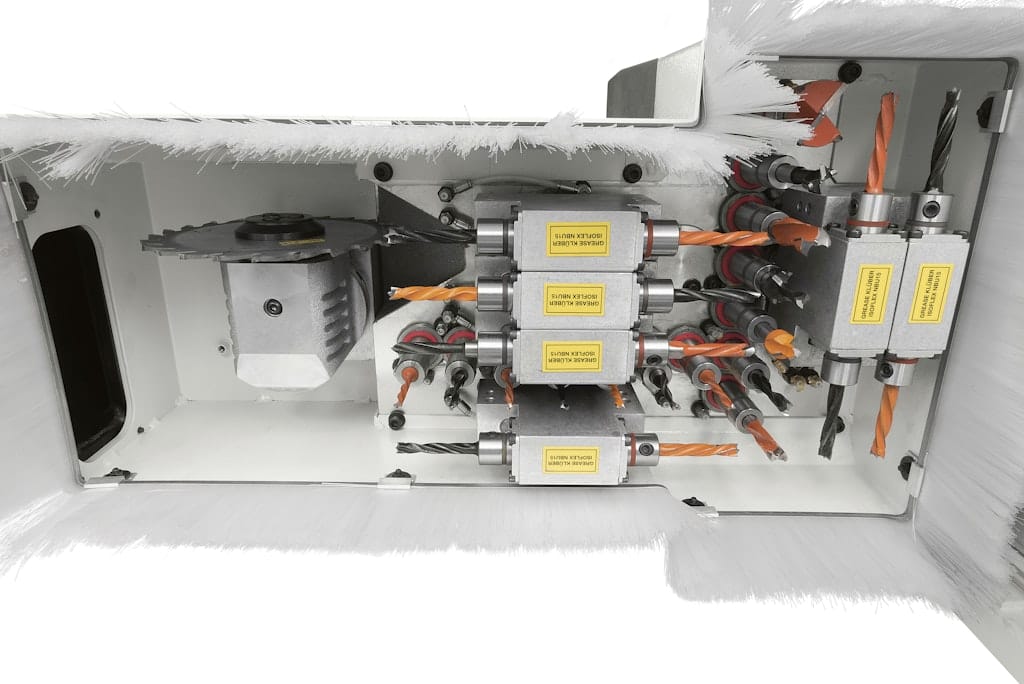

• Drilling unit: Supports up to 30 vertical and horizontal spindles, up to 8,000 rpm
