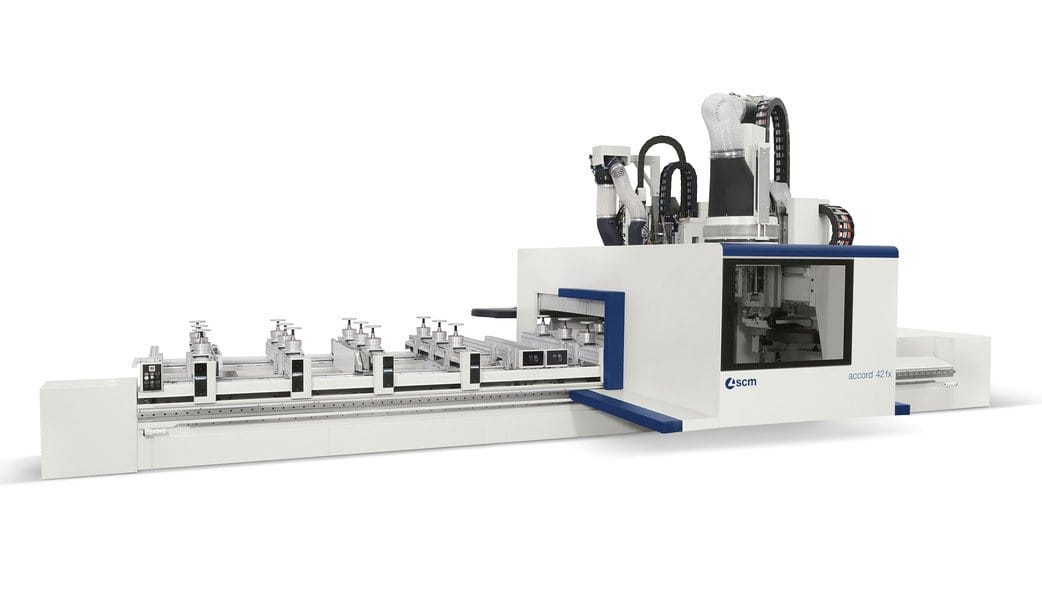

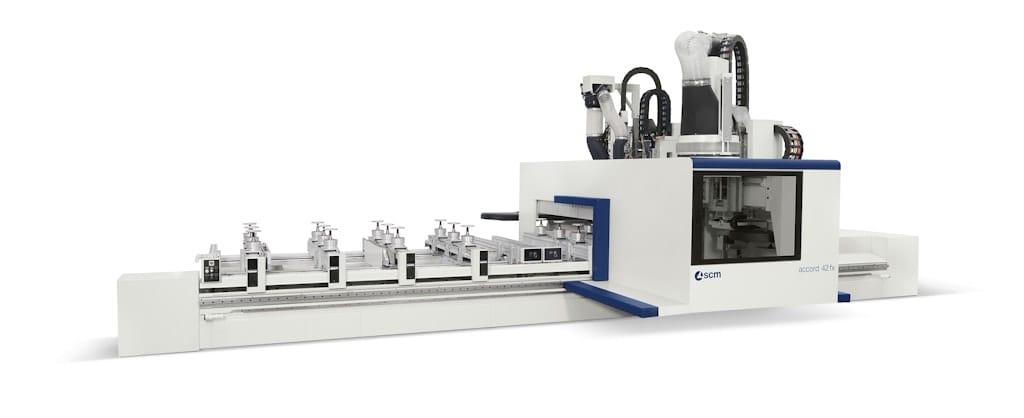

Accord 42 fx
POA
Product Features
Specifications
Technical data
| accord 42 fx | ||||
| Working areas | ||||
| X-Y-Z axes dimensions | mm | 5020x1680x350 6360x1680x350 5020x1905x350 6360x1905x350 | ||
| Axes | ||||
| X-Y-Z axes max. speed | m/min | 95-90-30 | ||

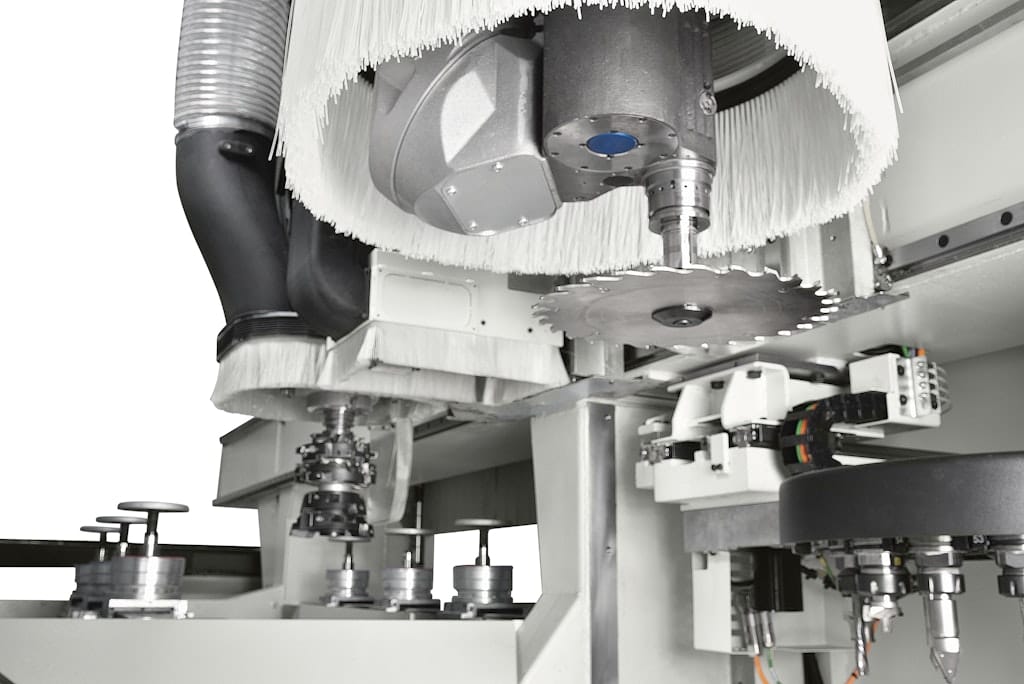

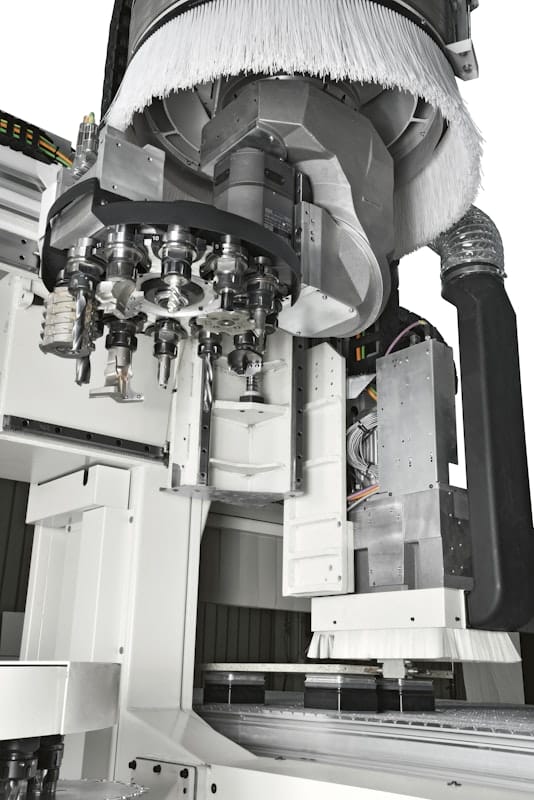

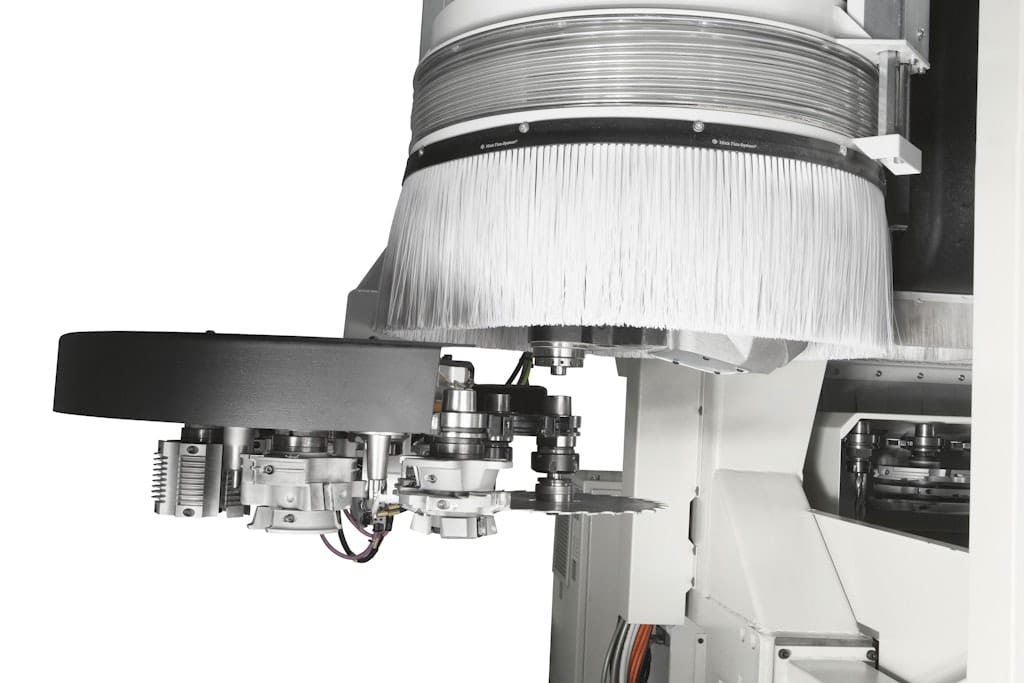

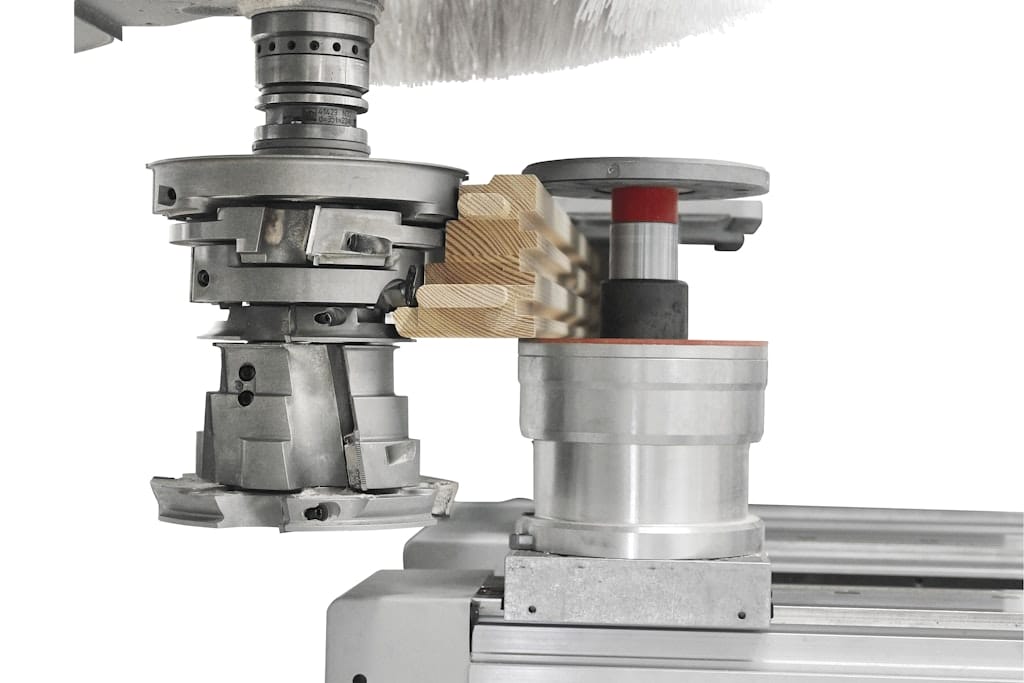

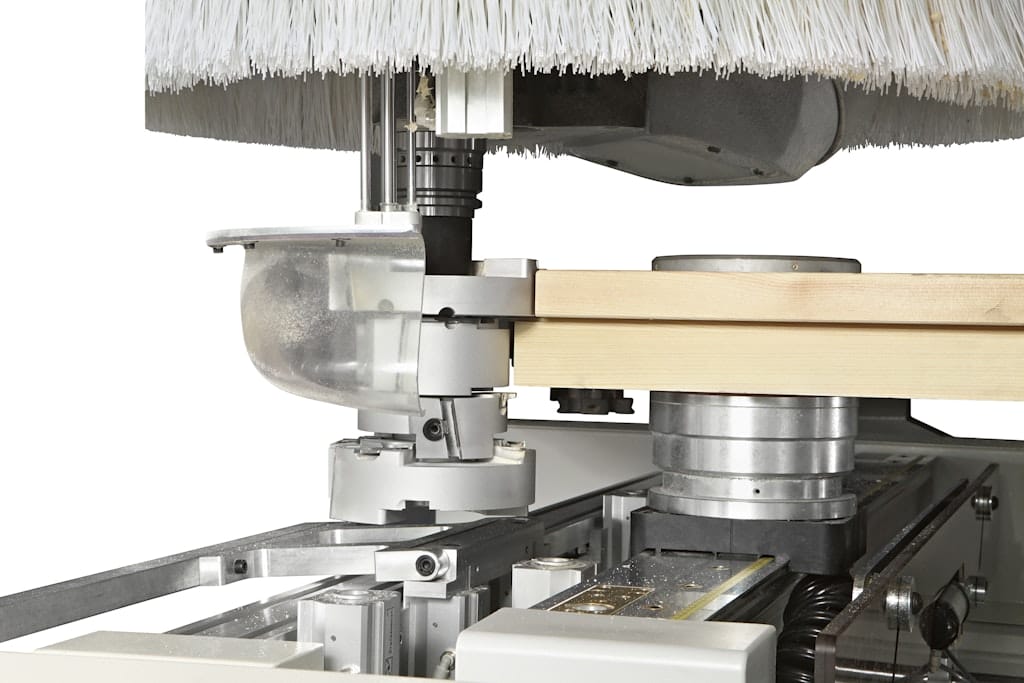

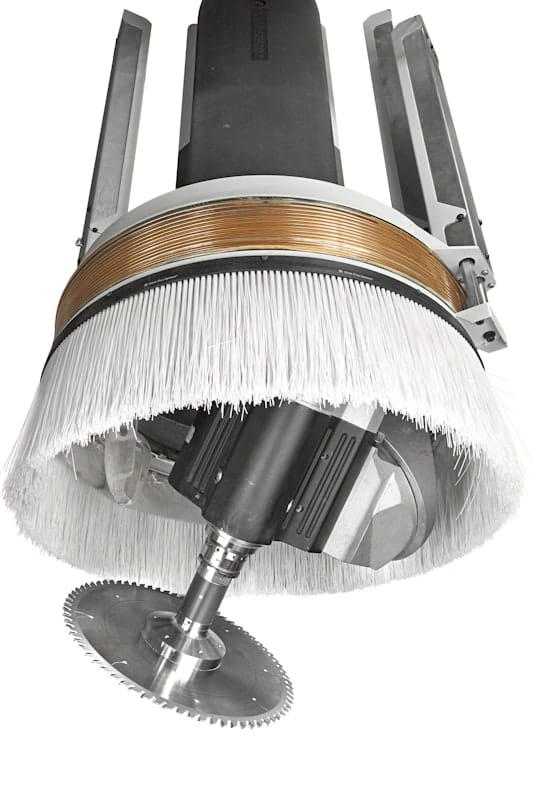

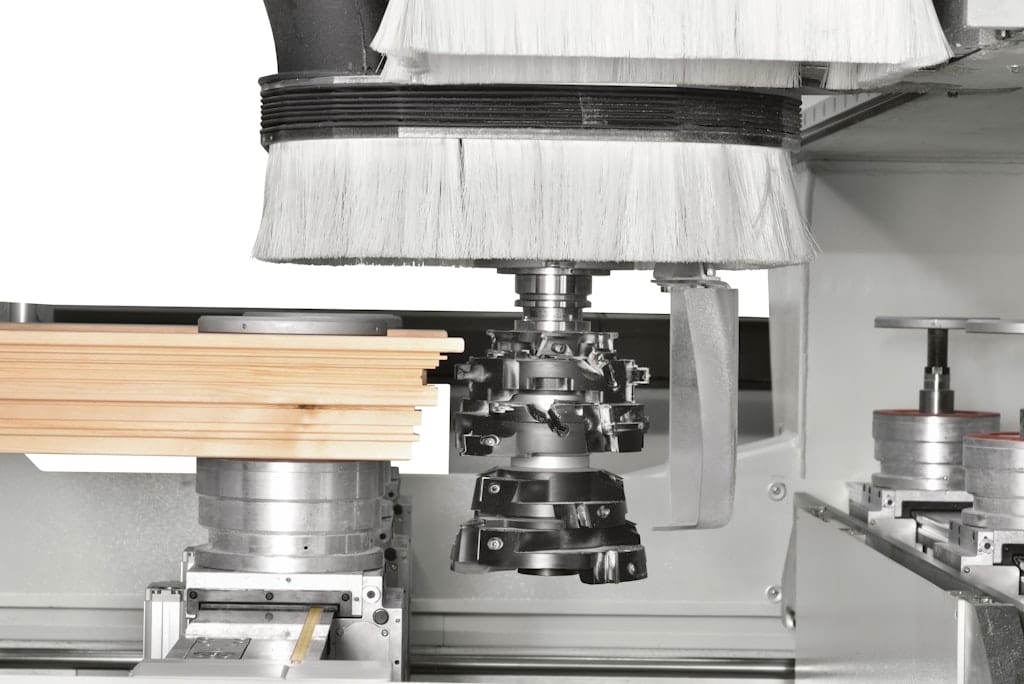

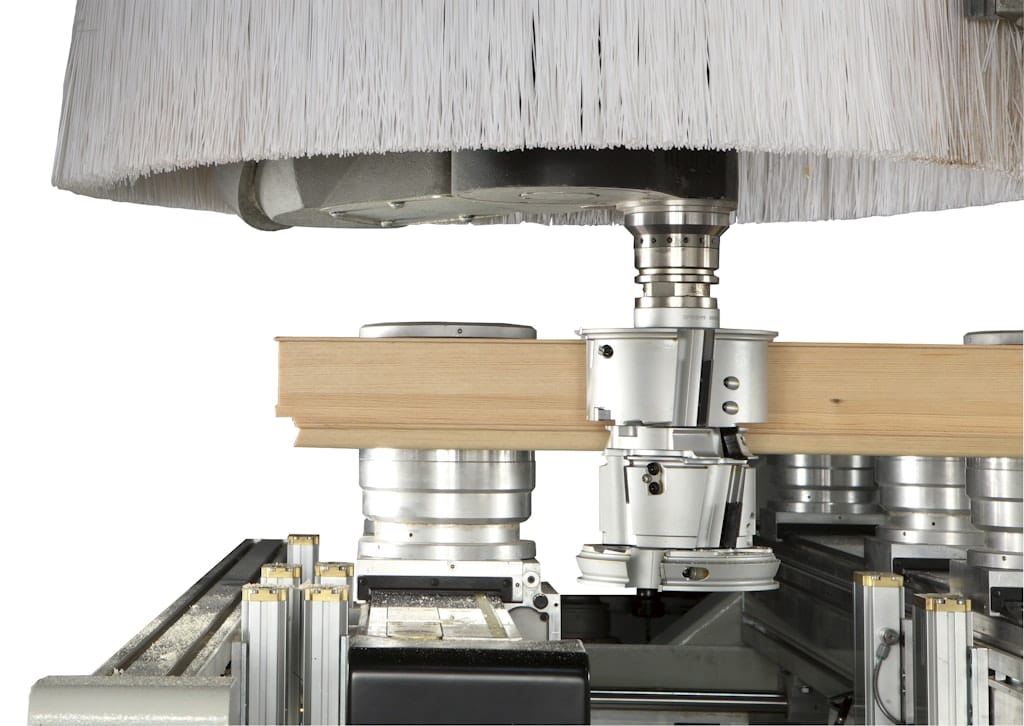

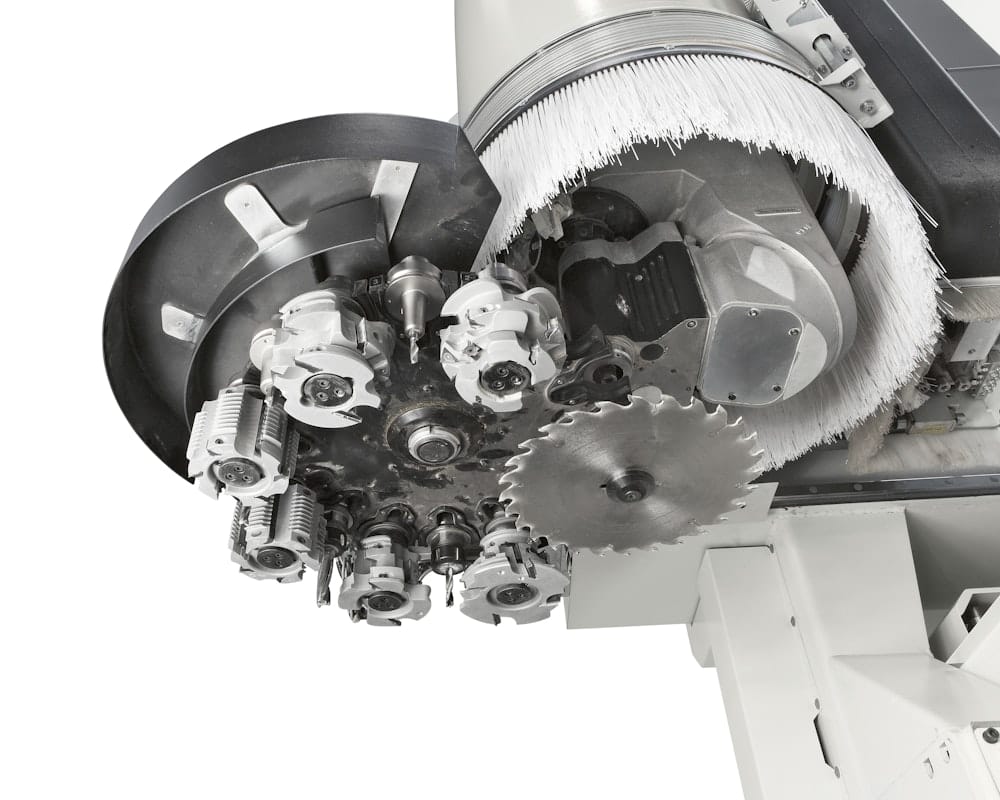

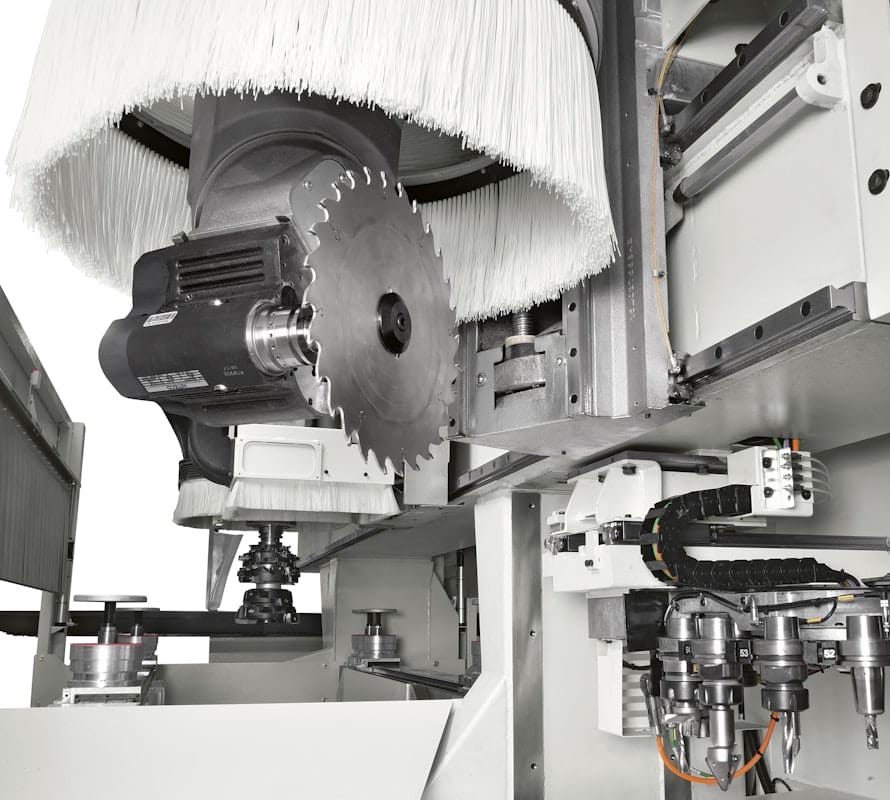

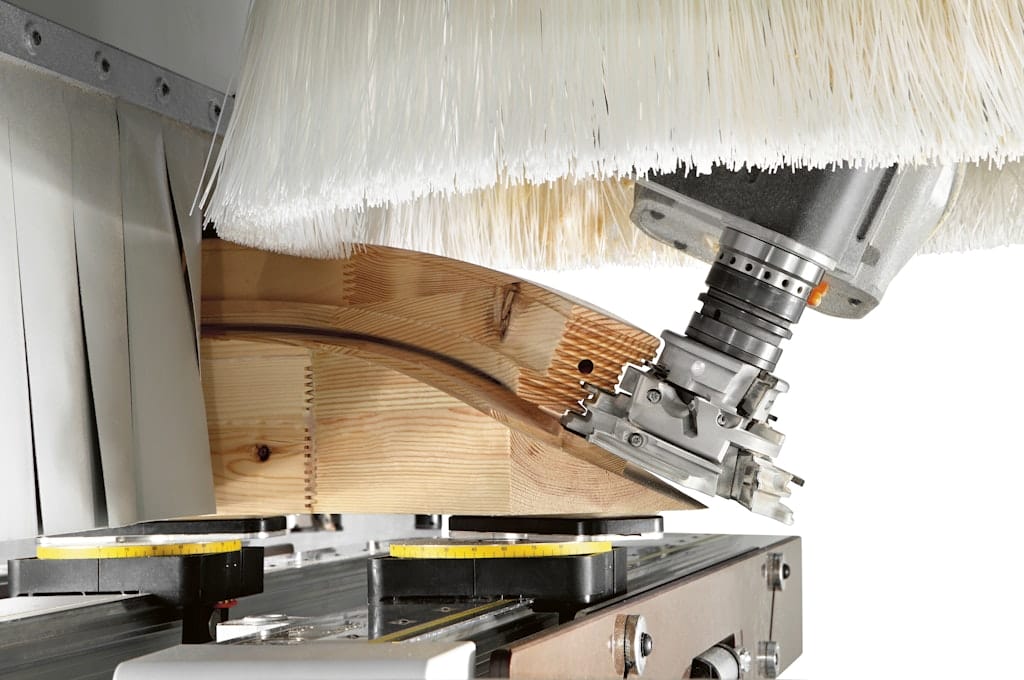

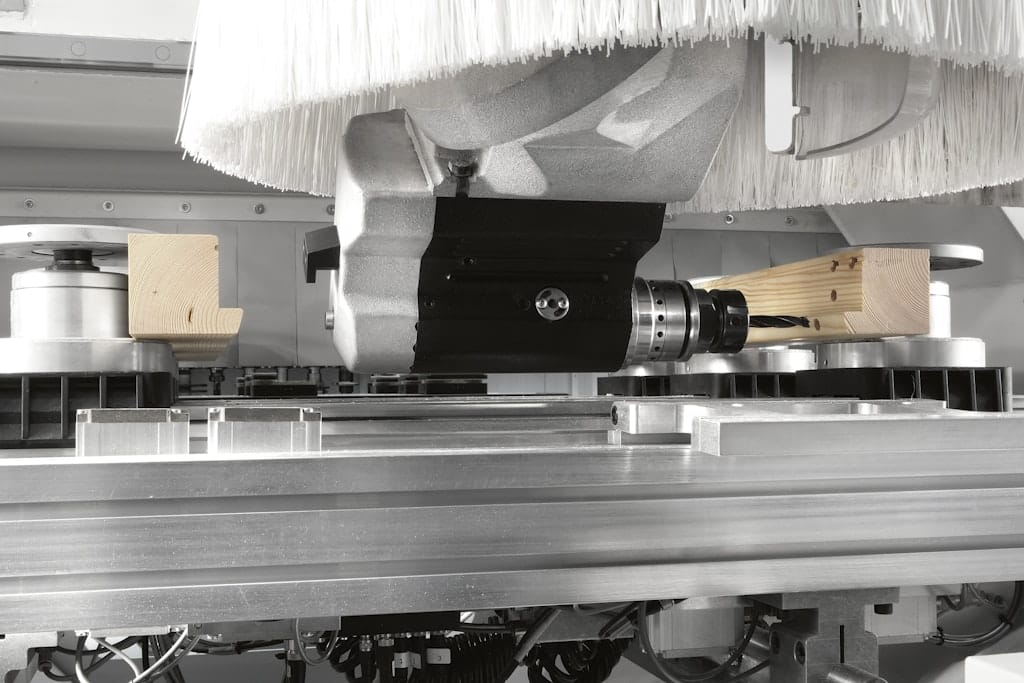

| Machining head | ||||

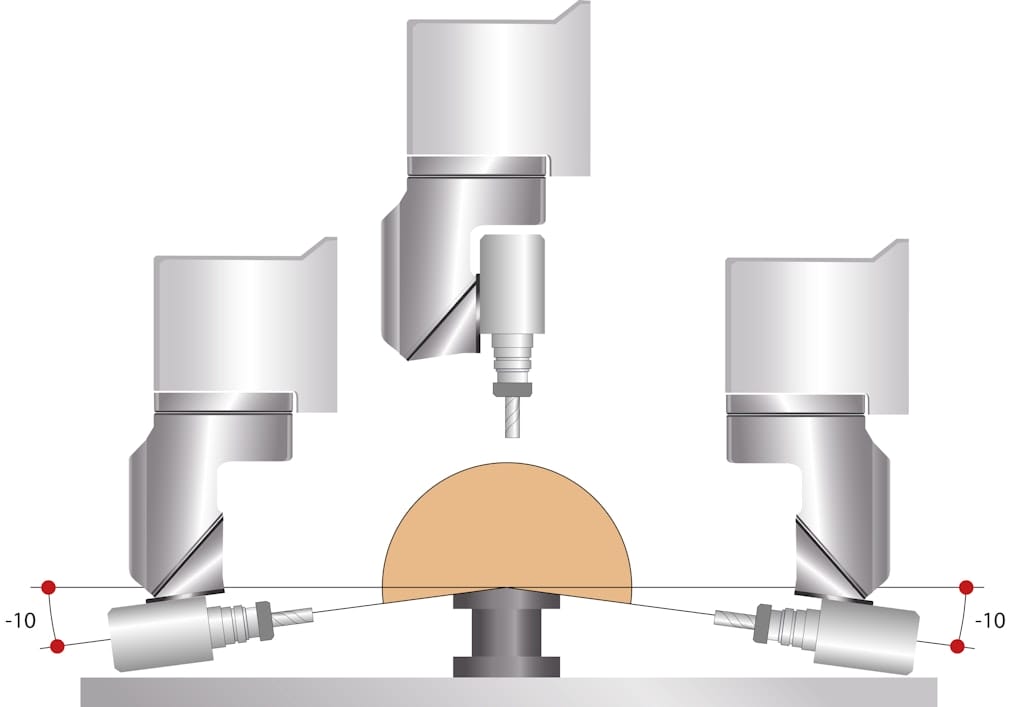

| 5 axes electrospindle motor power (max.) | kW | 12 | ||
| 3/4 axes electrospindle motor power (max.) | kW | 21 | ||
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 | ||
| 3/4 axes electrospindle rotation speed (max.) | rpm | 24000 | ||

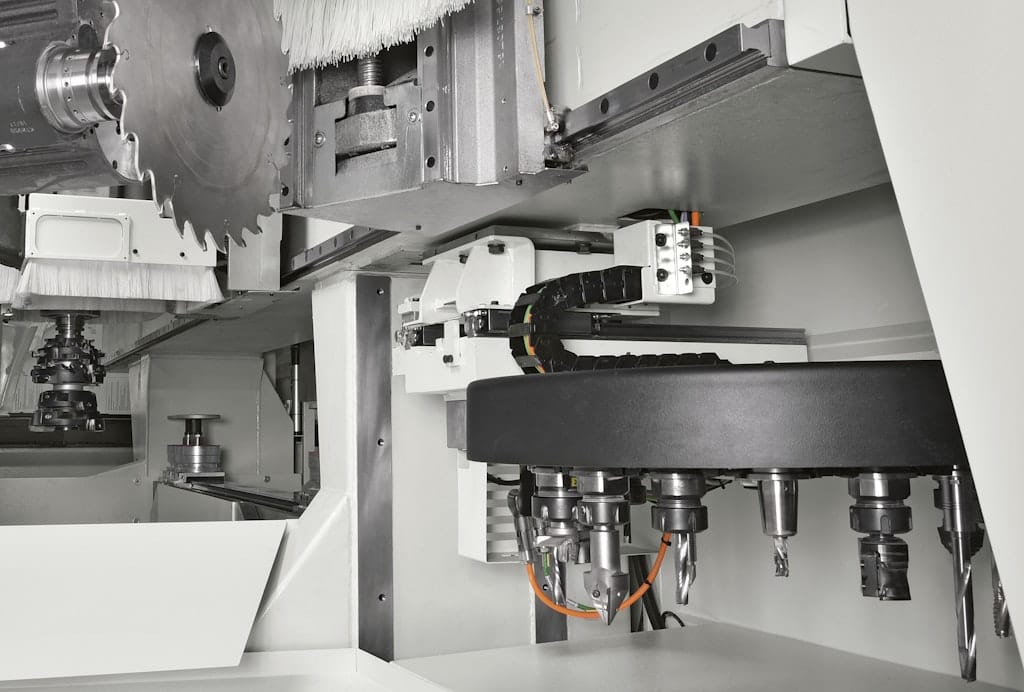

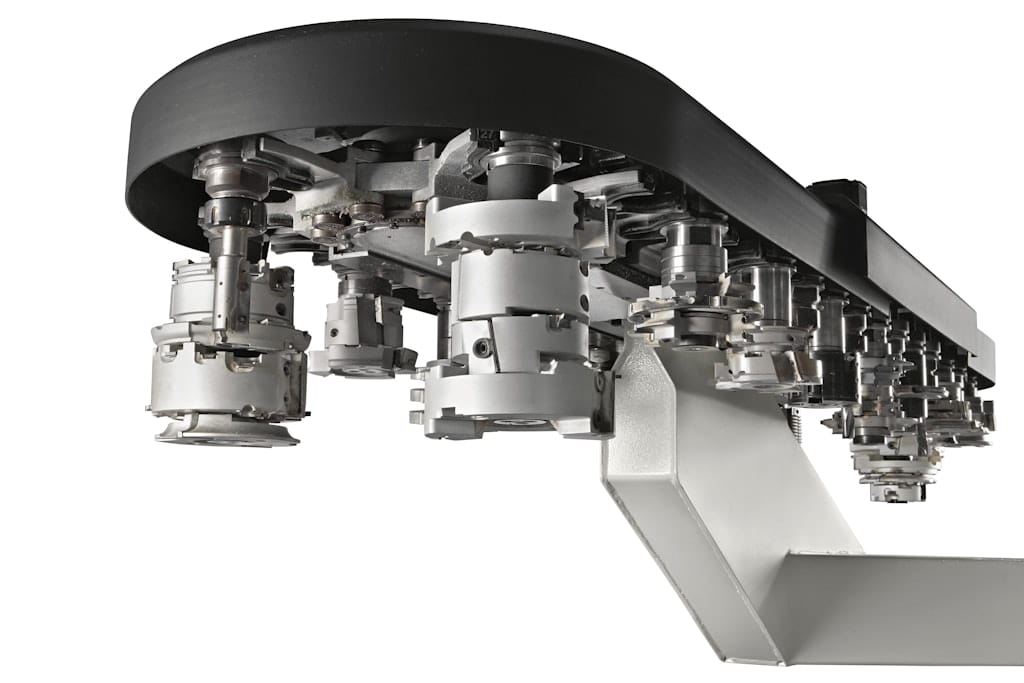

| Tool stores | ||||
| Tool store on machining head | positions | 12 | ||
| Rear tool store | positions | 48 | ||
| Front tool store | positions | 16 | ||

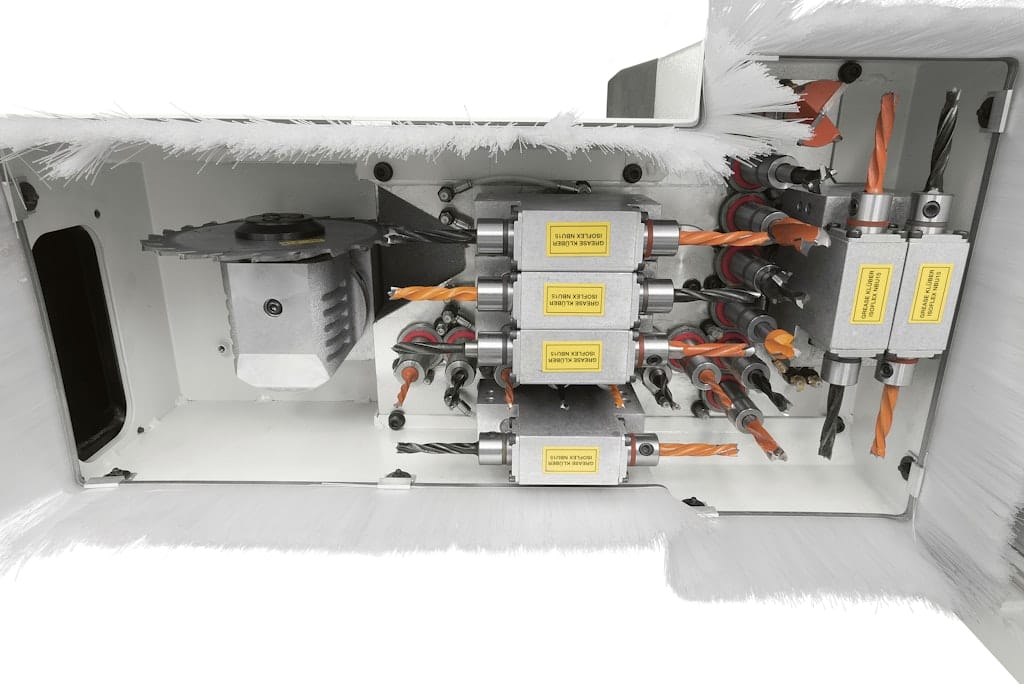

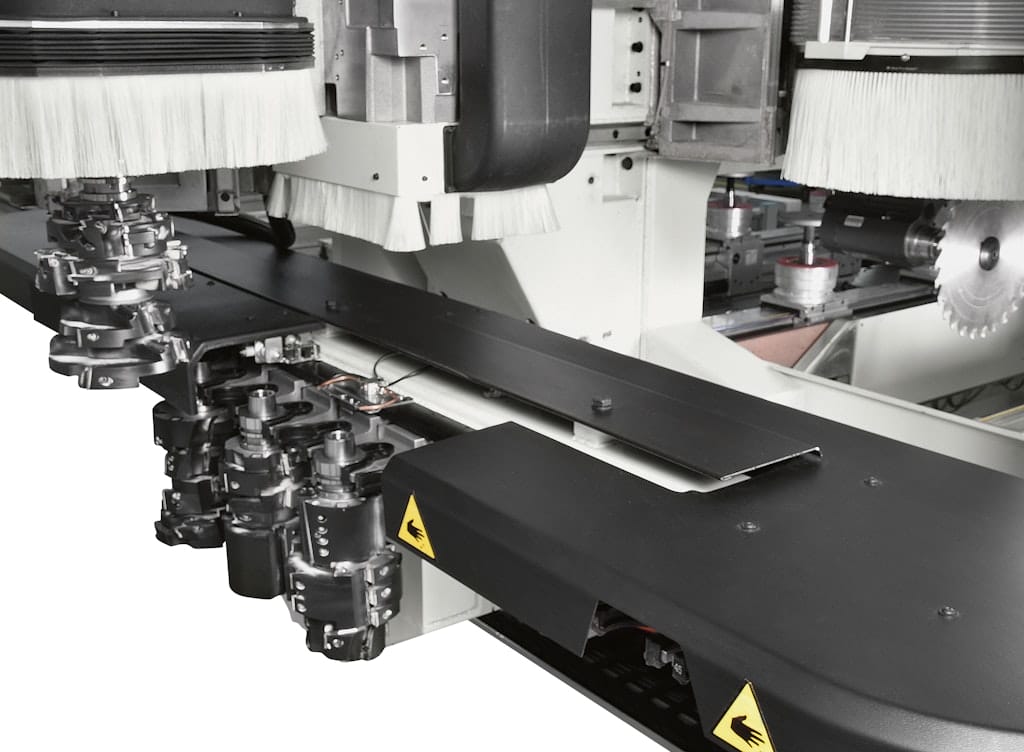

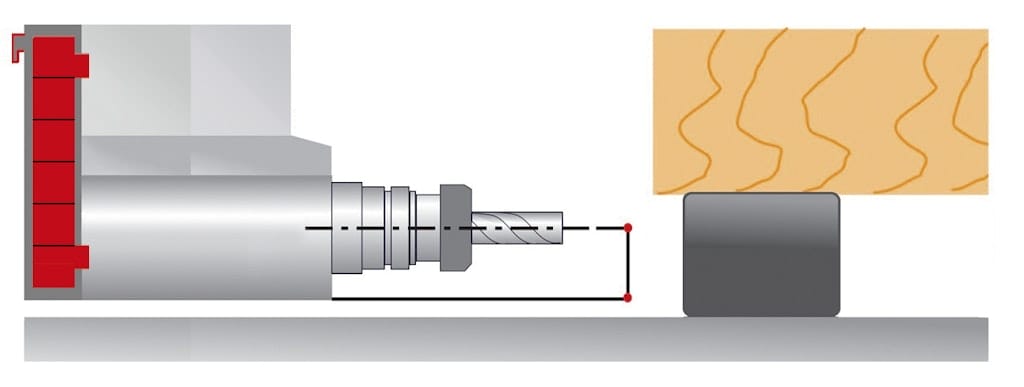

| Drilling unit | ||||
| Vertical and horizontal spindles (max.) | n. | 26 | ||
| Rotation speed (max.) | rpm | 8000 | ||
