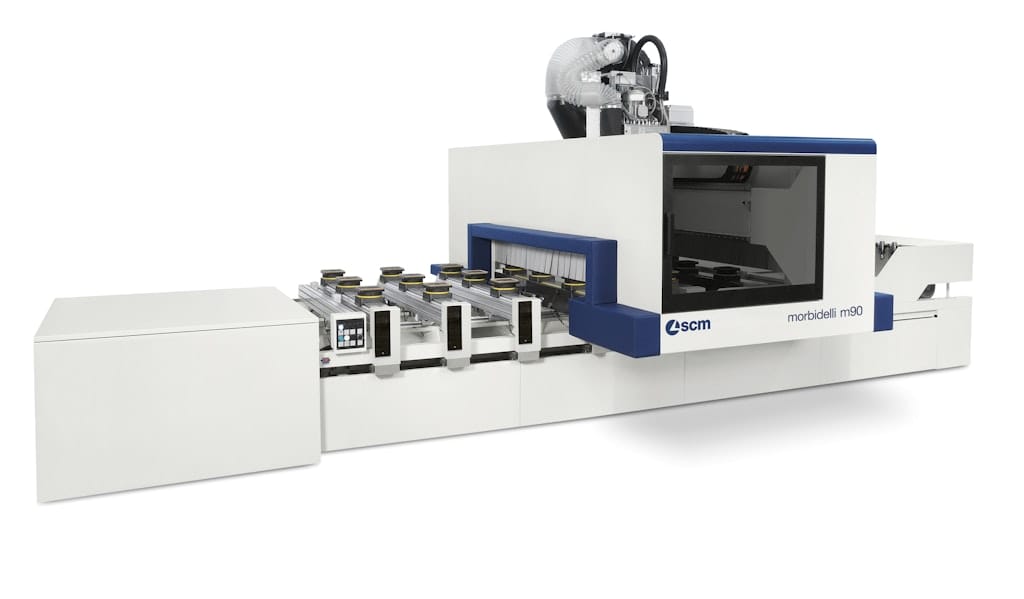

Morbidelli m90
POA
Product Features
Specifications
Technical data
| Working areas | ||||
| X-Y axes dimensions | mm | 3115 x 1320 | ||
| Y-axis panel clearance | mm | 1600 | ||
| Axes | ||||
| Vectorial speed “Pro-Space” | m/min | 56 | ||
| Z-axis panel clearance | mm | 180 | ||

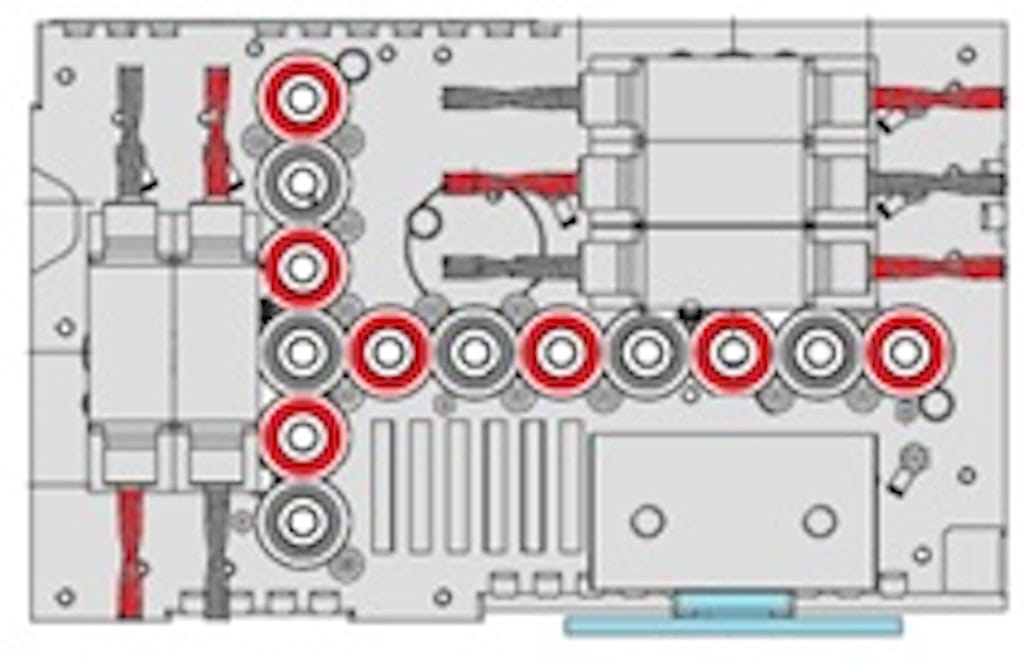

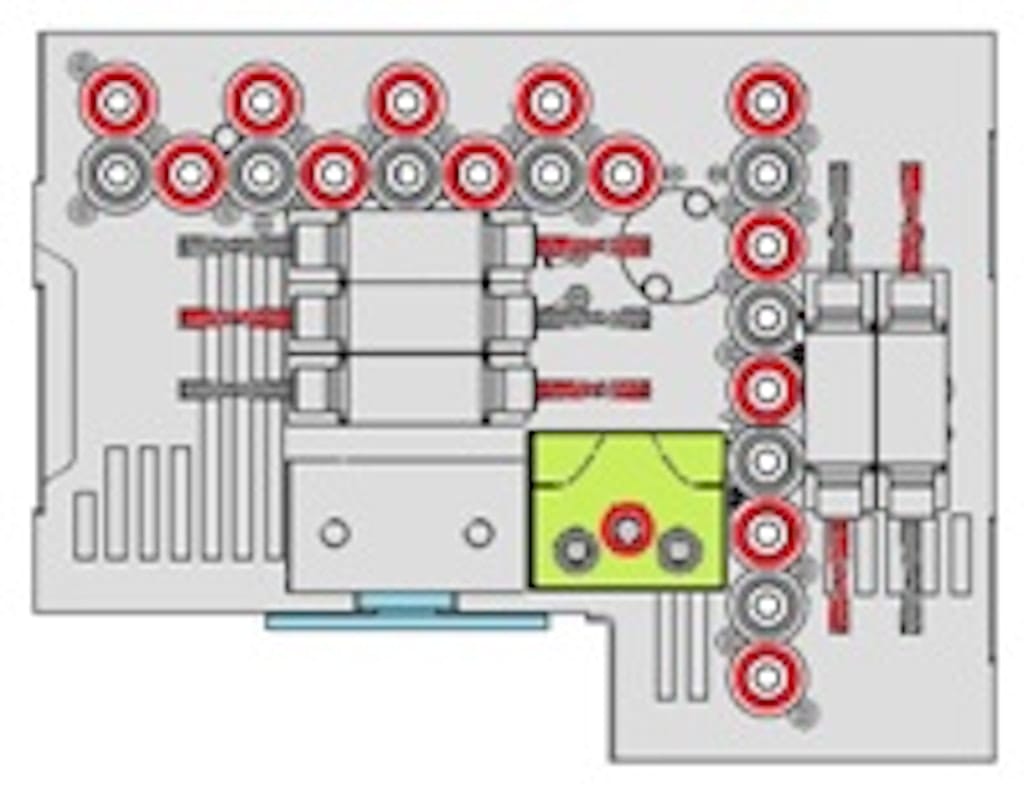

| Drilling unit | ||||
| Independent vertical spindles (up to) | no. | 21 | ||
| Independent horizonal spindles (up to) | no. | 10 | ||
| Rotation speed (max.) | rpm | 8000 | ||
| Integrated blade in X, diameter | mm | 125 | ||
| Routing unit | ||||
| Motor power (max.) | kW (hp) | 14 (19) | ||
| Rotation speed (max.) | rpm | 24000 | ||
| Available tools on tool changers (up to) | places | 25 | ||
