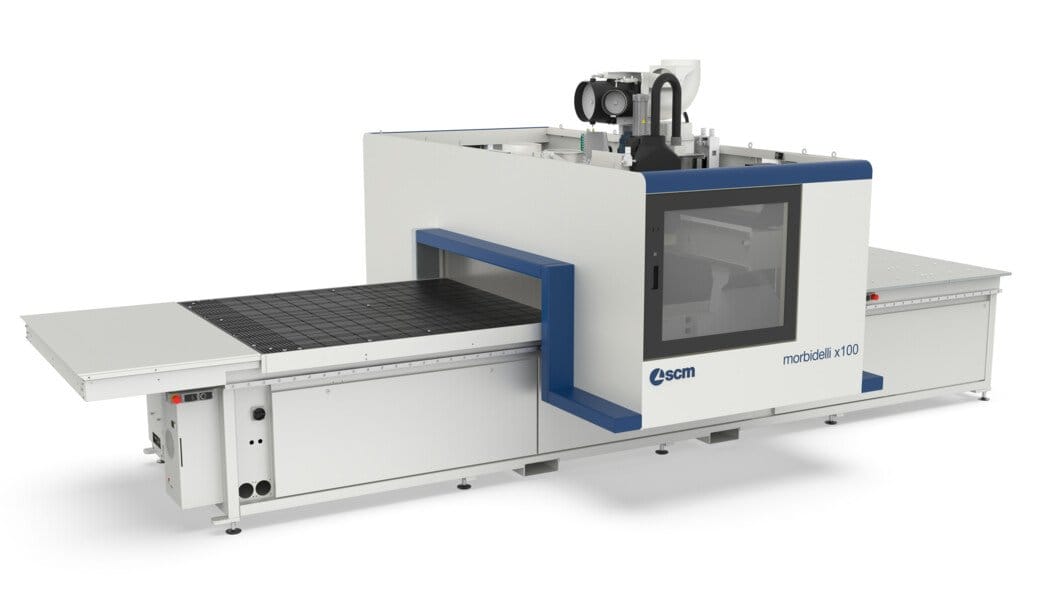

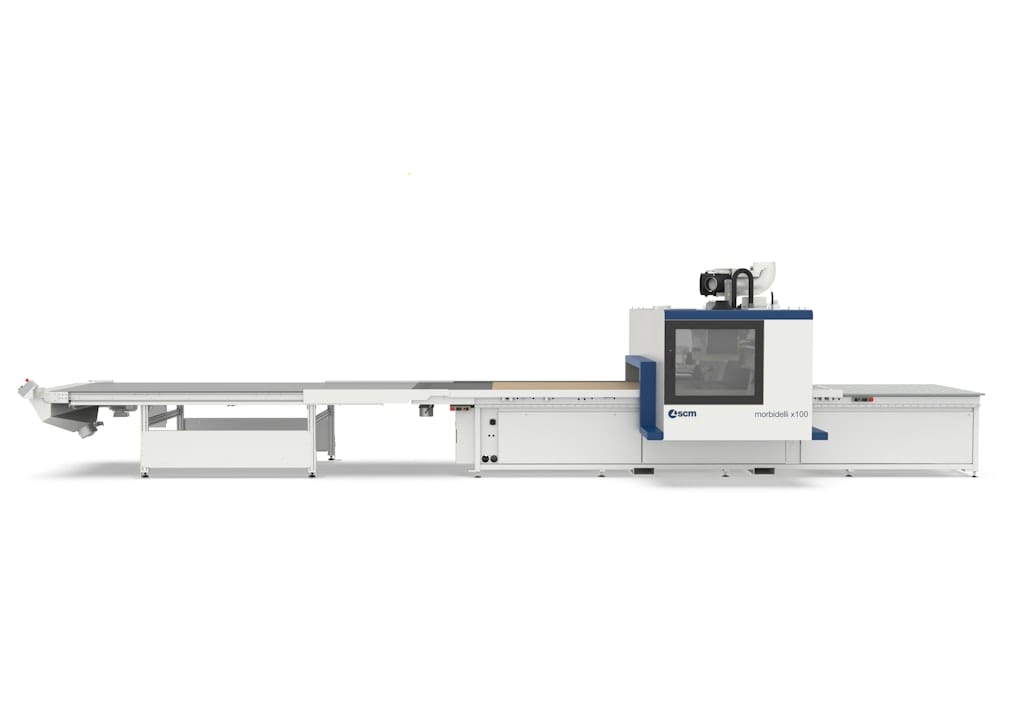

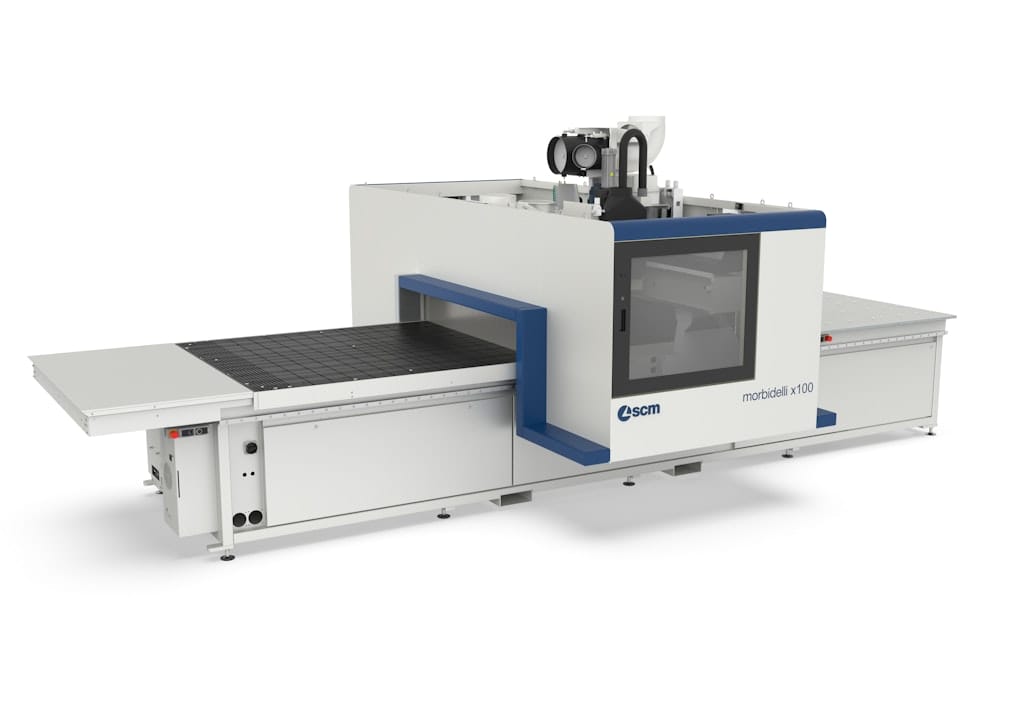

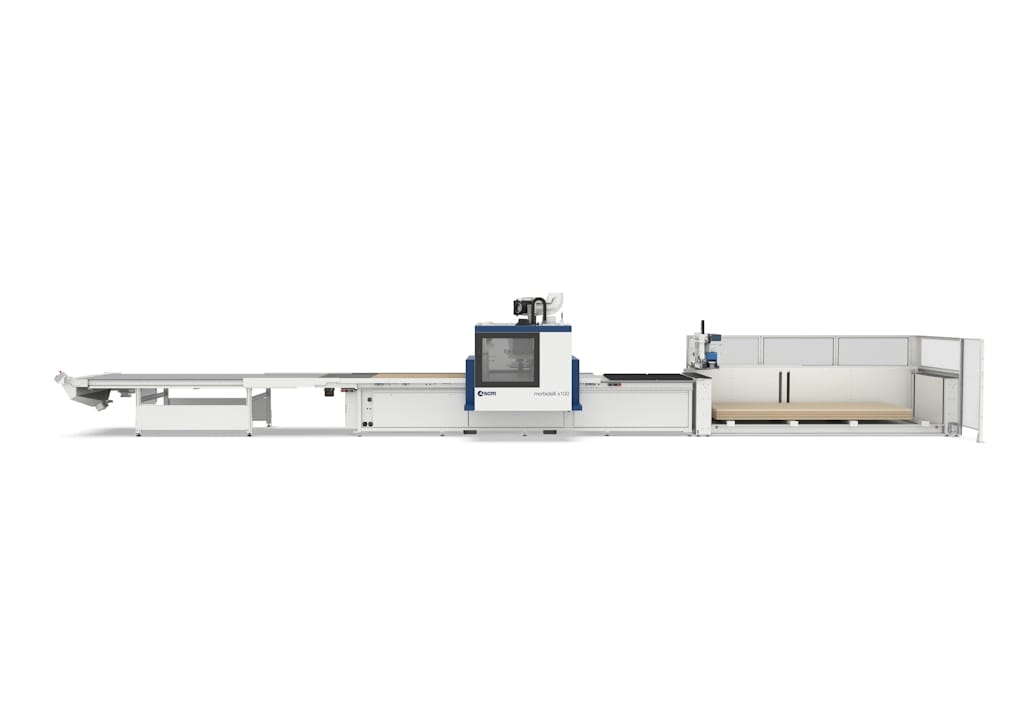

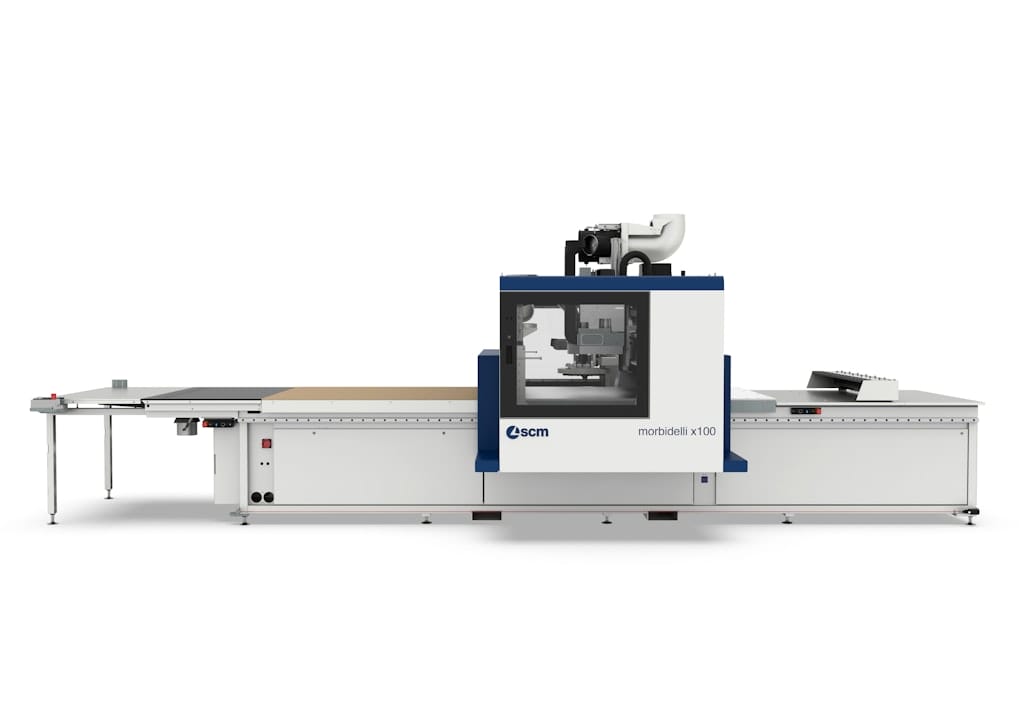

Morbidelli x100
POA
Product Features
Specifications
Technical data
| morbidelli x100 | ||||
| Working areas | ||||
| X-Y axes dimensions | mm (inches) | 2556×1296 (100×51) 3756×1596 (147×62,8) 3756×1896 (147×74,6) 3156×2216 (124×87) 4356×2216 (171×87) | ||
| Axes | ||||
| Vectorial speed X-Y axes “PRO-SPACE” version | m/min (ft/min) | 70 (230) | ||
| Z-axis panel passage | mm (inches) | 150 (5,9) | ||

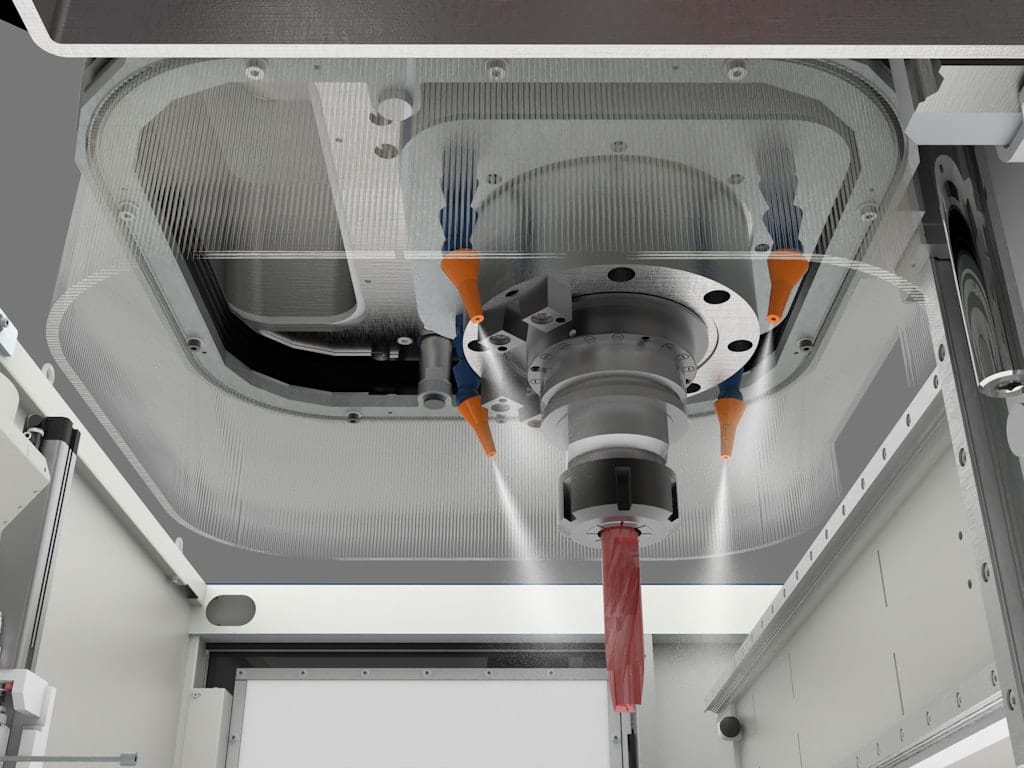

| Routing unit | ||||
| 3-4 axis motor power (up to) | kW (hp) | 15 (20,5) | ||
| Rotation speed (up to) | rpm | 24000 | ||

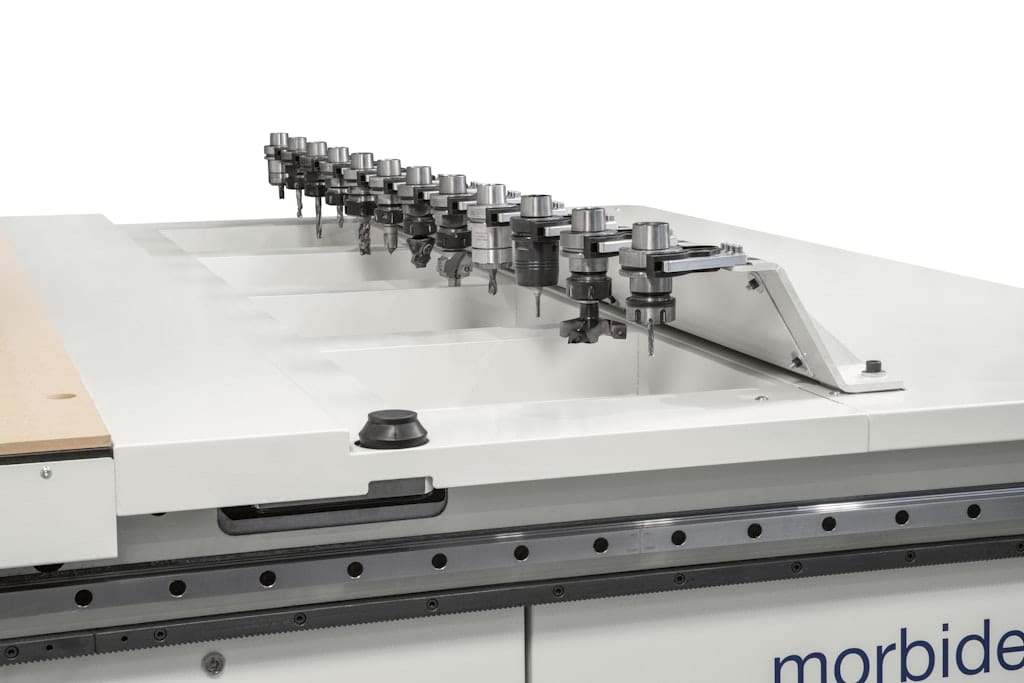

| Available tools on tool changer (up to) | positions | 31 | ||
| Drilling unit | ||||
| Independent vertical spindles (up to) | n. | 16 | ||
| Independent horizontal spindles (up to) | n. | 8 | ||
| Rotation speed (up to) | rpm | 8000 | ||
| Integrated blades (up to) | n. | 2 | ||
| Integrated blade in X, diameter | mm (inches) | 125 (4,9) | ||
