Minimax FS41 ES Planer Thicknesser
Original price was: £9,831.00.£8,995.00Current price is: £8,995.00.
The Minimax FS41 ES Planer Thicknesser is a powerful and compact machine ideal for demanding craftsmen and woodworkers. It features a parallelogram worktable system, simultaneous table raising, long surfacing tables, and ergonomic handwheels for precise, flexible, and safe operation. The “Xylent” spiral knives reduce noise, improve dust extraction, and extend cutter longevity, ensuring a comfortable, efficient, and environmentally friendly workspace.
Product Features
- Parallelogram worktable movement system
- Simultaneous table raising mechanism
- Long surfacing tables
- Fixed ergonomic handwheel controls
- Digital readout for precise positioning
- Xylent spiral cutter block
- Reduced noise operation
- Improved dust extraction via fine chips
- Rotatable cutter inserts (4 cutting edges)
- Compact, heavy-duty machine design
Description
Ideal for demanding craftsmen and woodworkers, this massive Minimax FS41 ES Planer Thicknesser is highly reliable and flexible yet also compact and straightforward to use.
The new additions to this model include the exclusive parallelogram worktable movement system, simultaneous table raising and long surfacing tables. All features make for a more advanced and more flexible machining process, capable of handling heavy, demanding workloads.
Fixed handwheels within easy reach of the operator make for an easy, ergonomic operating process that is safer as well as simpler. A digital readout also helps with more accurate positioning.

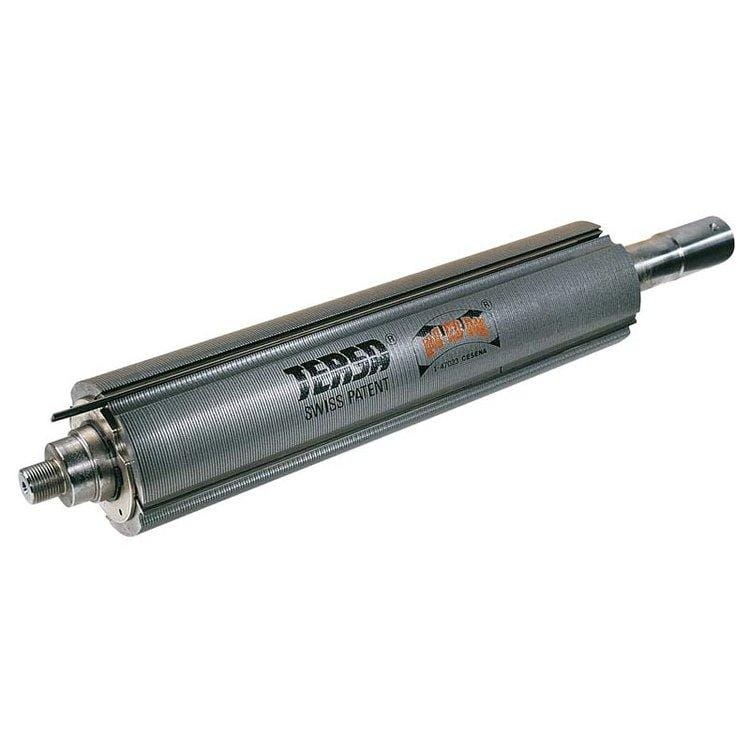

Producing an exceptional finish, the “Xylent” spiral knife has vastly reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips. The longevity of the cutter block has been greatly extended as each cutter has 4 tips which can be rotated into the cutting position when worn.
Producing an exceptional finish, the “Xylent” spiral knife has vastly reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips. The longevity of the cutter block has been greatly extended as each cutter has 4 tips which can be rotated into the cutting position when worn.
Specifications
- Helicoidal thicknesser infeed roller
- Digital Readouts
- Bridge Type Protection
- Dedicated Surface planer fence (1200mm x 150mm)
- Additional overturning fence for small pieces
- Tersa cutterblock
- 7.5HP Motor
- Powered Rise/Fall with digital read-out
- Planing width 410 mm
- Table length 2200 mm
- Thicknessing capacity 3-240 mm
- Feed speed 7 + 14 m/min
- Motor 7.5hp 400v 3ph
- Fence size 1100 x 160 mm
- Dust Connection dia 120 mm
- Weight 430 kg
- Overall Dimensions 2000 x 1300 x 1020mm
- Thicknessing table dimensions 775 x 410mm
- Maximum stock removal 5mm
