NEW SCM S520 Nova Thicknesser
£9,895.00
The SCM S520 Nova Thicknesser combines robust, practical design with precise, flexible operation for a variety of woodworking applications. Interchangeable rollers, large-diameter screws, and side linear guides ensure stability, control, and ease of handling complex requirements. Xilent spiral knives reduce noise, while improved dust extraction creates a safer, more comfortable, and environmentally friendly workspace.
- 520 mm working width for medium to large workpieces
- Heavy-duty cast iron table for stability and accuracy
- 4-knife cutterblock for consistent planing results
- Four feed speeds for different materials and finishes
- Motorised table rise and fall with precise adjustment
- Digital thickness readout for accurate setup
- Interchangeable feed rollers for different applications
- Three-roller feeding system for smooth, even material feed
- Rigid 4-screw table support system for long-term precision
Product Features
Description
With a practical yet robust design, the SCM S520 Nova Thicknesser provides simple and precise operation with flexibility in the range of applications that can be used with it.
Featuring interchangeable rollers that have quick and easy changeover procedures that allow for the operator to have a greater degree of control and more flexibility when it comes to handling special or more complex requirements. The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of these features combines to give a significant stability boost to the worktable.
Outputting an exceptional finish, the “Xilent” spiral knife also has reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.
Specifications
Powered Lifting of thicknessing table
Numerical readout of working height
Movement by means of 4 vertical screws
2 x Rollers in table
Sectional steel infeed roller
1 rubber-coated steel roller on outfeed
Interchangeable Rollers
Tersa cutterblock
Worktable dimension mm 530×900
Working width mm 520
Max. (min.) working height mm 250 (3,5)
Min. working length mm 220
Max. stock removal mm 8
Cutterblock diameter (No. of knives) mm 120 (4)
Cutterblock speed r.p.m. 4500

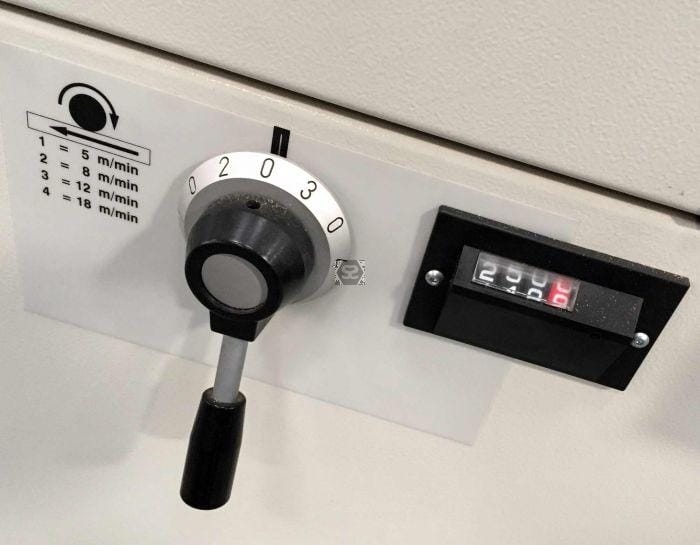

Feed speed m/min 5-8-12-18
Motor power STD KW (HP) 7 -9KW OPTION
Extraction outlet diameter mm 150
Extraction flow rate m3/h 1300
Machine net weight Kg 680
Product Video
Product Leaflet
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
