SCM Formula S640P Bandsaw

POA

Bringing you the most robust power out of the “professional” series of bandsaws, the SCM Formula S640P Bandsaw is fit for the most demanding and professional woodworkers who require far more than what the average bandsaw offers.

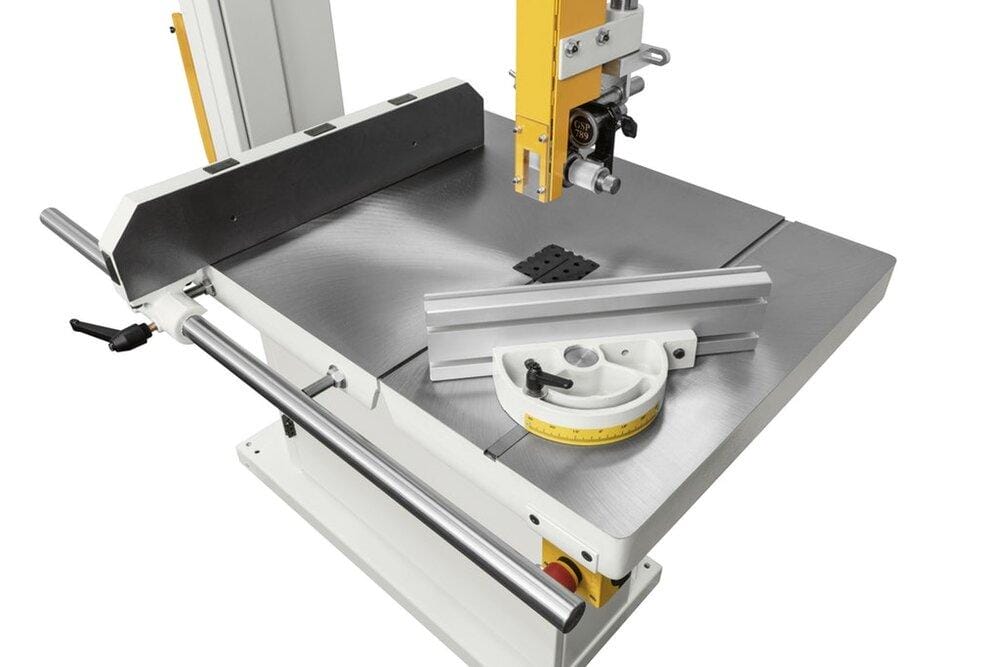

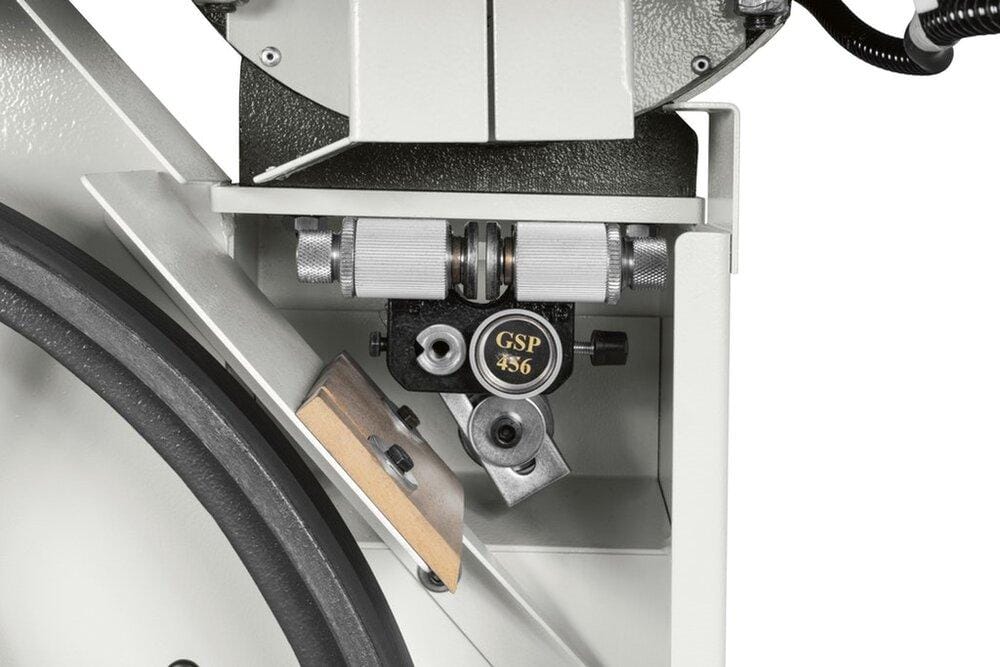

The solidity and durability of the S640P bandsaw are down to the ultra-thick, cast iron wheels and the worktable that runs on sealed-for-life ball bearings. Telescopic protections with rackwork to the blade make for a safe and reliable machining process. Top and bottom blade guides ensure the machine outputs a flawless cut – suitable for professional woodworkers and furniture makers.

Depending on your electrical specs and production requirements, there are two versions of this product to further accommodate your needs. The single-phase power will give you 4.8hp whilst the 3-phase version will land you with a seriously powerful 9hp – excellent for anyone with an extremely demanding workload.

Standard features include:

  • Blade tension indicator
  • Cast iron work table
  • Integral blade protection
  • Pinion-rack lifting system of the blade guide unit
  • Motor protection
  • Access to flywheels with E.C version
  • Motor power 4hp – 3kw
  • Cutting depth 600mm
  • Cutting width 520mm
  • Min- MAX BLADE LENGTH 5160-5220mm
  • 2 x dust outlets 120mm dia.
  • Weight 330kg

Out of stock

In Stock

Expected 10/01/2024

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

BAND SAW SCM GROUP mod. FORMULA S 640-P – As for E.C. rules
– safety equipment as per E.C. rules
– cast iron square guide
– groove on the table 15×4 mm
– cast iron disk flywheels
– packaged on a pallet with spread machine

– worktable [mm] 600 x 885
– cast iron flywheel diam. [mm] 640
– flywheel width [mm] 38
– max. cutting height (inches) [mm] 600 (24 “)
– max. cutting width [mm] 620
– working table inclination (CE) 0 ° ÷ 20 °)
– min./max. blade dimensions [mm] 8/35
– standard 3-phase motor S1 400V  4HP 50Hz
– suction mouth diam. [mm] N ° 2 x 120

TECHNICAL FEATURESS 640P
Flywheels Diameter640 (25″)
Flywheel Width38
Three-Phase Motor3 kW (4Hp) S1
Single-Phase Motor3.6 kW(4.8 Hp) S1
Cutting Height600 (24″)
Cutting Width620 (24.4″)
Table Size600 x 885 (24 x 34.8″)
Table Tilting0° – 45°
Blade Length Min-Max5160-5220 mm
Blade Width Min/Max0.25 – 1.5″
Dust Ports2x 120mm
Overall Dimensions740 x 1210 x 2390
Net WeightKg (lbs.)200 (440)    (550)340 (750)450 (990)610 (1342)720 (1584)
