Minimax Model TW45C Spindle Moulder
Original price was: £5,701.00.£4,995.00Current price is: £4,995.00.
The SCM Minimax TW45C is a compact spindle moulder with sliding table, designed for accurate shaping, profiling and light tenoning. Built for ease of use and reliable performance, it is ideal for smaller workshops and general joinery work.
Product Features
- Fixed spindle moulder for shaping, profiling and light tenoning
- Sliding table for improved support and control of workpieces
- Three spindle speeds up to approx. 10,000 rpm
- Heavy-duty cast iron construction for stability
- Micrometric fence adjustment with pressure guides for accuracy
- Maximum tool diameter up to approx. 210 mm (profiling)
- Maximum tool diameter up to approx. 275 mm (tenoning)
- Manual controls for simple and reliable setup
- Optional tilting spindle for increased flexibility
- Designed for small to mid-sized professional workshops
Description
The SCM Minimax TW45C is a versatile spindle moulder designed for craftsmen and workshops that need a dependable, easy-to-use machine for everyday shaping and profiling tasks. As part of the Minimax range, it sits at the more accessible end of the lineup, offering solid build quality and practical features without unnecessary complexity.

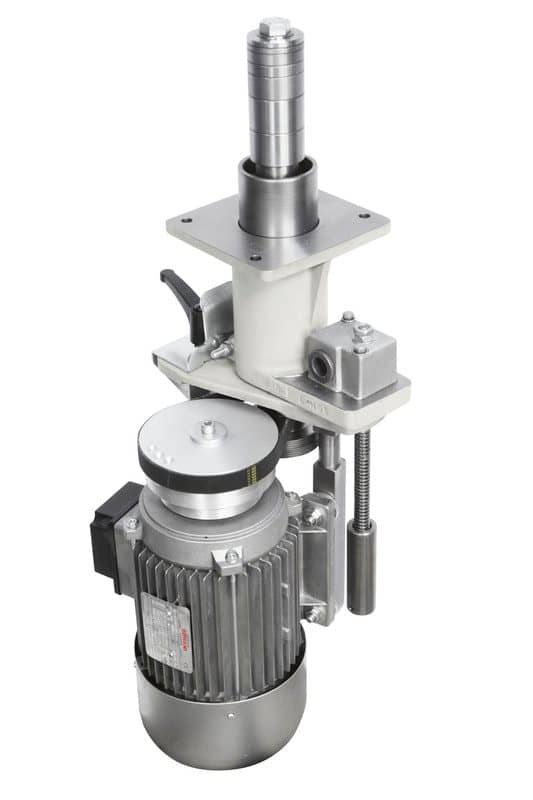

At its core is a fixed spindle system supported by a cast iron structure and steel base, providing good stability and reducing vibration during operation. This allows the machine to produce clean and consistent results when carrying out profiling, rebating, grooving and light tenoning work.
A key feature of the TW45C is its sliding table, which improves support and control when working with longer or larger pieces. This makes operations such as end machining and tenoning easier and safer, while also helping maintain accuracy throughout the cut.

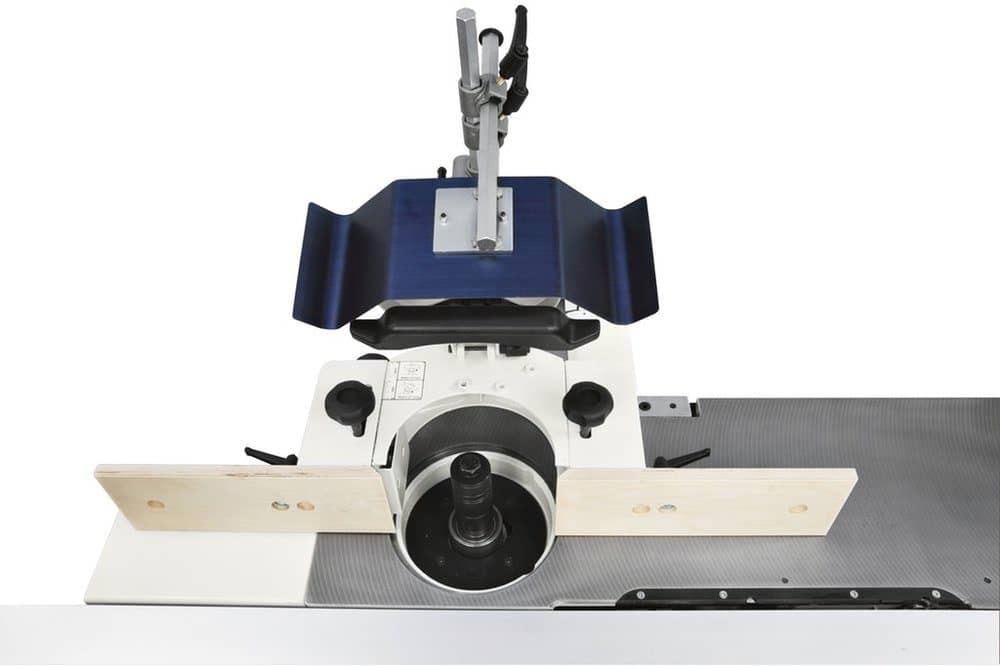

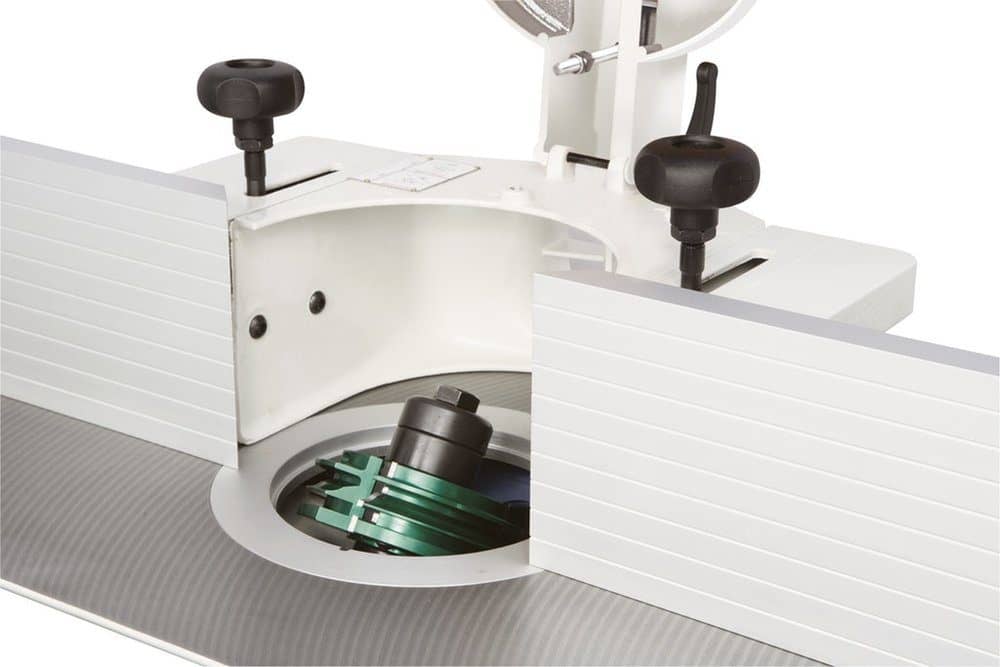

The machine is designed with straightforward setup in mind. The fence system includes micrometric adjustment and pressure guides, allowing precise positioning and repeatable results without constant readjustment. Multiple spindle speeds provide flexibility for different tooling and materials, while the simple manual controls keep operation easy and reliable.
Optional features such as a tilting spindle and advanced guarding systems allow the machine to be adapted for more specialised work if required. Overall, the TW45C is a practical and dependable spindle moulder that offers good accuracy and versatility in a compact format, making it well suited to smaller professional workshops or joiners needing a reliable everyday machine.
Specifications
Max. useful spindle lengthmm100
Spindle moulder speed (a 50 Hz)giri/min3500/7000/10.000
Max. tool diameter when profilingmm210
Max. tool diameter lowered under the table at 90°mm180
Max. tool diameter when tenoning mm275
Three-phase motors starting from kW/Hz5 (6) / 50 (60)
- 1ph or 3ph
- Useable Spindle Length
108mm - Spindle Speed
3500, 7000, & 10,000rpm - Max Tool Ø
2100mm - Max Tool Ø Beneath the Table
180mm - Motor Size
2.5hp 240v - 4hp 415v
- Shaft Size
30mm - Tilting of Shaft
0 – 45° (Optional)
