SCM Model TF130E Class Pro.10 TL Version for Tenoning & Profiling
Original price was: £20,900.00.£18,350.00Current price is: £18,350.00.
The SCM Class TF130E Pro 10 TL is a high-performance spindle moulder designed for precise shaping, profiling and tenoning in professional workshops. With electronic adjustment and an integrated tenoning carriage system, it delivers fast setup and consistent, accurate results.
Product Features
- Fixed spindle moulder with integrated tenoning carriage (Pro 10 TL version)
- Powered spindle rise and fall with digital readouts
- Five spindle speeds from approx. 3000 to 10,000 rpm
- Heavy-duty cast iron construction for stability and reduced vibration

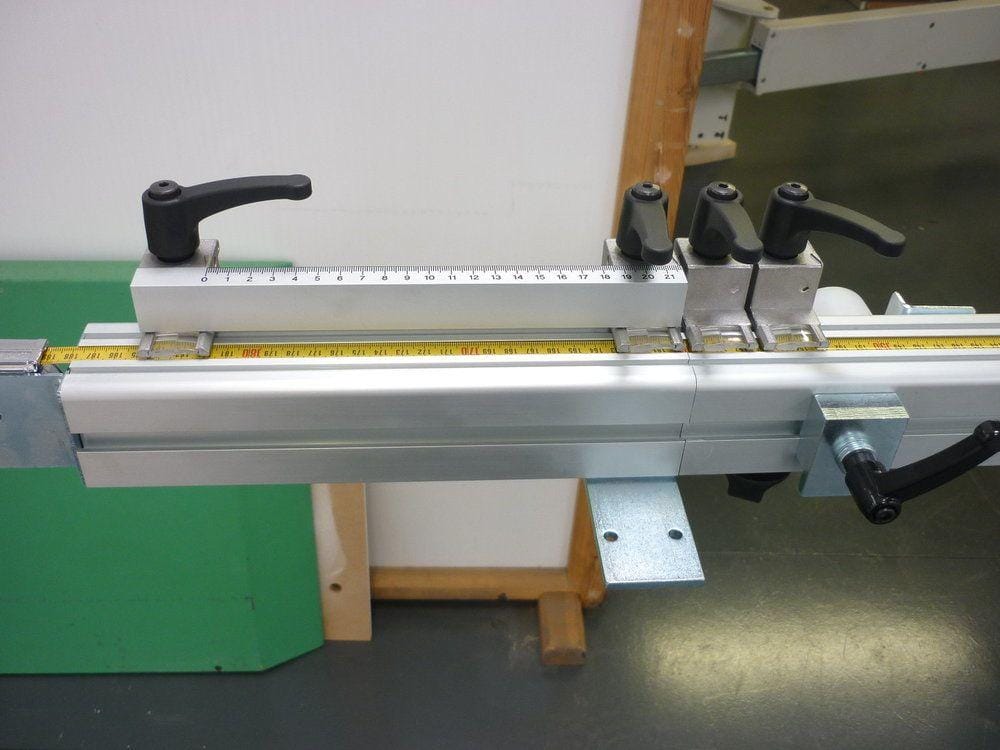

- Telescopic tenoning guide with adjustable stops and memory positions
- Manual feed carriage running on precision guides for accurate tenoning
- Fence with mechanical programming and fine adjustment
- Maximum tool diameter up to approx. 300–350 mm depending on setup
- Extended table support for larger workpieces
- Suitable for profiling, moulding, rebating and tenoning in production environments
Description

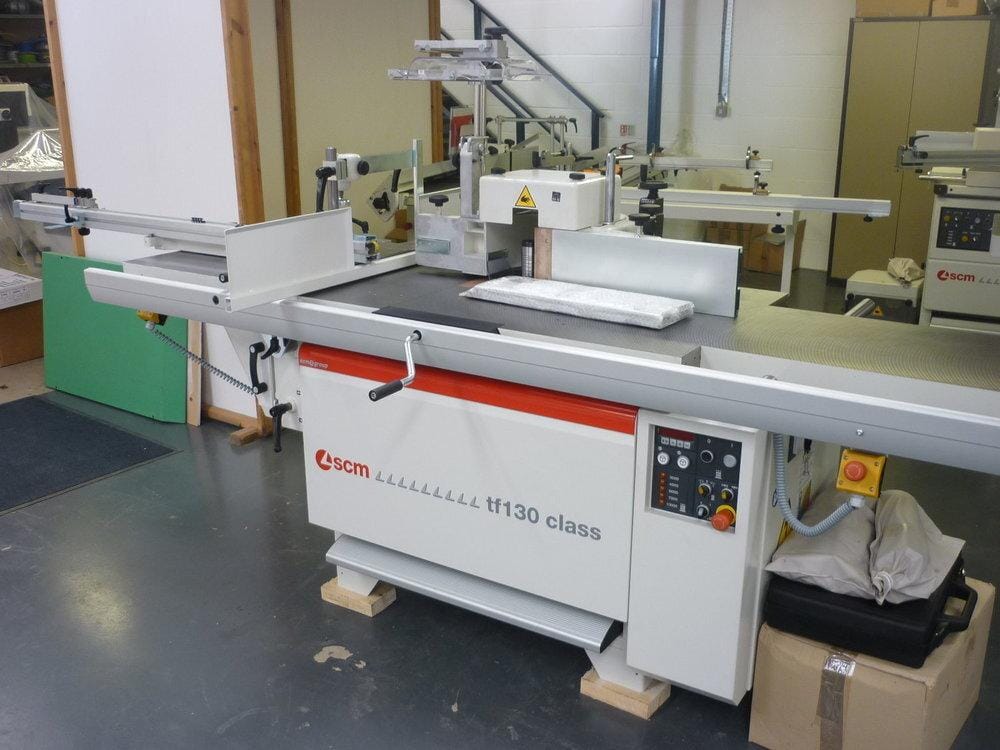

The SCM Class TF130E Pro 10 TL is an advanced spindle moulder built for workshops that require both precision profiling and efficient tenoning in a single machine. As part of the SCM Class range, it combines a traditional fixed spindle setup with electronic control and an integrated tenoning system, making it well suited to production environments where speed and repeatability are important.
At its core is a heavy-duty fixed spindle supported by a rigid cast iron column and worktable, providing excellent stability and reducing vibration during operation. This ensures clean, accurate finishes when carrying out shaping, rebating, grooving and profiling tasks. The “E” version includes powered spindle rise and fall with digital readouts, allowing quick and precise adjustment without repeated test cuts, which improves efficiency and consistency across jobs.
What sets the Pro 10 TL version apart is its dedicated tenoning setup. The machine includes a manual feed tenoning carriage running on precision guides, allowing components to be machined accurately and consistently. The telescopic guide system, complete with adjustable stops and memory positions, enables repeatable sizing and positioning of workpieces, making it ideal for door, window and frame production.
The machine also features a programmable fence system with mechanical readouts, allowing accurate positioning down to fine tolerances. Combined with multiple spindle speeds and compatibility with a wide range of tooling, it offers flexibility across different materials and applications. The extended table configuration and support systems help maintain control when working with larger components, improving both safety and accuracy.
Overall, the TF130E Pro 10 TL is designed for workshops that need a versatile, high-capacity machine capable of both profiling and tenoning. It delivers the reliability of a traditional spindle moulder with the added efficiency of electronic adjustment and integrated tenoning capability.
