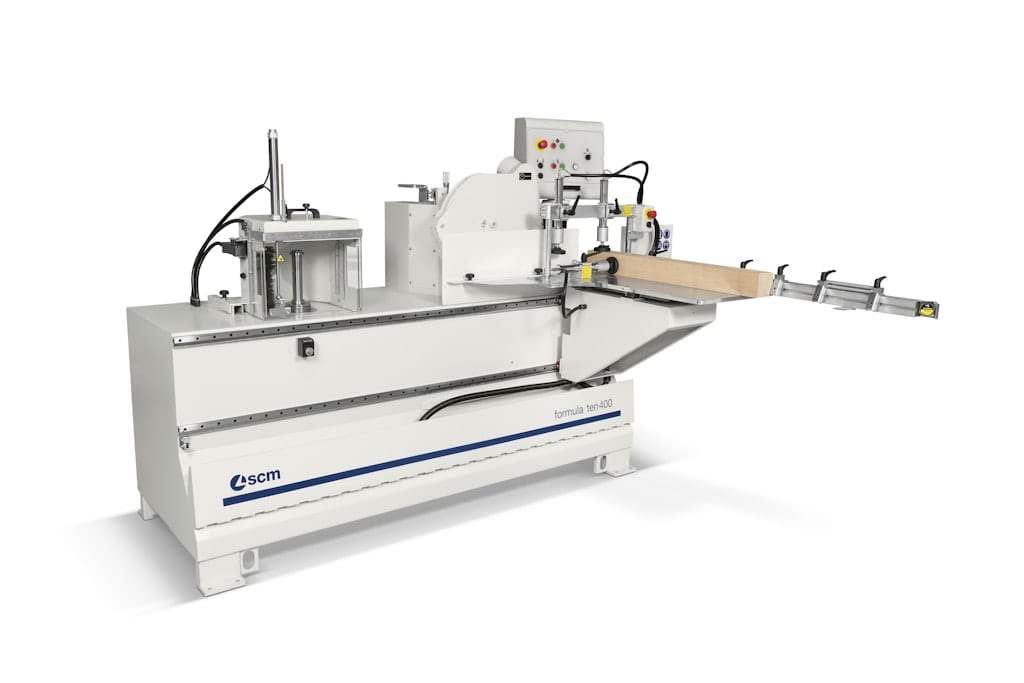

New SCM Formula TEN 400 Tenoner
POA
This automatic tenoning machine delivers rapid, highly accurate tenoning with minimal setup. Equipped with two vertical and one horizontal pressure cylinder, it securely locks workpieces for precise machining. Ideal for handling large elements while maintaining consistent quality and efficiency.
Product Features
- Automatic tenoning machine for precise, repeatable machining
- Manual tool change system (standard Ten 400 version)
- Two vertical and one horizontal clamps for secure workholding
- Tilting fence up to ±45° for angled machining
- Linear guide carriage system for smooth movement
- 5-position revolver for accurate positioning
- 4 mechanical stops for repeatable cuts
- Integrated circular saw unit for cutting operations
- Heavy-duty construction for workshop use
Description
The SCM Formula Ten 400 is a heavy-duty automatic tenoning machine designed for producing accurate and repeatable joints in professional joinery workshops. It is built to handle high volumes of work while maintaining consistent precision, making it well suited to the manufacture of doors, windows and frame components.
The machine uses a precision-guided carriage system to move the workpiece smoothly through the cutting area, ensuring clean and accurate results. A multi-point pneumatic clamping system holds the material securely in place throughout the process, reducing movement and improving overall accuracy. The tilting fence allows for angled tenoning up to 45 degrees, giving the operator flexibility when working on more complex joinery.
Unlike the upgraded “E” version, this model uses a manual tool change system, offering a simpler and more cost-effective setup while still delivering reliable performance. The inclusion of mechanical stops and a revolver positioning system helps maintain consistency across repeated cuts, reducing setup time between jobs.
Overall, the Formula Ten 400 is a solid, dependable tenoner that balances precision, durability and ease of use, making it a strong choice for workshops that need consistent results without the added complexity of automated tooling systems.
Specification
| formula | ten 400 | ten 400e | |
| Spindle moulder unit | |||
| Max. tool diameter | mm | 360 | 360 |
| Spindle diameter | mm | 40 or 50 | 40 or 50 |
| Tool rotating speed | rpm | 3600 fixed | up to 3600 |
| Tool change system | manual ring | HSK 63B | |
| Motor power | kW | 7,5 | 7,5 |
| Circular saw unit | |||
| Max. blade diameter | mm | 400 | 400 |
| Max. cutting height | mm | 120 | 120 |
| Blade rotating speed | rpm | 2800 | 2800 |
| Number of stops on revolver | n. | 4 | 4 |
| Selfbraking motor power | kW | 3 | 3 |
| Work-piece support table | |||
| Worktable stroke towards the tool | mm | 105 | 105 |
| Worktable width | mm | 400 | 400 |
| Vertical pressers for pneumatic clamping | n. | 2 | 2 |
| Horizontal presser for pneumatic clamping | n. | 1 | 1 |
| Number of stops on revolver | n. | 5 | 5 |
Product leaflet
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
