USED Comec Model FRV 2 2200 Double Sided Milling machine with inclinable units
£13,950.00
DN2183 Camam FRV2200 Double-Sided Milling Machine with inclinable units delivers precise milling for panels 40–90 mm wide and 355–2200 mm long. Heavy-duty steel structure, adjustable milling units, and anti-splinter holding benches ensure stability, accuracy, and safety. Fast cycle times (8–12 s) and digital readouts provide efficient, reliable operation for professional workshops.
Product Features
- Heavy-duty monobloc steel structure
- Fixed and movable shoulders with digital readout
- Dual 4 kW lateral milling units
- Adjustable speed via inverter
- Inclinable milling units with position readout
- Pneumatic vertical movement with hydraulic brake
- Dual holding benches with anti-splinter devices
- Multiple reference stops for accurate positioning
- Two-hand safety control system
- Soundproof protective cabin
- Fast cycle time (approx. 8–12 seconds)
VIDEO
Description
DN2183 New Camam Model FRV2200 Double Sided Milling Machine, with Inclinable Units
Main structure:
– Heavy duty mono bloc structure, thick steel plate electro welded for maximum stability
– 1 fixed left shoulder and 1 moving right shoulder for setting loading length
– Movement of right side on linear slides with digital position readout
Milling units:
– 1+1 lateral milling unit with motors 4kw 6000 rpm, speed adjustable via inverter
– 40mm dia shafts useful length 100mm
– Vertical movement via pneumatic cylinder with hydraulic brake
– Useful vertical milling capacity of 200mm
– Max dia of tools 160mm
– Milling units inclinable in horizontal plane via adjustment screw with digital readout for position

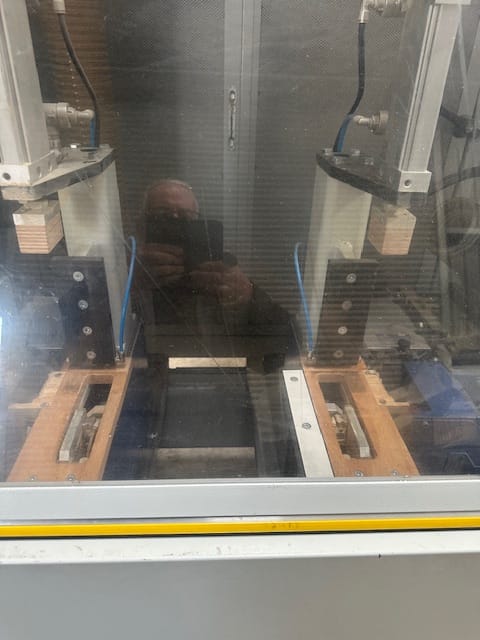

Holding benches:
1+1 holding benches with anti-splinter chipping devices
1+1 lateral reference stops for piece positioning
1 +1 frontal reference stops with possibility to set 2 different positions (male/female joint) by selector on control bar. Male/female position adjustable with screw and Siko mechanical readout
Safety protections:
– 2 hand push button control for cycle start

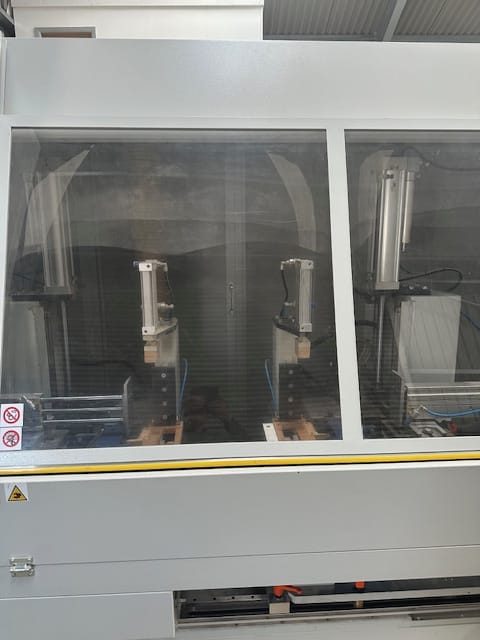

– Sound proof protection cabin with rear inspection door / electrically interlocked
– Frontal clear polycarbonate shield, with vertical opening / closing synchronised to the machine cycle
Productivity:
– Approx 8 to 12 seconds per machine cycle
Workable dimensions:
– Length 355mm min / max 2200mm
– Width 40mm to 90mm
