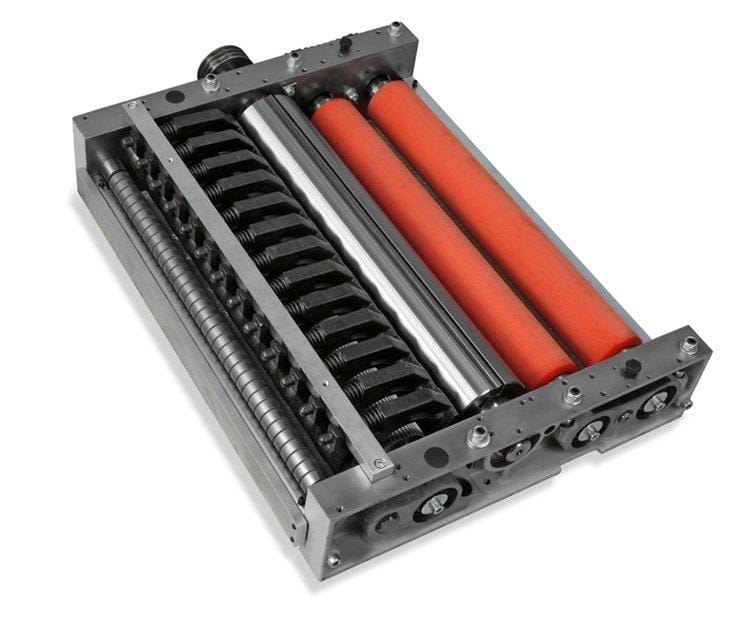

Component of the SCM Model S630 Nova Thickness Planer

New Machinery, POA, SCM Group, Thicknessers

SCM Model S630 Nova Thickness Planer

Name: SCM Model S630 Nova Thickness Planer - RJ Woodworking
Price: 9945.00 GBP
Availability: OutOfStock

£9,945.00

Out of stock

Quick Quote

The SCM S630 Nova Thickness Planer combines precision, flexibility, and solid rigidity with its ribbed cast iron table and interchangeable feed rollers. Digital readouts and powered rise-and-fall table ensure easy, accurate adjustments, while 4 feed speeds deliver versatile, high-quality finishes. Quick-change rollers and advanced stability features give the operator full control and efficient, reliable operation.

630 mm working width for large workpieces
Heavy-duty cast iron table for stability and accuracy
4-knife cutterblock for consistent planing performance
Four feed speeds (5, 8, 12, 18 m/min) for different applications
Motorised table rise and fall with precise adjustment
Digital thickness readout for accurate setup
Interchangeable feed rollers for varied materials and finishes
Three-roller feeding system for smooth, even material feed
4-screw table support system for long-term precision
Maximum stock removal up to 8 mm for heavier machining

Product Features

Part Exchange Finance Enquiry

Description

Thanks to a heavily-ribbed, cast iron table and interchangeable feed rollers, the SCM Model S630 Nova Thickness Planer brings with it high degrees of flexibility, precision and solid rigidity.

With a digital readout feature and a powered rise and fall system, the table can be easily adjusted and set to meet the operator’s requirements. The 4 feed speeds of the S630 Nova make for versatile, accurate processing and a top-quality finish. The addition of interchangeable rollers with quick and easy changeover procedures allows for the operator to have a greater degree of control and more flexibility with the machine.

The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of the features creates greater stability for the table and eliminates the need for a lock-in-position feature.

Specification
