SCM Model Ti145EP-LL Class Electronic Tilting Spindle Moulder
Original price was: £25,317.00.£22,500.00Current price is: £22,500.00.
The SCM Class TI 145EP LL is a high-performance electronic tilting spindle moulder designed for precise shaping, profiling and tenoning in professional and production environments. Built with advanced control systems and a rigid structure, it delivers fast setup times and consistently accurate results.
Product Features
- Electronic tilting spindle from approximately -45° to +45°
- Programmable control with memory for repeatable setups
- Manual, semi-automatic and automatic operating modes
- Five spindle speeds up to 10,000 rpm
- “FAST” sectional worktable for improved workpiece support
- “FLEX” fence system for quick and accurate positioning
- LL version with extended table support for larger components
- Mechanical and electronic positioning with digital readouts
- Compatible with advanced tooling and rapid tool systems
- Heavy-duty construction for professional and production use
Description
The SCM Class TI 145EP LL is a high-end spindle moulder developed for workshops that need precision, flexibility and efficient workflow. As part of the SCM Class range, it combines traditional spindle moulding capability with modern electronic control, allowing operators to carry out complex shaping and profiling operations with greater speed and accuracy.
At the centre of the machine is a tilting spindle, capable of moving both forwards and backwards up to around 45 degrees. This allows a wide range of machining operations, including angled profiling and advanced joinery work, while maintaining safe and controlled cutting. The spindle is supported by a heavy-duty cast iron structure, ensuring stability and reducing vibration during operation, which is essential for achieving a clean and consistent finish.
A key advantage of the TI 145EP is its electronic control system, which allows the operator to program and store machining setups. This reduces setup time significantly and improves repeatability across jobs. Depending on configuration, the machine can operate in manual, semi-automatic or fully automatic modes, with stored programs enabling fast changeovers between different tasks.
The machine also features SCM’s “FAST” sectional worktable and “FLEX” fence system, which allow precise positioning of the workpiece and fence even with tooling in place. This improves both accuracy and efficiency by removing the need for repeated test cuts. In addition, the LL version includes extended table support, making it more suitable for handling larger workpieces and light tenoning operations.
With electronic speed control, a wide range of spindle speeds and compatibility with advanced tooling systems, the TI 145EP LL is capable of handling a variety of tasks including profiling, grooving, rebating and tenoning. Overall, it is a powerful and flexible machine designed for workshops that want the accuracy of modern technology without moving fully into CNC machinery.
Specifications
| Spindle height diam. 30-35 (40-50) | mm | 140 (160) |
| Spindle speed (at 50 Hz) | rpm | 3000/4500/6000/7000/10000 |
| Max. diameter of the profiling tool | mm | 250 |
| Max. tool diameter retractable under the table at 90° | mm | 300 |
| Max. diameter of the tenoning tool | mm | 300 |
| Three-phase motor power starting from | kW/Hz | 7 (8) / 50 (60) |
Ready 3 Up Version c/w overhead control panel and mounting support for feeder.
Electronic positioning of spindle lifting and tilting,
Storage capacity 300 programs
Fast table insert (replacing table rings)
MK 5 Interchangeable spindle shaft 30mm
“T” SET Rapid tool locking.
Aluminium fences
Automatic movement of the entire fence with respect of tool diameter
Manual adjustment of infeed table (removal) by means of handwheel with numerical read-out
Manual Vertical and Horizontal Feeder Support
9kw-12hp motor with Auto star-delta start
LL Version 2500mm table extensions with front pull-out support bar
Fitted with new SCM 4 Roller Feed Unit
Additional Information
Product Video
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
Related Products

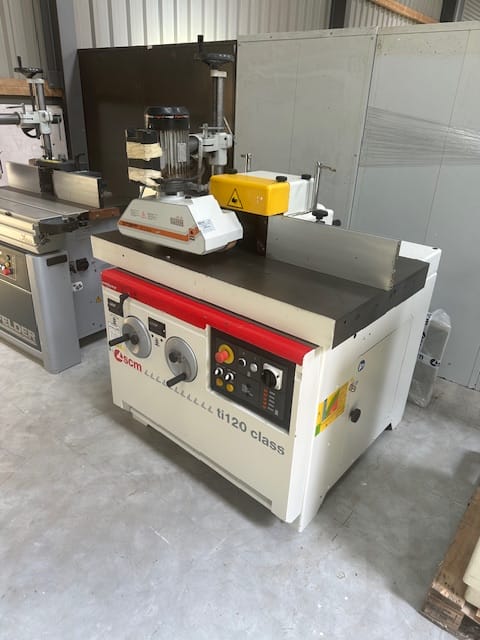

SCM Model Ti120e Class Tilting Spindle Moulder
