SCM Panel Saw Model Nova Si X
£0.00
The SCM Nova SI X Panel Saw combines precision, durability, and operator-friendly design for high-performance woodworking. The saw unit features manual lifting and tilting functions conveniently located on the operator’s side, with a mechanical readout for precise angled cuts. Its 360 mm wide sliding table provides optimal support for panels of various sizes, and the aluminium-riveted guides ensure smooth, consistent movement without issues caused by glue. The closed-loop saw unit eliminates disruptive vibrations, keeping the blades perfectly aligned during challenging or tilted cuts. Settings and adjustments are easily managed via the 4” LCD screen, enhancing efficiency and usability.
Product Features
- Manual blade lifting and tilting (operator side)
- Mechanical tilt readout for precision cutting
- 360 mm wide sliding table
- Aluminium guide system for smooth movement
- Closed-loop saw unit for vibration-free cutting
- Precise blade alignment for angled cuts
- 4” LCD control screen
- Easy adjustment and control system
- High-precision cutting performance
- Stable and reliable machine construction
Description
For ease of use and ergonomics, the SCM Panel Saw Model Nova Si X features a manual lifting and tilting function for the saw unit, all located on the operator’s side of the machine. The mechanical readout for the saw tilt makes for excellent precision when cutting and also makes for easy, simple cutting.
For ease of use and ergonomics, this panel saw features a manual lifting and tilting function for the saw unit, all located on the operator’s side of the machine. The mechanical readout for the saw tilt makes for excellent precision when cutting and also makes for easy, simple cutting.

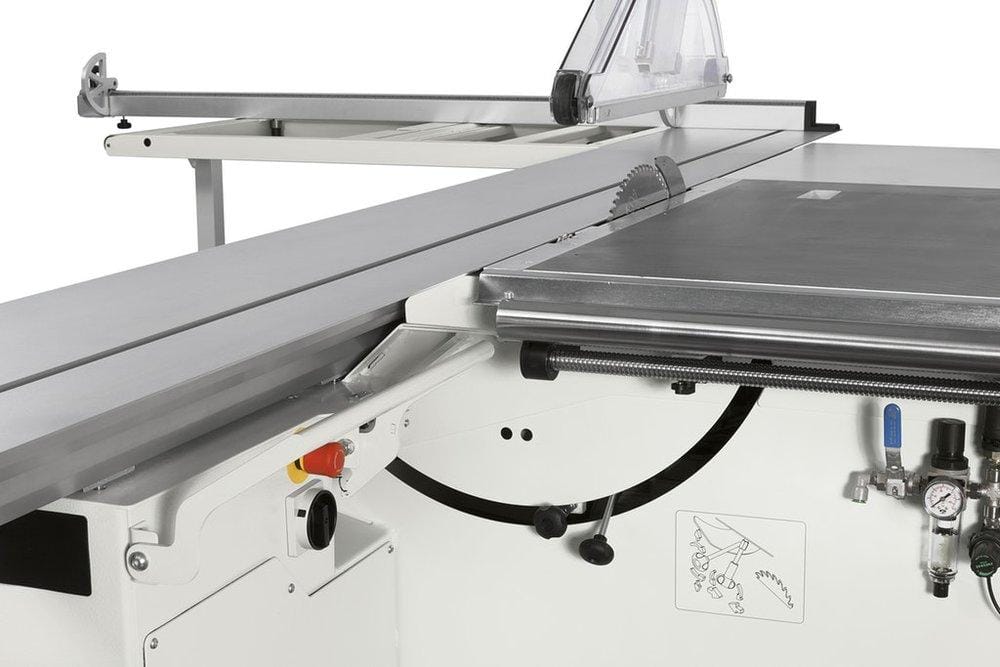

The 360mm wide sliding table allows for optimal support of workpieces in a range of sizes. The guides are secured with aluminium riveting instead of glue as a means to prevent any sliding issues caused by the thickness of the glue.
The closed loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.
Settings and adjustments can be easily controlled thanks to the 4” LCD screen.
Specifications
Maximum saw blade diameter
with scoring unit installed mm 400
Max. sawblade projection from table at 90°/+45°/-45°mm 136/97/60
Cutting width on parallel fence mm 1270
Squaring stroke mm 3200÷ kW7
- (overhead guard shown is optional)
- Sliding table return 3200mm
- Maximum blade diameter 315mm d=30mm
- Scoring blade diameter 120mm d=20mm
- Main motor power 7 hp
- Scoring motor power 1.0 hp
- Ripping capacity 1270mm
- Sliding table return 3200mm
- Main blade speed 4000rpm
- Scoring blade speed 8500rpm
- Blade tilt 0 – 45 degree
- Max cutting height @ 90 100mm[315mm blade]Max cutting height @ 45
- 70mm[315mm blade]
- Diameter of base exhaust 120mm
- Diameter of sawguard exhaust 60mm on riving knife;
- 80mm on overhead guard opt.extra
- Diameter of guard exhaust tba
- Machine weight 800kg
- Support legs only present on machine with 1500mm right hand extension
