SCM Class 400 EP Blade Off
POA

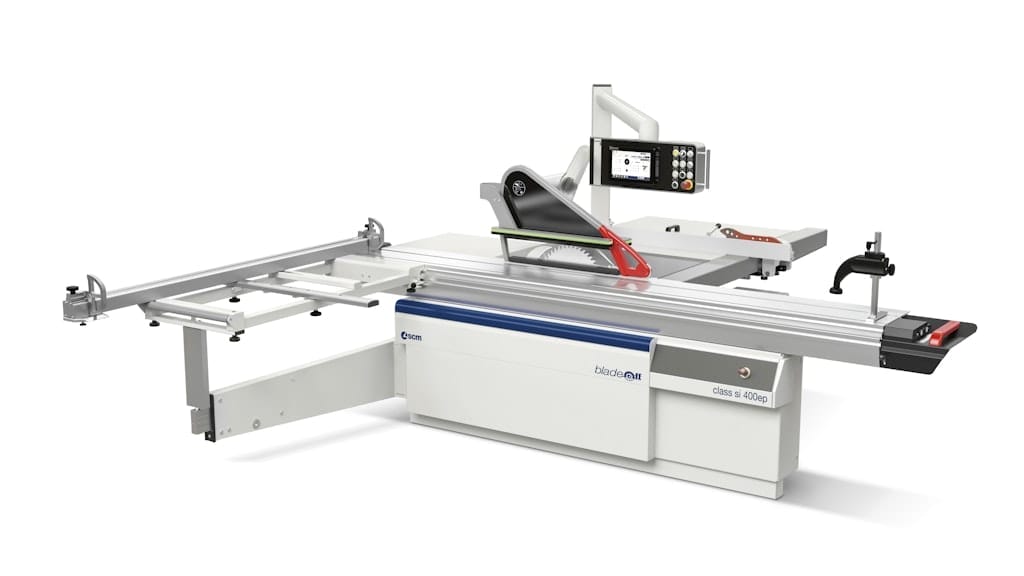

The SCM Class SI 400 EP is a high-performance sliding table saw featuring the Blade Off System, which instantly stops the blade upon detecting human presence for maximum safety. Its sensors function reliably at high feed speeds and in all conditions, protecting the operator without compromising precision. Designed for repeatable, ergonomic, and full-zone protection, this saw delivers cutting-edge safety alongside professional-grade performance.
Product Features
- Blade Off safety system with human detection
- Automatic blade deactivation before contact
- Works at feed speeds up to 2 m/s
- Sensor protection across multiple danger zones
- Operates regardless of hand position or gloves
- Quick system reset without loss of accuracy
- Protection for entry, side and movement zones
- High-precision sliding table saw performance
- Ergonomic and space-efficient design
- Reliable, repeatable safety operation
Description
The SCM Class SI 400 EP is a high-performance sliding table saw, equipped with the revolutionary Blade Off System—an intelligent safety feature that prevents accidental contact with the blade. This cutting-edge technology uses smart sensors to detect the human body and deactivate the blade before any potential contact occurs, ensuring maximum operator safety without compromising performance.
Key Features & Advantages:
Blade Off System – Intelligent Safety at High Speed
The Blade Off System uses smart sensors to detect human presence and deactivate the blade before contact, even at high feed speeds of up to 2 m/s. The system works in all environmental conditions and continuously monitors the danger zone around the blade. It resets quickly without affecting the machine’s accuracy and performance.Smart Solution – Works Regardless of Hand Position
The Blade Off System operates regardless of where the operator’s hand or body enters the danger zone, and it functions effectively even when the operator is wearing gloves or other protective gear.Safety & Ergonomics – Designed for Total Protection
The system is designed to ensure safety without restricting freedom of movement. It provides protection while maintaining an aesthetic and space-efficient design.Repeatability & Reliability Over Time
The Blade Off System offers reliable and consistent performance. In the event of an activation, it can be quickly rearmed without compromising the stability or accuracy of the machine.Expanded Protection – Beyond Just the Blade
The protection is extended to three critical areas: the workpiece entry zone, the side areas of the blade, and protection against accidental or inappropriate movements.
The SCM Class SI 400 EP with Blade Off combines cutting-edge technology, superior safety, and high-precision performance, making it the ideal solution for professional woodworking.
Specifications
Technical data
| class | si 400ep blade off | |
| Squaring capacity with 2200 mm carriage | mm | 2200 x 3200 |
| Squaring capacity with 3200 mm carriage | mm | 3200 x 3200 |
| Squaring capacity with 3800 mm carriage | mm | 3800 x 3200 |
| Cutting width on the rip fence | mm | 1500 |
| Max. cutting height at 90° | mm | 120 |
| Max. cutting height at 45° | mm | 89 |
| Main blade rotating speed (with standard inverter) | rpm | 3000 ÷ 5000 |
| Scoring blade rotating speed | rpm | 8500 |
| Main blade motor power | kW | 9 |
| Scoring blade motor power | kW | 1,3 |
