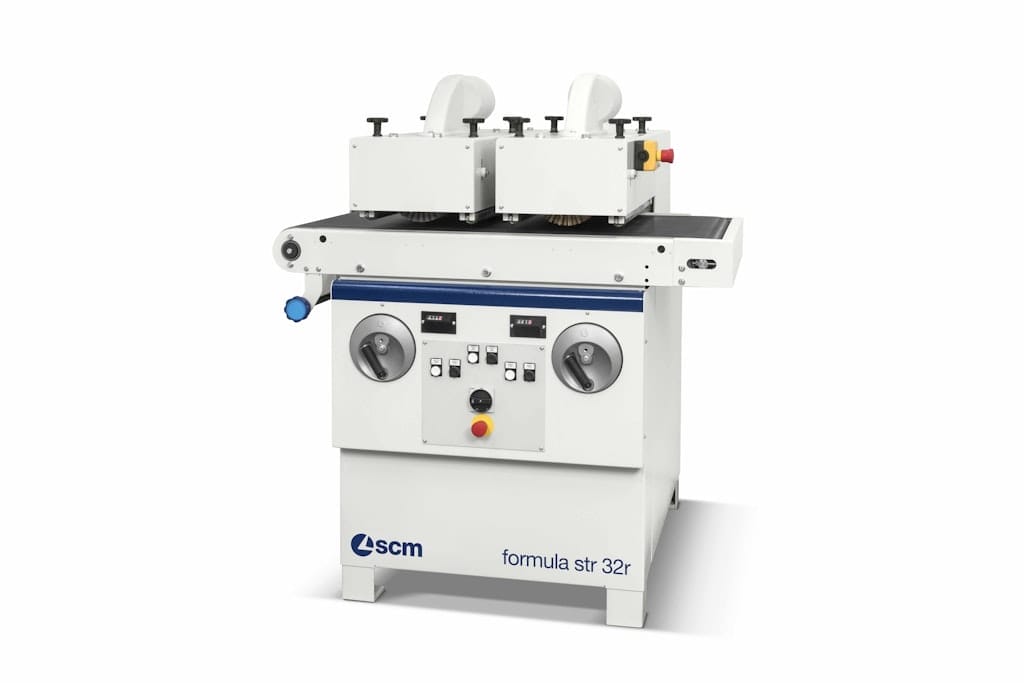

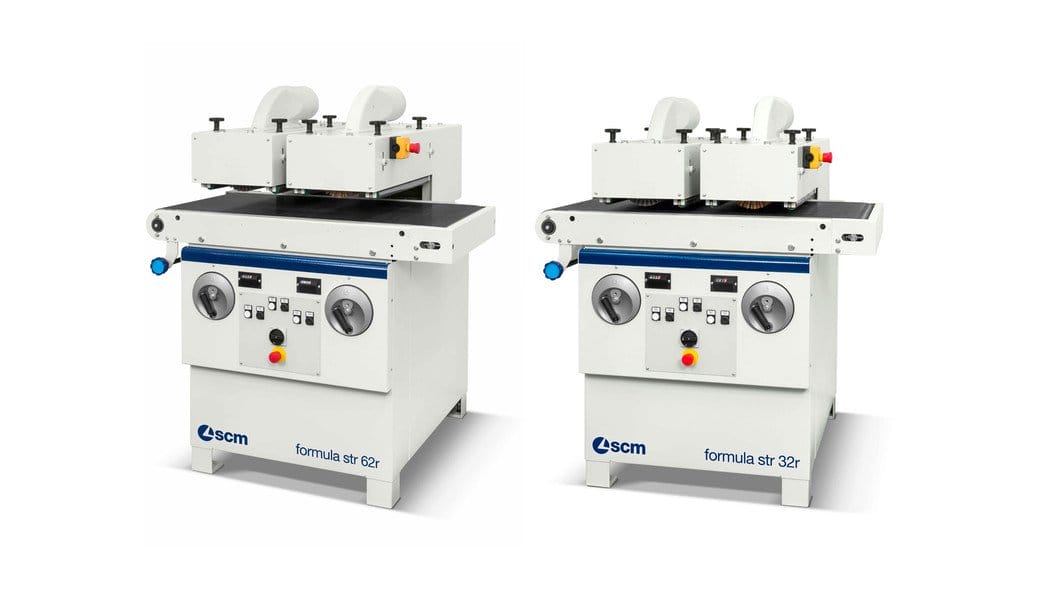

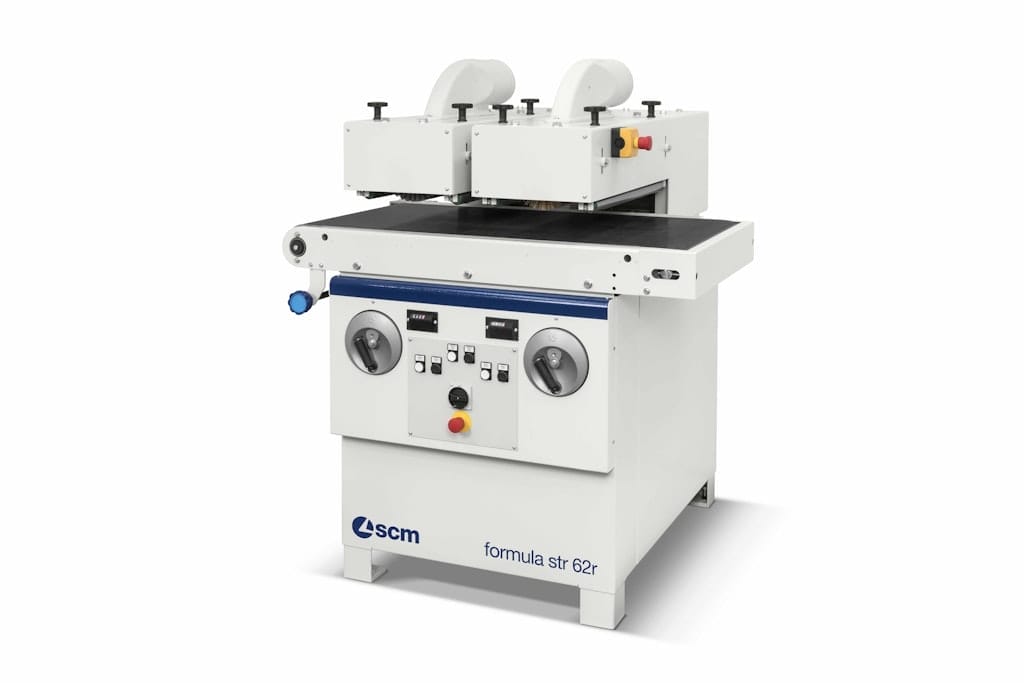

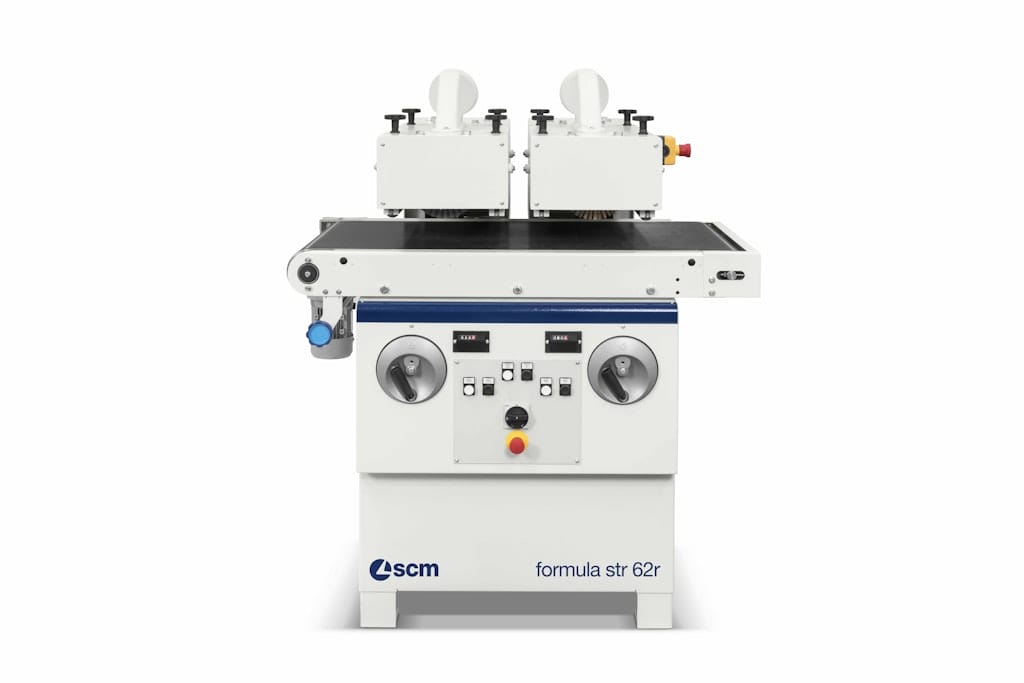

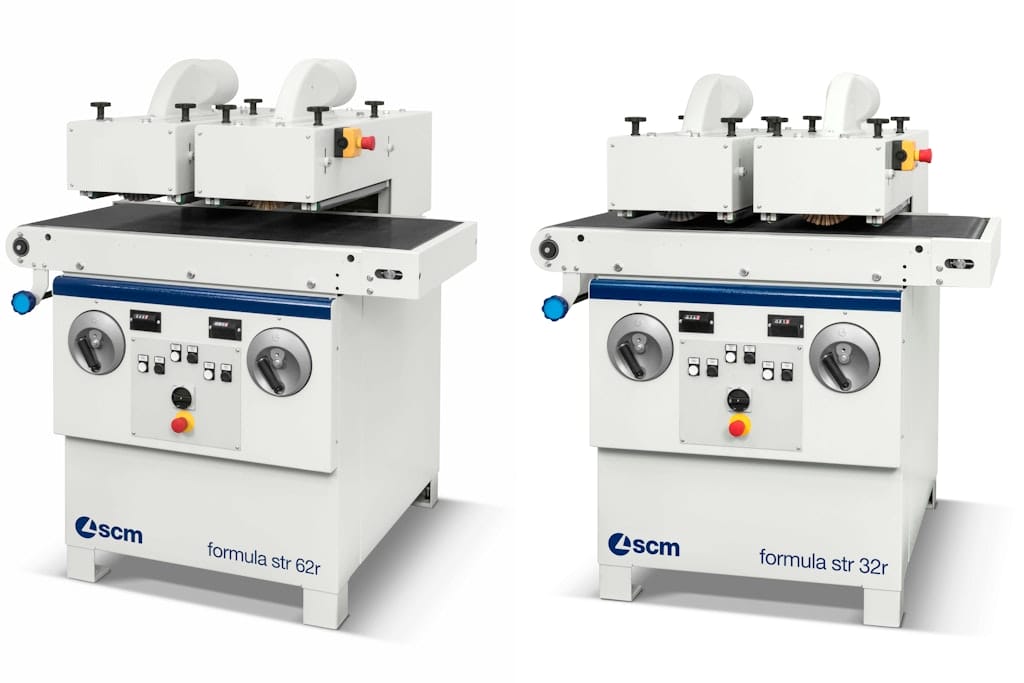

Formula str 32 – str 62
POA
Product Features
Specifications
Technical data
| formula | str 32r | str 32l | str 62r | str 62l | |
| Number of machining units | 2 | 2 | 2 | 2 | |
| Working width | mm | 300 | 300 | 600 | 600 |
| Max. working height | mm | 300 | 300 | 300 | 300 |
| Machining unit motor power @ 50 Hz | kW | 3 | 3 | 4 | 4 |

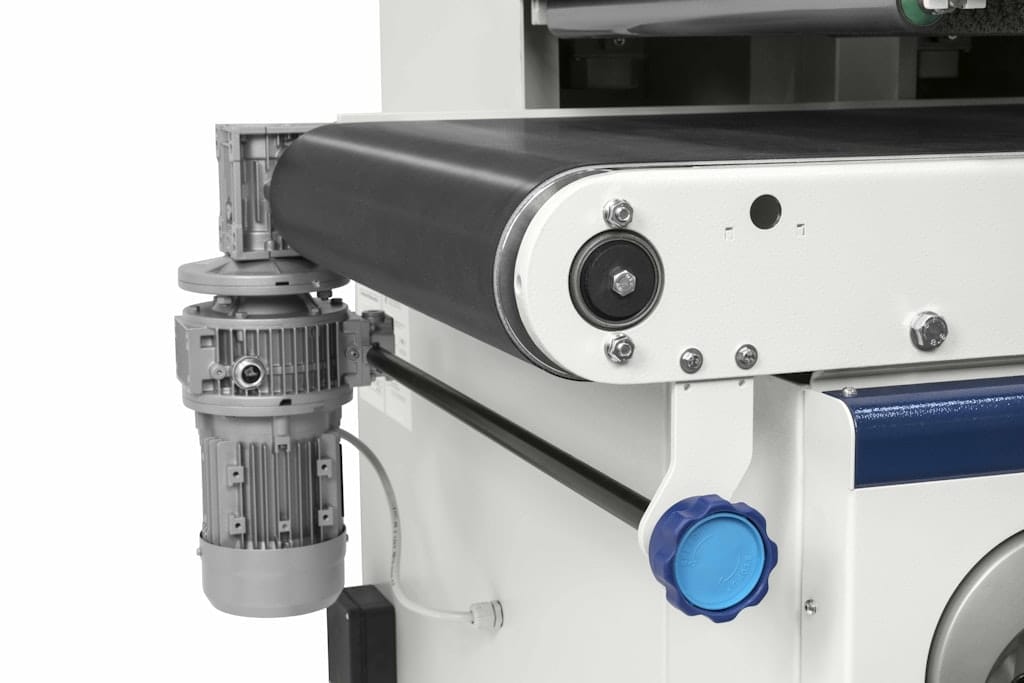

| Feed speed motor power @ 50 Hz | kW | 0,22 | 0,22 | 0,37 | 0,37 |
| Exhaust outlets diameter | mm | 2 x 150 | 2 x 150 | 2 x 150 | 2 x 150 |
| Brushes speed | rpm | 1500 | 100 ÷ 1500 | 1500 | 100 ÷ 1500 |
| Feed speed | m/min | 3 ÷ 20 | 3 ÷ 20 | 3 ÷ 20 | 3 ÷ 20 |

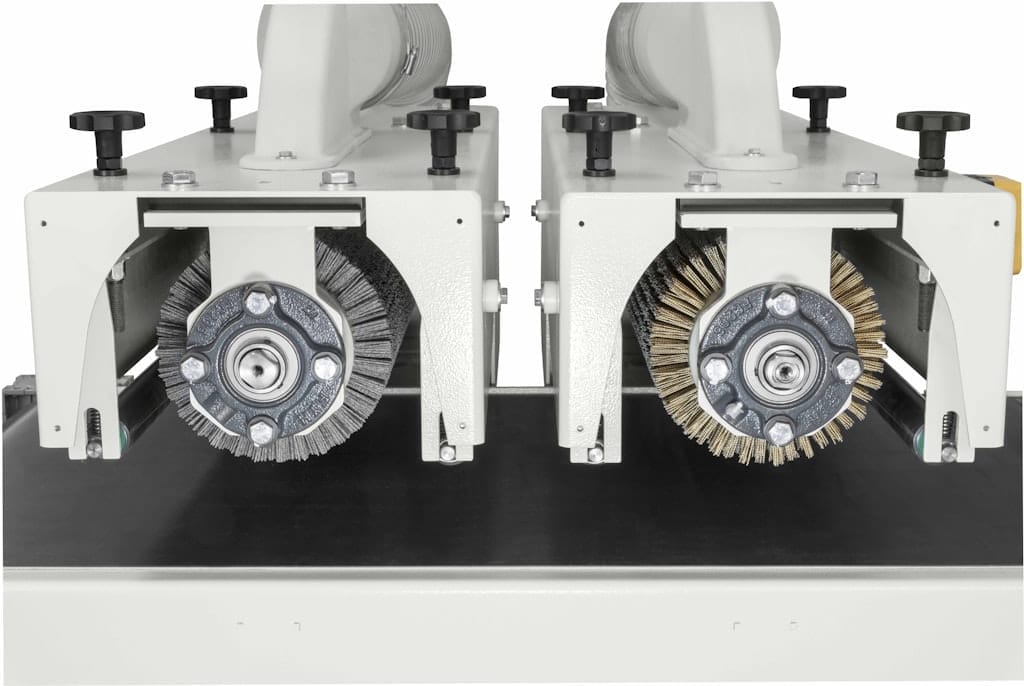

| Brush diameter | mm | 190 / 190 | 230 / 230 | 190 / 190 | 230 / 230 |
| Net weigth | kg | 440 | 440 | 750 | 750 |
| Dimensions (width x depth x height) | mm | 1300 x 900 x 1300 | 1300 x 900 x 1300 | 1300 x 1200 x 1550 | 1300 x 1200 x 1550 |
Brochure
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
