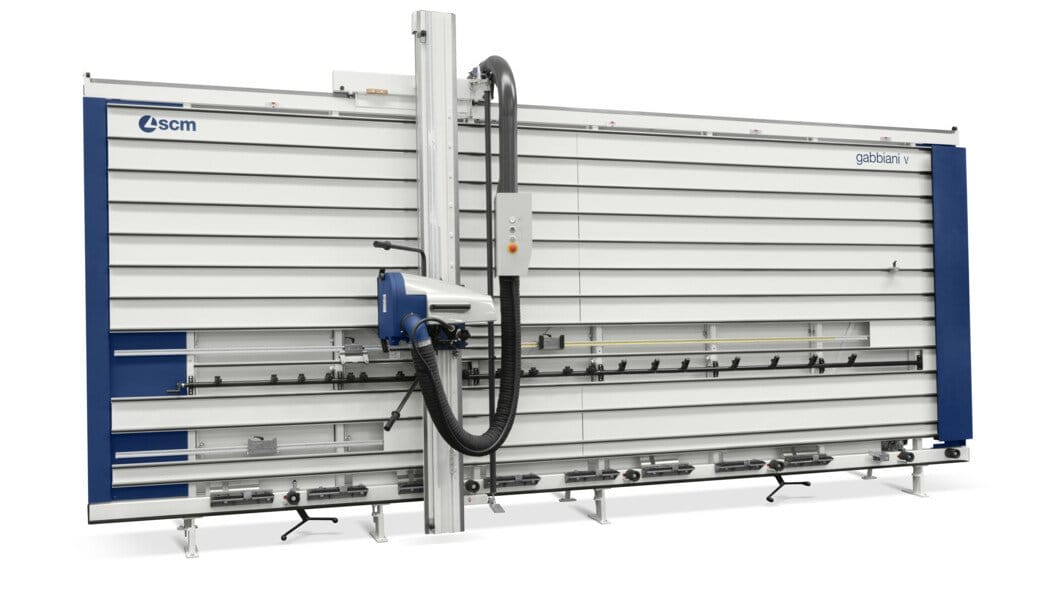

Gabbiani v
POA
Product Features
Specifications
Technical data
| V25 | V32 | V42 | V53 | ||
| Max. length of horizontal cut | mm | 2500 | 3200 | 4200 | 5300 |
| Max. length of vertical cut | mm | 2200 | 3200 | 4200 | 5200 |
| Max. height of vertical cut | mm | 1600 | 1900 | 2200 | 2200 |
| Max. height of horizontal cut | mm | 1400 | 1700 | 2080 | 2100 |
| Max. cutting thickness | mm | 60 | 60 | 60 | 80 |
| Motor power | kW | 3,7 | 3,7 | 3,7 | 5,6 |
| Blade diameter | mm | 250 | 250 | 250 | 300 |
| Rotating speed | rpm | 5300 | 5300 | 5300 | 5000 |

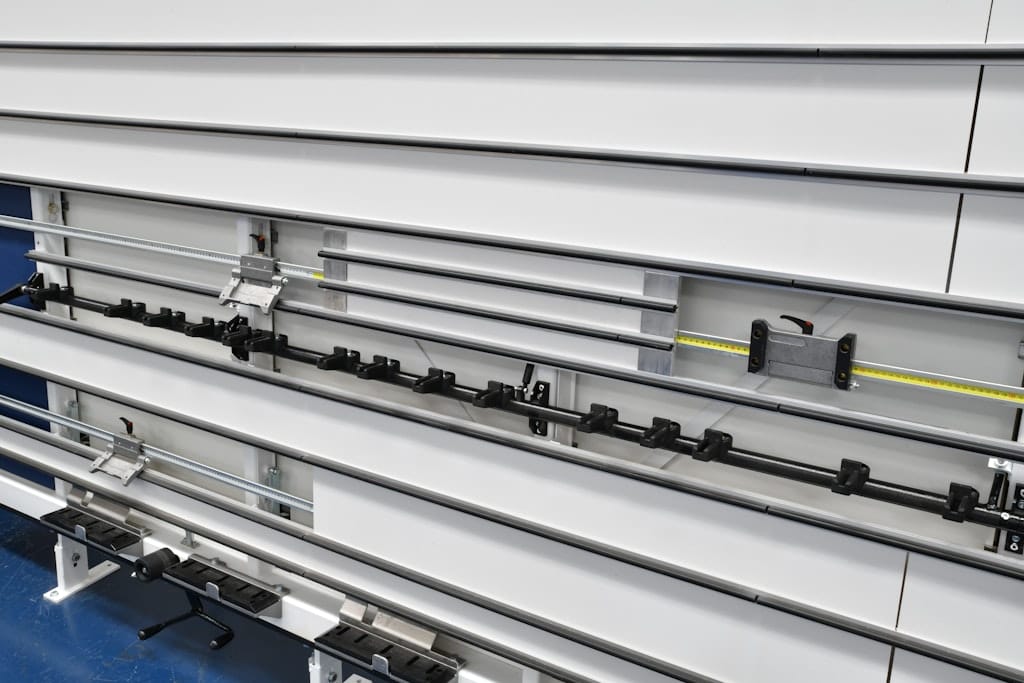

| Mechanical positioners for horizontal cuts | 4 | 4 | 4 | 4 | |
| Stops for vertical cuts | 1 | 1 | 1 | 2 | |
Brochure
