POA

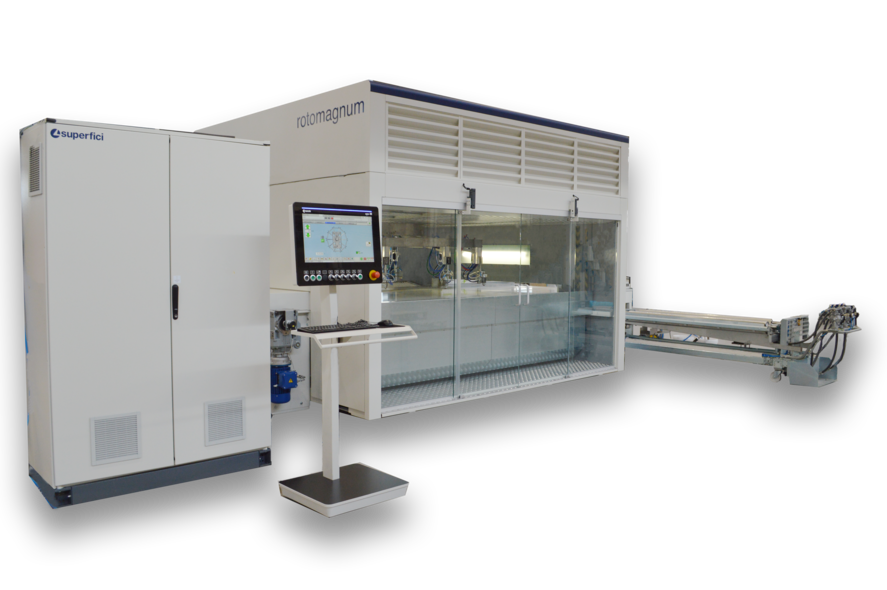

The SCM Rotomagnum is an advanced rotary spraying machine designed for high-volume wood finishing with maximum efficiency. It features a rotating arms system for even coating application, a self-cleaning belt conveyor to reduce downtime, and a high-efficiency overspray recovery system to minimise waste. Its advanced filtration system ensures a clean working environment, while customisable settings allow for precision finishing across various materials.
Perfect for industrial-scale production, the Rotomagnum combines speed, accuracy, and reliability to deliver top-quality results with optimised resource use.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
| ROTOMAGNUM | ||
| Working width | mm | 1300 |
| Spraying width | mm | 1700 |
| Working height | mm | 900 +/- 20 |
| Carousel diameter | mm | 2300 |
| Carousel driving power | kW | 0.75 |
| Carousel speed max | rpm | 25 |
| Total power | kW | 26.3 |
| Air volume | m3/h | 13500 |
| Total length | mm | 7190 |
| Total width | mm | 4100 |
| Total height | mm | 7190 |
