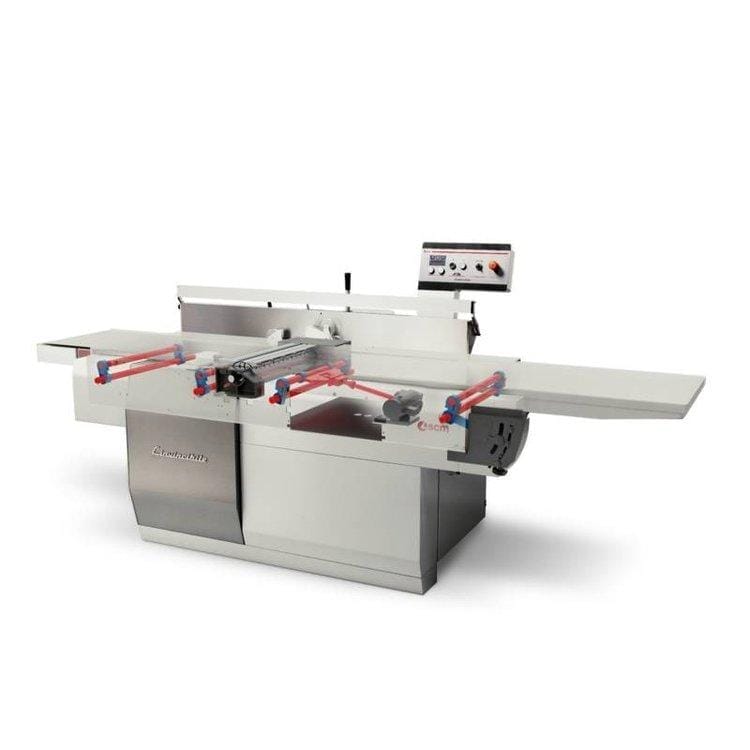

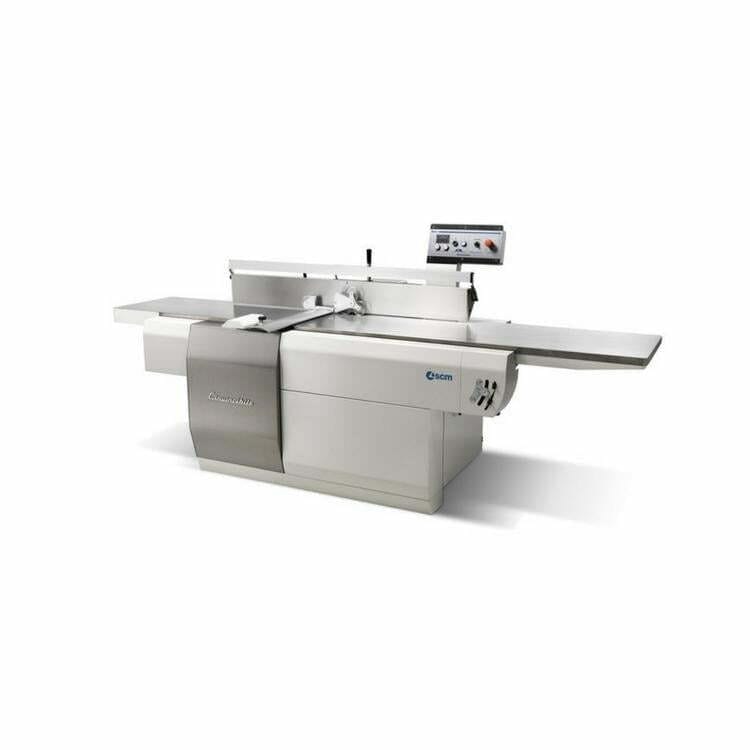

The ultra-modern, neatly designed SCM L’invincibile Model F7 Surface Planer is a top-of-the-range surface planer that utilizes the most advanced designs available for this machine. This planer seamlessly combines crucial elements such as robustness, reliability, durability and accuracy with ergonomics, advanced design and ease of use.
The connecting rods lead to absolute precision without generating noise – making the planer an excellent choice for environmentally-conscious workplaces. The rods also guarantee maximum movement fluidity and assist in avoiding deformations of the worktable.

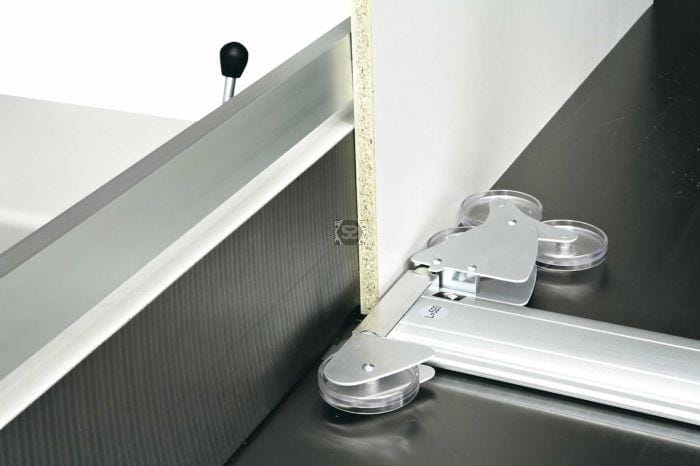

Joints will be flawless thanks to the concave/convex device – allowing for the perfect bonding of pieces and leading to excellent coupling, completely eliminating the joint line. The “smart Lifter” protection system will ensure the operator’s safety whilst having no negative impact on the machine’s functionality.
Alongside an exceptional finish, the “Xylent” spiral knife also has reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
Working width mm 520
The total length of tables mm 3008
Infeed table length mm 1775
Outfeed table length mm 1180
Cutterblock diam.mm 120
Cutterblock speed rpm 5000
Xylent spiral cutterblock
Xylent maintenance kit
Cast-iron surface fence mm 1500×175
Surface fence tilting from 90° and -45°
Work Table height from floor mm 844
Exhaust hood diameter mm 120
Max. stock removal mm 8
Motor Power 7kw
Smart lifter cutterblock integrated cutterblock guard.
| Cutterhead working width | mm / inches | 520 / 20 |
| With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives | mm/n° mm | 120/4 520 x 35 x 3 |
| With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives | mm/n° mm | 120/84 15 x 15 x 2.5 |
| Jointer bed length | mm / inches | 3008 / 118 |
| Three-phase motor | Hp | 11 |
| Max. stock removal | mm | 8 |
