AES SAF MODEL STK 5000 Fine Dust Cabinet Extractor
£3,750.00
AES SAF STK 5000 cabinet-style dust extractor delivers 5000 m³/hr airflow for a cleaner, safer workshop. High-efficiency IE3 motor, robust metal propeller, and unique part separator prevent large debris and reduce fire risk. CE-certified, mobile, and durable, it ensures reliable, long-lasting dust extraction.
Product Features
Description
The AES SAF Model STK 5000 is a cabinet-style dust extractor that offers exceptional performance and quality that’ll help to create safer, healthier workshops with machinery that runs more effectively and free of dust.
Features include:
- Mobile dust collector with a flow capacity of 5000 m3 per hour.
- The body sheet thickness is 1.2 mm. The propeller and blades are at least 3 mm according to the fan size. The propeller is dynamically and statically balanced.
- Painted with two colours of electrostatic powder paint.
- In IP55 standards, an IE3 high-efficiency motor is used. There is a part separator that protects the propeller against balancing and reduces the risk of fire.
- We are different; We put an end to propeller breakages with the part separator feature.
- The part separator prevents parts larger than 25x25mm from entering the propeller. This protects the propeller against balancing and ensures it lasts longer.
- Preventing parts of 25x25mm and above from entering the propeller reduces the risk of fire.
- Metal propeller is used in all product groups.
- All products are produced by CE standards.
- All products are design registered.
- Utility model registration of the part holder has been made. And it is a product unique only to our company.
Specifications
| Product Code | STK-5000 |
| Capacity | 5000 m3/h |
| Motor Power | 5,5 kw 7,5 hp 3000 RPM |
| Vacuum Velecity | 32 m/sec |
| Filter Quantity | 32 Pcs |
| Filter Sizes | Q160 x 940 mm |
| Filtration Area | 15.11 m2 |
| Waste Storage | 2 Pcs Metal Container |
| Vacuum Diameter | Q280 mm |
| Motor Drive Type | Direct Drive |

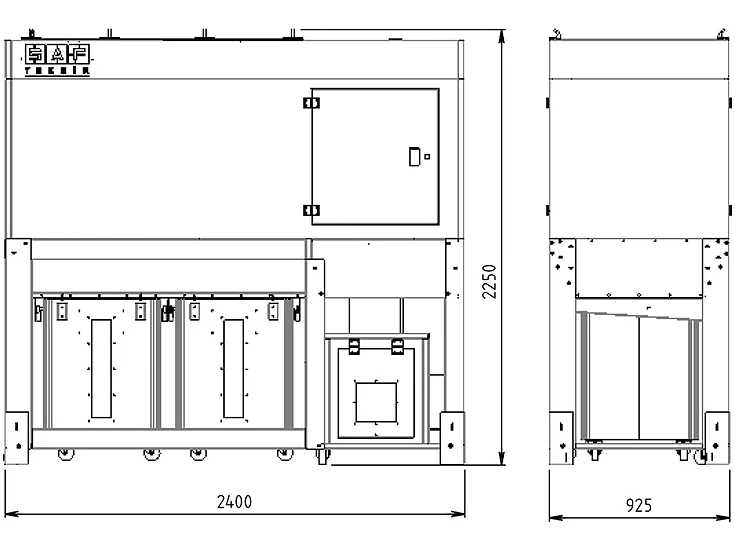

| Unit Sizes | 925*2400*2250 mm |
| Unit Weight | 440 kg |
| Electrical Panel | Star-Delta Starter |
Additional Information
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
