SCM Top Plus Semi-Automatic Multi-Drilling Machine

This SCM Top Plus Semi-Automatic Multi-Drilling Machine offers excellent performance with powered tiling and comes in a robust, durable unit that will give many years of service.

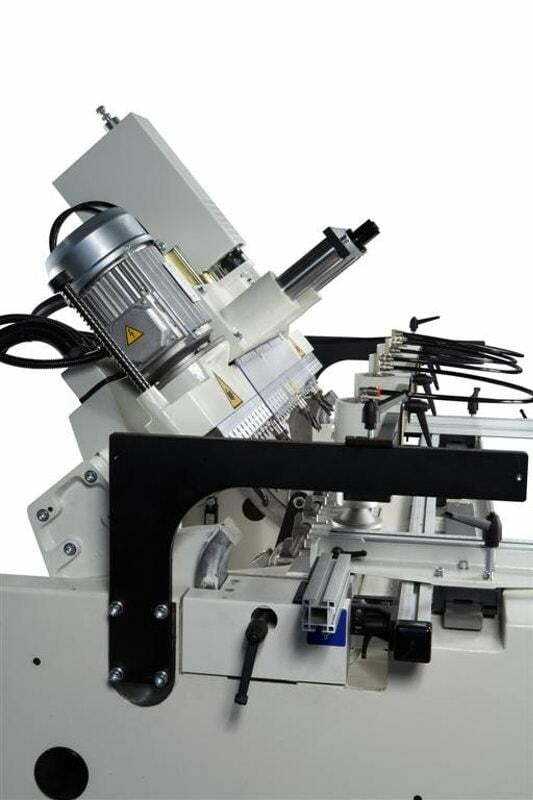

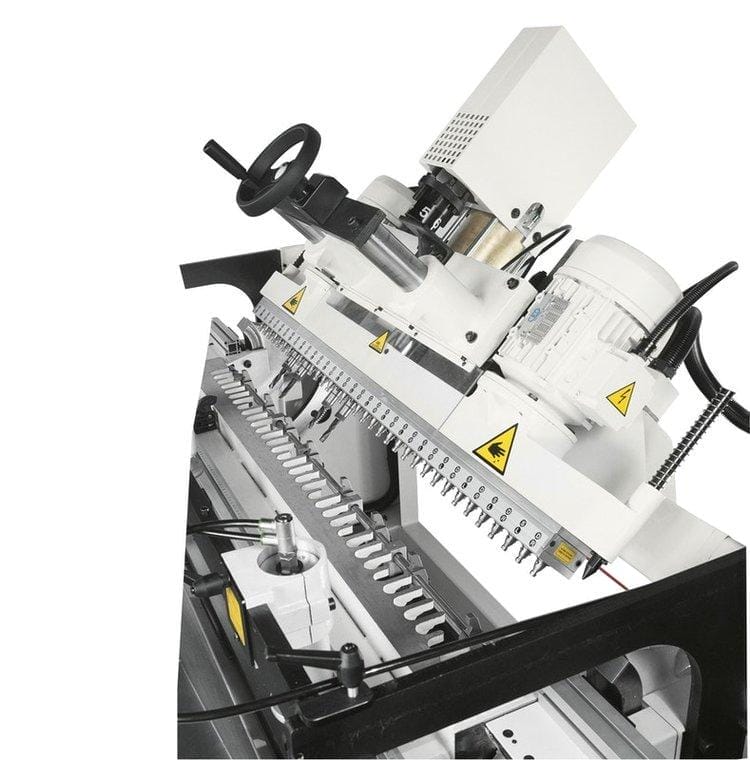

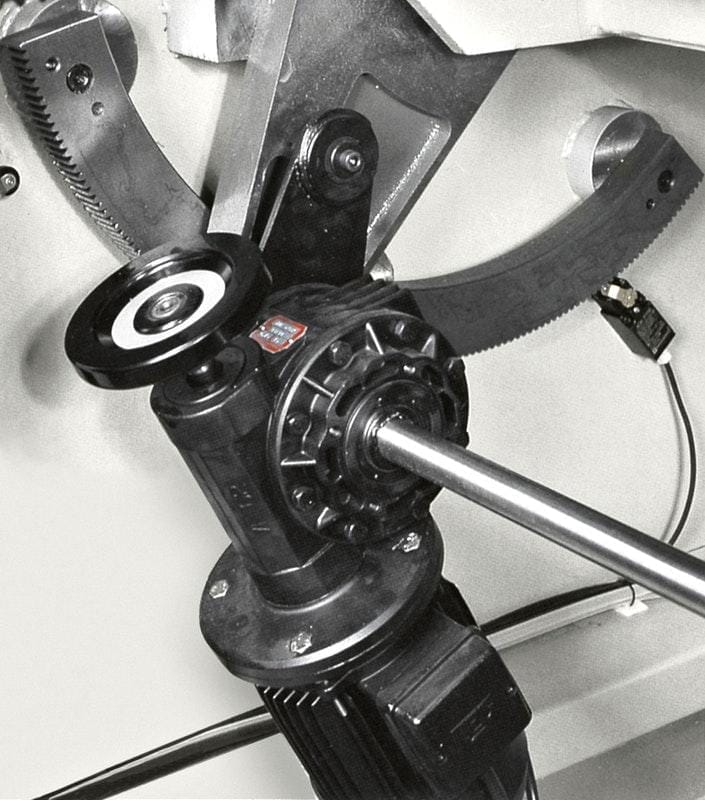

The drilling head has 35 spindles with quick-release fitting and 8 standard bushes, making for flexible, effective work. The effectiveness of the machine is only enhanced by the aforementioned powered tilting which allows the positioning of all angles from 0 – 90 degrees. Providing speed and precision is the revolving turret with 6 positions and mechanical stops.

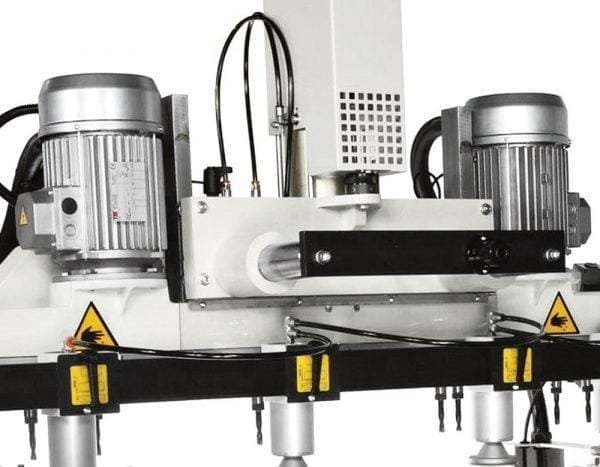

Additionally, by using two powerful motors, this high-quality SCM machine will guarantee both strong and long-lasting operation.

Category

£11,400.00

+VAT

Out of stock

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

This SCM Top Plus Semi-Automatic Multi-Drilling Machine offers excellent performance with powered tiling and comes in a robust, durable unit that will give many years of service.

The drilling head has 35 spindles with quick-release fitting and 8 standard bushes, making for flexible, effective work. The effectiveness of the machine is only enhanced by the aforementioned powered tilting which allows the positioning of all angles from 0 – 90 degrees. Providing speed and precision is the revolving turret with 6 positions and mechanical stops.

Additionally, by using two powerful motors, this high-quality SCM machine will guarantee both strong and long-lasting operation.

This SCM Top Plus Semi-Automatic Multi-Drilling Machine offers excellent performance with powered tiling and comes in a robust, durable unit that will give many years of service.

The drilling head has 35 spindles with quick-release fitting and 8 standard bushes, making for flexible, effective work. The effectiveness of the machine is only enhanced by the aforementioned powered tilting which allows the positioning of all angles from 0 – 90 degrees. Providing speed and precision is the revolving turret with 6 positions and mechanical stops.

Additionally, by using two powerful motors, this high-quality SCM machine will guarantee both strong and long-lasting operation.

Specifications

Spindles n.35
Distance between the spindles mm32
Spindle speed g/min2800
Max. boring unit strokemm140
Max. panel width under the table mm1280
Motor power kW (HP) 4,4 (6)
Rotation gear motor powerkW (HP)0,25 (0,35)
Pneumatic system operating pressurebar6
Air consumptionNl/cycle12
Hydraulic brake stroke mm50 Worktable heightmm840
Net weight (gross weight) kg690 (820)
Overall dimensions mm 1695 x 840 x 1305

Specifications

Spindles n.35
Distance between the spindles mm32
Spindle speed g/min2800
Max. boring unit strokemm140
Max. panel width under the table mm1280
Motor power kW (HP) 4,4 (6)
Rotation gear motor powerkW (HP)0,25 (0,35)
Pneumatic system operating pressurebar6
Air consumptionNl/cycle12
Hydraulic brake stroke mm50 Worktable heightmm840
Net weight (gross weight) kg690 (820)
Overall dimensions mm 1695 x 840 x 1305
