£69,995.00
Available on back-order
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner One Funding.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES

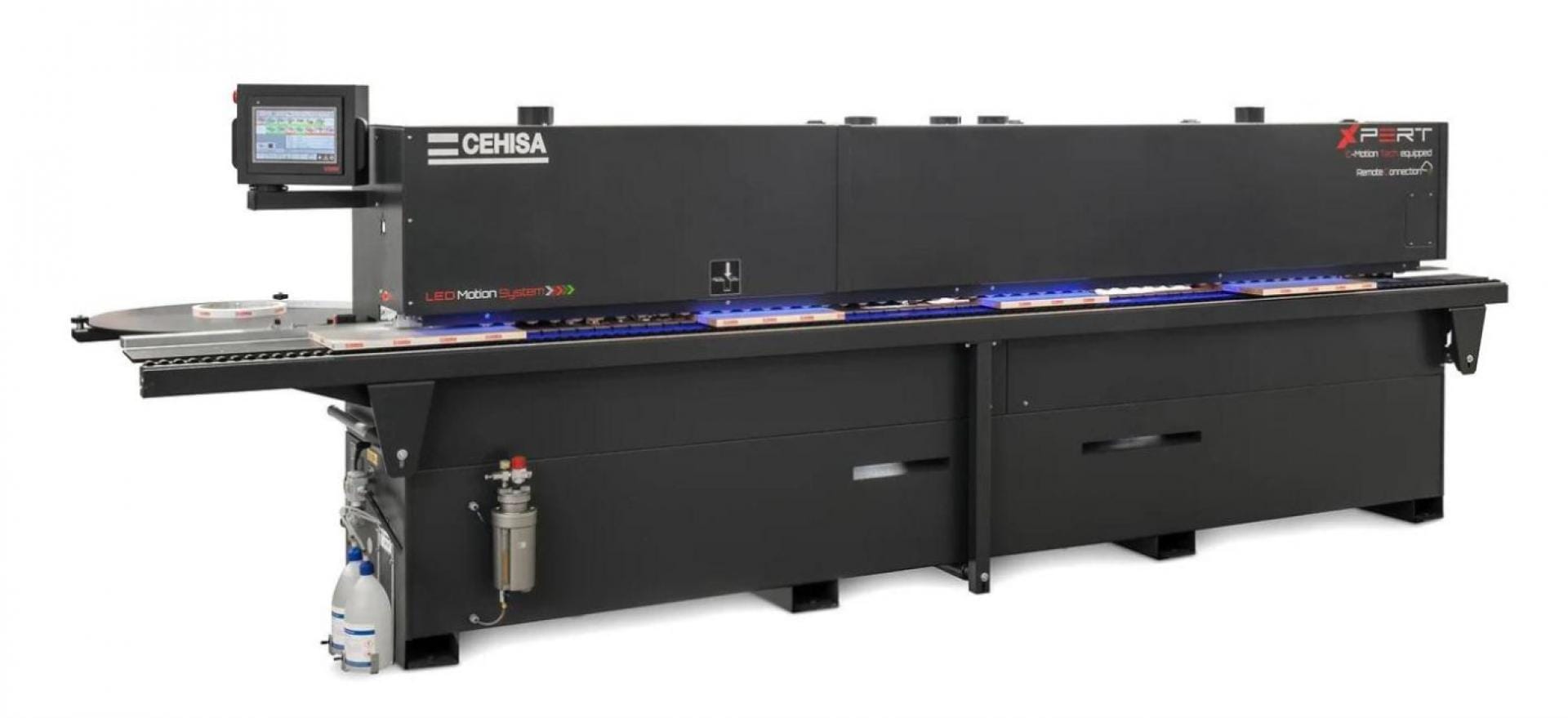

The XPERT Series combines versatility and compactness with the integration of C-motion technology that provides the highest end finish and maximum accuracy of adjustment.
Up to 11 motorized axes that grants a full control of the edgebander and double blade system on the radius scraper for a perfect finish
Technical Specifications
Edge band thickness (Rolls / Wood strips) : 0,4 – 3 / 5 mm
Panel thickness: 8 – 60 mm
Working speed: 11m/min
Motorized axis: Up to 11
Radius scraper station: Double blade system
Compressed air connection: 6 – 7 BAR
Installed power: 8,5 kW
Dimensions (installed)* : 4700 x 680 x 1500 mm.
Weight*: 1.300 kg
*Depending on machine configuration
OPTIONS INCLUDED IN STOCK MACHINE
RR-8N Glue scraper with pneumatic
positioning (On/Off)
PC-5 Buffing unit
DUOMELT® pack dual use EVA/PUR¹
Cutters DIA H65 instead of H30 for pre
milling cut
Pre-heating at entrance (infrared
lamp)
Non-stick spray agent station at
entrance
Cleaning spray agent station at exit
Cabin light (LED TYPE)
LED motion System
New glue tank quick change
Connectivity kit (remote connection)
Nesting vertical tracers
Extra-large infeed fence
Working speed at 14m/min
Motorized control of infeed fence
NEW PC touchscreen 18,5″ with NEW
C-motion Software
Panel width reduced to 60 mm XPERT Plus
Motorized control (11 axis)
Double blade system in Radius Scraper
(R1 and R2mm)
Corner Rounding unit with 2 x HF Motors
Barcode reader added
Manual squaring device added
