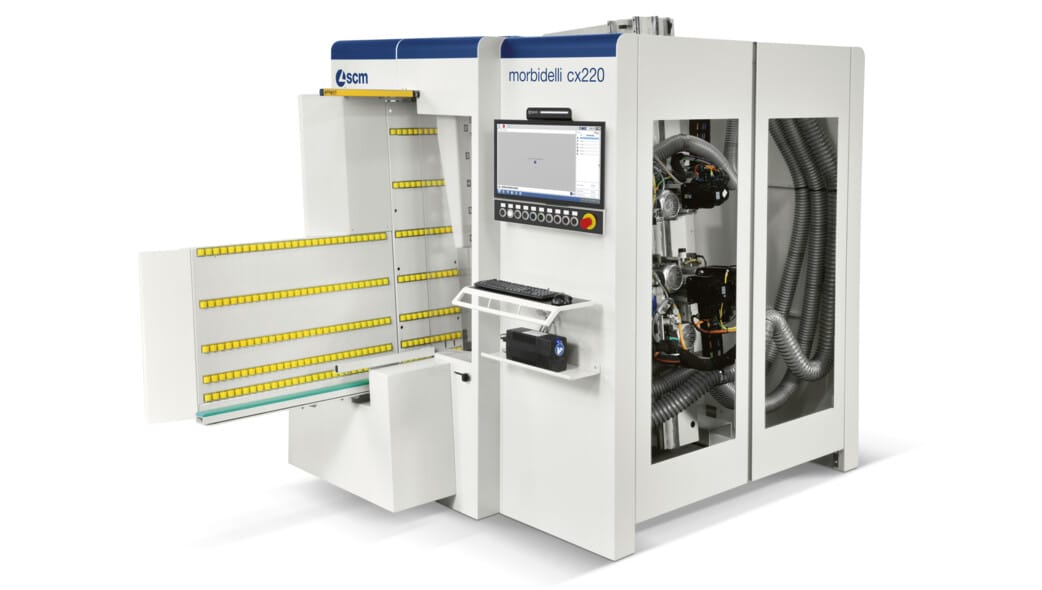

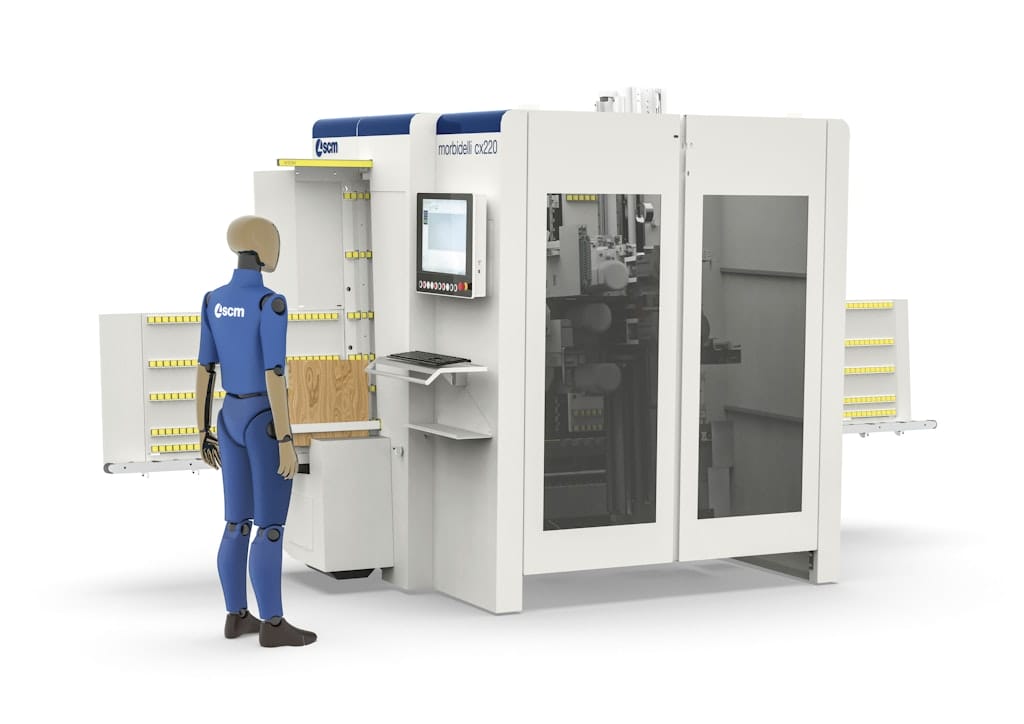

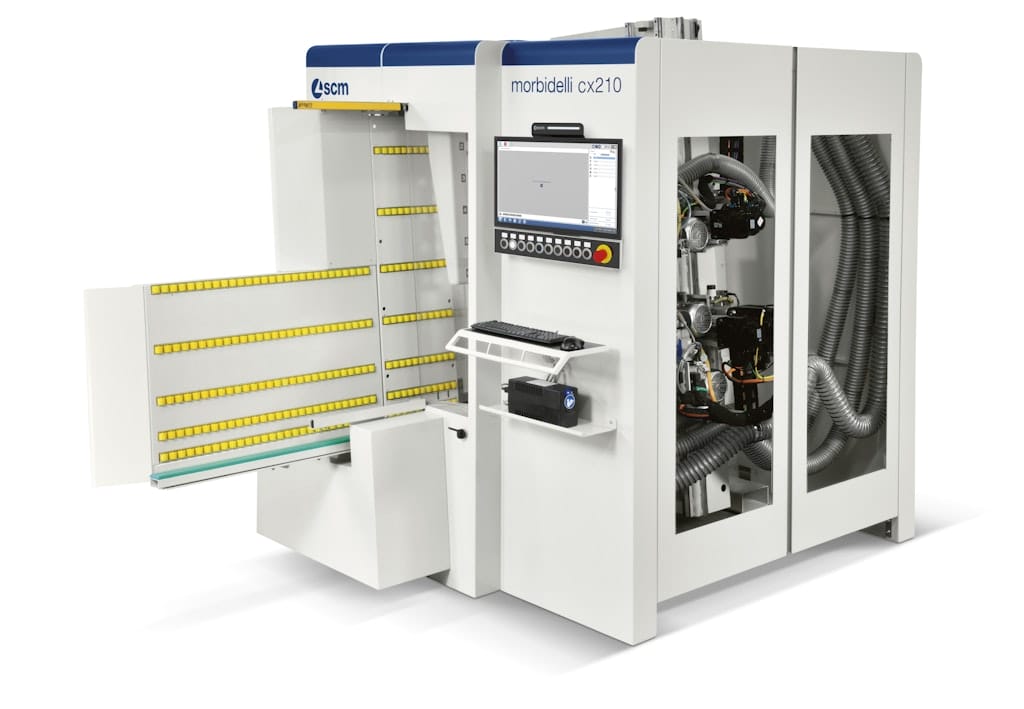

morbidelli cx210/cx220
POA
Product Features
Specifications
Technical data
| cx210 | cx220 | ||||
| Axes | |||||
| Panel length (max.) | mm | 3050 | |||
| Panel width (max.) | mm | 1300 | |||
| Panel thickness (max.) | mm | 95 | |||
| Panel weight (max.) | kg | 70 | |||
| X-Y-Z axes speed (max.) | m/min | 70 – 40 – 30 | |||

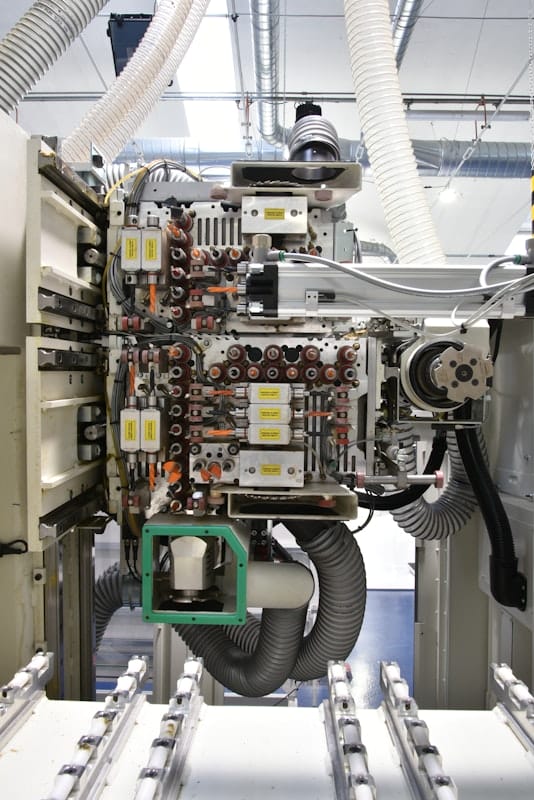

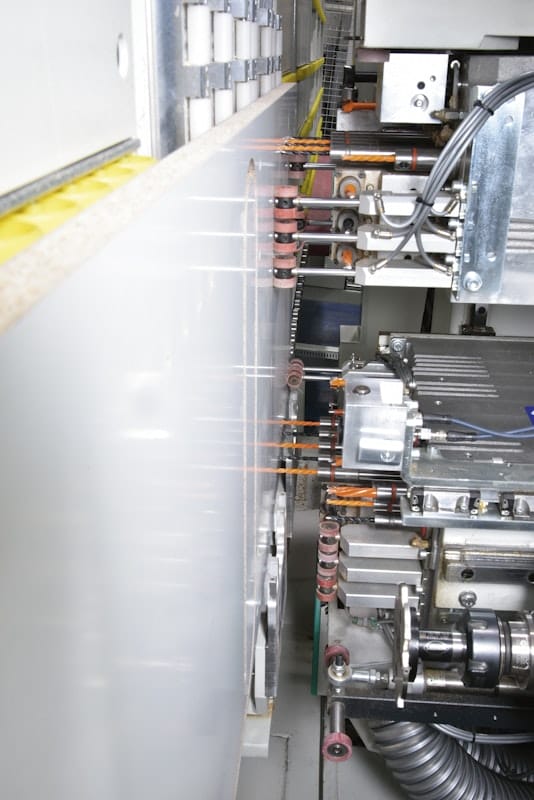

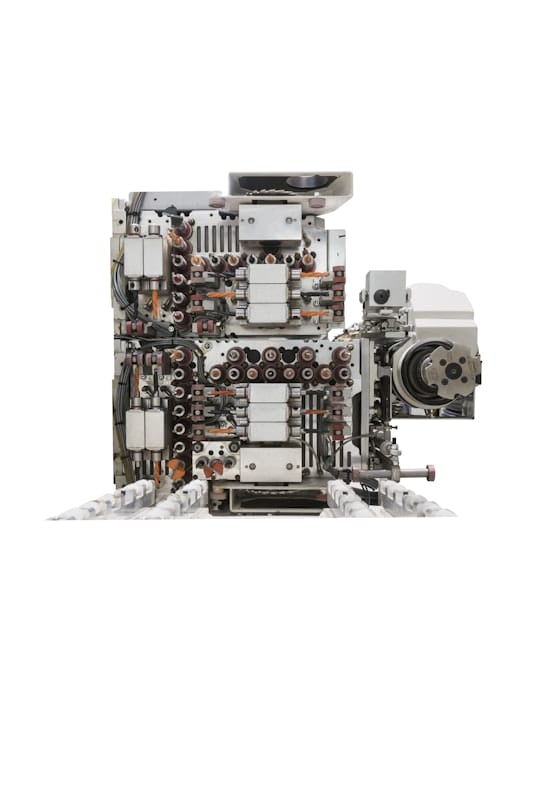

| F31LTC drilling head | |||||
| Vertical spindles | no. | 21 | |||
| Horizonal spindles in X – Y directions | no. | 6 – 4 | |||
| Spindles rotation speed | rpm | up to 8000 with optional inverter | |||
| Integrated blade in X axis | Ø mm rpm | 125 up to 9700 with optional inverter | |||
| Motor power | kW (Hp) | 2,2 (3) | |||
| F21L drilling head | |||||
| Vertical spindles | no. | – | 13 | ||
| Horizonal spindles in X – Y directions | no. | – | 6 – 2 | ||
| Spindles rotation speed | rpm | – | up to 8000 with opt. inverter | ||
| Integrated blade in X axis | Ø mm rpm | – | 125 up to 8000 with opt. inverter | ||
| Motor power | kW (Hp) | – | 2,2 (3) | ||
| 0-90° saw-blade/clamex unit | |||||
| Diameter | mm | 125 | |||
| Rotation speed | rpm | 5500 | |||

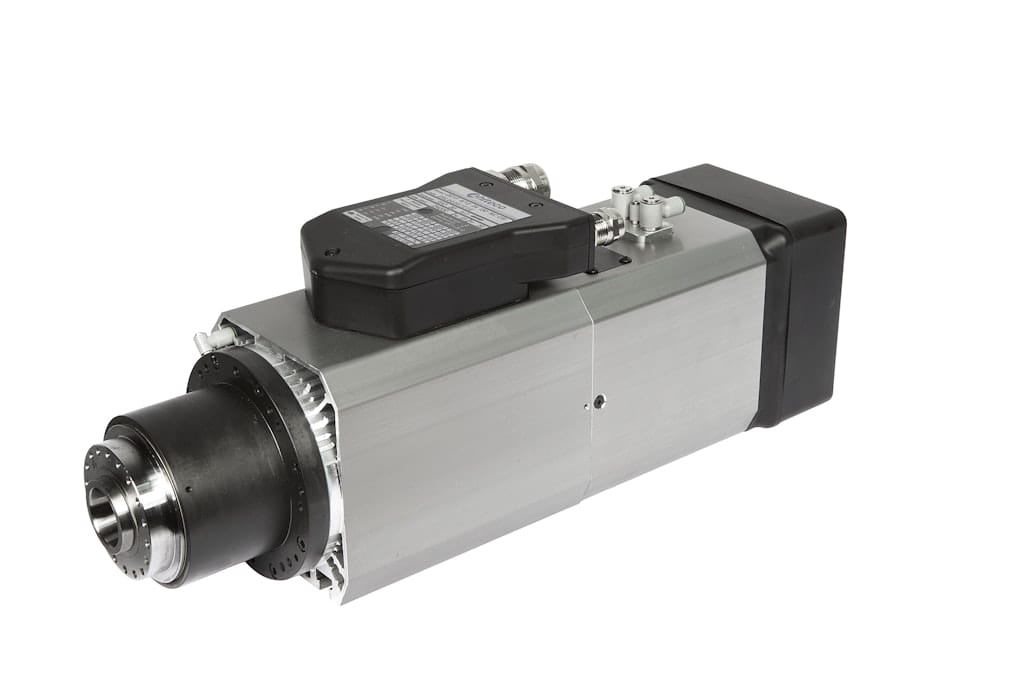

| Electrospindle | |||||
| Motor power (max.) | kW | 7,5 | |||
| Rotation speed | rpm | up to 24000 | |||
| Dowel insertion unit | |||||
| Supply system | water/vinyl glue | ||||

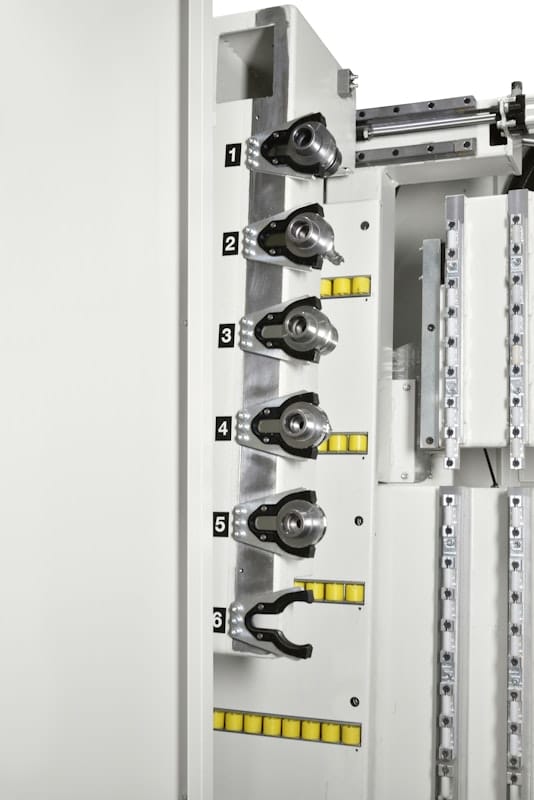

| Available tools on tool changer | no. | 6 | |||
