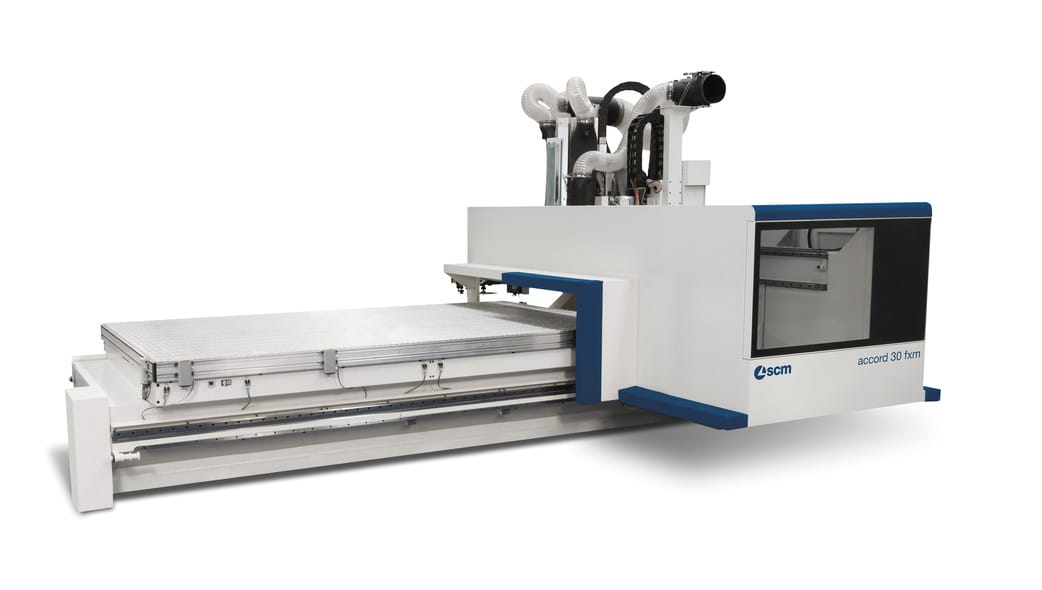

Accord 30 FXM

The SCM Accord 30 FXM is a high-performance 5-axis CNC machining centre designed for precision processing of wood components of all shapes and sizes. Suitable for manufacturers working with solid wood, plywood, chipboard, and MDF, it offers flexibility, accuracy, and efficiency in a compact, powerful design.

Key Features & Advantages:

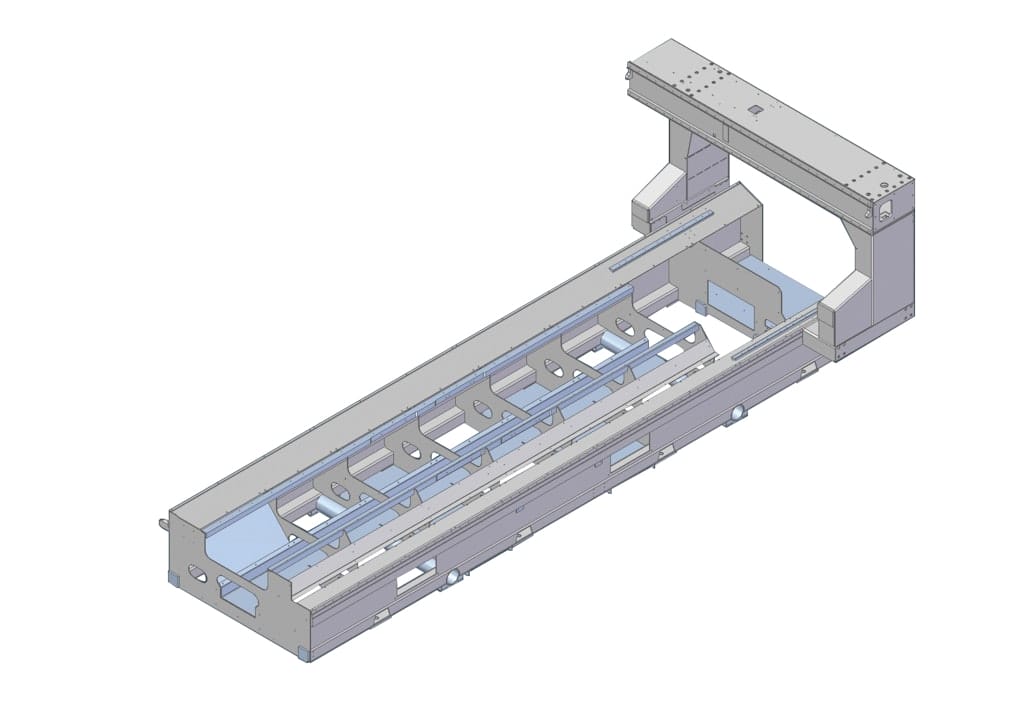

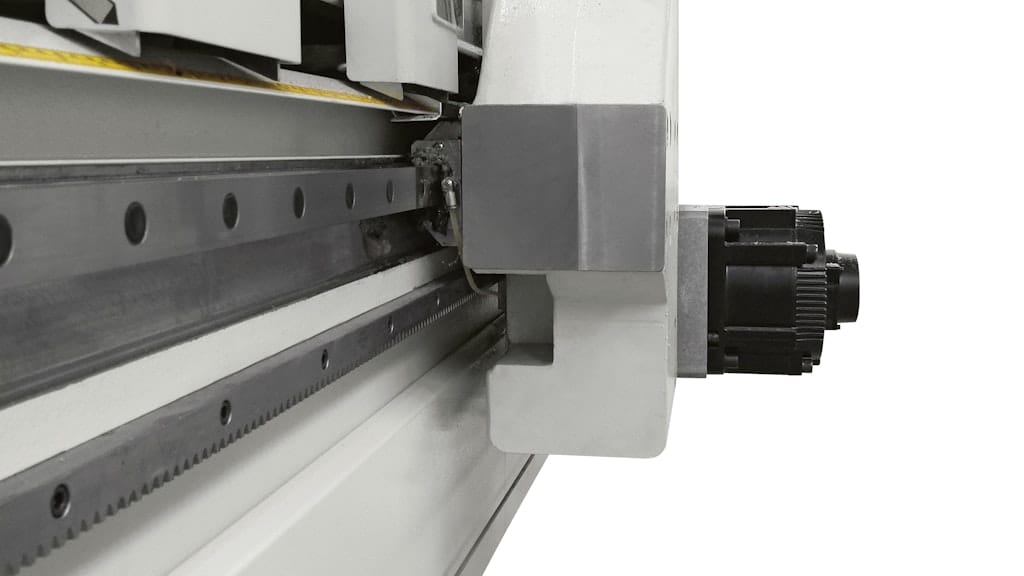

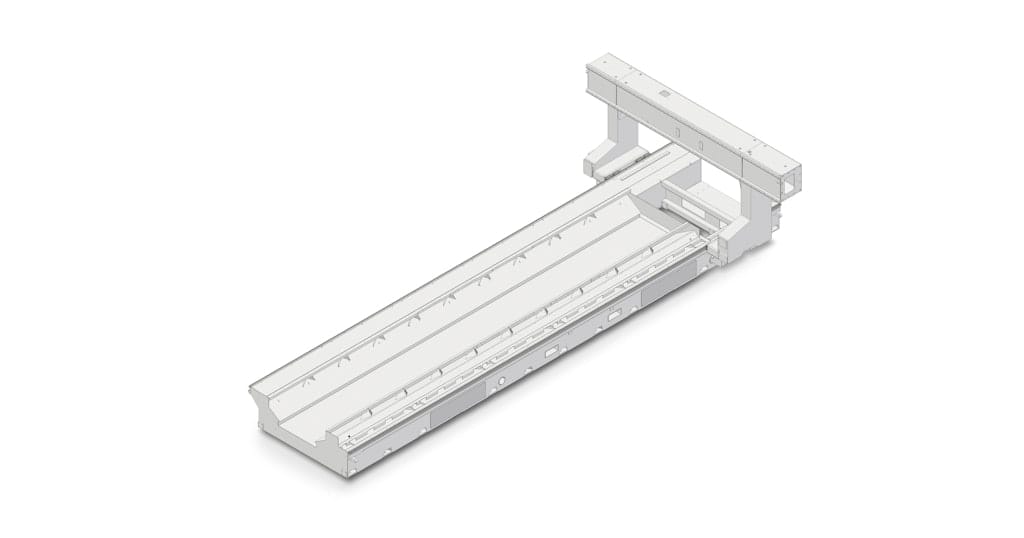

• Rigid Mobile Gantry Structure
  Ensures maximum precision and structural stability across the entire working area, maintaining accuracy even with complex or heavy components.

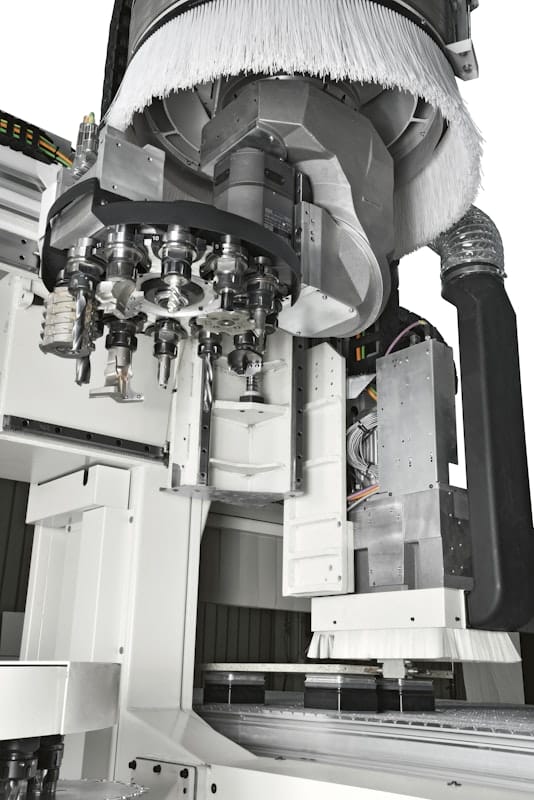

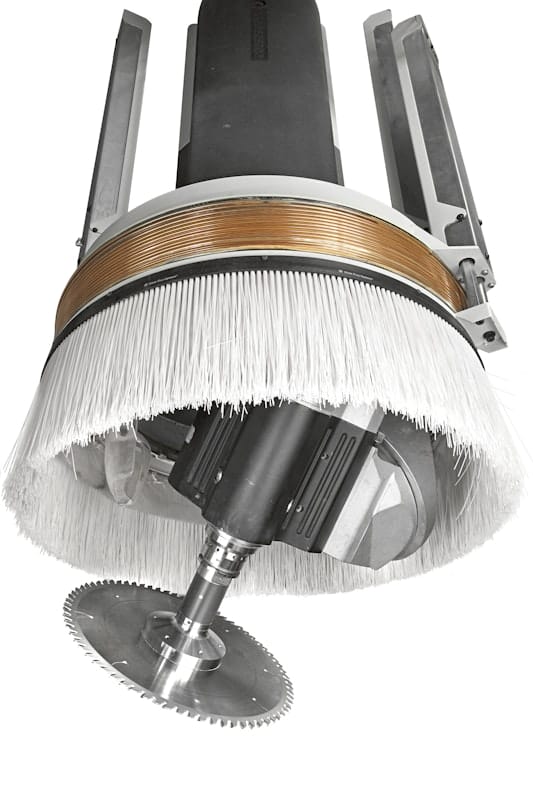

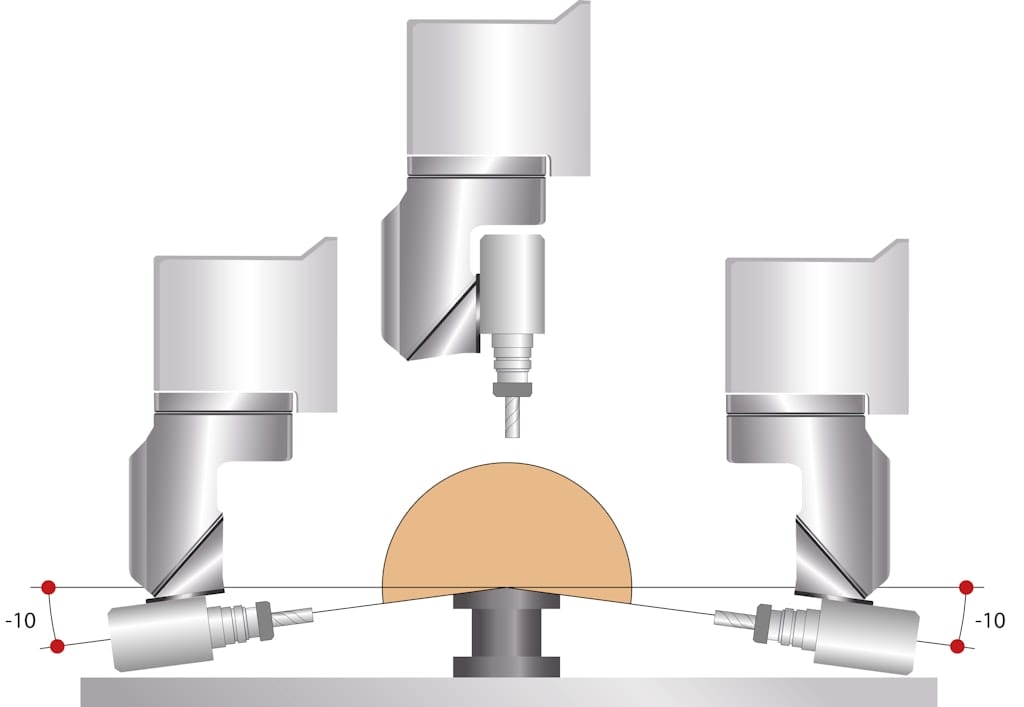

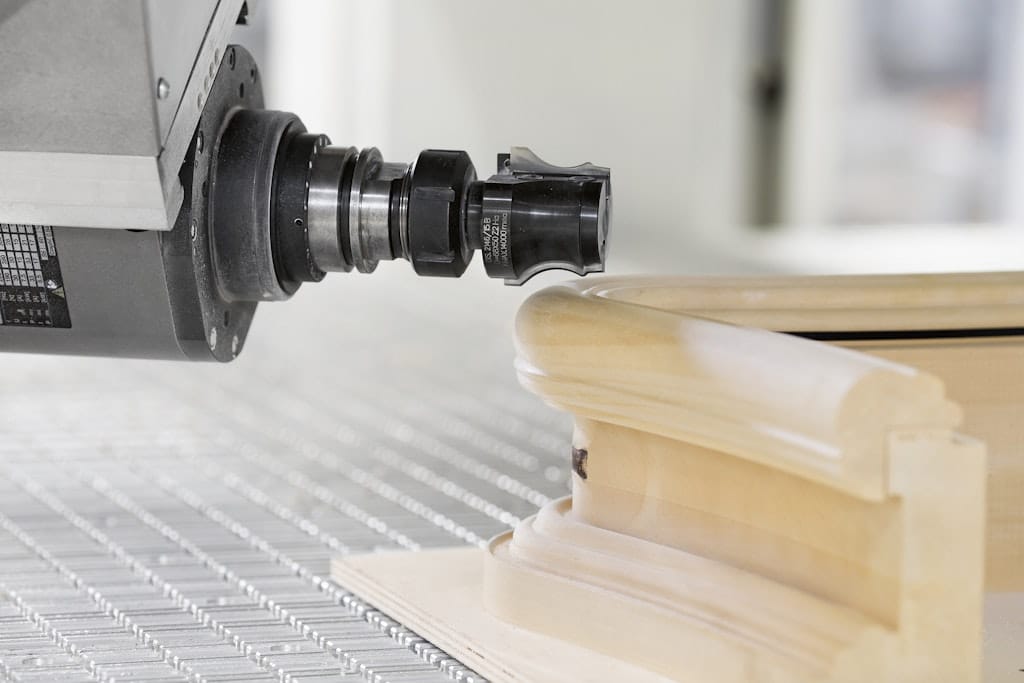

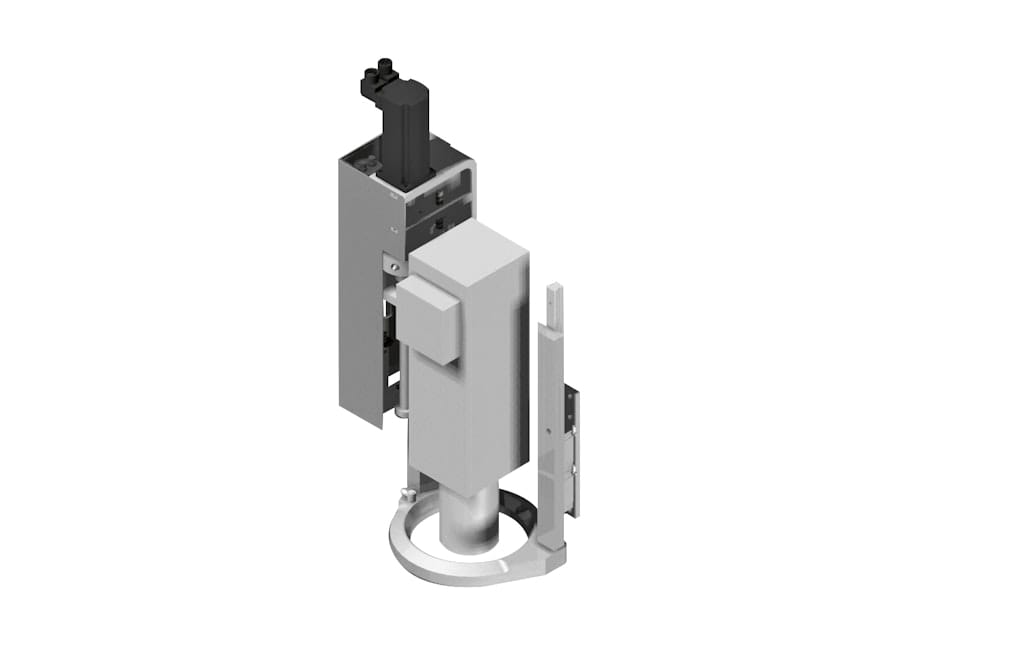

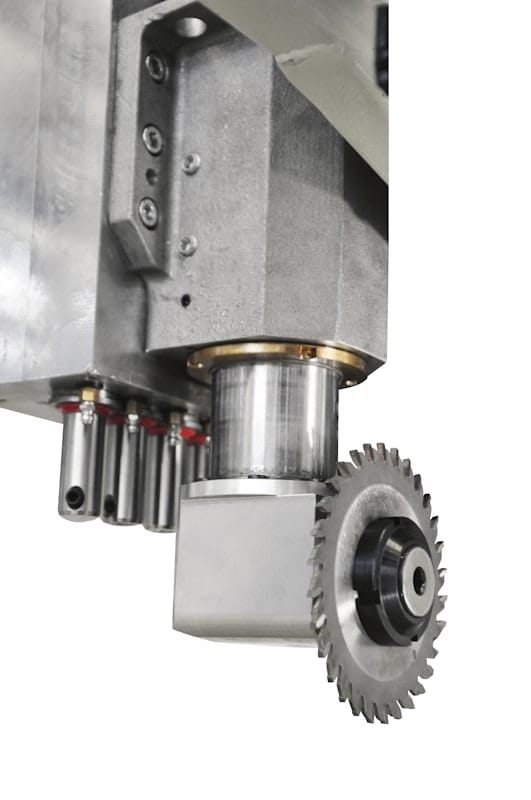

• 5-Axis Machining Head
  Capable of handling highly detailed and thick parts, the 5-axis unit enables intricate routing, drilling, and shaping without limitations.

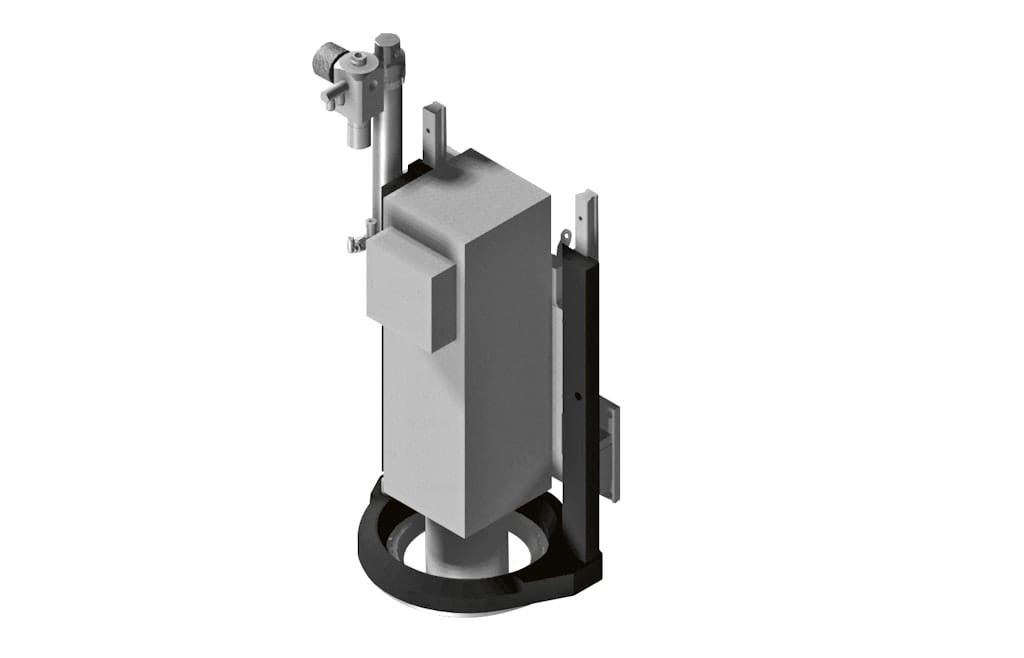

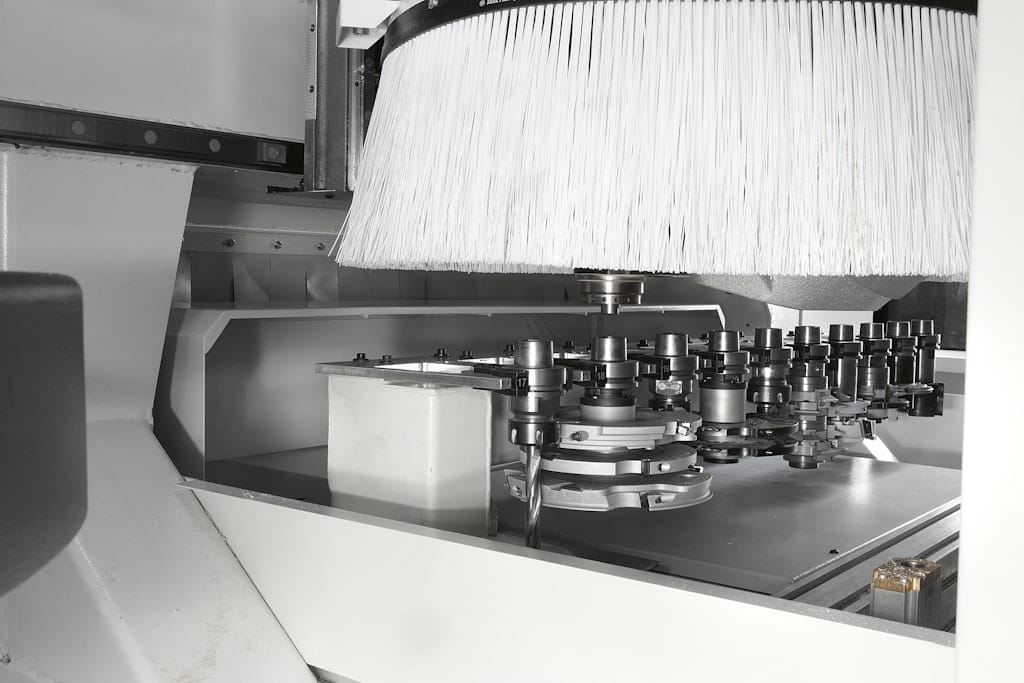

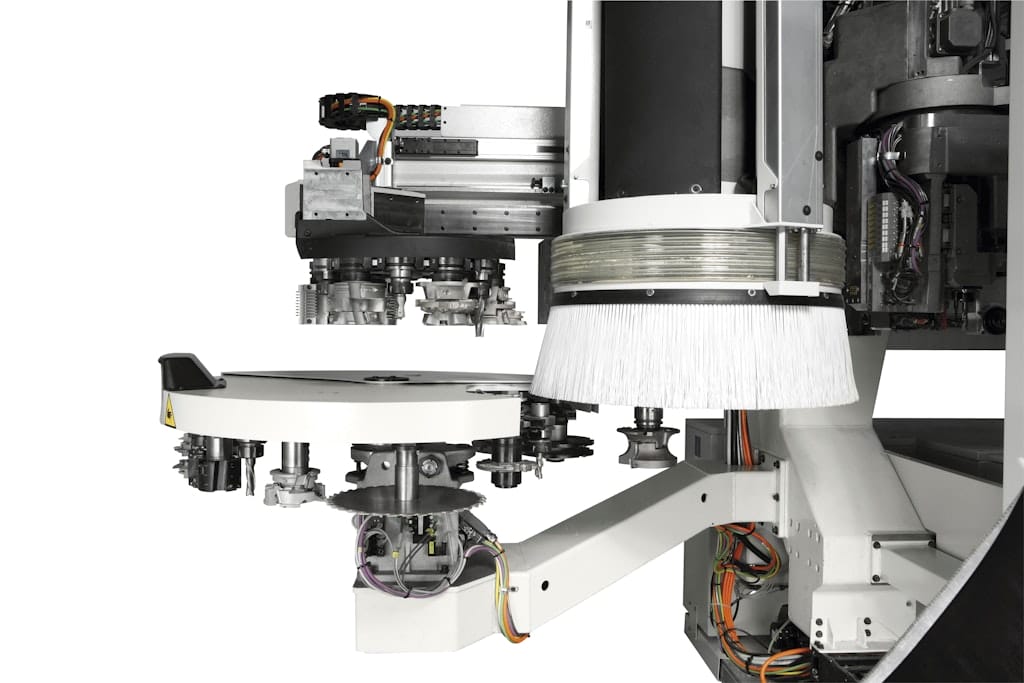

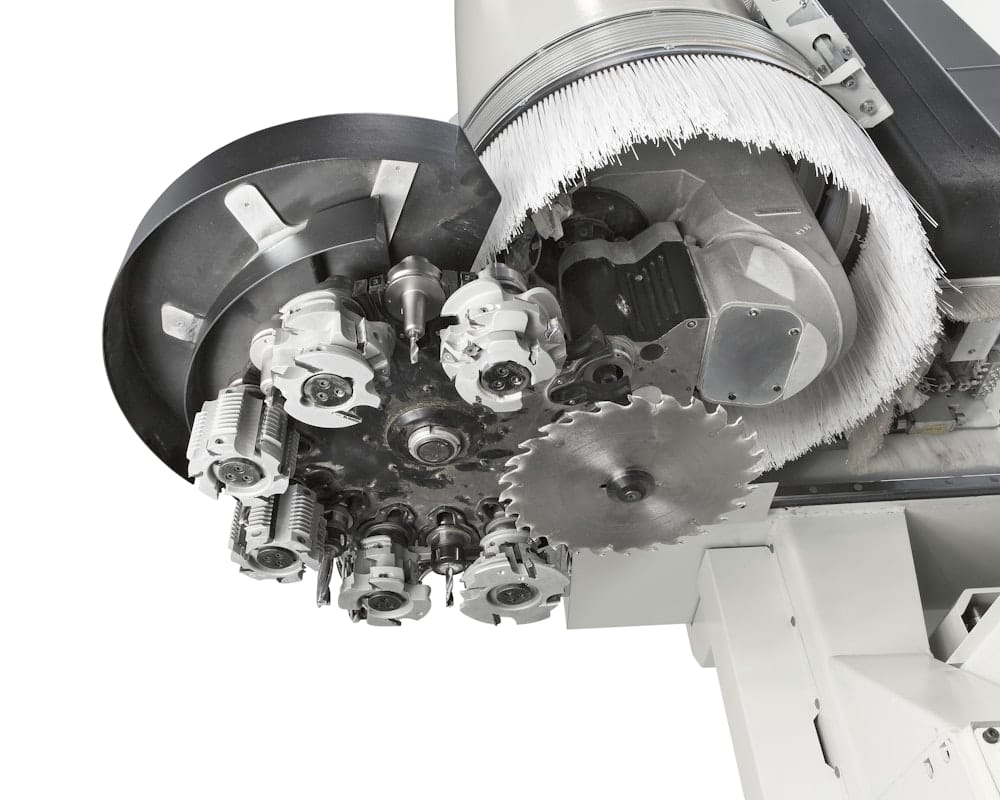

• On-Board Tool Change
  Minimises downtime by allowing tool changes in masked time, keeping productivity high even in varied or complex job runs.

• Pendulum Machining
  Offers continuous processing with ergonomic, dual-zone work areas. Operators can load and unload on one side while the machine runs on the other.

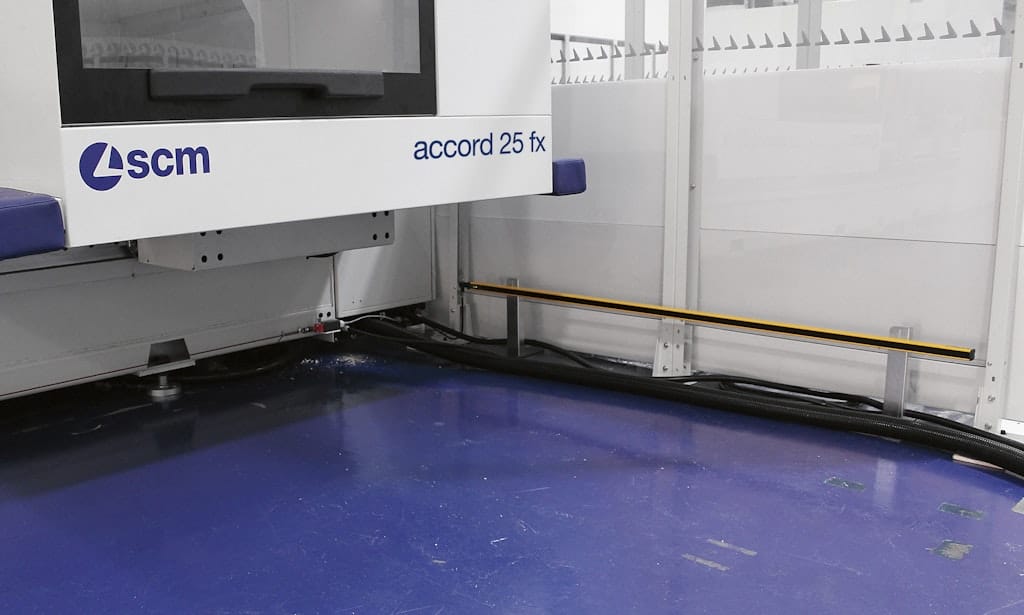

• Advanced Safety Systems
  Equipped with Pro Speed and Pro Space safety options, which ensure operator freedom and protection without the need for physical floor mats.

• Energy Efficiency
  Features SCM’s Sav€nergy system for reduced power consumption without compromising performance, making it ideal for sustainable manufacturing.

Technical Specifications:

• Working Area (X axis): 3,650 to 6,170 mm

• Working Area (Y axis): 1,320 to 2,120 mm

• Component Passage (Z axis): Up to 250 mm

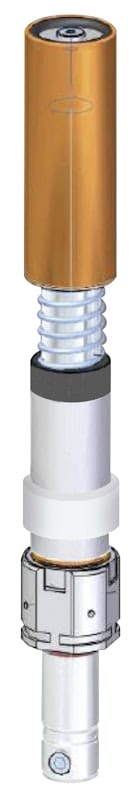

• Electrospindle Options: From 8.5 kW to 13 kW

• Tool Magazine Capacity: 10 to 78 tools
