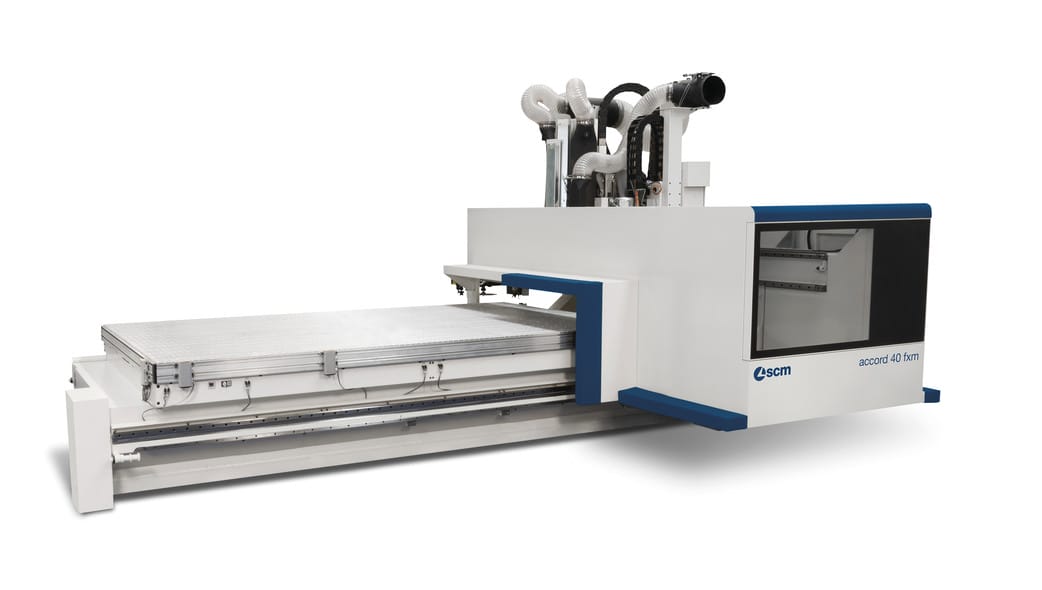

Accord 40 FXM

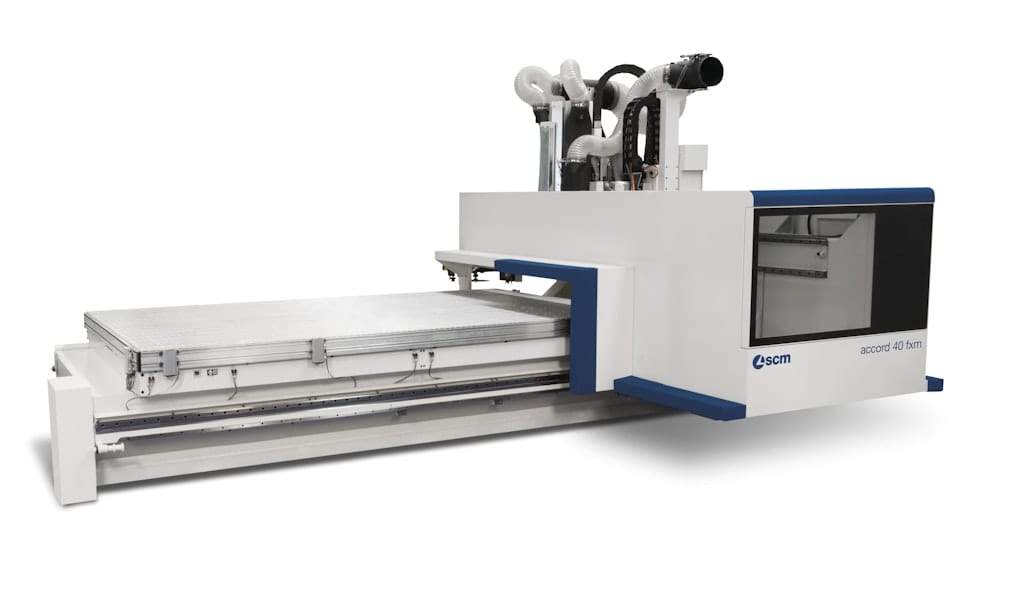

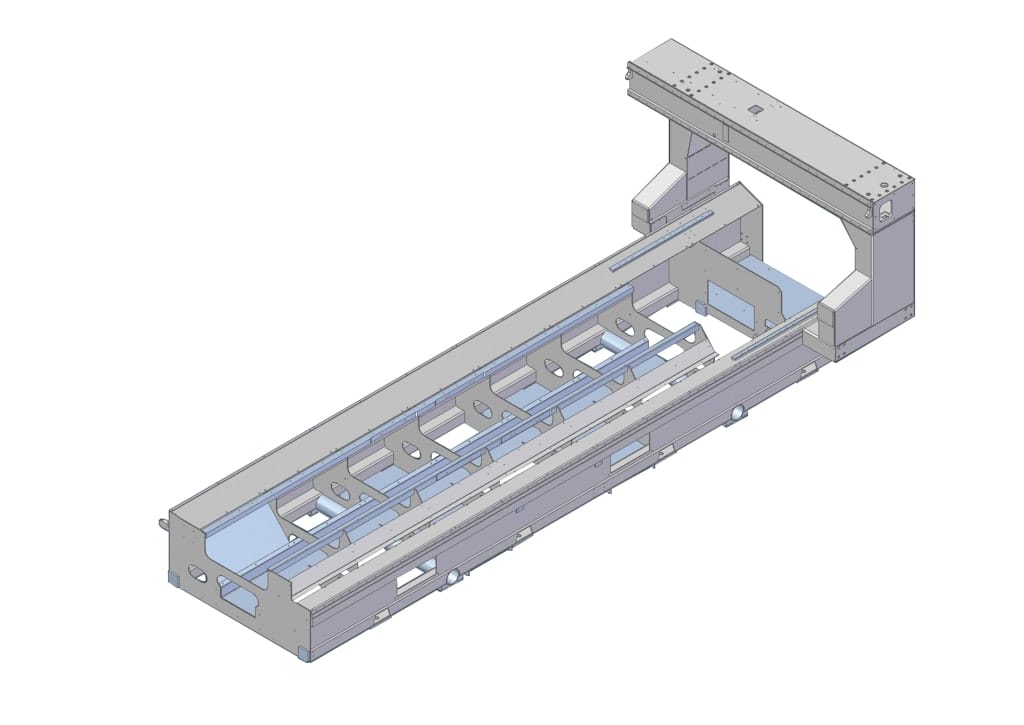

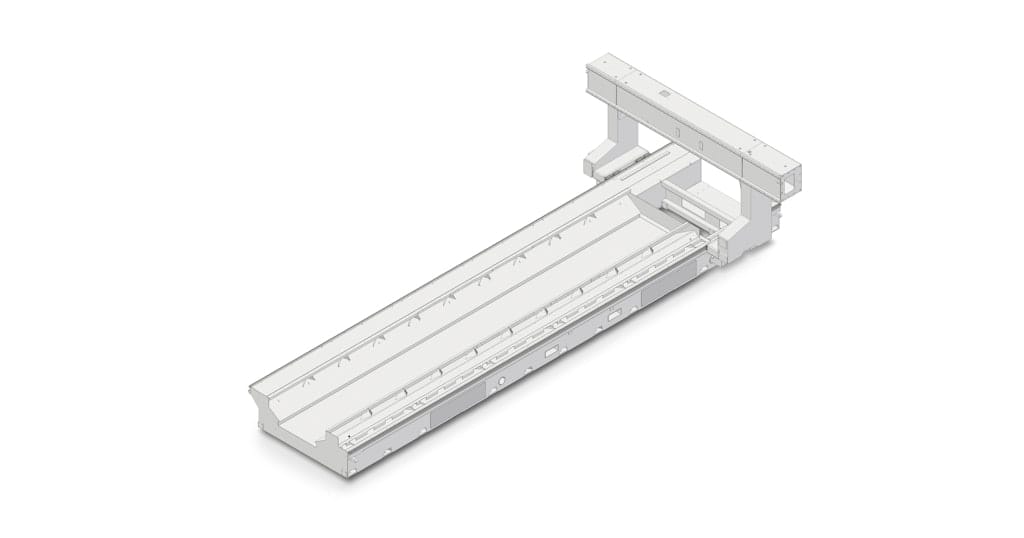

The SCM Accord 40 FXM is a high-performance CNC machining centre with a mobile gantry structure, designed for manufacturers who need precision, speed, and flexibility in processing complex wood components. It’s ideal for solid wood, plywood, MDF, and chipboard, offering consistent quality across a wide range of applications.

Key Features & Advantages:

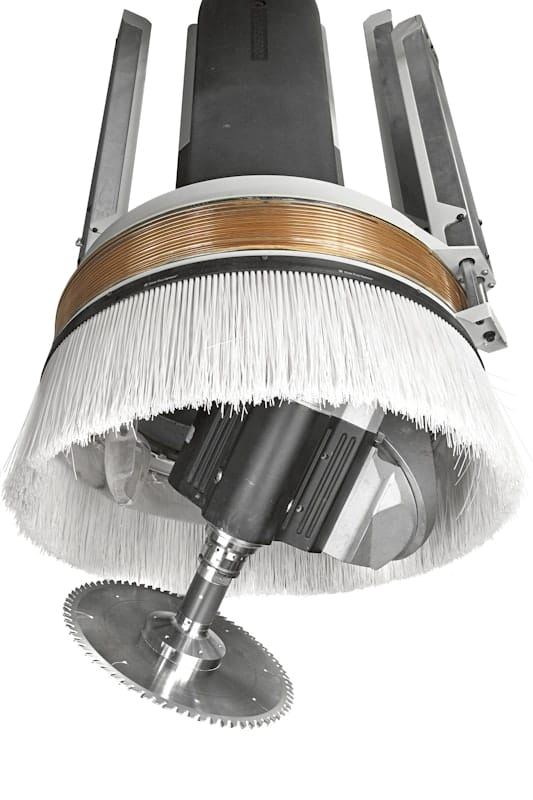

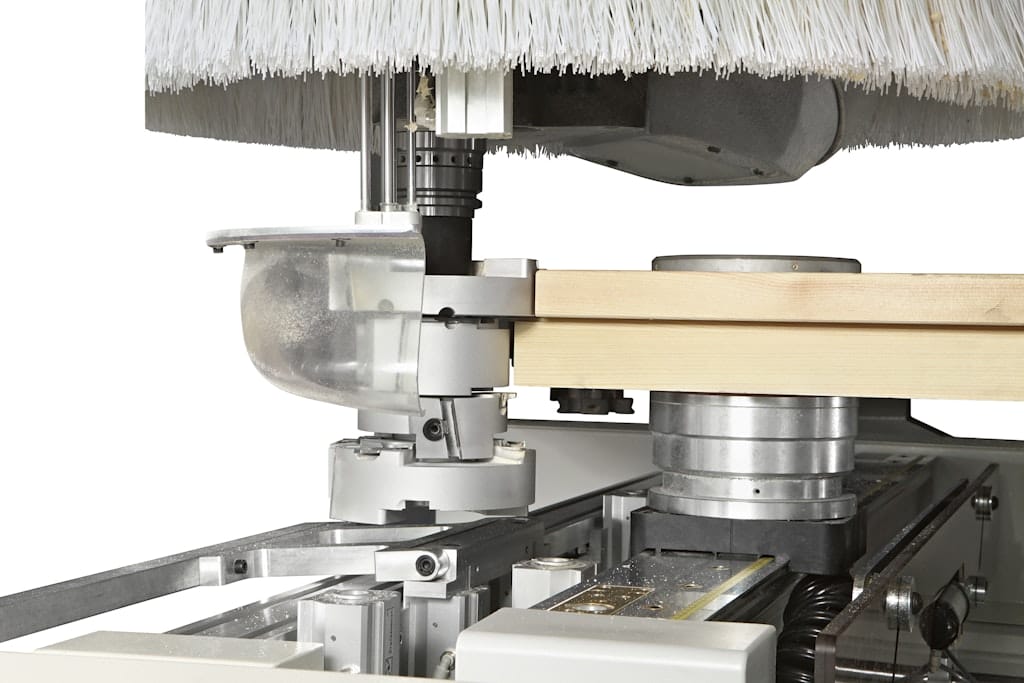

• Heavy-Duty Profiling

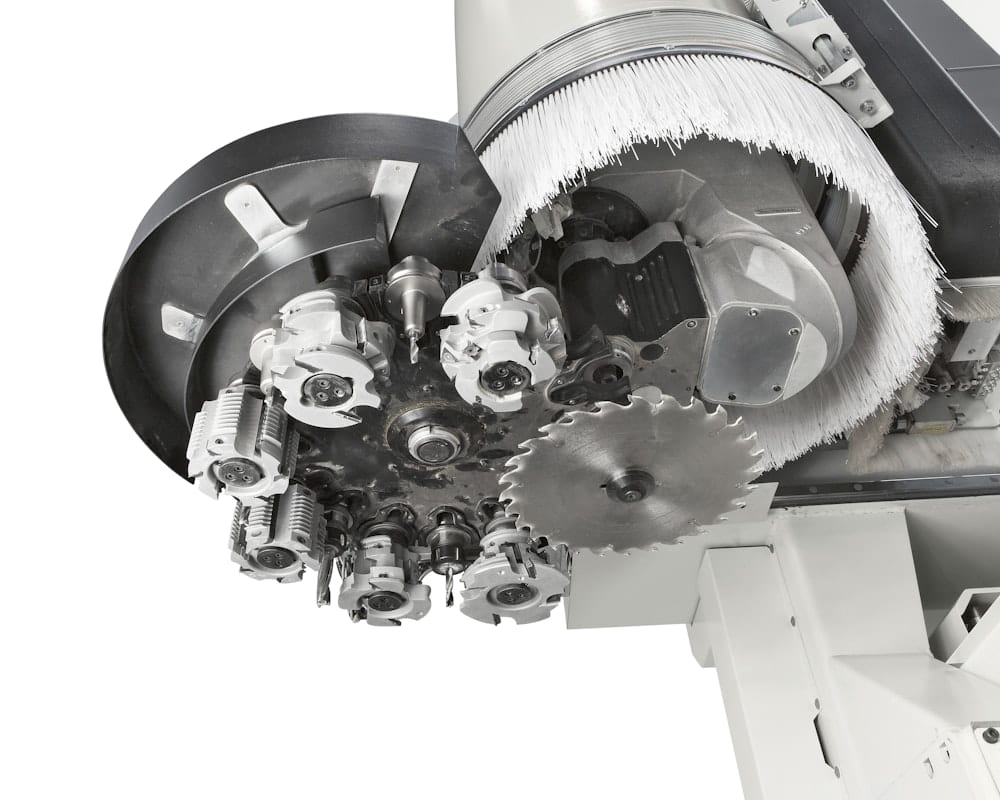

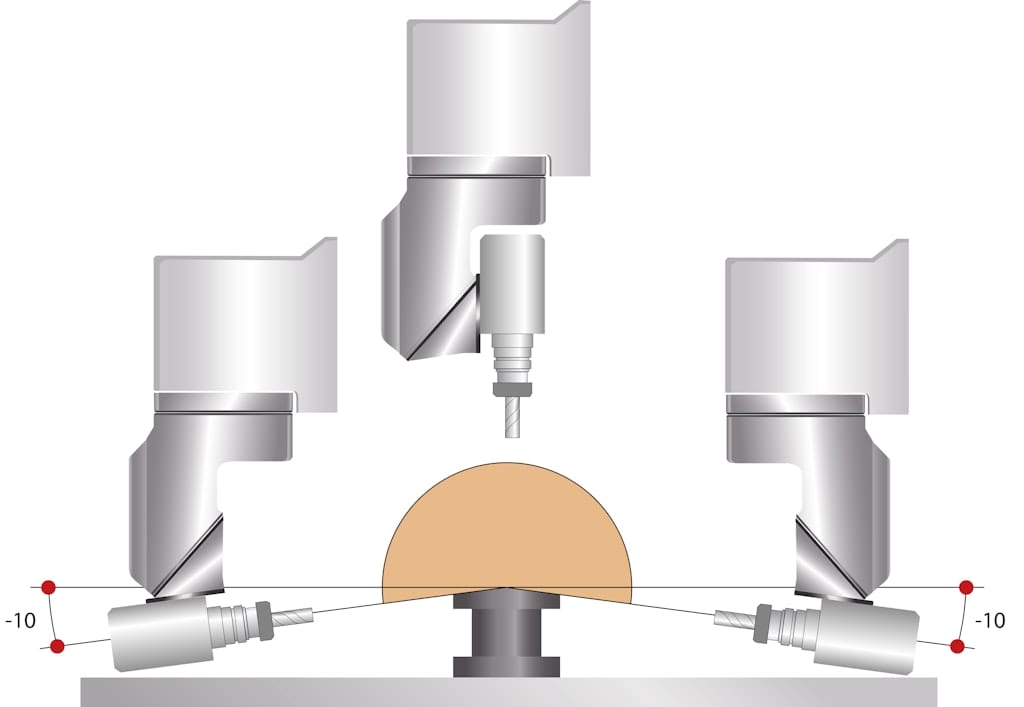

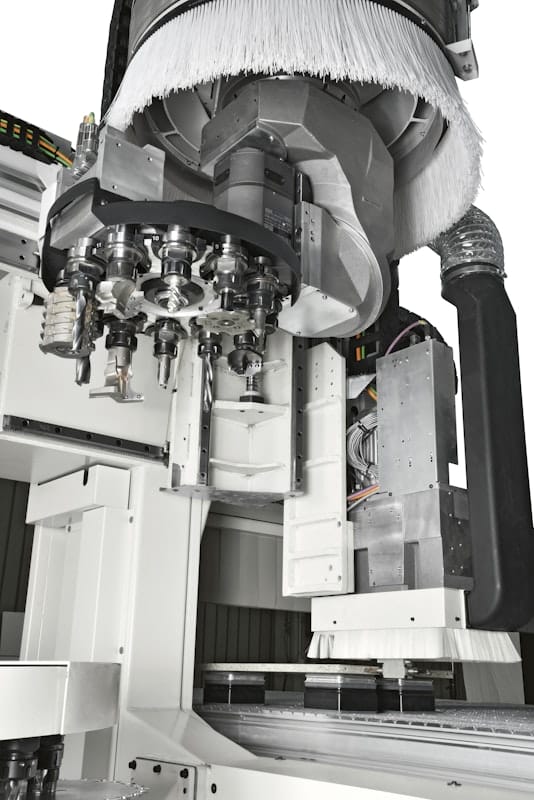

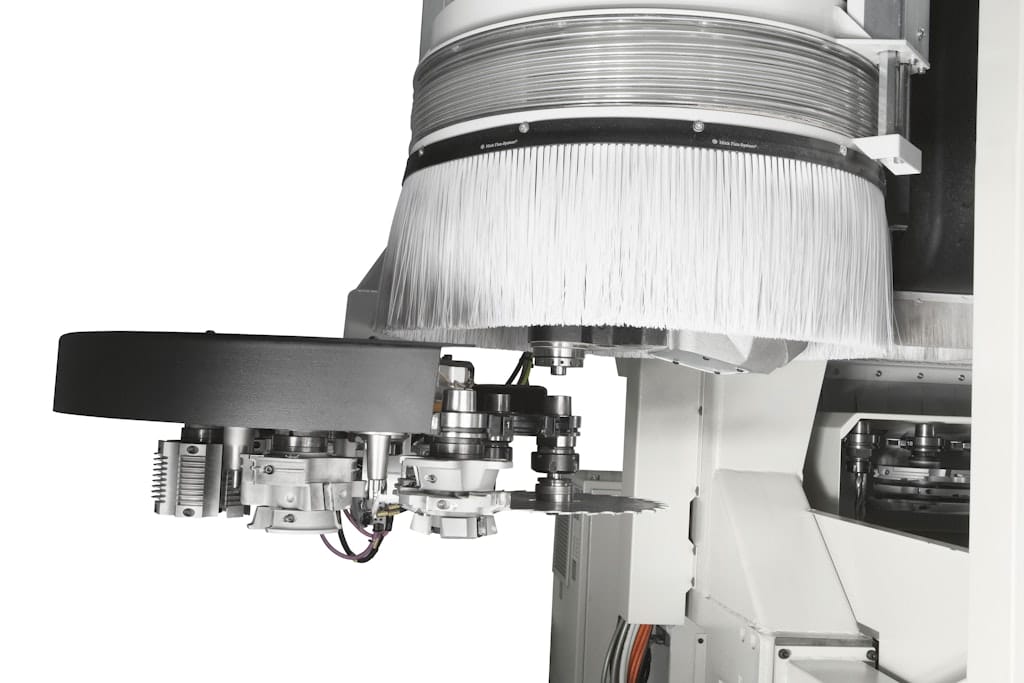

  Equipped with PRISMA machining heads featuring 5 interpolating axes, the Accord 40 FXM handles solid wood profiling with ease, making it perfect for producing doors, windows, stairs, and detailed components.

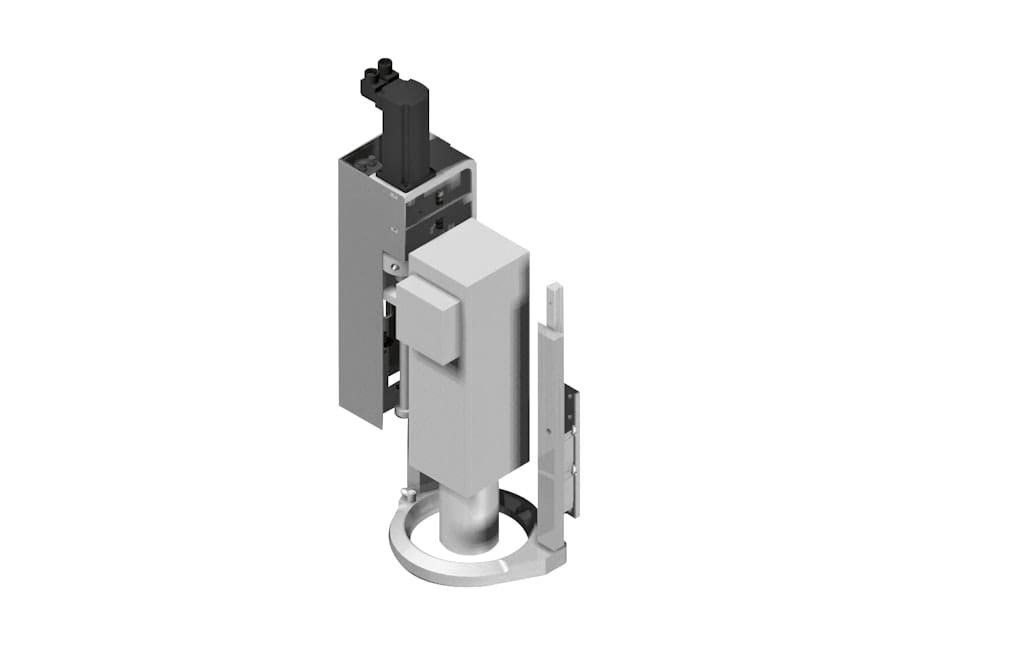

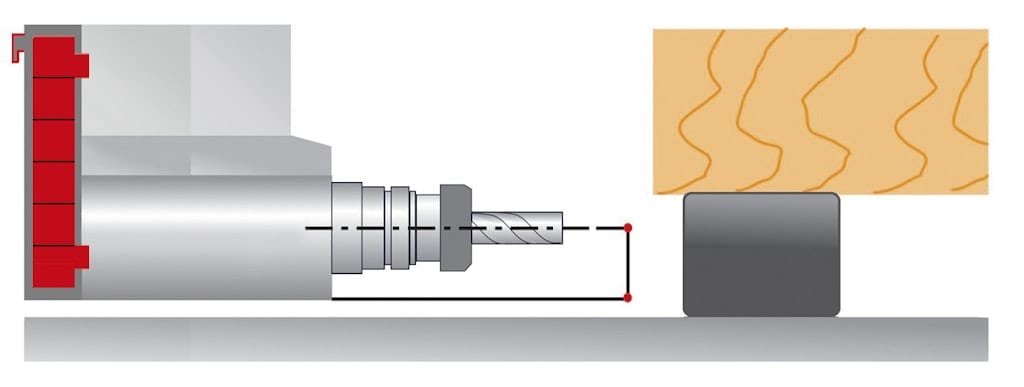

• BRC Working Unit

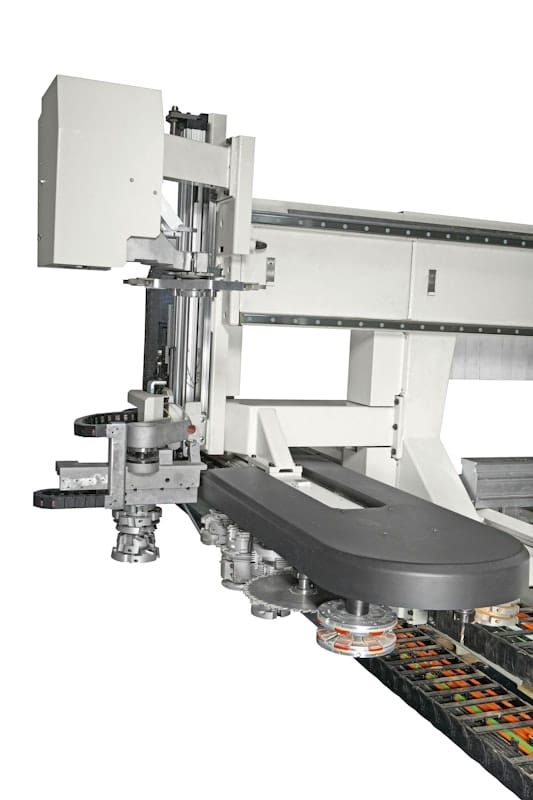

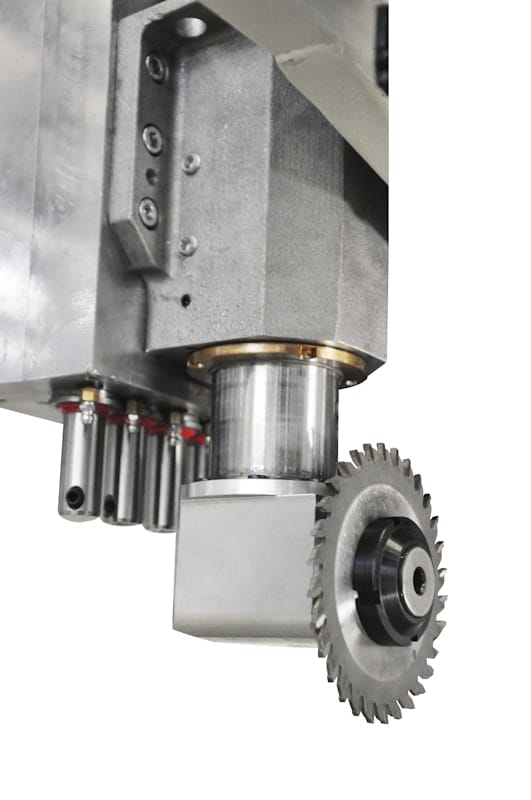

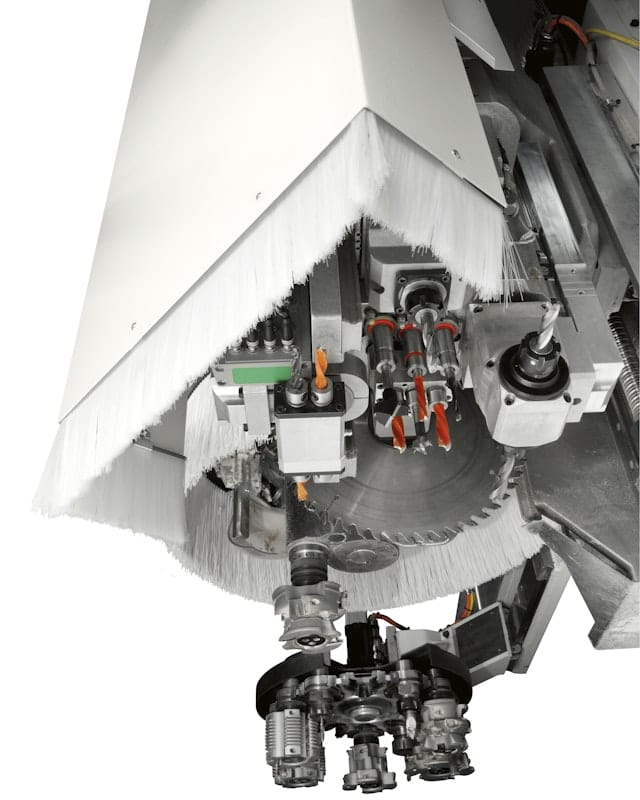

  Performs boring, routing, and vertical/horizontal cutting without tool change, increasing efficiency. It operates with an independent Z-axis and a dedicated inverter for consistent precision.

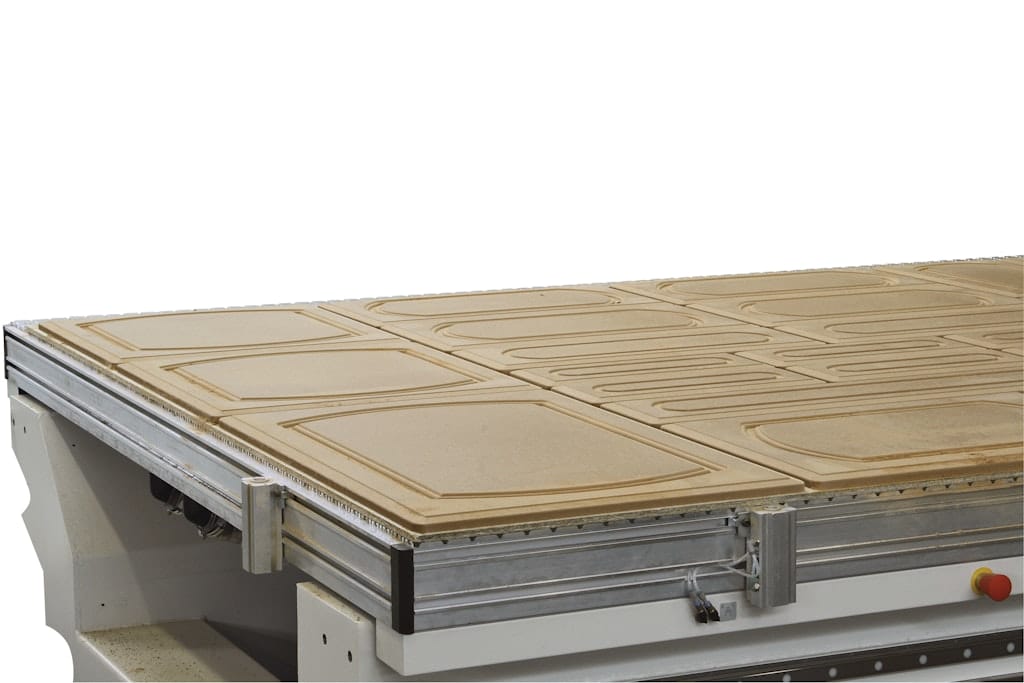

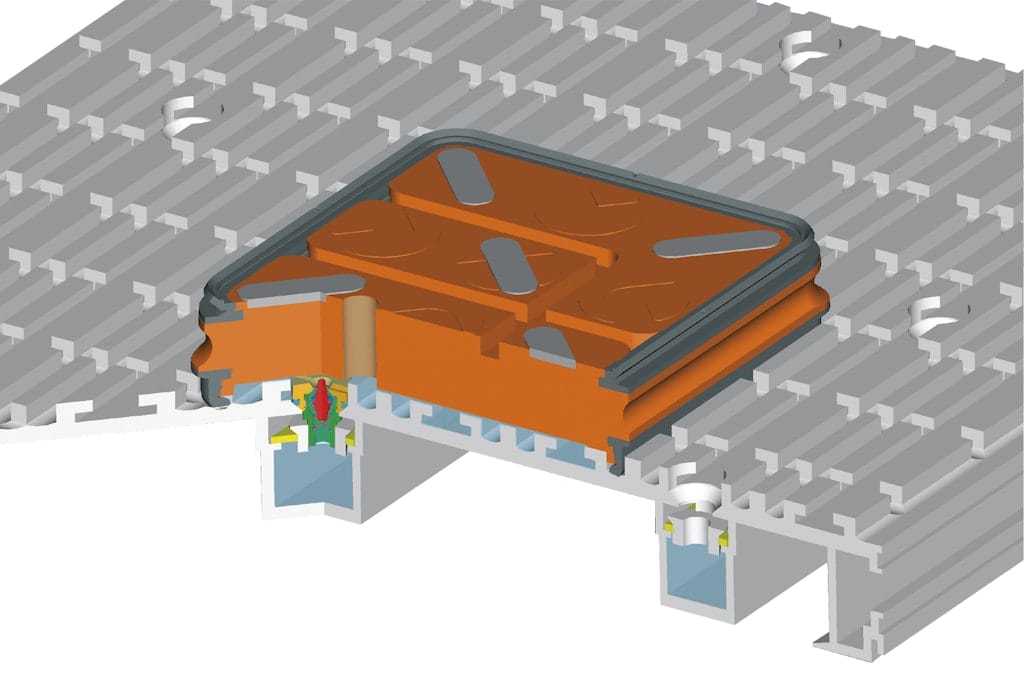

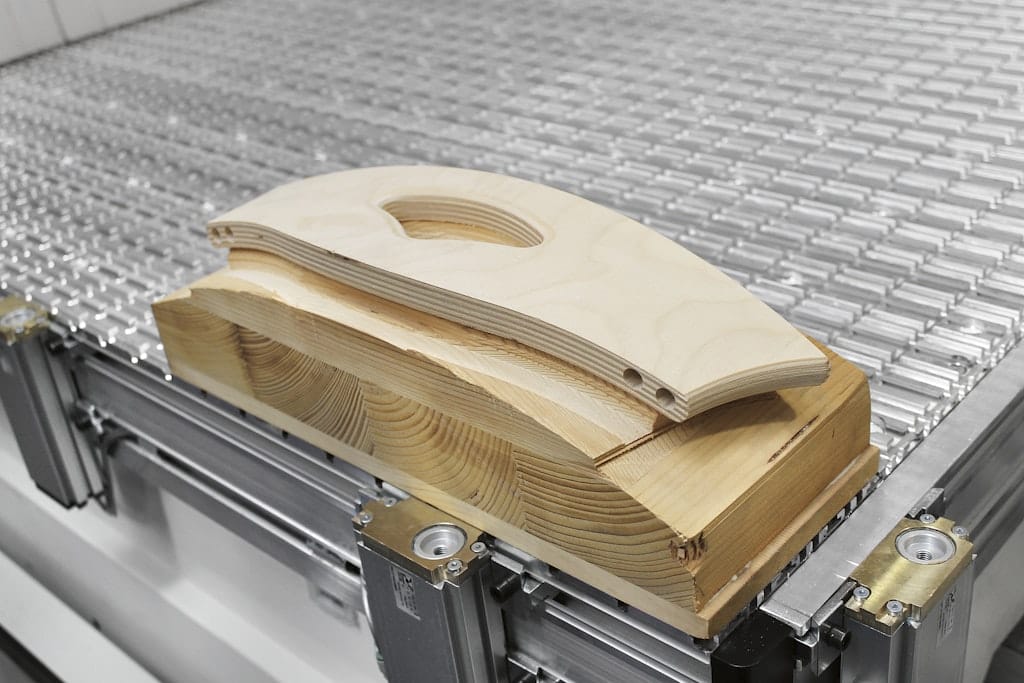

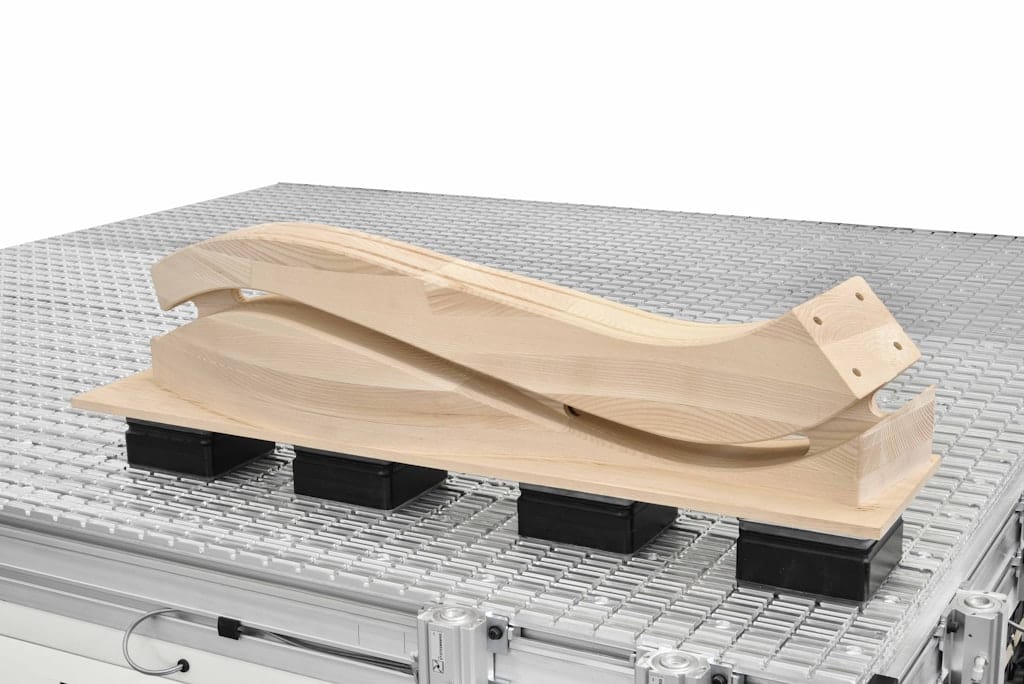

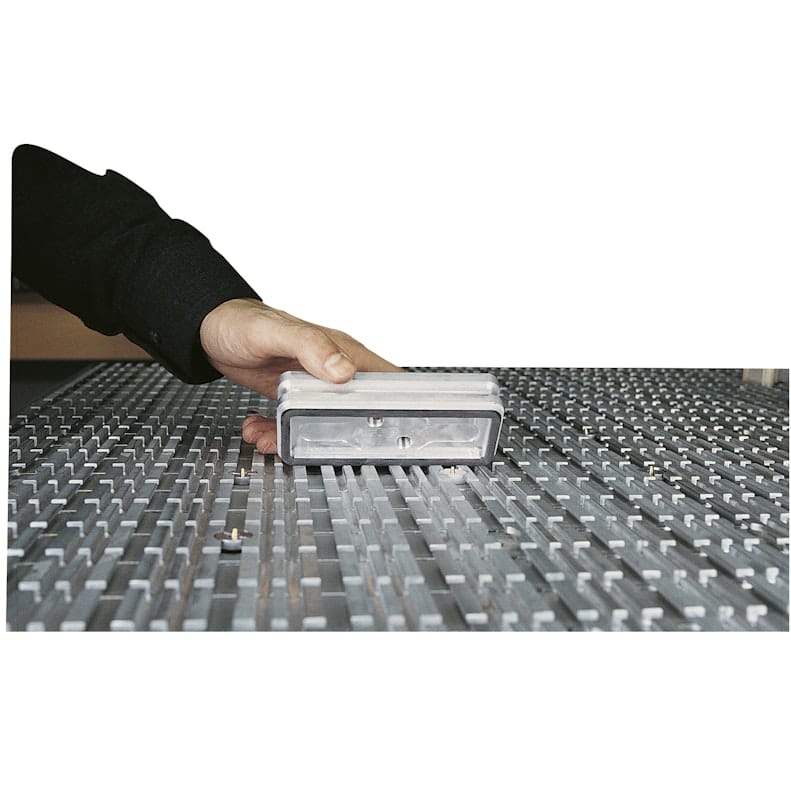

• Multifunction Worktable

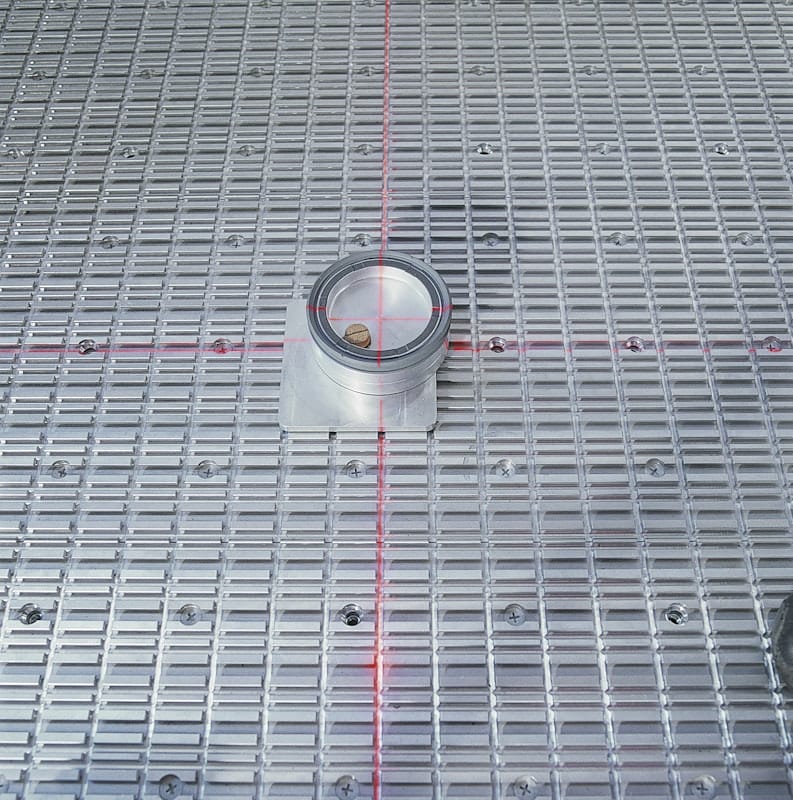

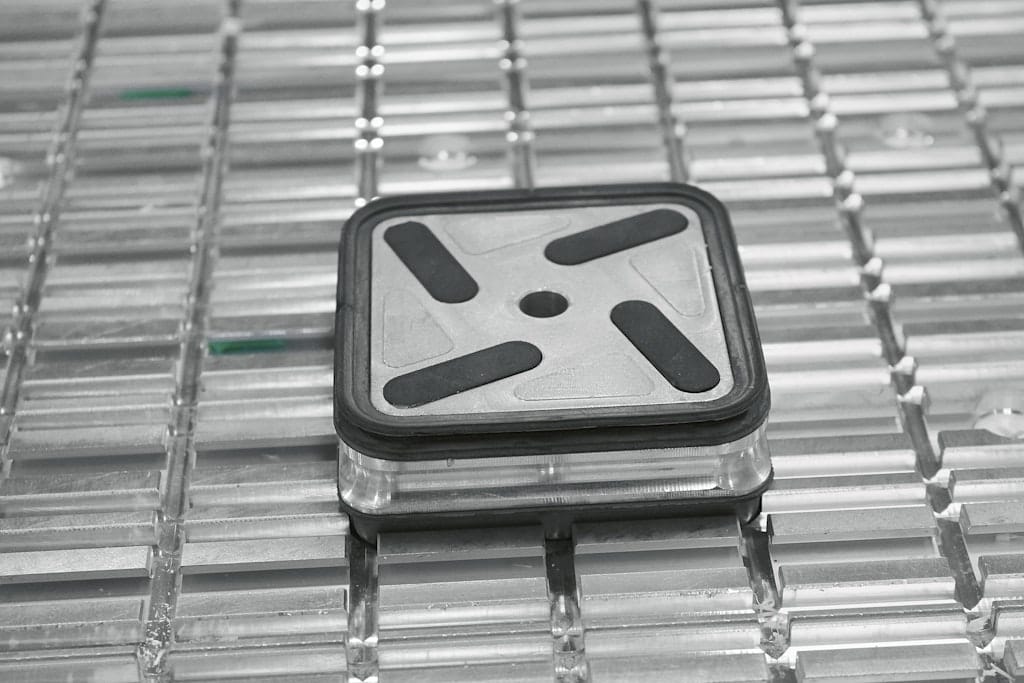

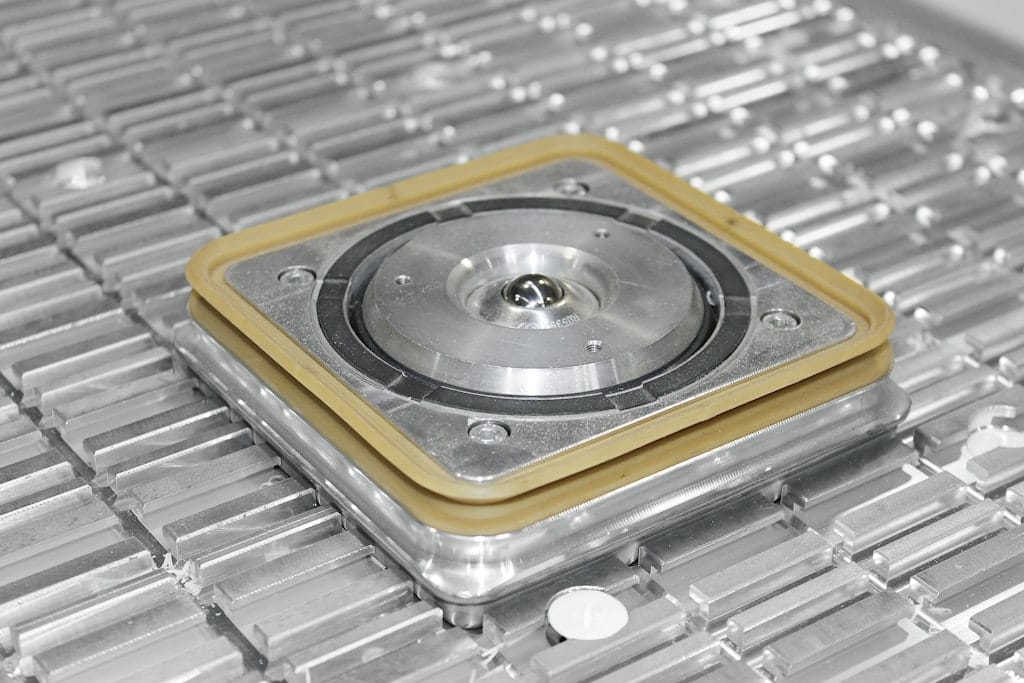

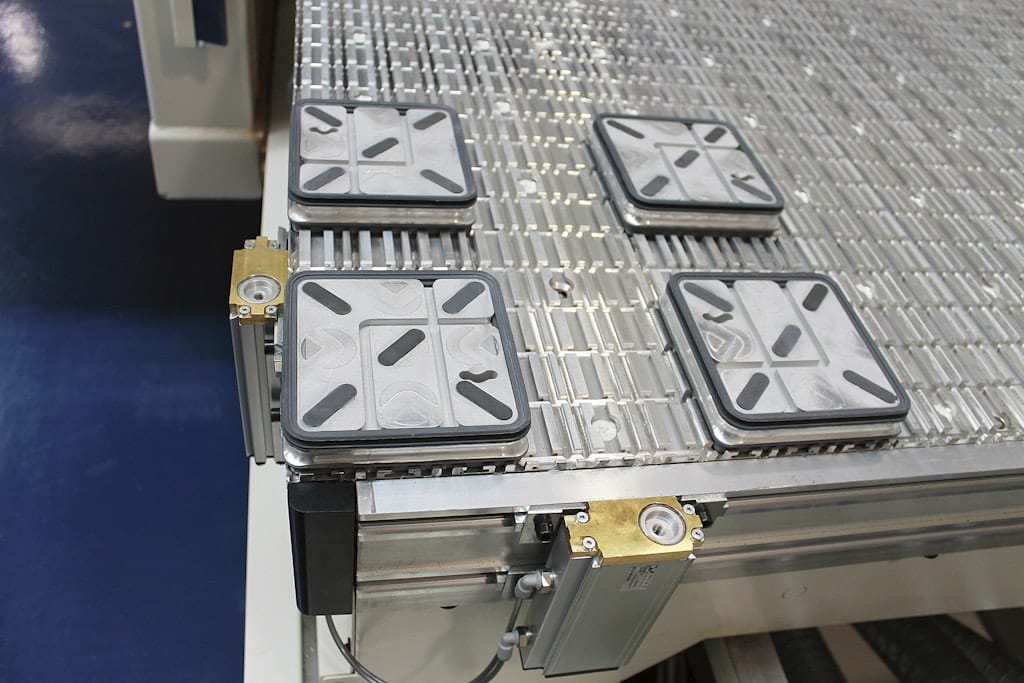

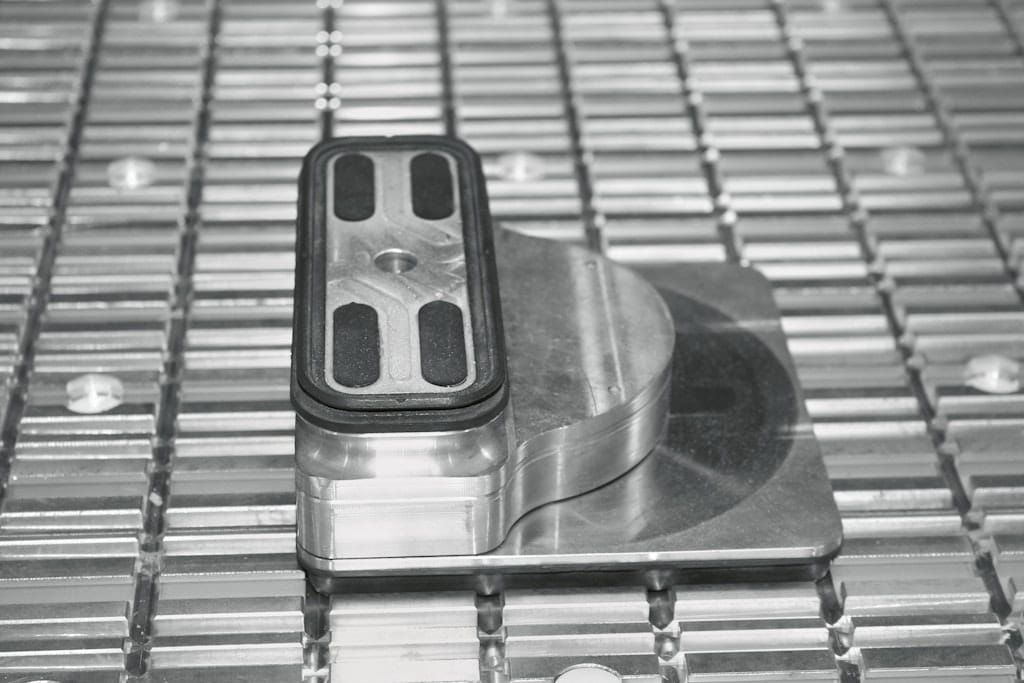

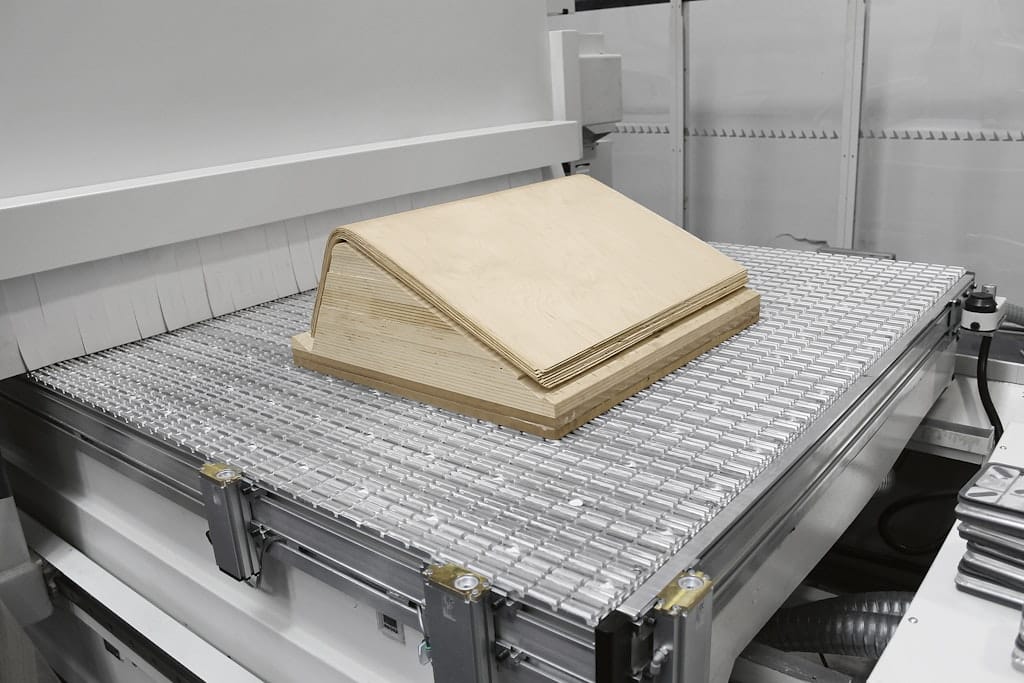

  The aluminium worktable maintains long-term planarity and includes an integrated vacuum system and T-grooves, providing a stable and adaptable setup for a wide range of workpieces.

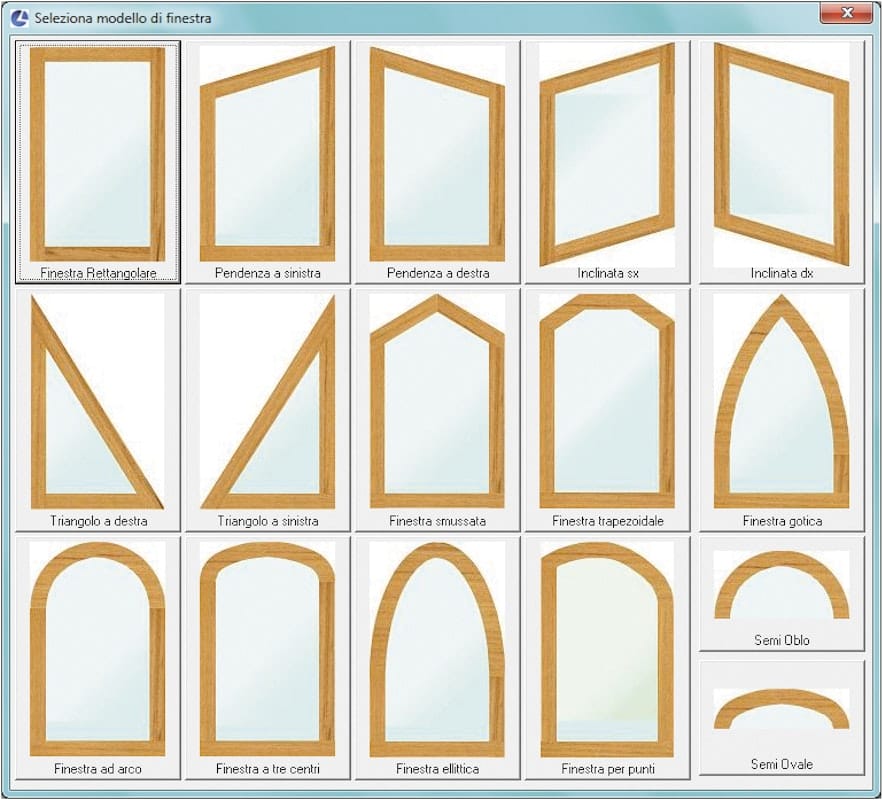

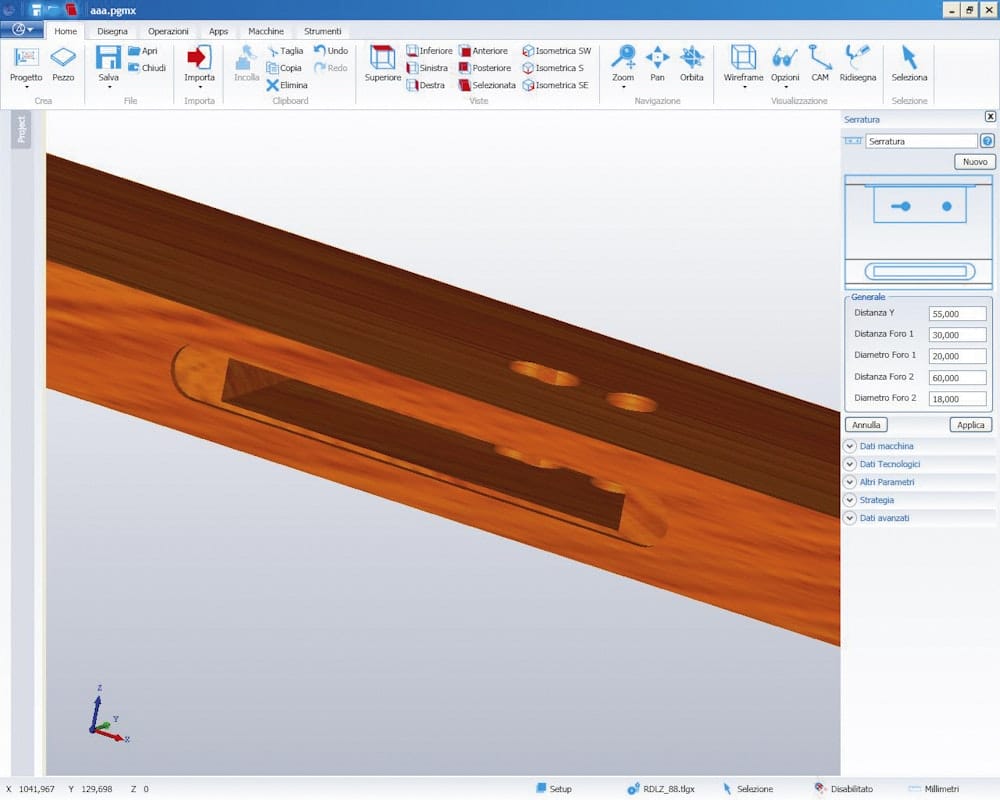

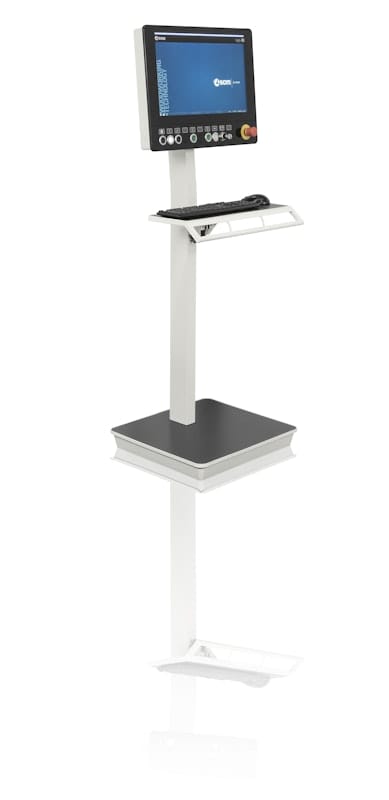

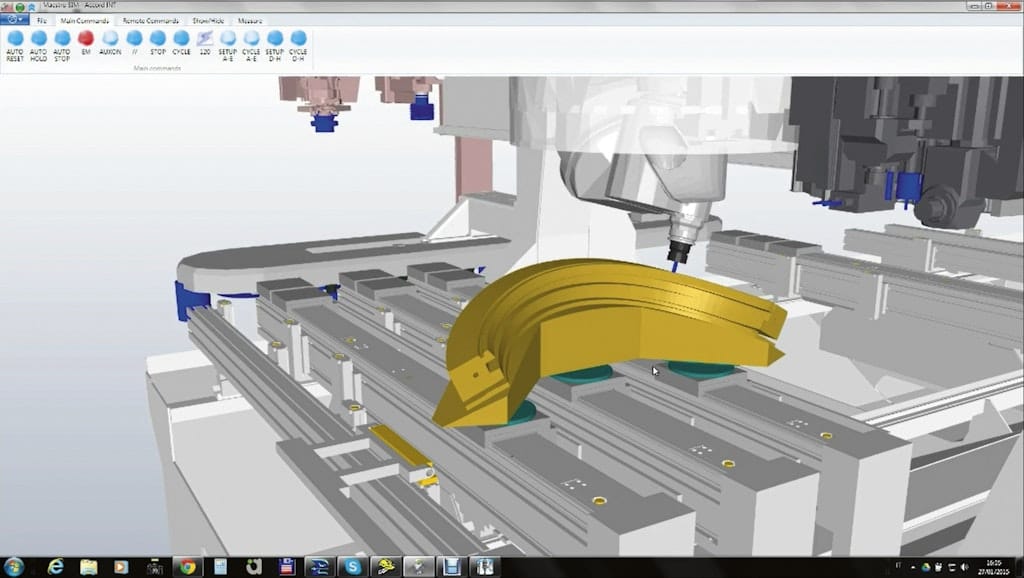

• Smart Programming

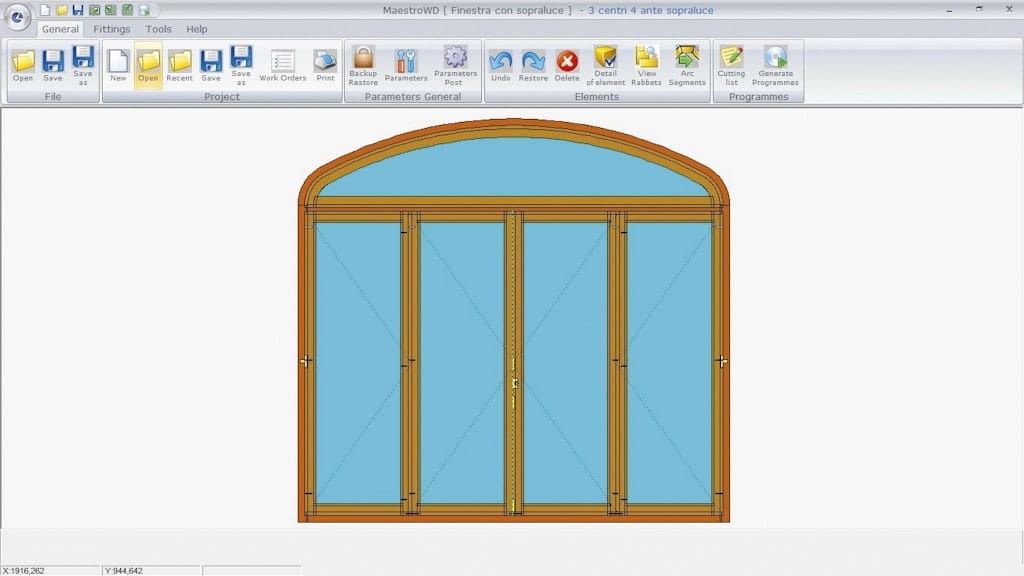

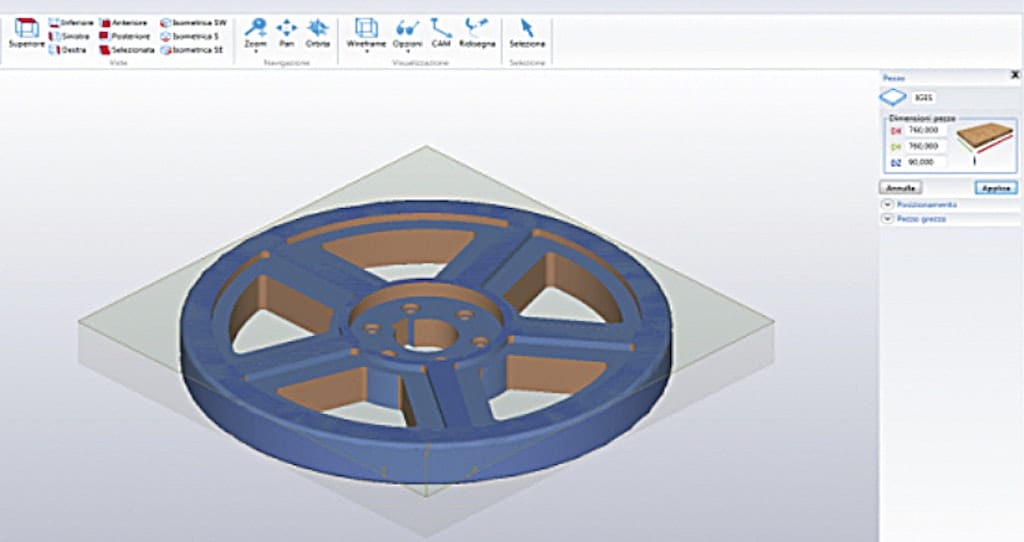

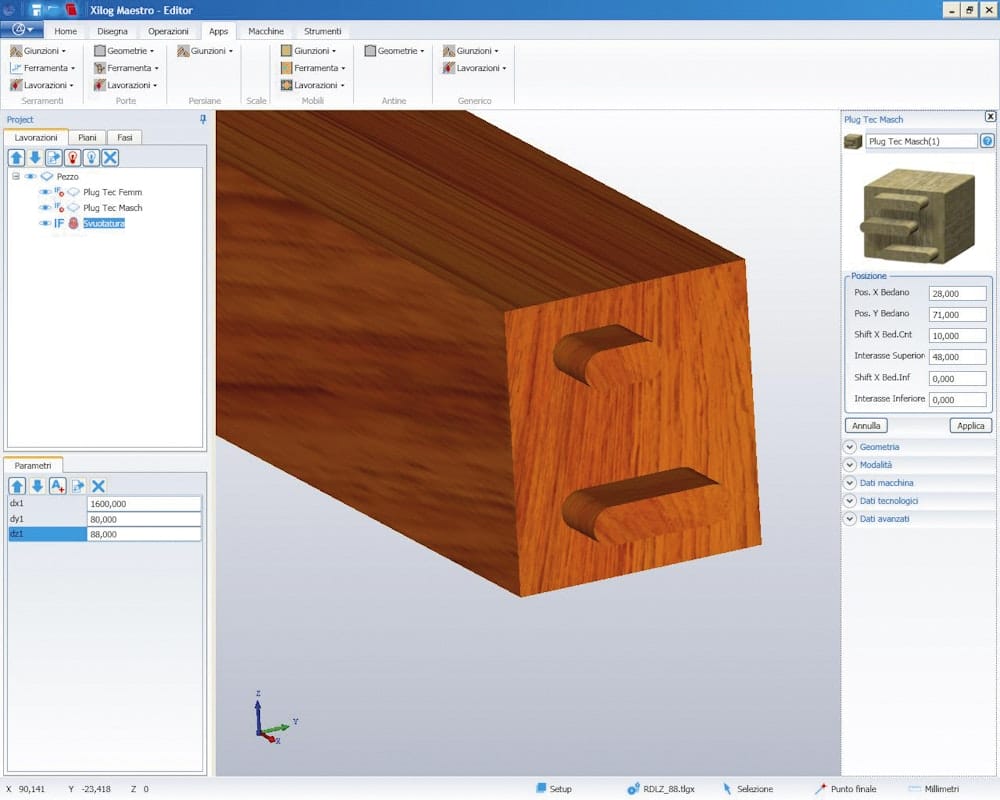

  Uses MAESTRO software for intuitive programming with dedicated modules for different applications, reducing setup time and increasing ease of use.

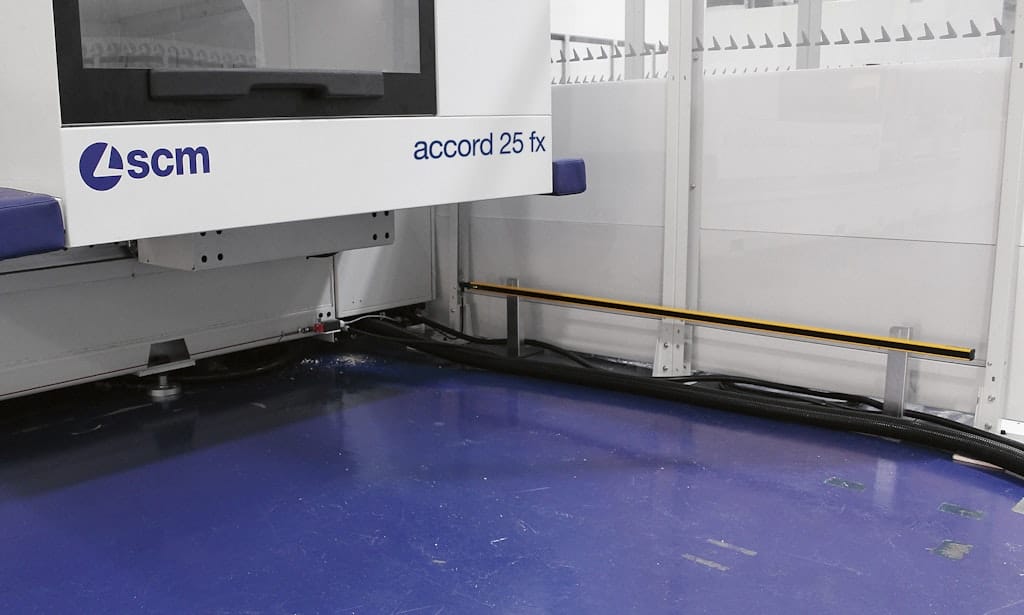

• Advanced Safety and Ergonomics
  Includes Pro Speed and Pro Space safety systems for full operator access and protection without the need for floor mats or barriers.

Technical Specifications:

• Working Areas (X-Y-Z):
  Options include 3650x1600x350 mm, 4970x1600x350 mm, 6170x1600x350 mm, 3650x2120x350 mm, 4970x2120x350 mm, and 6170x2120x350 mm.

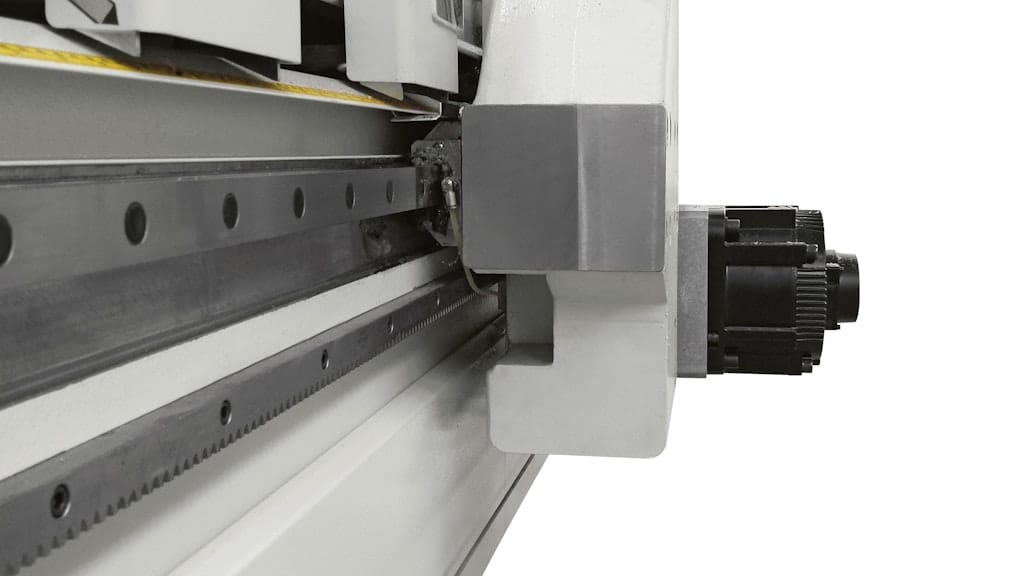

• Axes Speed:
  X and Y axes: up to 90 m/min
  Z axis: up to 30 m/min

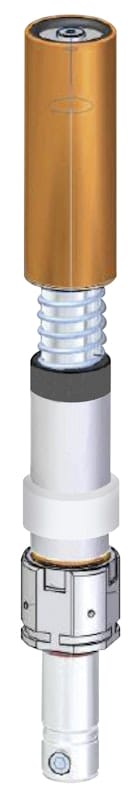

• Electrospindle Options:
  5-axis: up to 17 kW, 24,000 rpm
  3/4-axis: up to 15 kW, 24,000 rpm

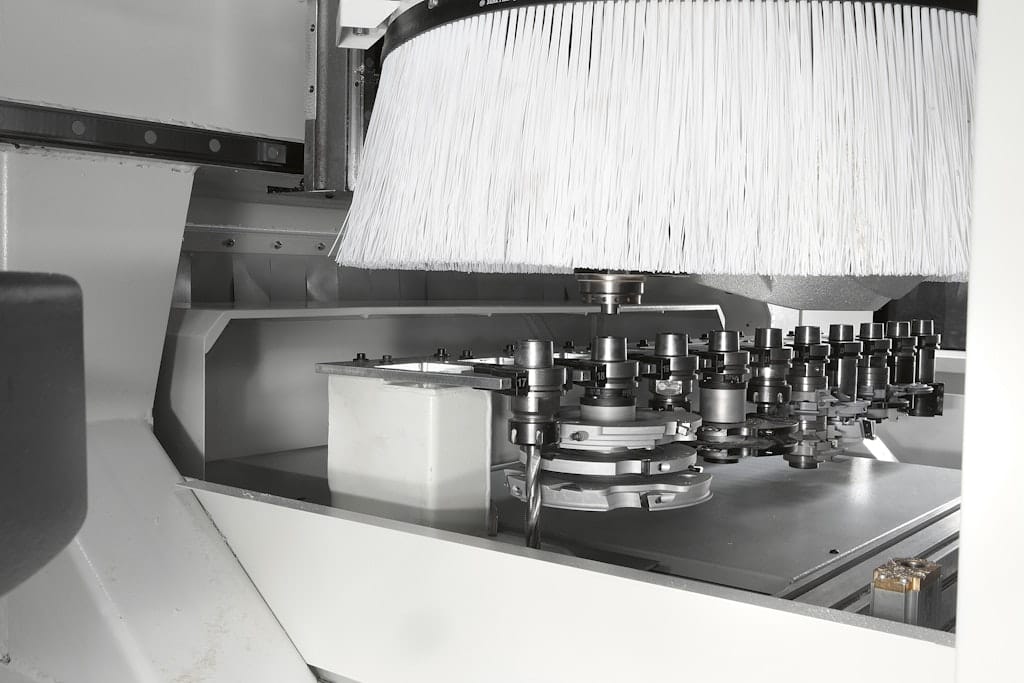

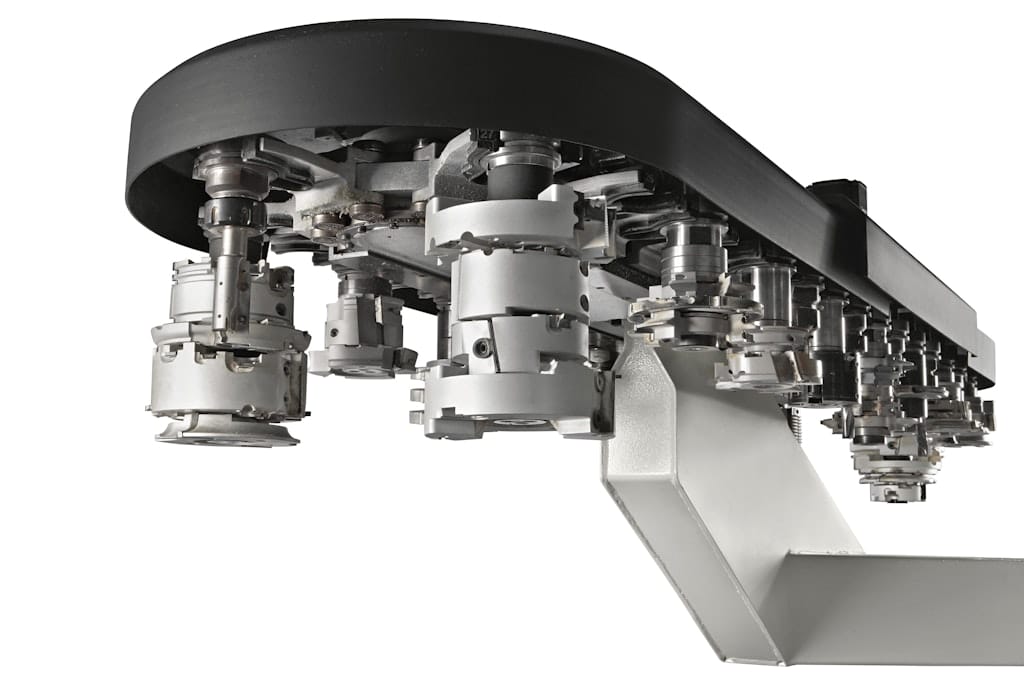

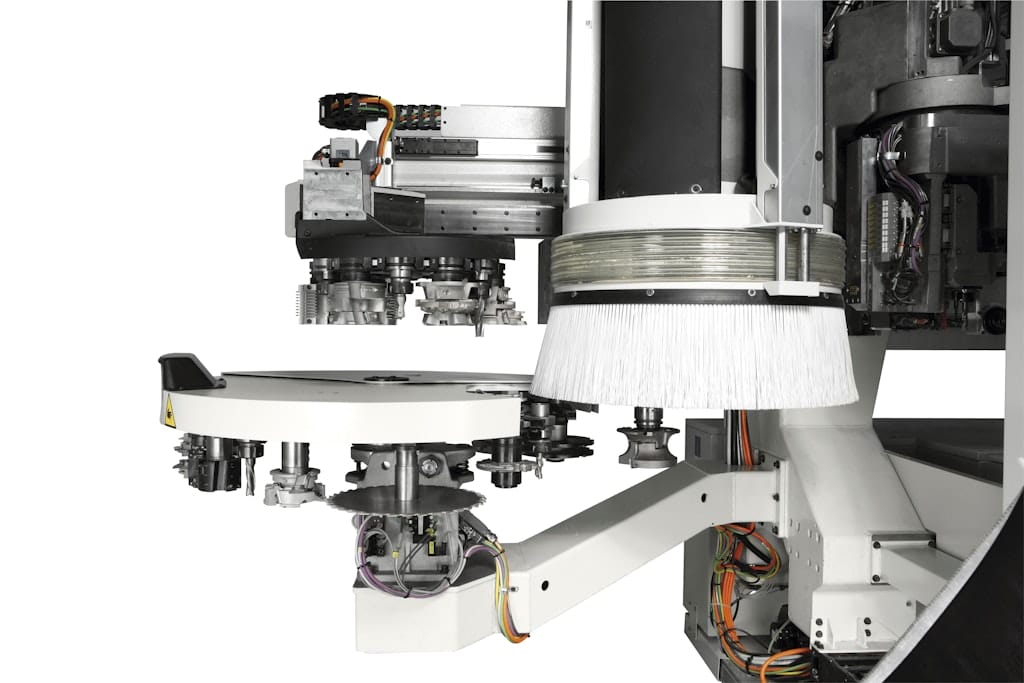

• Tool Stores:
  On-head: 12 positions
  Rear: up to 48 positions
  Side: 12 positions

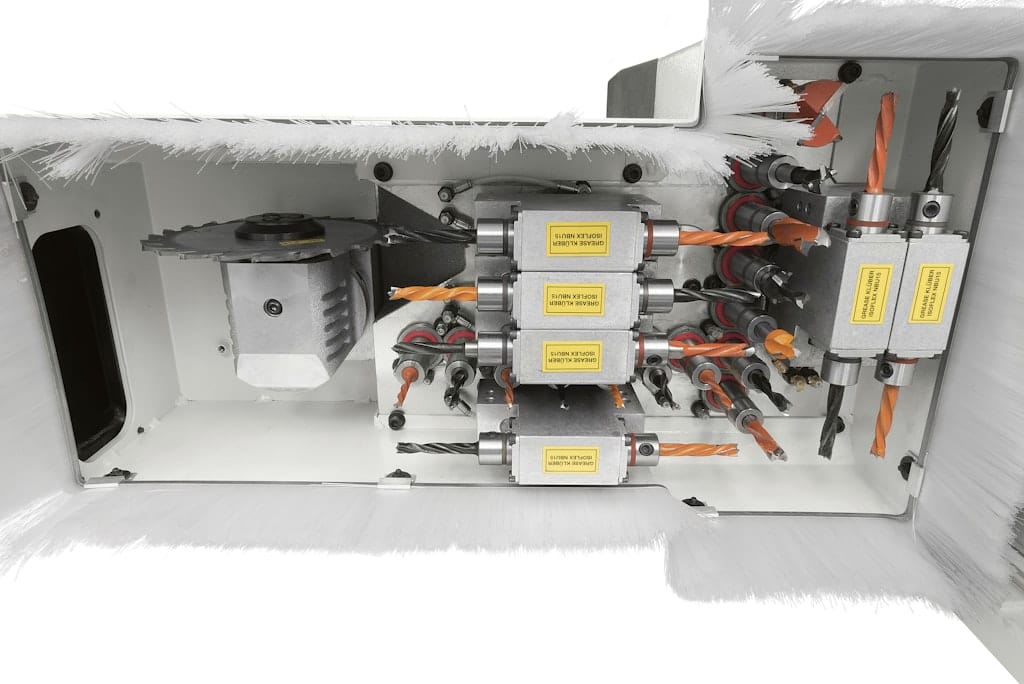

• Drilling Unit:
  Up to 30 vertical and horizontal spindles with max rotation of 8,000 rpm
