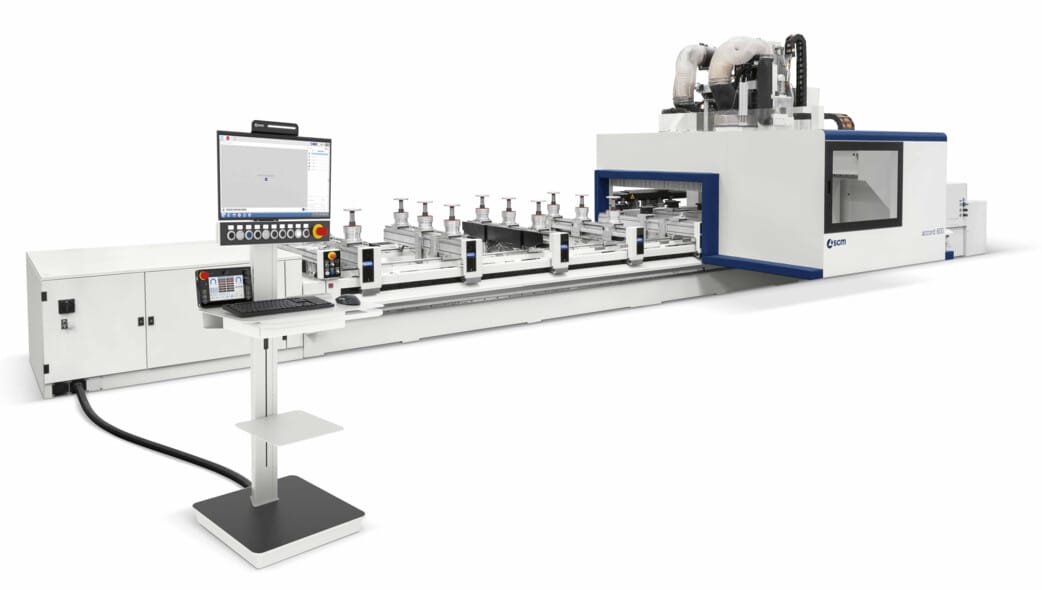

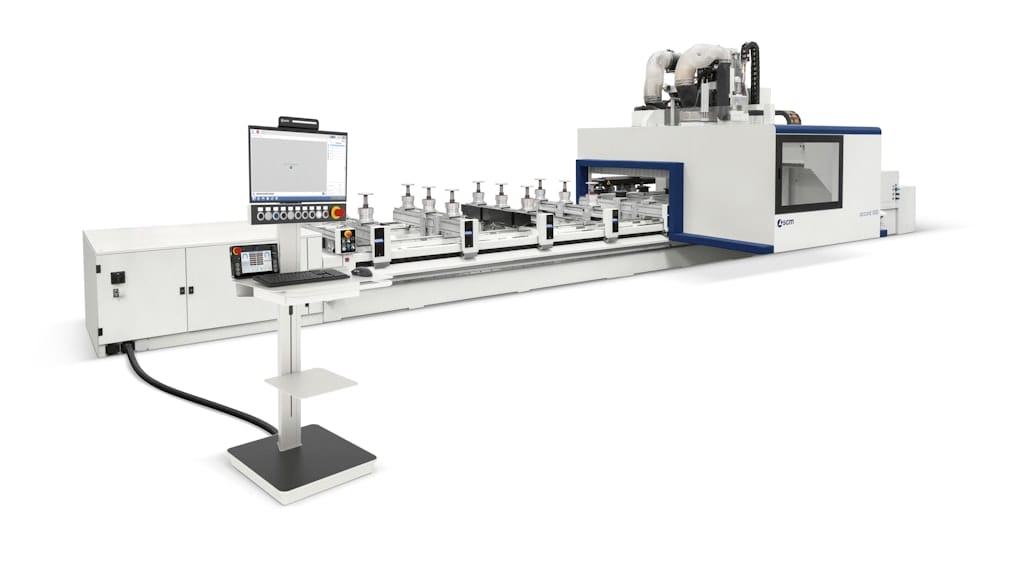

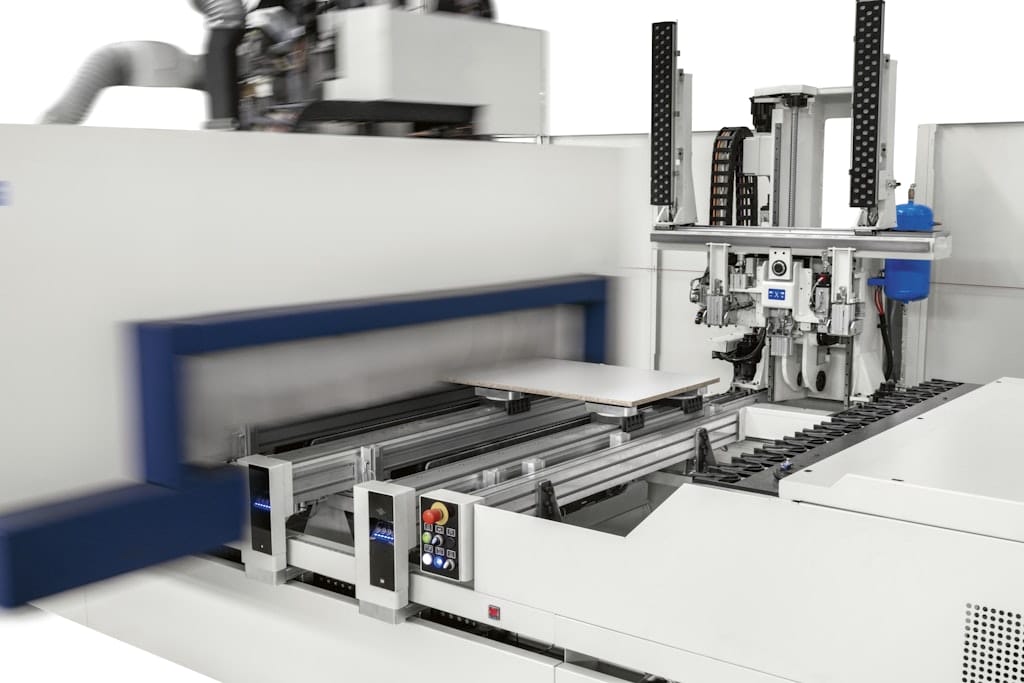

Accord 600
POA
Product Features
Specifications
Technical data
| accord 600 | ||||
| Working areas | ||||
| X-Y-Z axes dimensions | mm | 3715 x 1600 x 300 3715 x 1900 x 300 5515 x 1600 x 300 5515 x 1900 x 300 6715 x 1600 x 300 6715 x 1900 x 300 | ||
| Axes | ||||
| X-Y-Z axes max. speed | m/min | 90-80-45 | ||

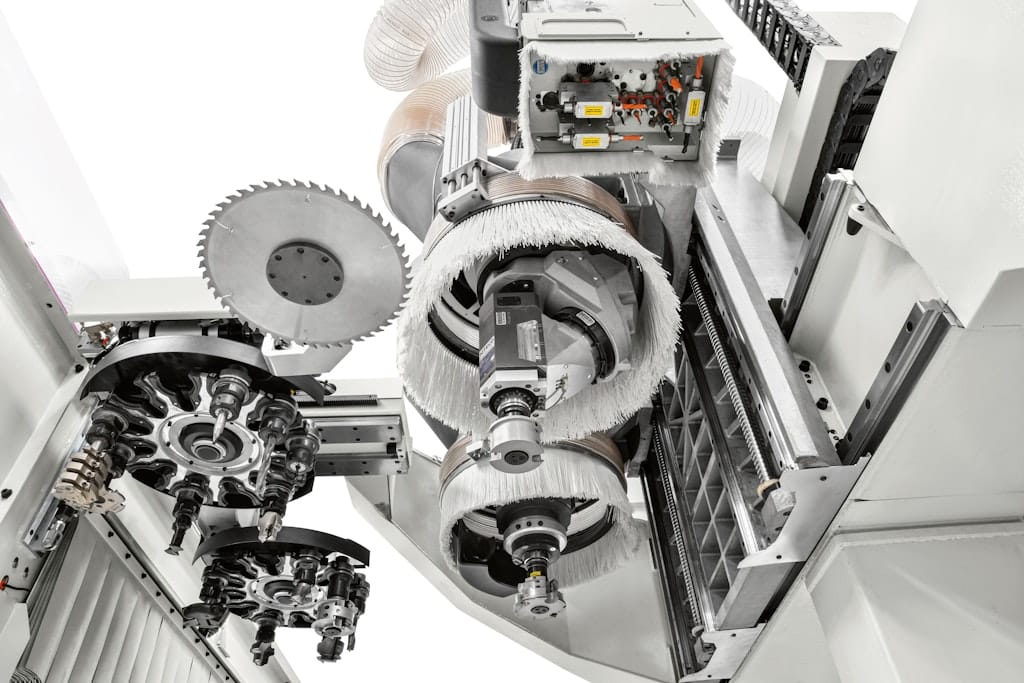

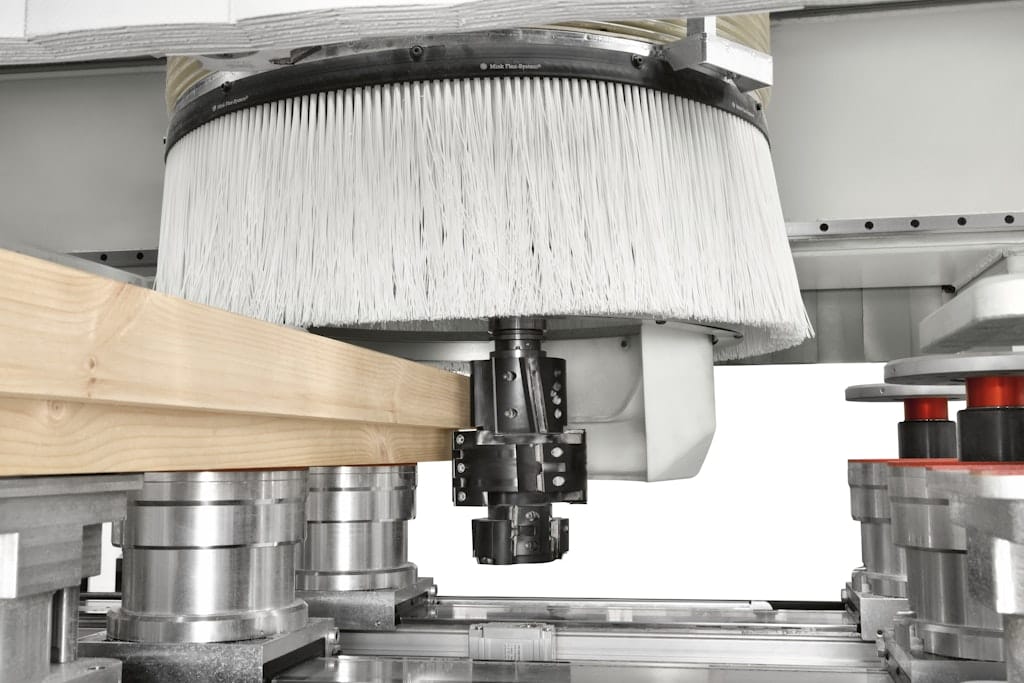

| Routing unit | ||||
| 5 axes electrospindle motor power (max.) | kW (hp) | 13,5 (18,4) | ||
| 3/4 axes electrospindle motor power (max.) | kW (hp) | 21 (28,5) | ||
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 | ||
| 3/4 axes electrospindle rotation speed (max.) | rpm | 24000 | ||

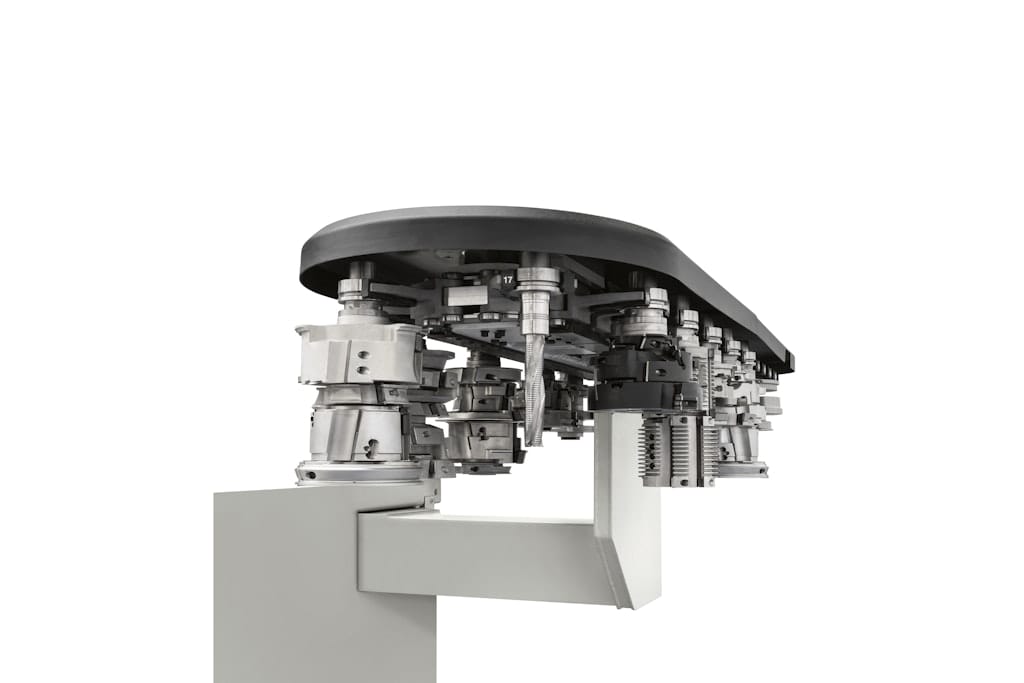

| Tool changers | ||||

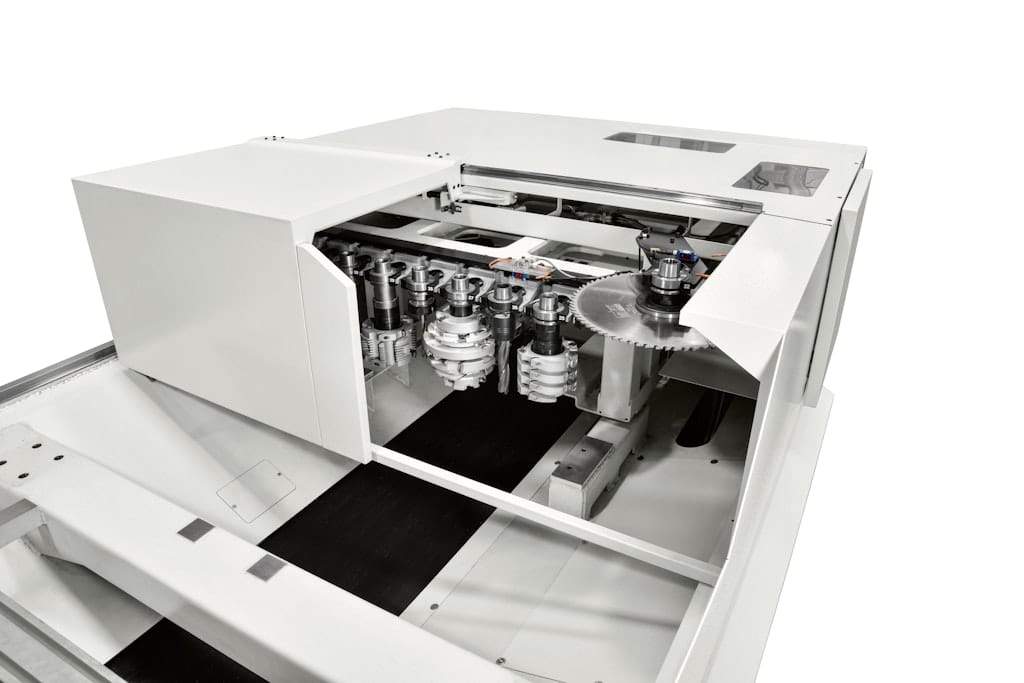

| TRB side tool changer | positions | 11 | ||
| CADDY side tool changer | positions | 35 | ||
| RAPID rear tool changer | positions | 16 | ||
| QUADRO rear tool changer | positions | 35 | ||
| VELOCE on-board tool changer | positions | 12+12 | ||

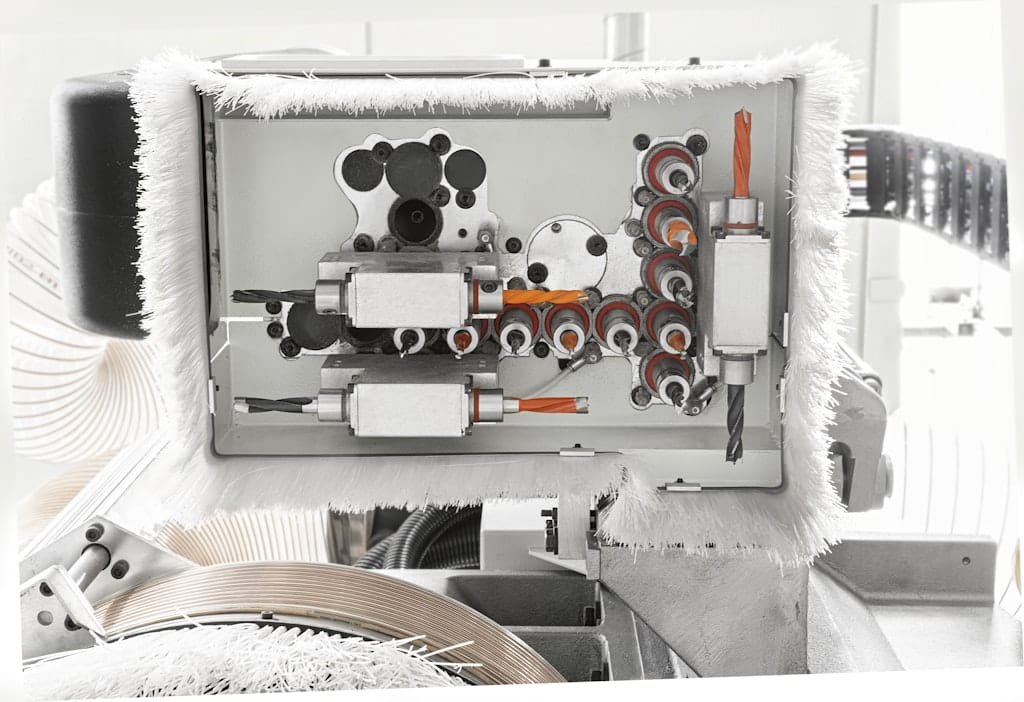

| Drilling unit | ||||
| Vertical and horizontal spindles (up to) | n. | 26 | ||
| Rotation speed (max.) | rpm | 8000 | ||
| Integrated saw blade | Ø | 125 | ||
