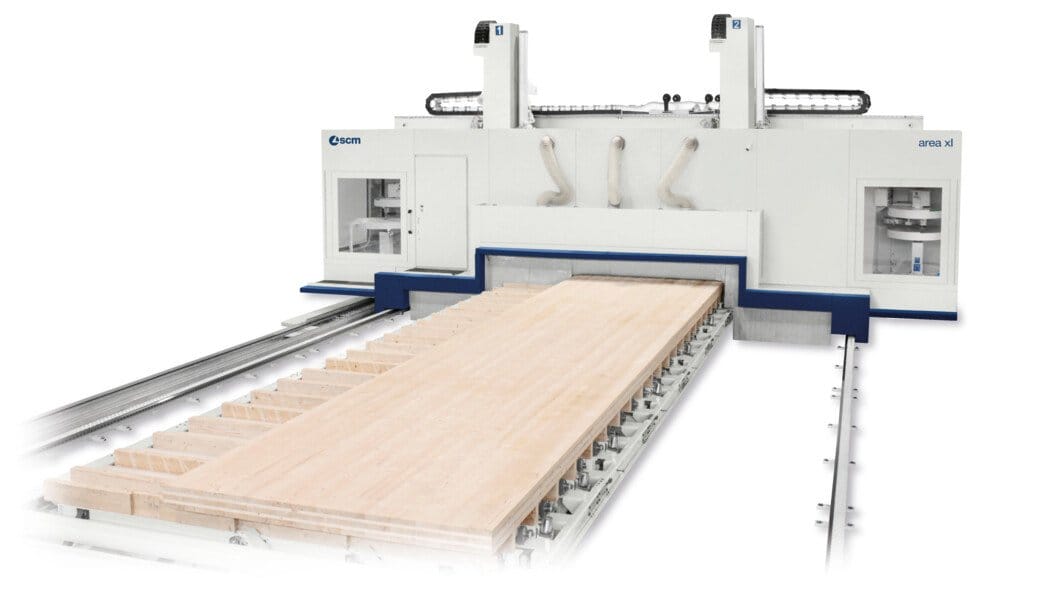

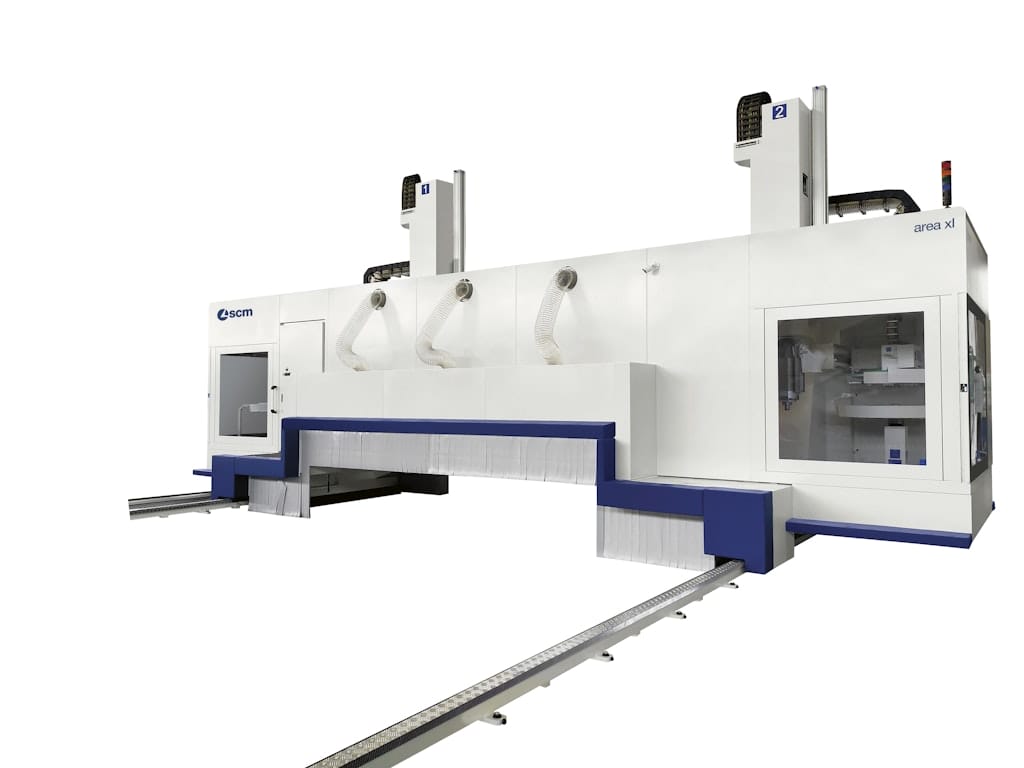

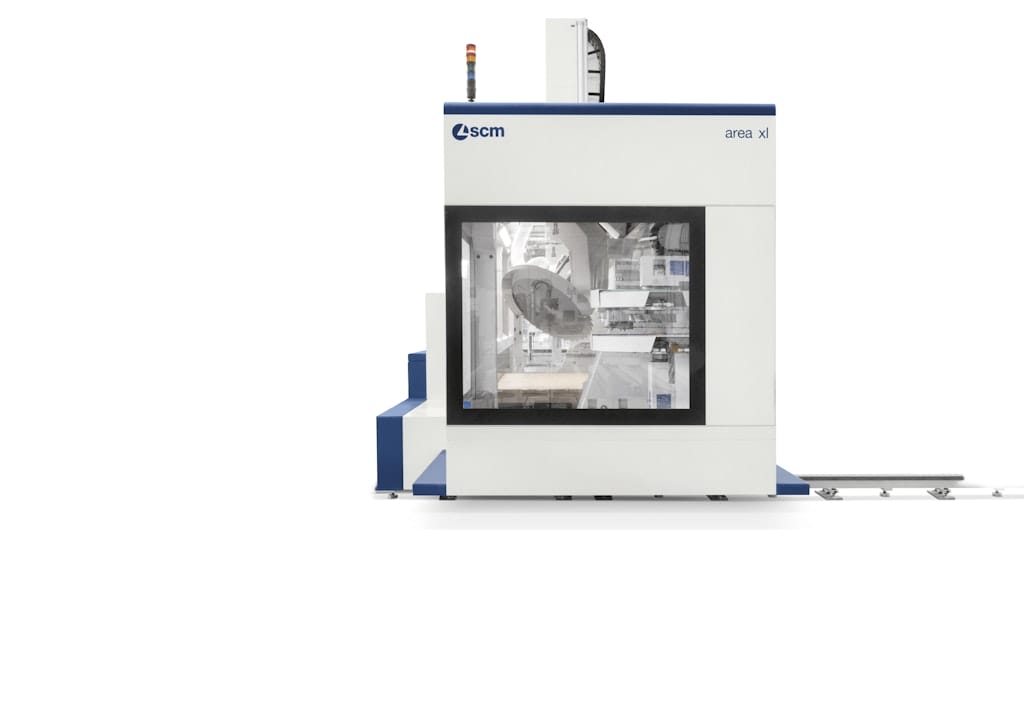

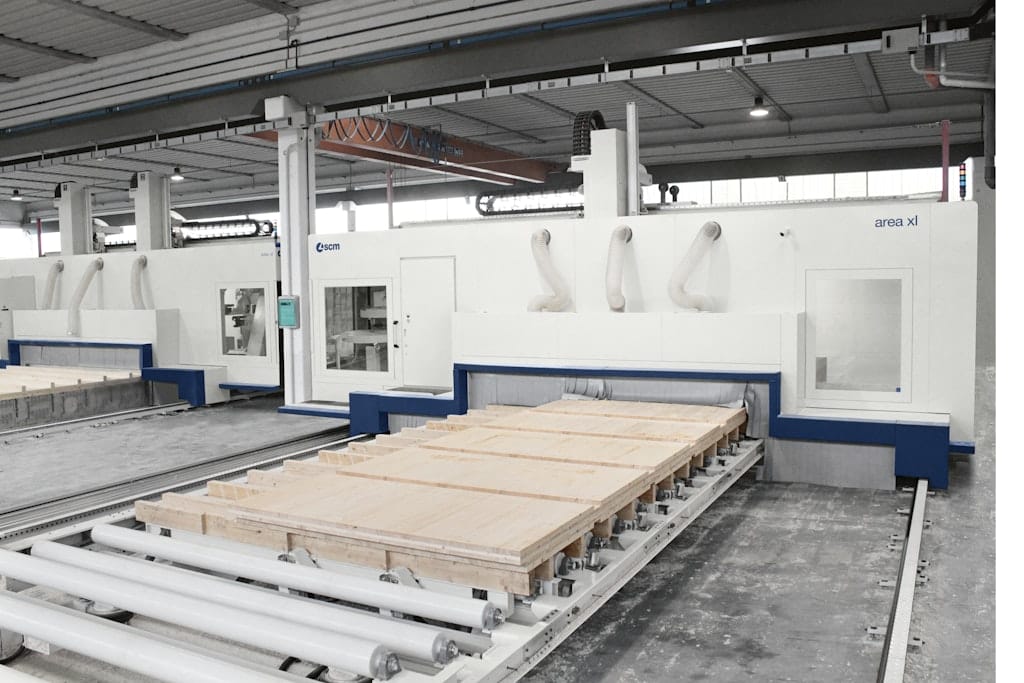

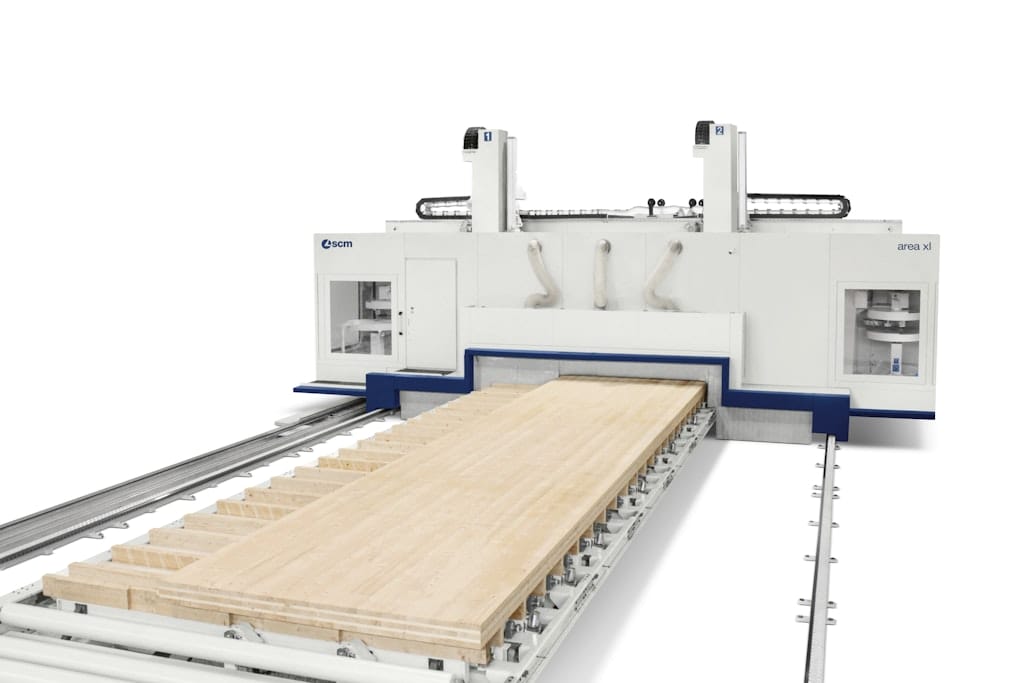

Area xl

POA

Specifications

Technical data

Element dimensions at infeed
Length min/max	mm	2100 – 16000
Width min/max	mm	500 – 3600
Thickness min/max	mm	20 – 400
Element dimensions at outfeed
Length min/max	mm	1100 – 16000
Width min/max	mm	500 – 3600
Thickness min/max	mm	20 – 400

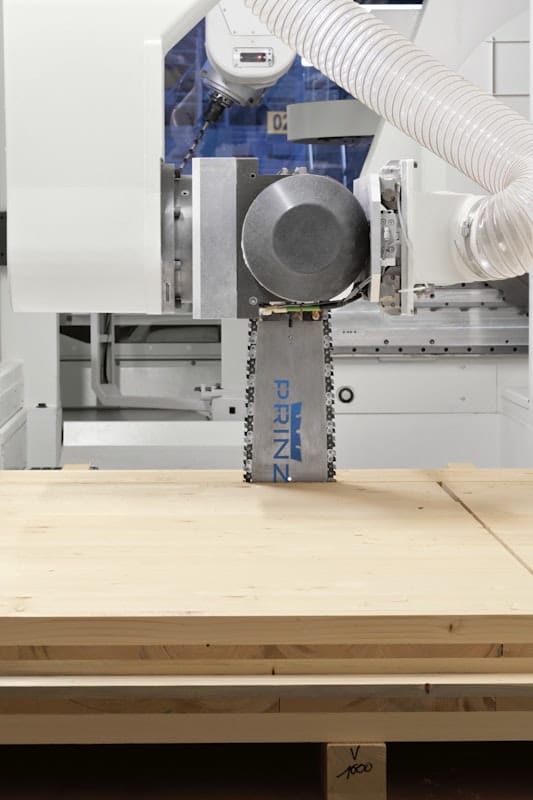

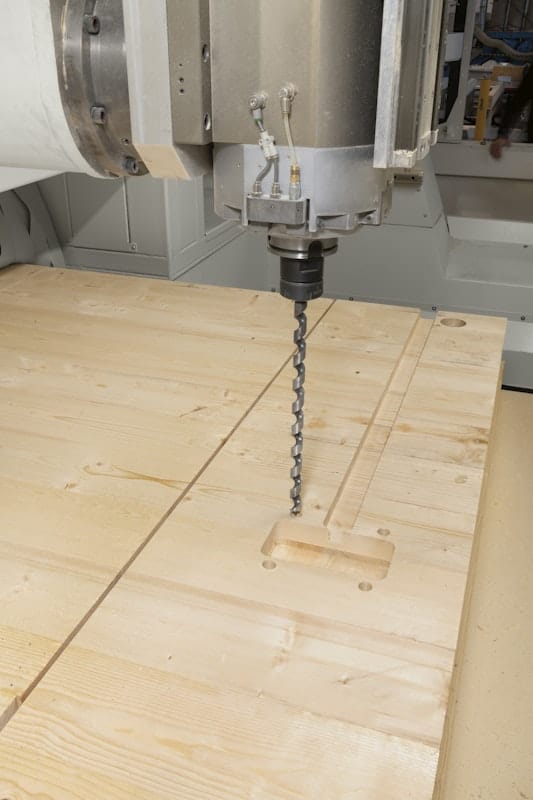

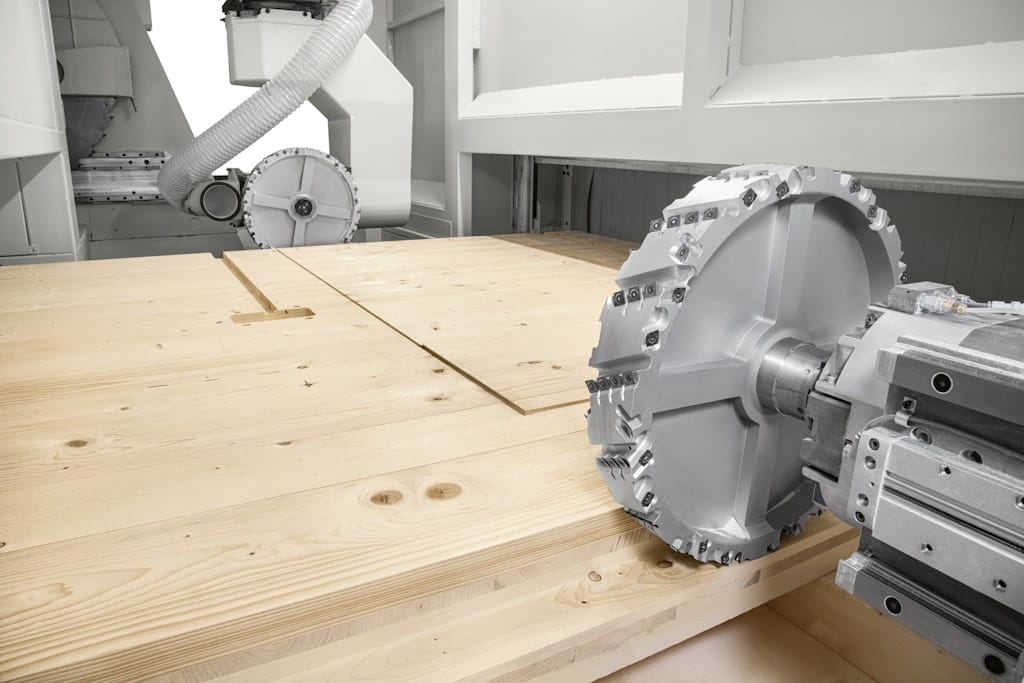

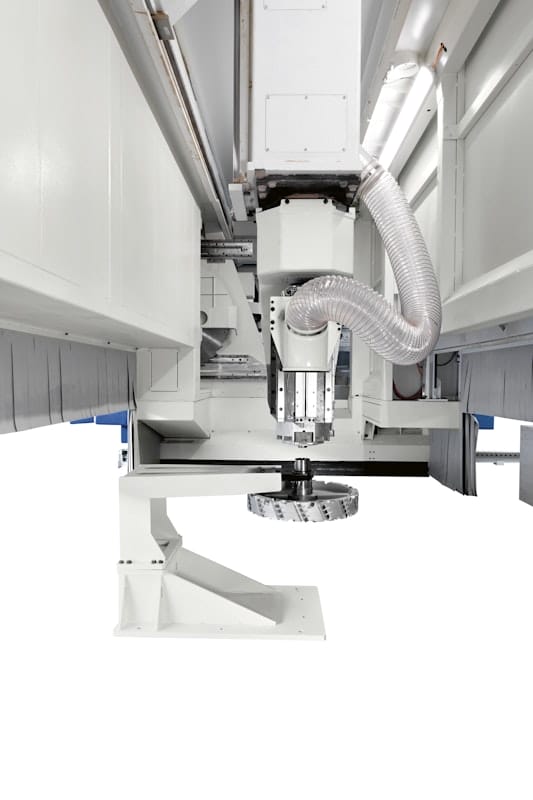

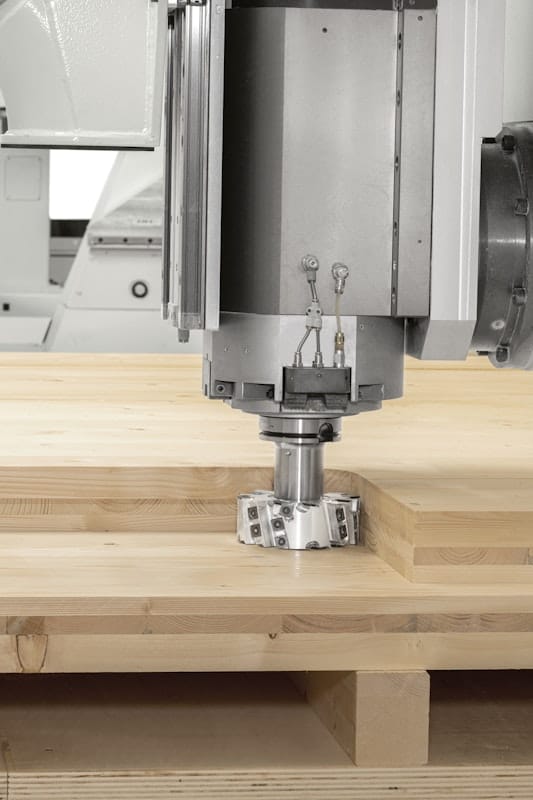

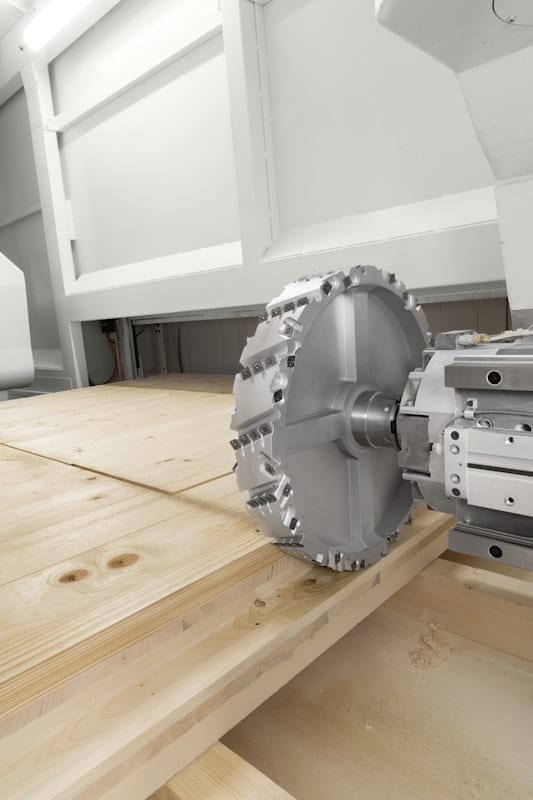

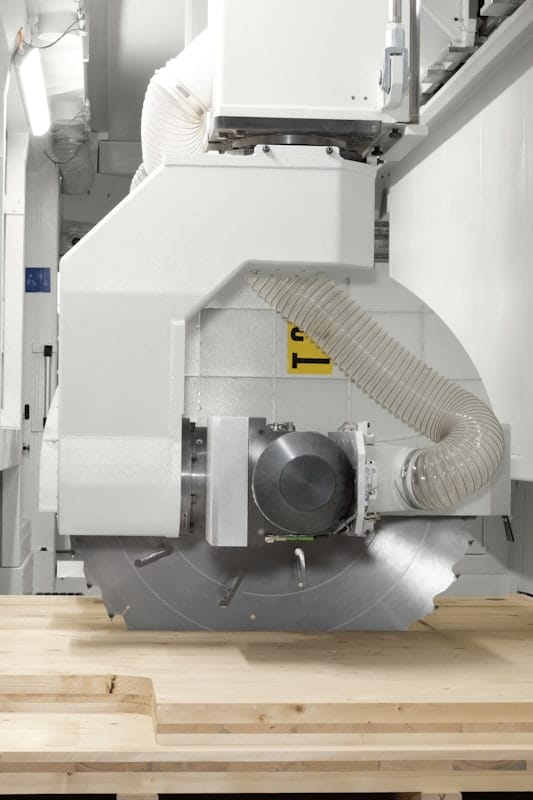

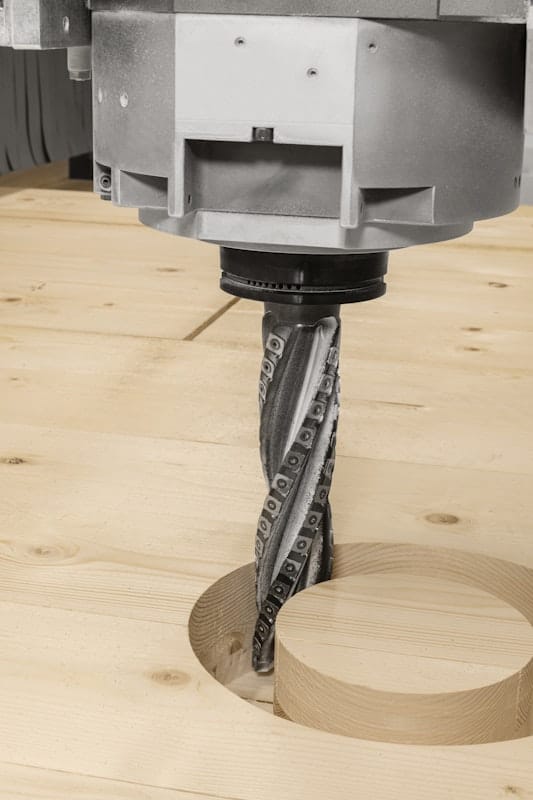

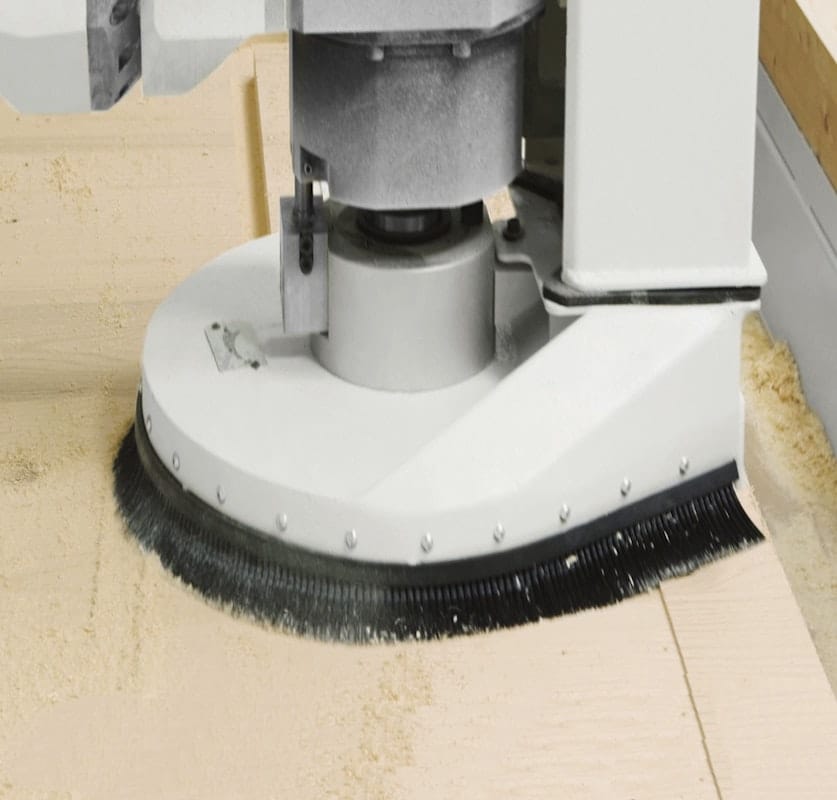

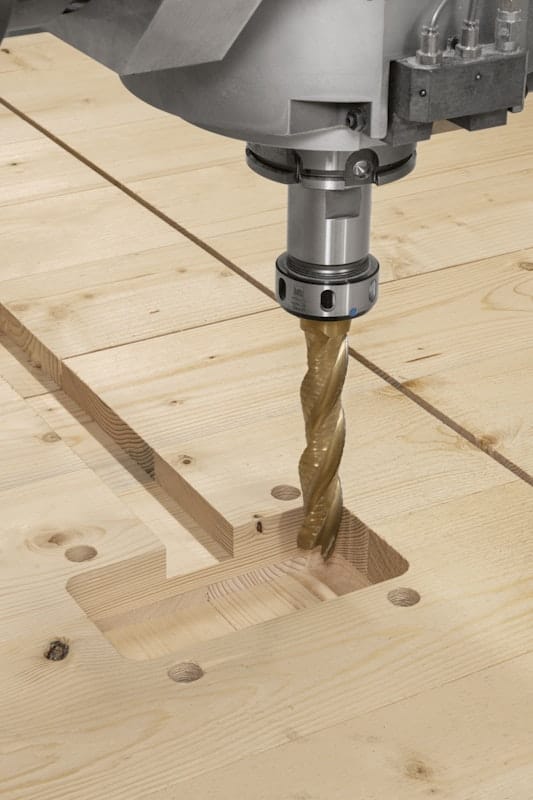

Machining head units
Power max (S1)	kW	63
Rotation speed max	rpm	12000
Torque max (S1)	Nm	200
Tool connection	–	HSK 100 A

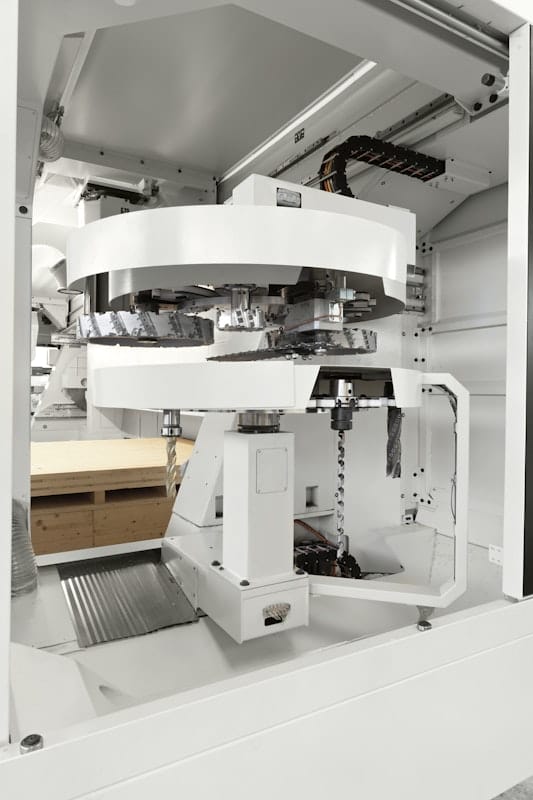

Tool stores
Tools stores available	Tot. N°	6
Tools available	Tot. N°	60

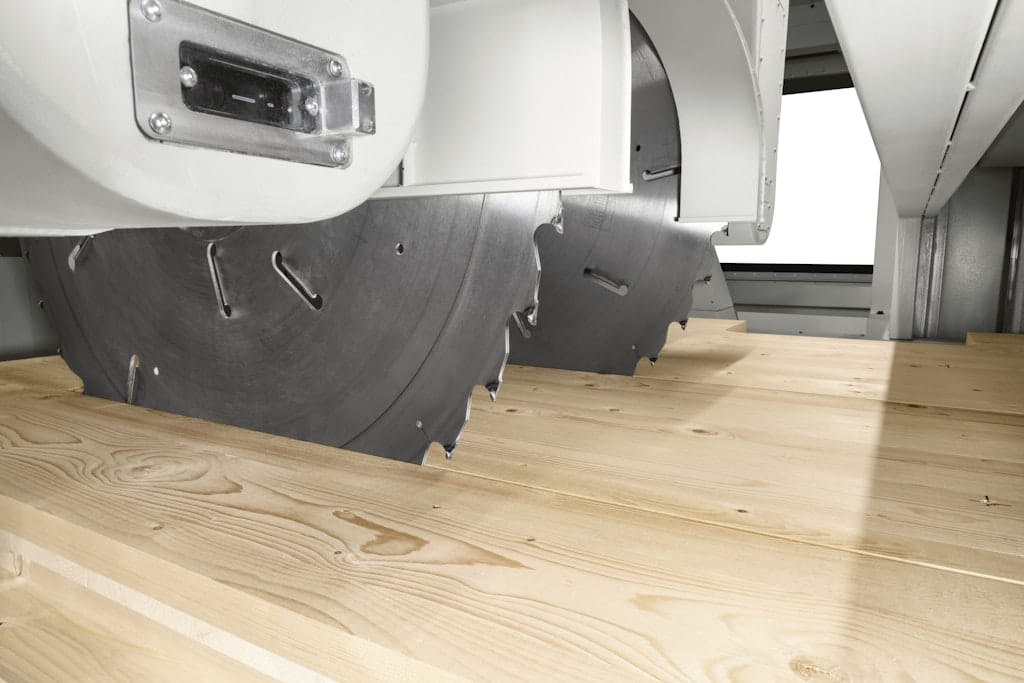

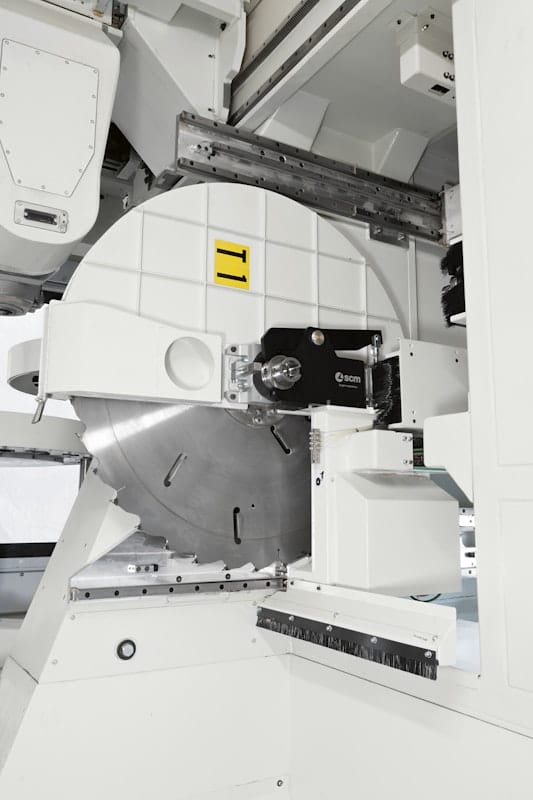

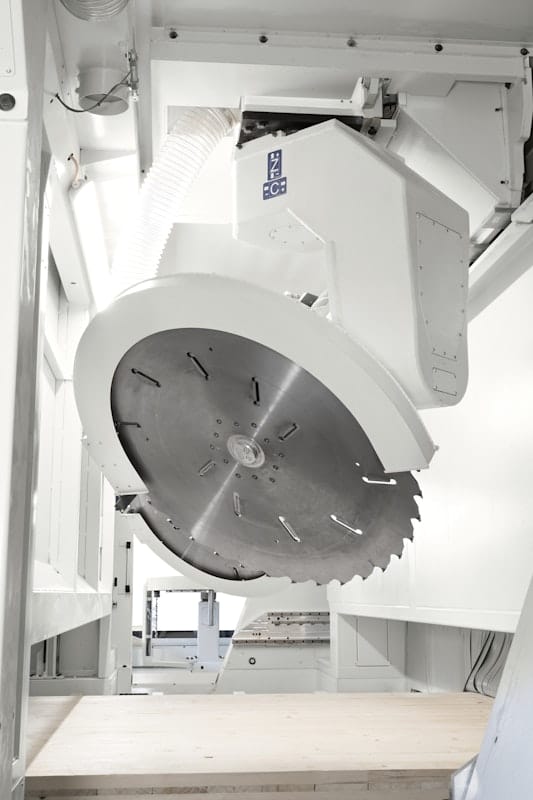

Sawblades diameter	mm	1150 – 800
