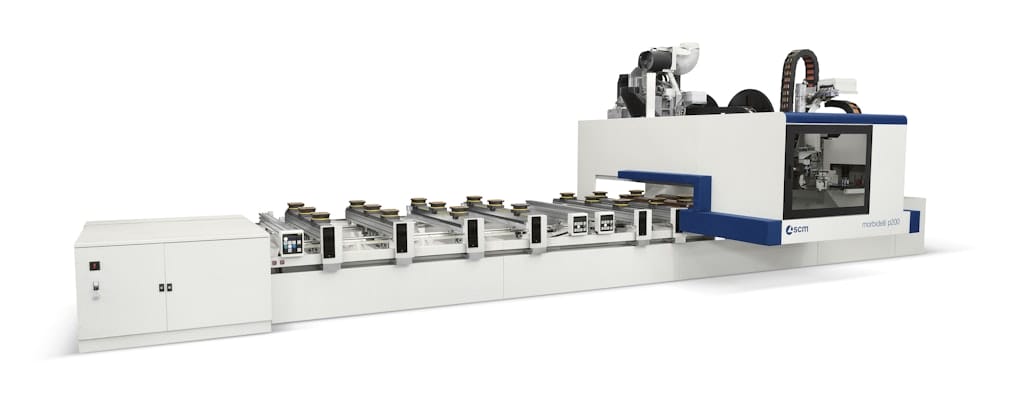

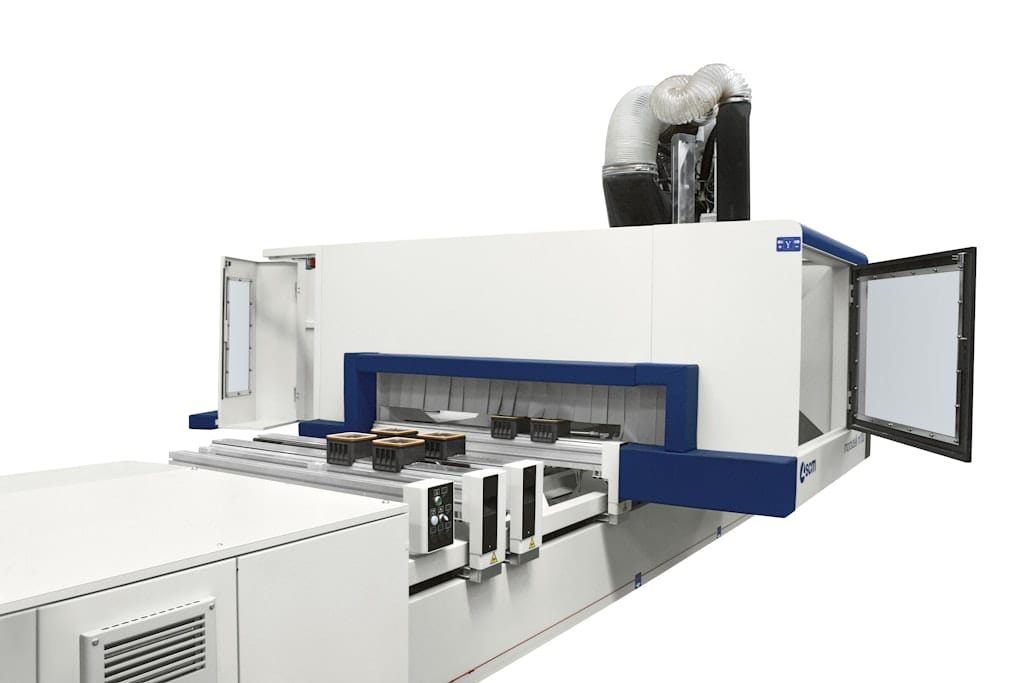

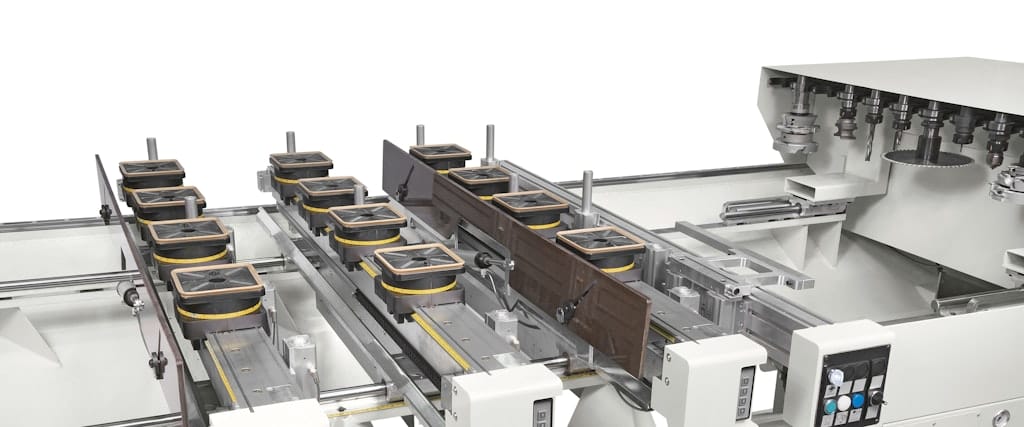

Morbidelli p200
POA
Product Features
Specifications
Technical data
| Working areas | ||||
| X-Y axes dimensions | mm | 3110×1620 3710×1620 5510×1620 | ||
| Axes | ||||
| Z axis panel passage | m/min | 180 | ||
| Vectorial speed X-Y axes | mm | 56 (ProSpace) 78 (ProSpeed) | ||

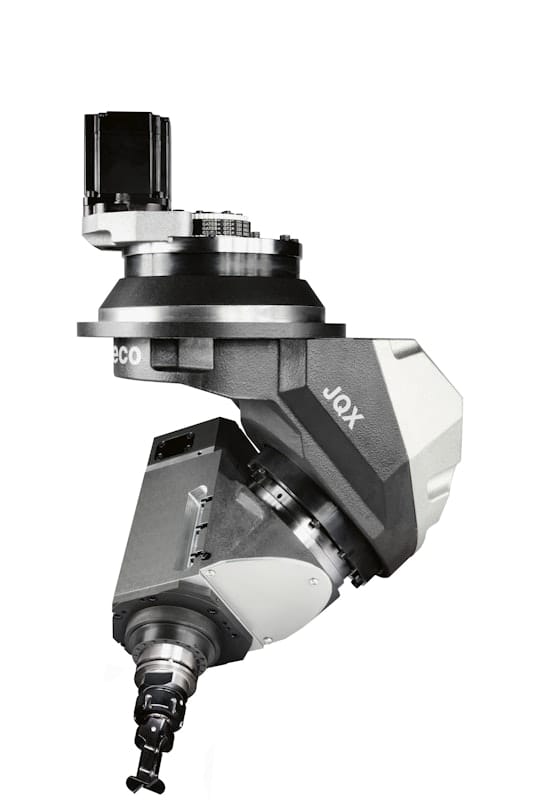

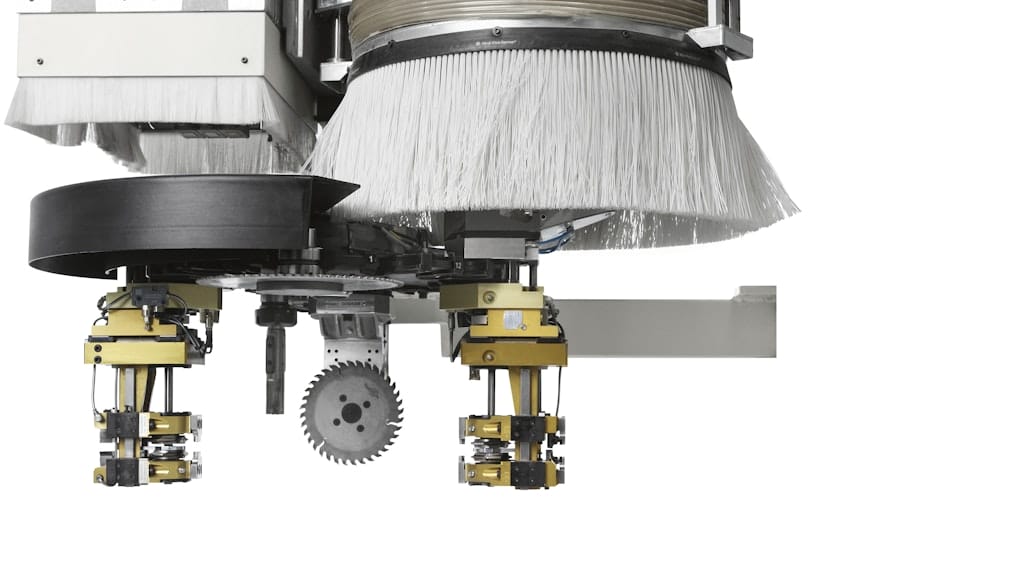

| Routing unit | ||||
| Motor power (max.) | kW (hp) | 15 (20,5) | ||
| Rotation speed (max.) | rpm | 24000 | ||

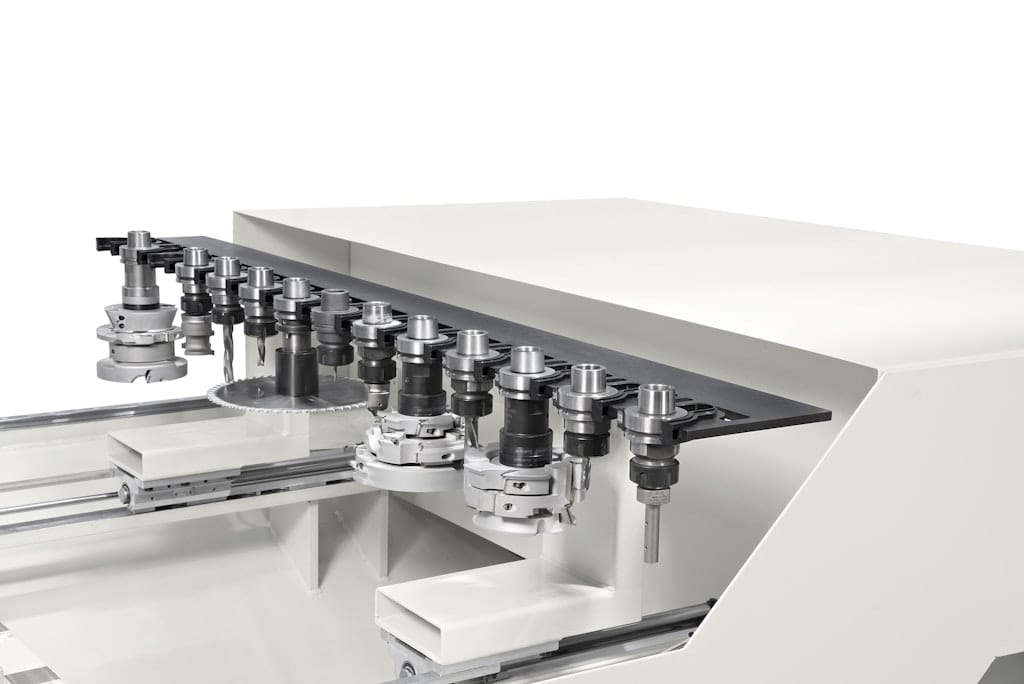

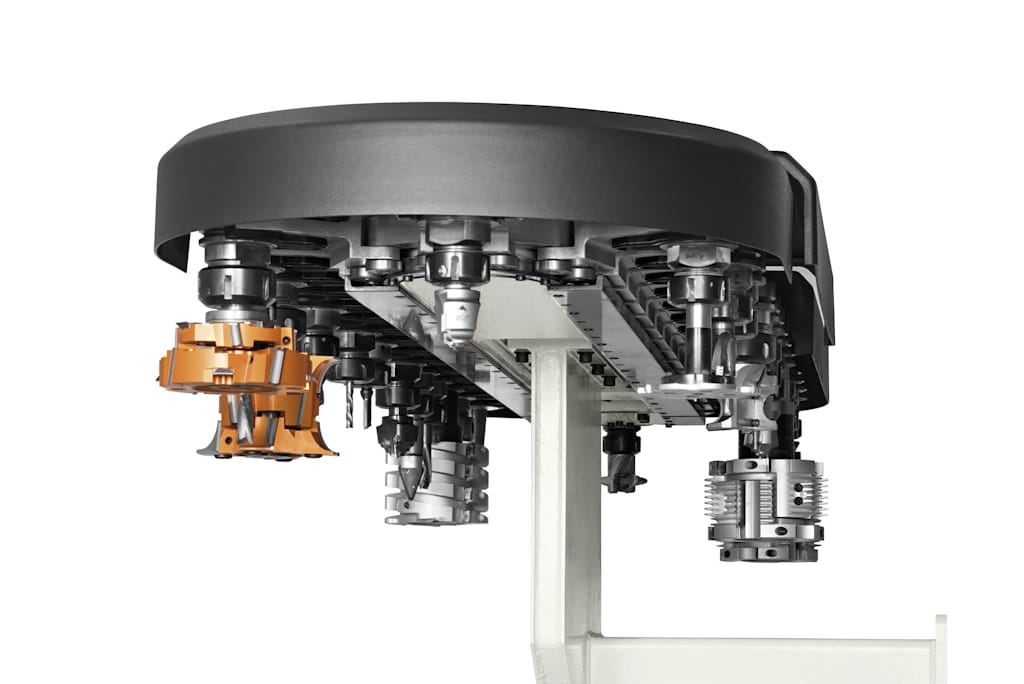

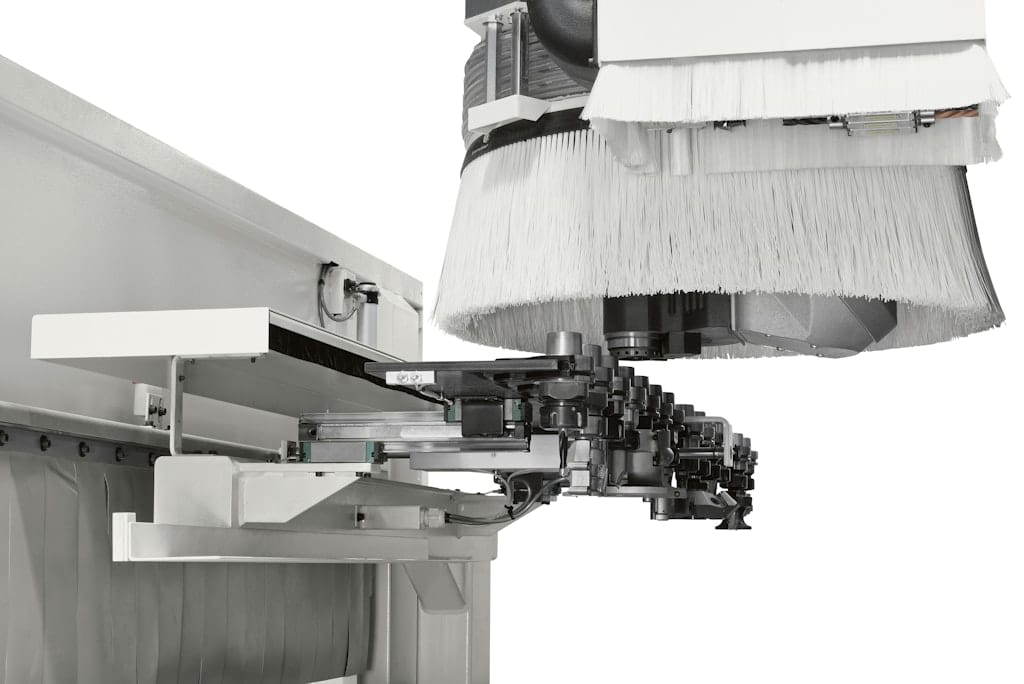

| Available tools on tool changer (max.) | places | 60 | ||

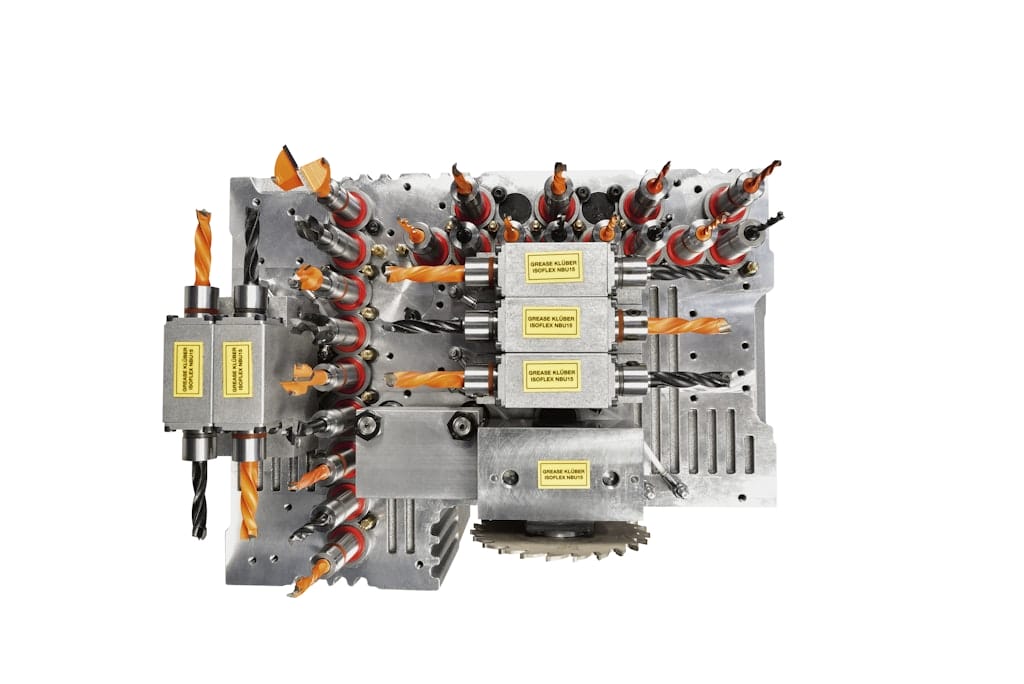

| Drilling unit | ||||
| Independent vertical spindles (max.) | n. | 21 | ||
| Independent horizontal spindles (max.) | n. | 12 | ||
| Rotation speed (max.) | rpm | 8000 | ||
| Integrated blade in X, diameter | mm | 125 | ||

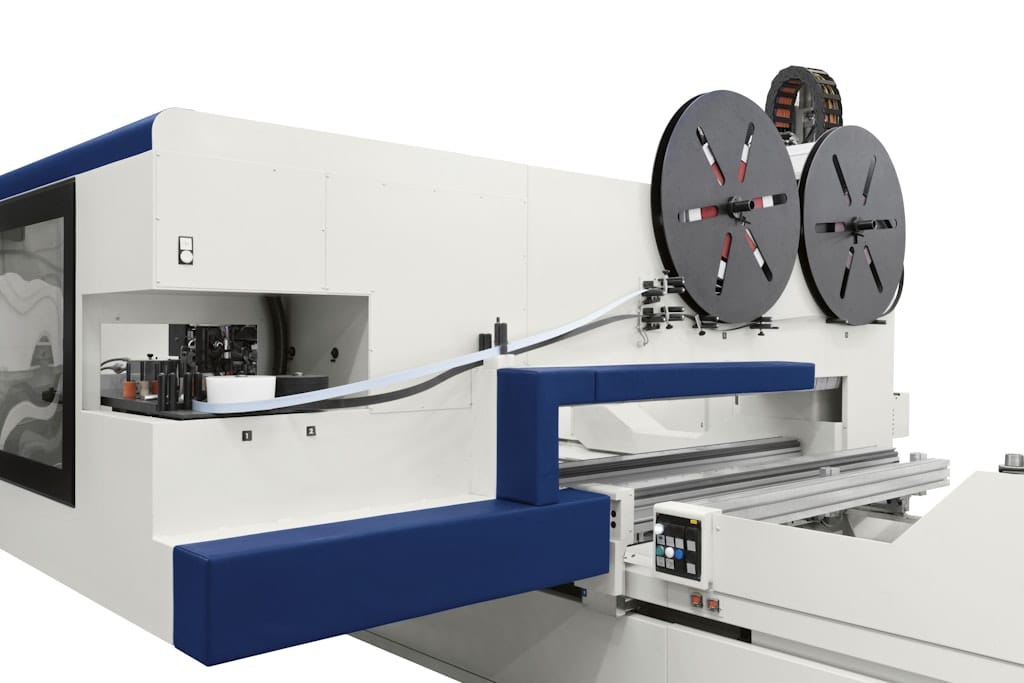

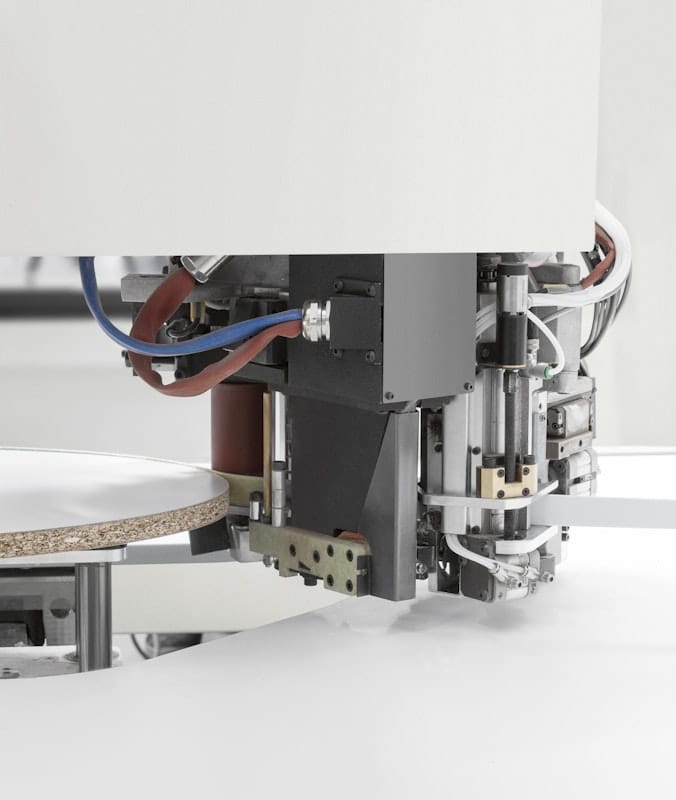

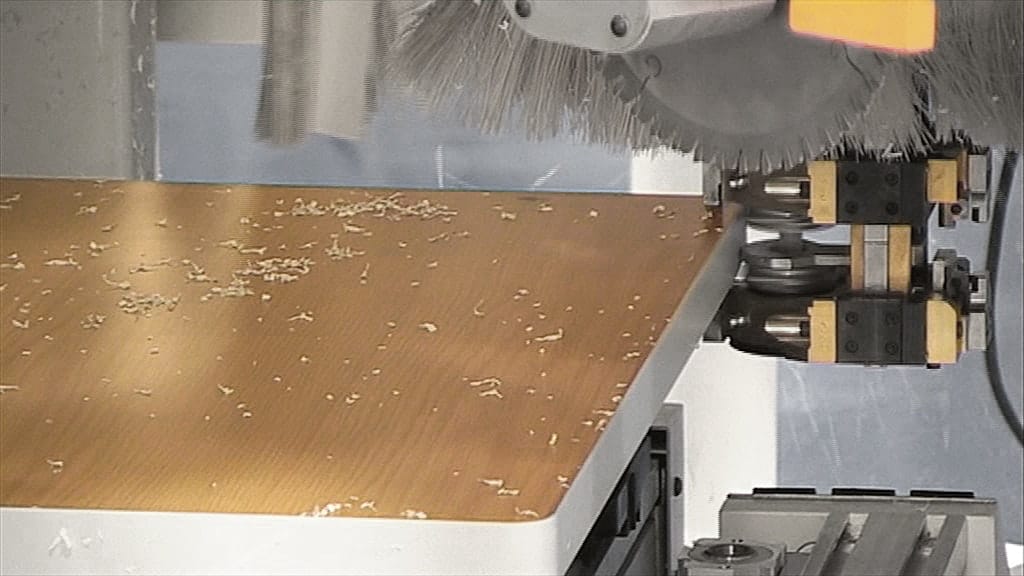

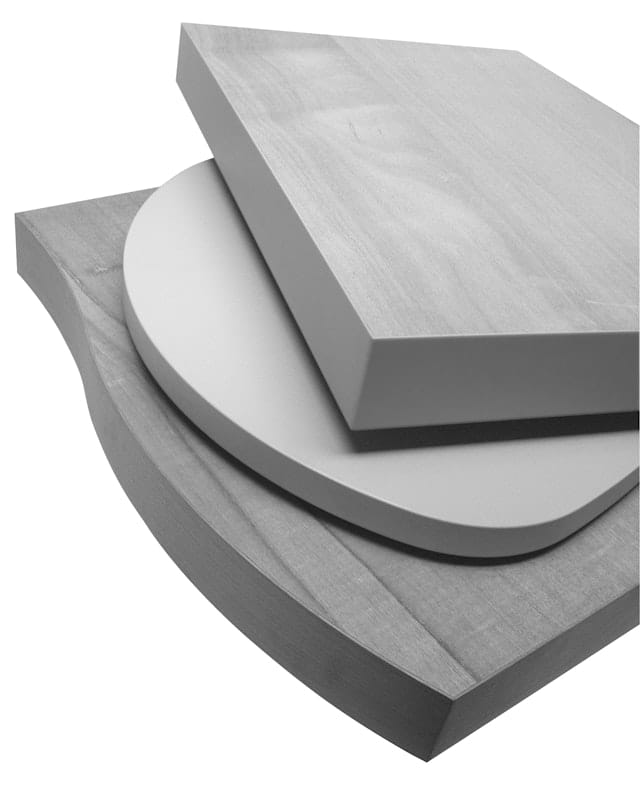

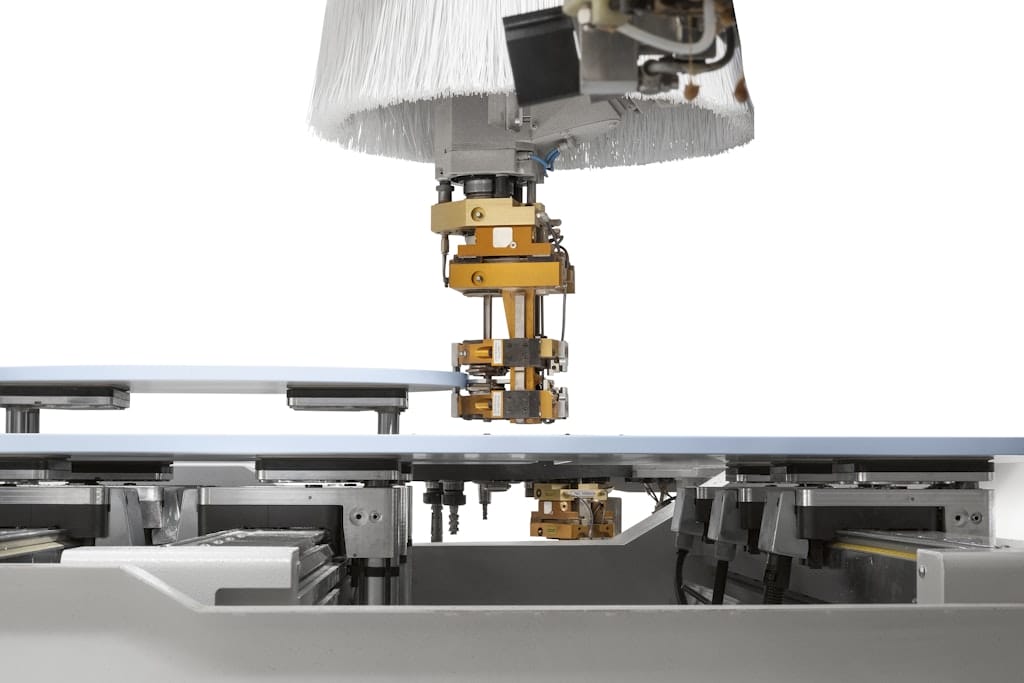

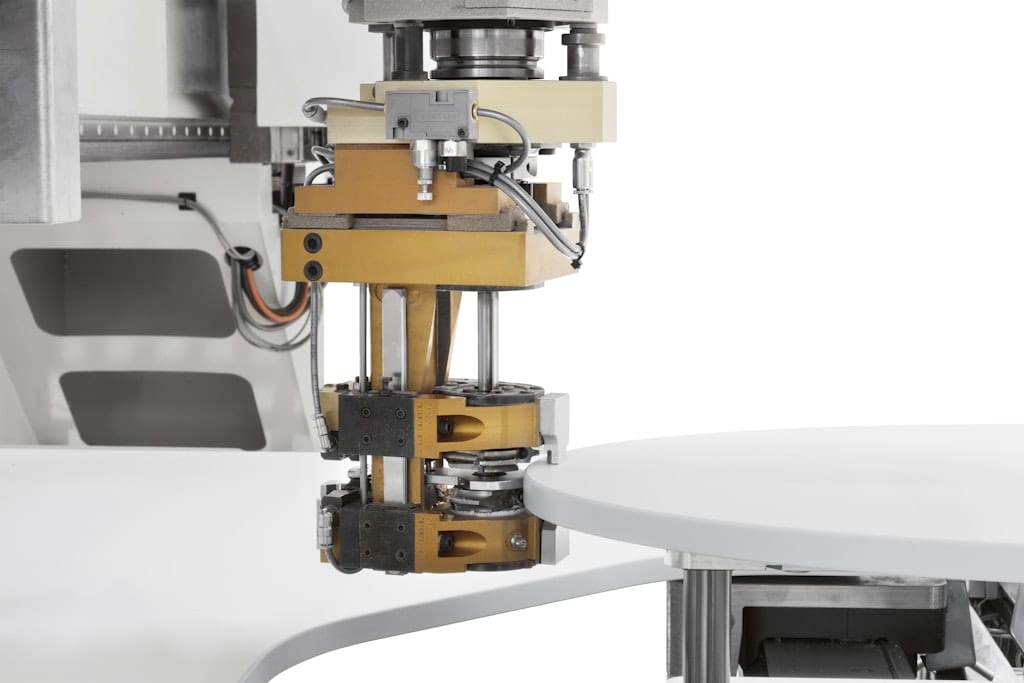

| Edgebanding unit | ||||
| Edge height | mm | from 16 to 85 | ||
| Edge thickness | mm | from 0,4 to 3 | ||
Brochure
