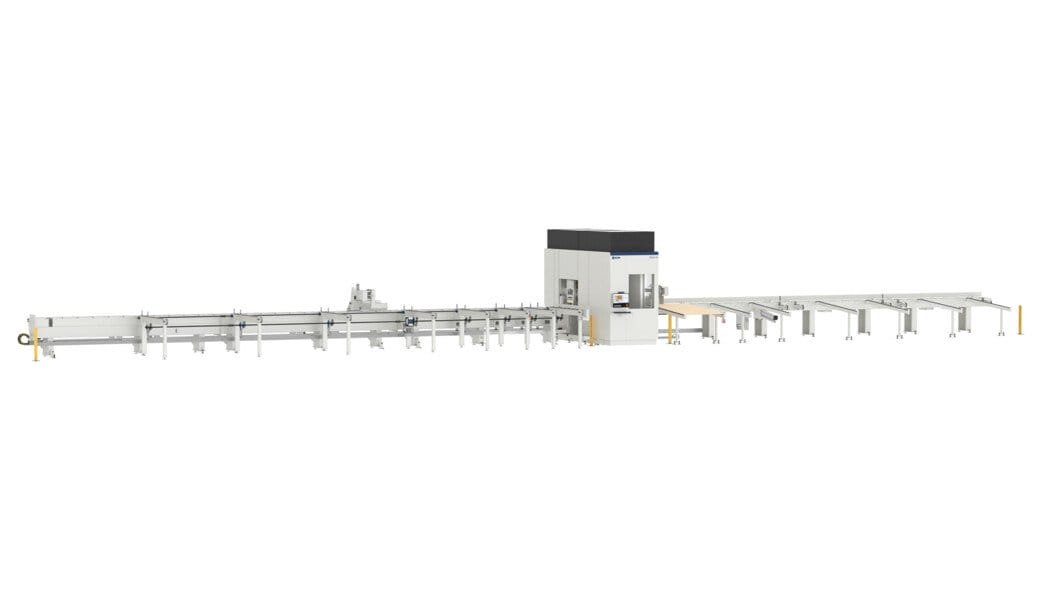

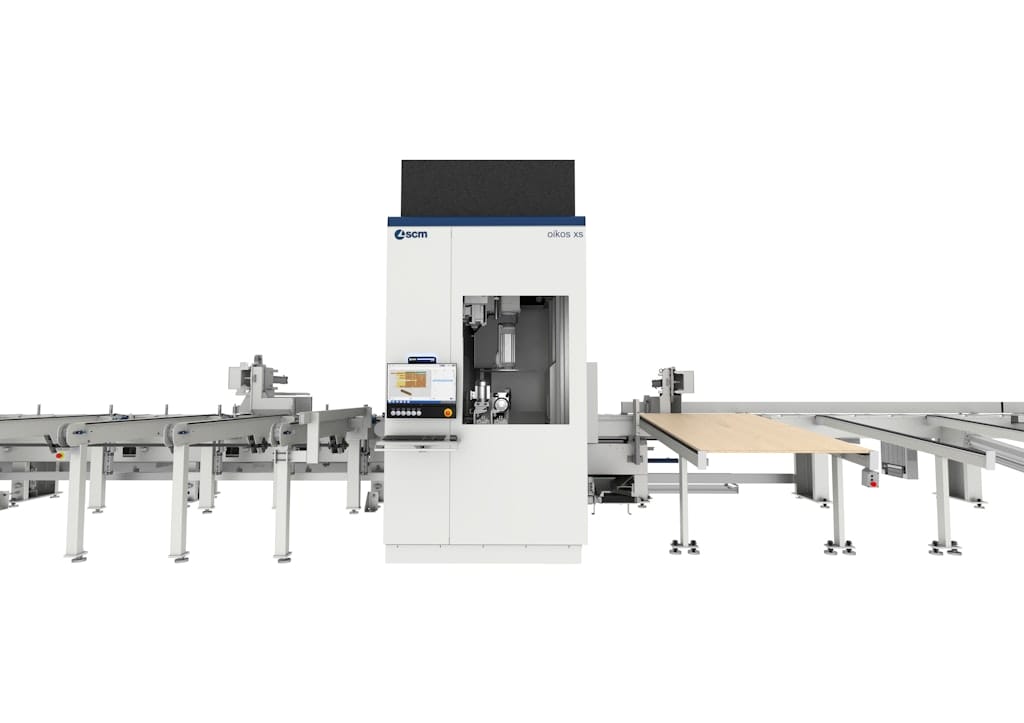

Oikos xs
POA
Product Features
Specifications
Technical data
| Workpiece dimensions | ||
| Length max. | mm | 6.000 – 10.000 – 13.500 – 16.000 |
| Length min. | mm | 1300 |
| Cross-section max. | mm | 450 x 240 |
| Cross-section min. | mm | 40 x 20 |
| Weight max. (for the automatic loading) | kg | 800 |

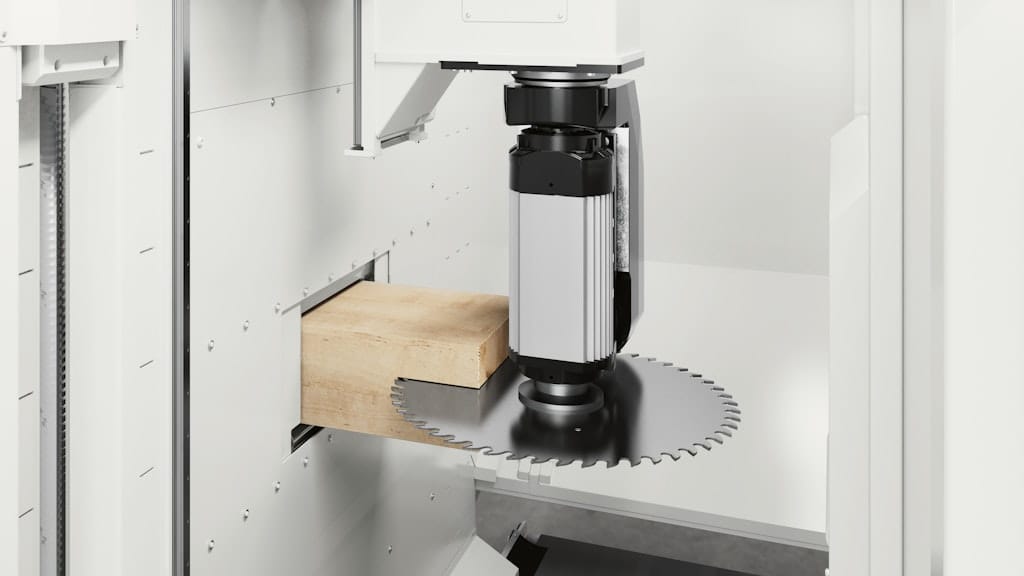

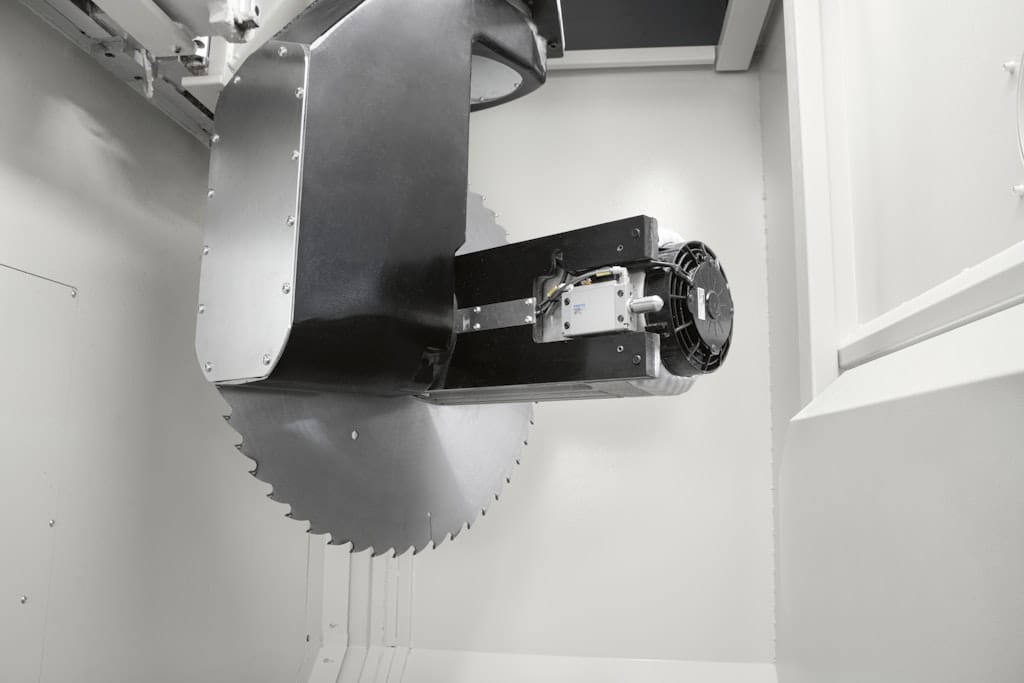

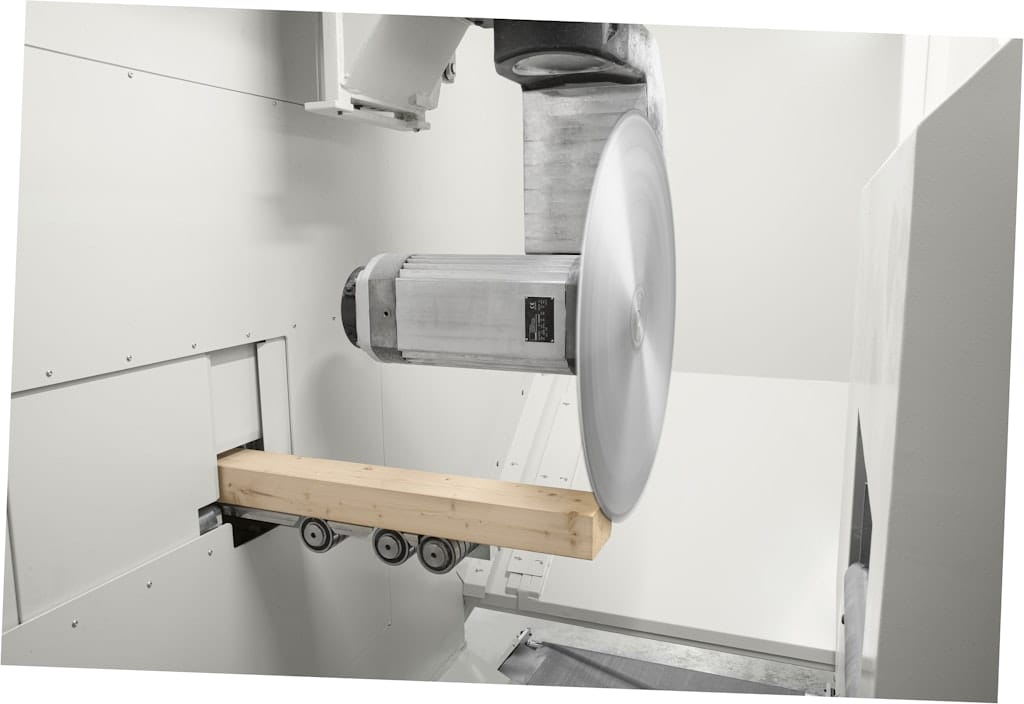

| Saw blade unit | ||
| Axes | N° | 5 |
| Power (S1) max. | kW | 10,6 |
| Saw blade diameter max. | mm | 760 |

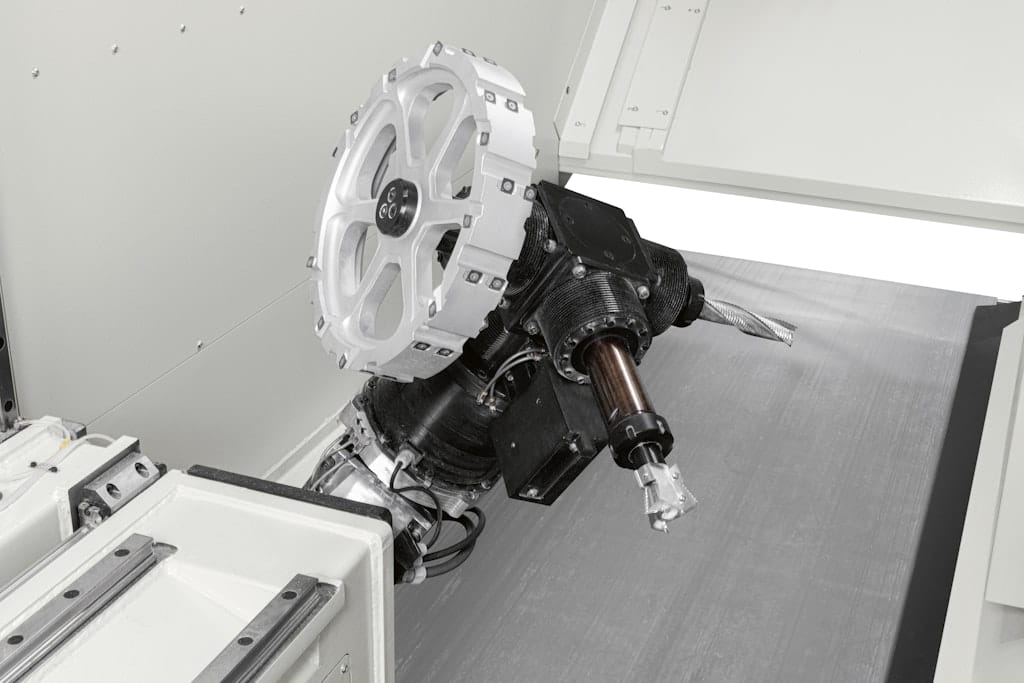

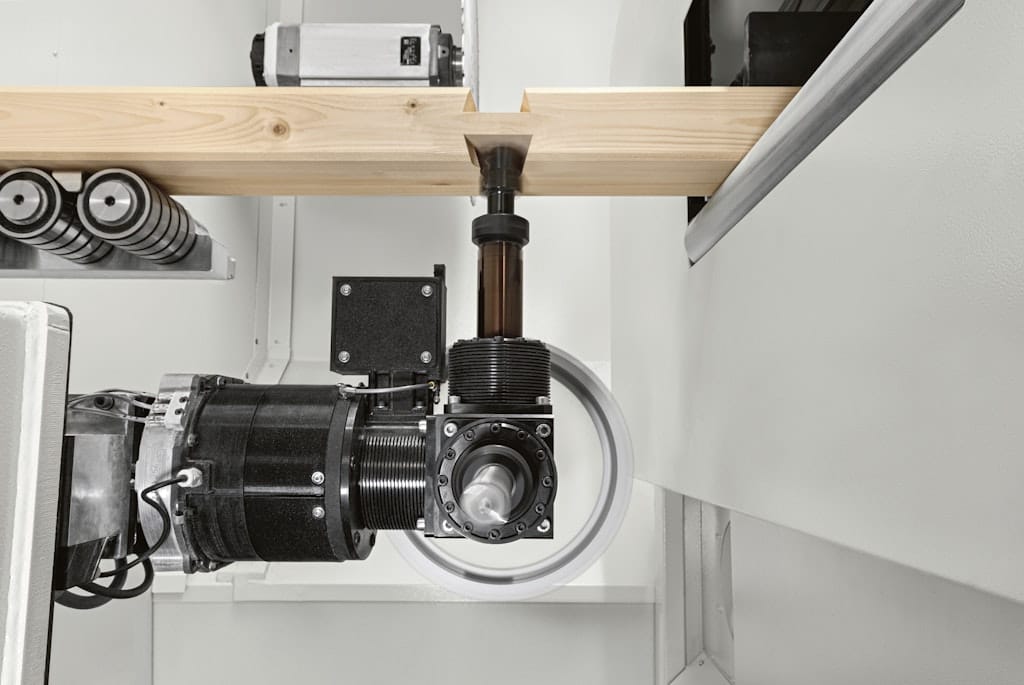

| Revolver unit | ||
| Axes | N° | 4+1 |
| Power (S1) max. | kW | 10 |
| Tools | N° | 3 |

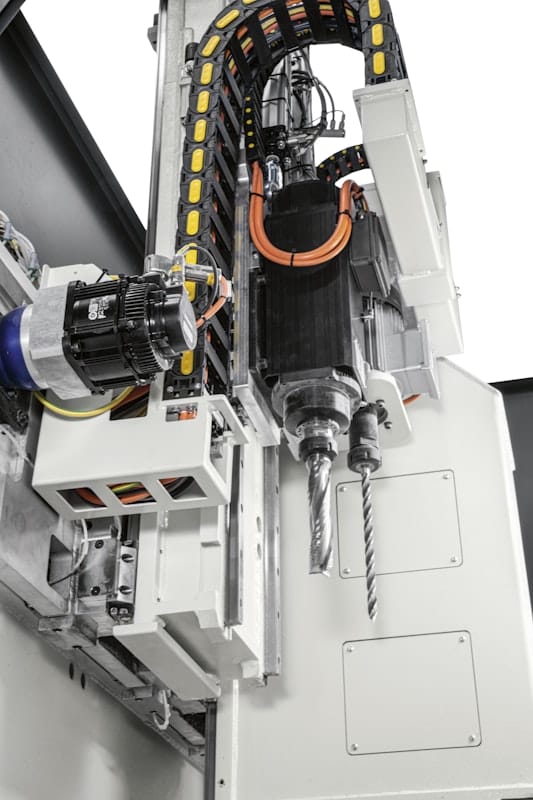

| Additional units | ||
| Vertical routing unit | N° | 1 |
| Vertical drilling unit | N° | 1 |
| Horizontal drilling unit | N° | 1 |
| Horizontal mortise chain unit | N° | 1 |
