Flexstore elr & gabbiani g2

Specifications

Technical data

gabbiani g 2
Single beam panel saw for industrial applications

• Cutting dimensions: 4500 x 4300 mm
• Max. blade protrusion: max 130 mm
• Max. saw carriage speed: 170 m/min
• Max. pusher speed: 135 m/min
• max 22 kW-50Hz main blade engine
• Saw carriage runs on rectified round guides (opt. prismatic)
• HI-TRONIC device
• FLEXCUT 1/S for simultaneous execution of differentiated cuts

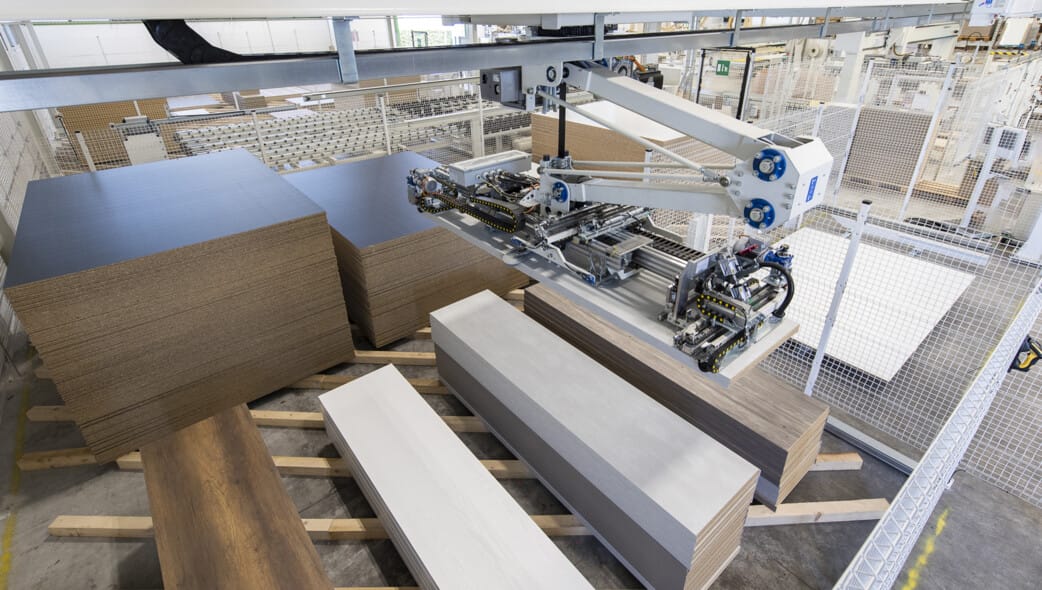

flexstore elr
Loading flexible warehouse with 3-axes

• Variable configuration of number station – available surface up to 12 x 60 mt
• Storage widtht: 7 – 9 – 12 m
• Panel length: mm 1.800 ÷ 3.200 mm (2200 ÷ 4250 mm. Opt.)
• Panel width: 800 ÷ 2.200 mm
• Panel thickness: 10 ÷ 40 mm (3mm. Opz.)
• Max. panel weight: 200 Kg
• Loading arm with 3 degrees of freedom + rotation (opt.)
• Vacuum loading arm with electronic adjustment depending of the dimension of the panels
• Device for the automatic detachment of the panels
• Check device for the detachment of the panels
• Offcuts  management
• Mixed stacks management
