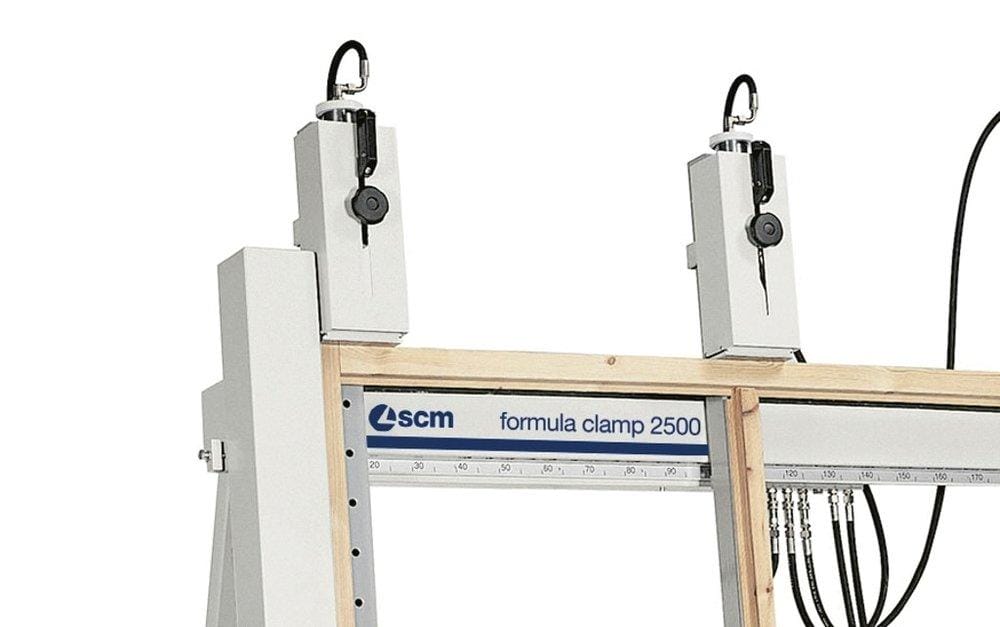

SCM Formula Line Hydraulic Frame Clamp 3m x 2m
£8,595.00
For your heavy-duty joinery needs, the SCM Formula Line Hydraulic Frame Clamp 3m x 2m will prove the ideal solution. With hydraulic cylinders, lower cast iron supports and a control panel, this SCM clamp is a sturdy, high-quality device that will serve its purpose for years on-end.
The pressure of the cylinders is controlled via practical, ergonomic levers and a simple control panel – meaning simple adjustment with a high-level of control.
As an option, counterweights are available for each vertical cylinder.
Product Features
For your heavy-duty joinery needs, the SCM Formula Line Hydraulic Frame Clamp 3m x 2m will prove the ideal solution. With hydraulic cylinders, lower cast iron supports and a control panel, this SCM clamp is a sturdy, high-quality device that will serve its purpose for years on-end.
The pressure of the cylinders is controlled via practical, ergonomic levers and a simple control panel – meaning simple adjustment with a high-level of control.
As an option, counterweights are available for each vertical cylinder.
Specifications
Working dimensions mm 3000 x 2000
Stroke of the vertical hydraulic cylinders mm150
Thrust of each vertical hydraulic cylinders kg 1270
Stroke of the horizontal hydraulic cylinders mm 120
Thrust of each horizontal hydraulic cylinders kg 770
