The SCM Sergiani Hydraulic Heated Press Model GS/6 120 31-16-120T guarantees both high-quality surfaces and glueing quality when used. It is available in a range of versions with an array of different accessories to meet all types of pressing requirements. The press can be used for multi-layered panels, hollow-core doors and veneered panels. It also offers an incredibly high level of resistance and rigidity in each processing phase.

The steel rod is chromed with a thick layer and rectified, all gaskets are high resistance to guarantee great durability and a perfect seal.

The control panel has been updated to automatically calculate the hydraulic pressure, manage the heating system, carry out a complete diagnostic and save all working parameters – all relieving your workload and allowing you to focus elsewhere.

gs 4 /20 4 cylinders / 20 ton. – platens 2500 x 1300 mm
gs 4 / 60 4 cylinders / 60 ton. – platens 2500×1300 mm
gs 6 / 30 6 cylinders / 30 ton. – platens 3000×1300 mm
gs 6 / 90 6 cylinders / 90 ton. – platens 2500 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. – platens 2500 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. – platens 2500 x 1600 mm
gs 6 / 70 6 cylinders / 70 ton. – platens 3000 x 1300 mm
gs 6 / 90 6 cylinders / 90 ton. – platens 3000 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. – platens 3000 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. – platens 3100 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. – platens 3000 x 1400 mm
gs 6 / 120 6 cylinders / 120 ton. – platens 3100 x 1600 mm
gs 6 / 90 6 cylinders / 90 ton. – platens 3500 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. – platens 3500 x 1300 mm
gs 8 / 160 8 cylinders / 160 ton. – platens 3000 x 1300 mm
gs 8 / 160 8 cylinders / 160 ton. – platens 3100 x 1300 mm
gs 8/ 160 8 cylinders / 160 ton. – platens 3100 x 1600 mm
gs 8/ 110 8 cylinders / 110 ton. – platens 3500 x 1300 mm
gs 8/ 160 8 cylinders / 160 ton. – platens 3500 x 1300 mm
gs 8/ 160 8 cylinders / 160 ton. – platens 3800 x 1600 mm
gs 10/ 200 10 cylinders / 200 ton. – platens 3500 x 1300 mm
gs 10/ 200 10 cylinders / 200 ton. – platens 3800 x 1600 mm

Type of platens PA Assembled – PM Solid – PE Electric Heating BA Electrical water boiler – BO Electrical oil boiler – PE Electrical platens
Single Daylight Oil Heated Press 3100 mm x 1300mm PA-BO
Assembled platens

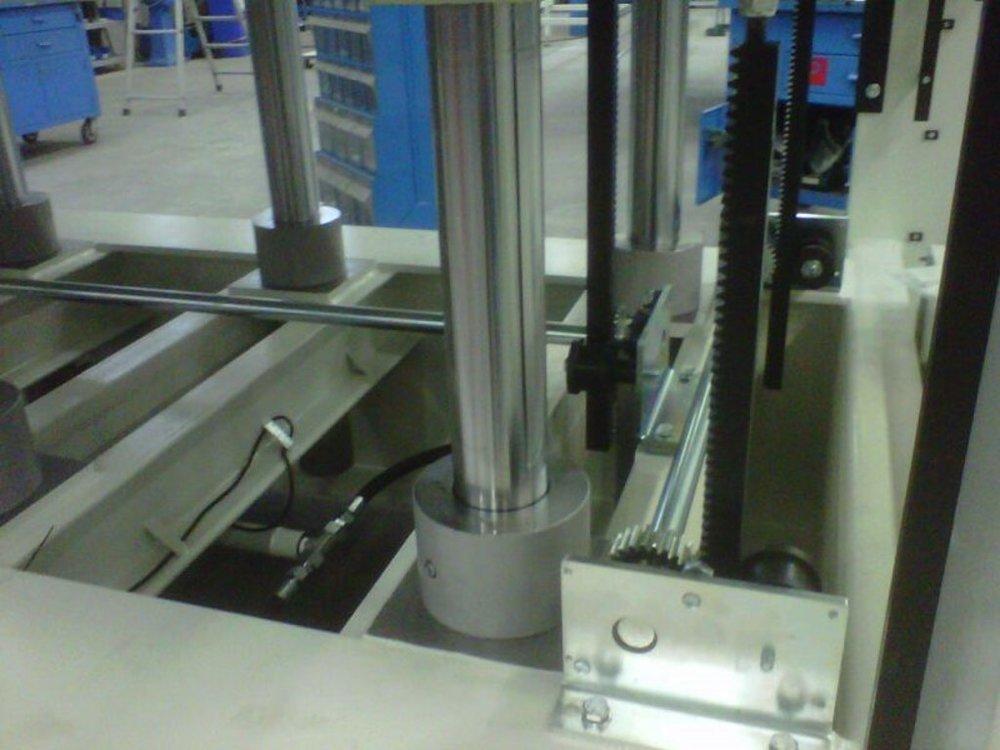

6 Rams 85mm. 120 ton pressure
Opening 400mm

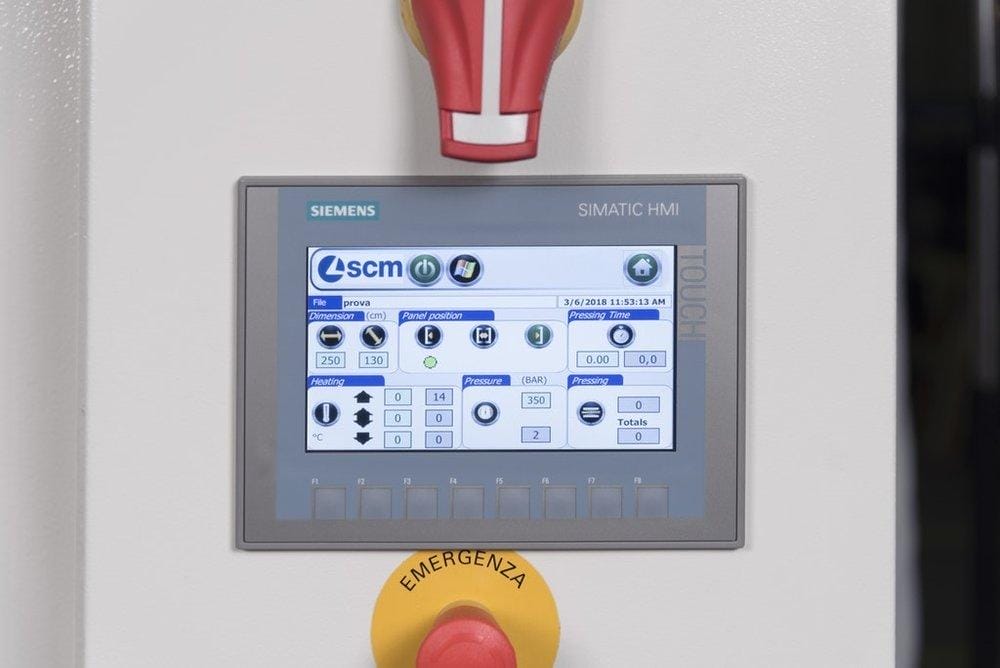

Siemens 7” Touch screen control panel

Options.

Intermediate assembled platens 3100 x 1300mm £3,500.00
Electronic flatness control £1,670.00
Mylar Platen covering £340.00
