SCM F520 Nova Surface Planer
Original price was: £9,798.00.£8,325.00Current price is: £8,325.00.

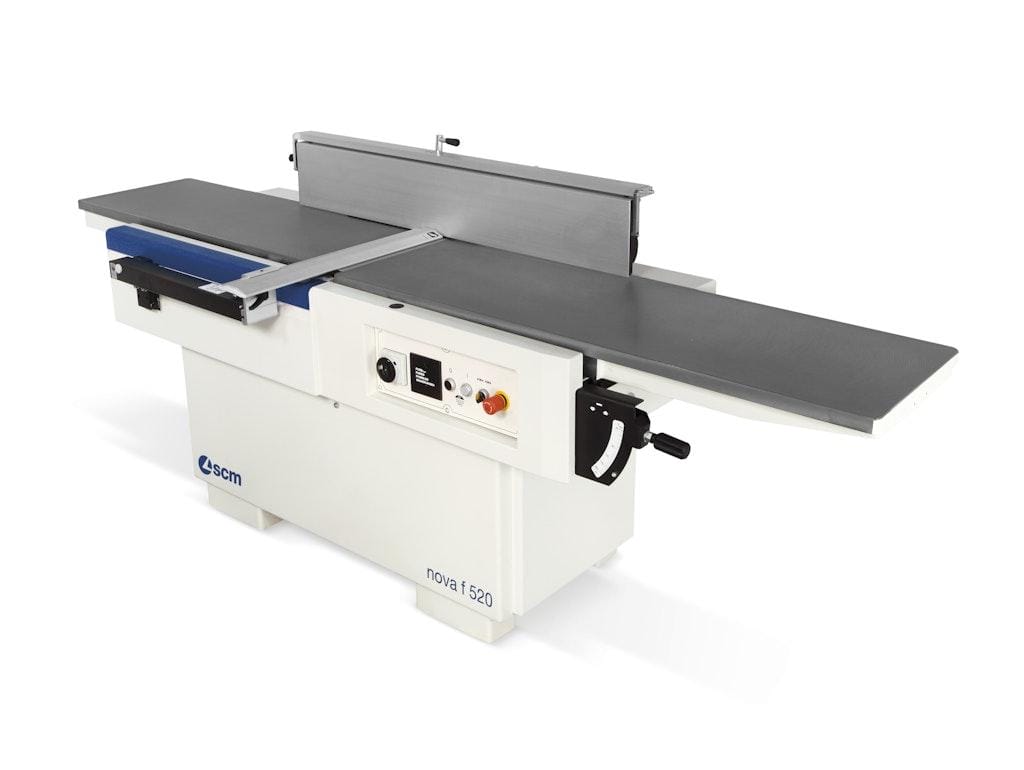

The SCM Nova F520 is a heavy-duty surface planer designed for producing flat, straight timber surfaces with high accuracy. Built for professional workshops, it combines a rigid cast iron structure with smooth table movement to deliver consistent and reliable results.
Product Features
- 520 mm working width for medium to large timber sections
- Long ribbed cast iron tables for stability and reduced vibration
- 4-knife cutterblock for clean, consistent planing
- Manual infeed table adjustment for precise depth control
- Fence tilts from 90° to 45° for angled edge work
- Cutterblock speed around 5000 rpm for smooth finish
- Optional spiral cutterhead for improved finish and reduced noise
- Heavy-duty construction for professional workshop use
Description
The SCM Nova F520 is a professional surface planer designed for accurately flattening and straightening timber before further machining. As part of the SCM Nova range, it is built to offer a balance of performance, durability and ease of use, making it well suited to both general joinery and more demanding workshop environments.
The machine features long ribbed cast iron tables that provide excellent support for the workpiece and help eliminate vibration during operation. This stability is essential for achieving flat, consistent results, particularly when working with longer or heavier timber sections. The infeed table is manually adjusted using a simple control system, allowing precise setting of cutting depth while maintaining consistent accuracy over time.
A four-knife cutterblock delivers clean and even material removal, while optional cutterblock systems such as spiral heads can be fitted to improve surface finish and reduce noise levels. The fence can be tilted for angled edge planing, giving the operator flexibility when working on different components.
The Nova F520 is designed with a focus on reliability and straightforward operation. Its solid construction, smooth table movement and consistent cutting performance make it a dependable choice for workshops that need accurate results without the added complexity of higher-end machines.
Specification
- Manual movement of the infeed table
- length of tables 2750mm
- Readout of cutting depth
- Tersa Knives
- 7.0hp) Motor
- Additional overturning fence
- Planing width 520mm
- Table length 2750mm
- Cutter block dia 120mm
- Cutter block type Z=4 Tersa
- Cutter block speed 5000rpm
- Motor 7hp
- Fence size 1200x190mm
- Dust Connection dia 120m
- Overall Dimensions 2610x1200mm
- Max stock removal Tersa 5mm
