SCM Model Ti120-LL Class Tilting Spindle Moulder
Original price was: £14,386.00.£11,795.00Current price is: £11,795.00.
The SCM Class TI 120 LL is a professional tilting spindle moulder designed for accurate shaping, profiling and tenoning of timber components. With its solid cast iron construction and extended table support, it delivers reliable performance and consistent results in demanding workshop environments.
Product Features
- Tilting spindle from approximately -45° to +45°
- Manual rise and fall with mechanical readouts for precise setup
- Five spindle speeds from approx. 3000 to 10,000 rpm
- Heavy-duty cast iron construction for stability and reduced vibration
- Fence with mechanical programming and numerical readouts
- LL version with extended cast iron table supports
- Maximum tool diameter up to approx. 250–300 mm
- Reverse spindle rotation for added flexibility
- Compatible with power feed units
- Designed for professional workshop use
Description
The SCM Class TI 120 LL is a heavy-duty tilting spindle moulder built for workshops that require precision, flexibility and dependable day-to-day performance. As part of the SCM Class range, it sits above entry-level machines, offering improved build quality and more accurate adjustment systems while keeping operation straightforward and manual.
At the centre of the machine is a tilting spindle that moves both forwards and backwards up to 45 degrees, allowing a wide range of operations including profiling, rebating, grooving and tenoning. This flexibility makes it suitable for producing doors, windows and frame components where angled or more complex cuts are required.

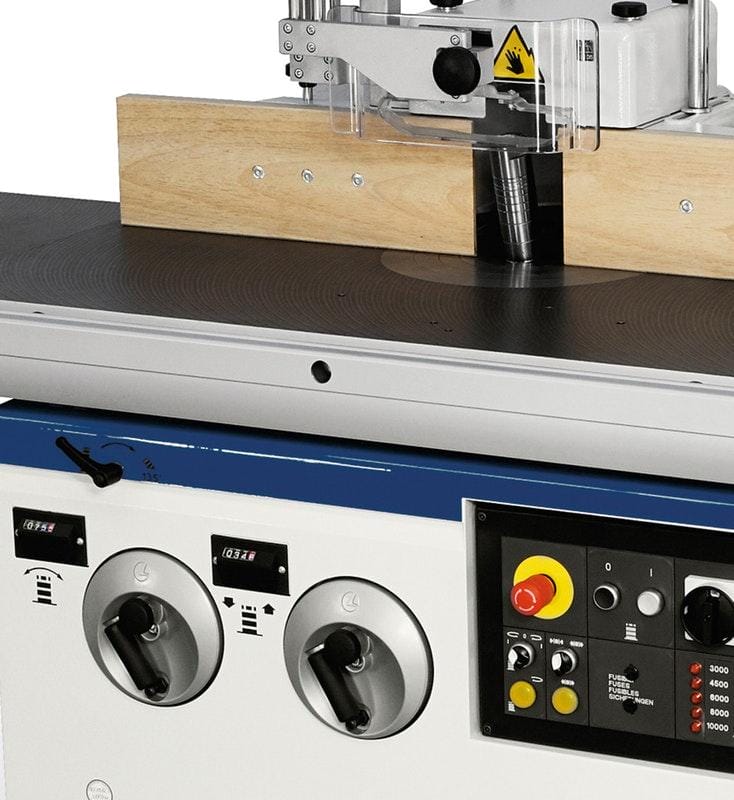

The machine is built on a rigid cast iron structure with a large worktable, providing excellent stability and reducing vibration during operation. This ensures clean, accurate finishes even when working with larger tooling or heavier materials. The spindle is manually adjusted using front-mounted hand wheels with mechanical readouts, allowing precise positioning and consistent results without repeated test cuts.

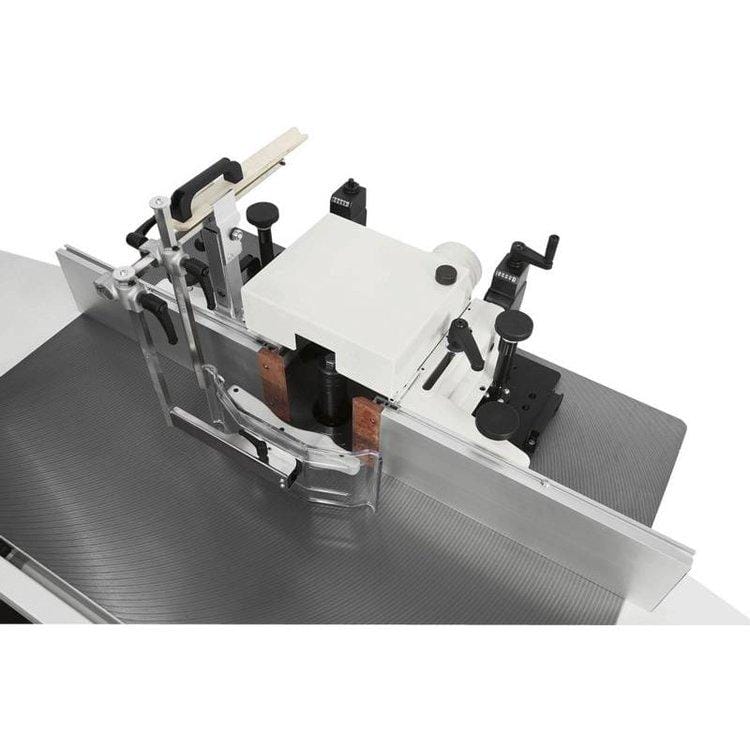

A key feature of the TI 120 is its fence system with mechanical programming and digital-style readouts. This allows the operator to position the fence and worktables accurately to within a fraction of a millimetre, improving repeatability and reducing setup time between jobs.
The LL version includes extended cast iron table supports, providing additional stability when working with longer or larger components. This makes it easier to maintain control and accuracy across bigger workpieces, particularly in joinery and production settings.
Overall, the Class TI 120 LL is a robust and dependable spindle moulder that focuses on precision, ease of use and long-term durability. It is well suited to professional workshops looking for consistent performance without the added complexity of electronic or CNC systems.
Additional Information
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
