POA
A top-of-the-range, exclusive machine that showcases the exemplary quality of SCM – The L’invincibile Model FS7 Combined Planer Thicknesser provides excellent functionality, super-flexible operating, a robust, durable structure and an overall ergonomic, modern design fit for the more professional of workshops.
A power-assisted system allows for the safe, ergonomic and quick opening of the tables making for an equally quick, hassle-free transition from operating the thicknesser to operating the planer. This is ergonomically controlled by two push buttons on the front of the machine which both raise the work tables and position the relative extractor hood and safety system.
Maximum stability and reliability are combined with excellent ergonomics thanks to the connecting rods. This system brings fluid movement, avoidance of worktable deformations and a lifetime’s worth of great precision without the noise.
Featuring interchangeable rollers that have quick and easy changeover procedures that allow for the operator to have a greater degree of control and more flexibility when it comes to handling special or more complex requirements.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES

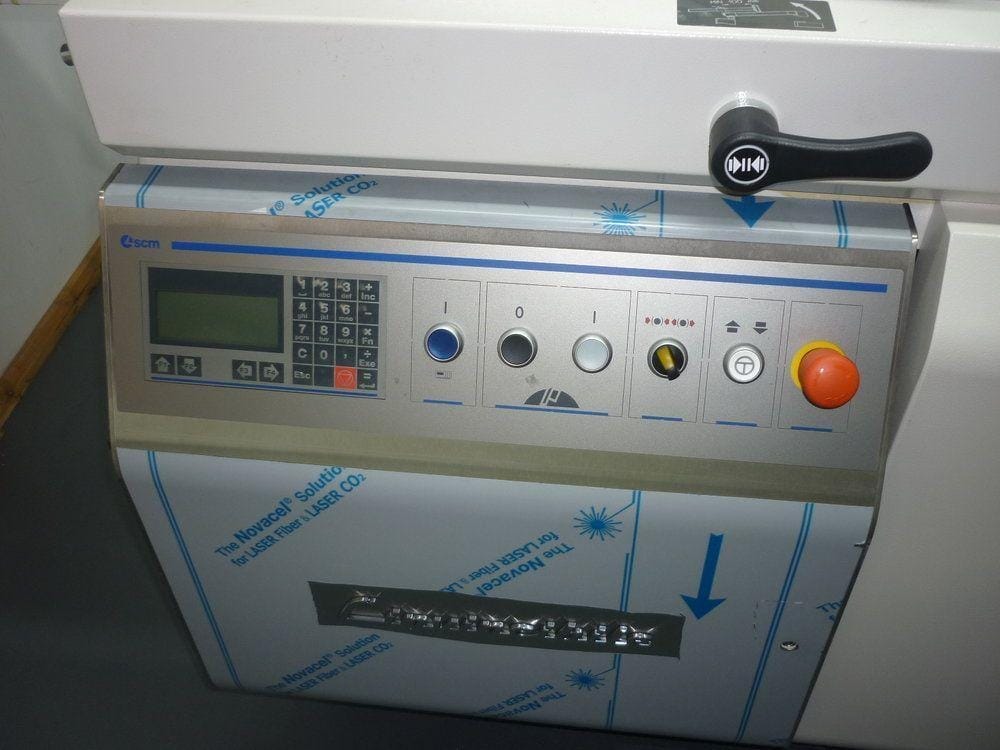

Ready Electronic Control
Simultaneous lifting and locking of surface tables with a mechanical safety device
Speedy setting up for changeover from surfacing to thicknessing.
Rubber-coated outfeed roller
Interchangeable feed rollers
Infeed sectional pressers
Capacity 520 x 250mm
Min working thickness 3mm
Total Length of Surfacing tables 2310mm
Xylent Spiral cutterblock
Xylent maintenance kit
4 Feed Speeds 5/8/12/18 m/min
Auto star-delta start of 9kw motor
Thicknessing table with 2 idle rollers
1st Roller sectional steel
Additional overturning fence for processing thin pieces
Working width | mm | 520 |
Cutterblock diameter/standard knives | mm/no. | 120/4 |
Total length of surface work tables | mm | 2310 |
Min. ÷ max. working height on thicknesser | mm | 3,5 ÷ 250 |
Three-phase motors starting from | kW/Hz | 9 (11) / 50 (60) |
Planer table dimensions | mm / inches | 300 x 585 / 12 x 22 |
