POA
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner One Funding.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES

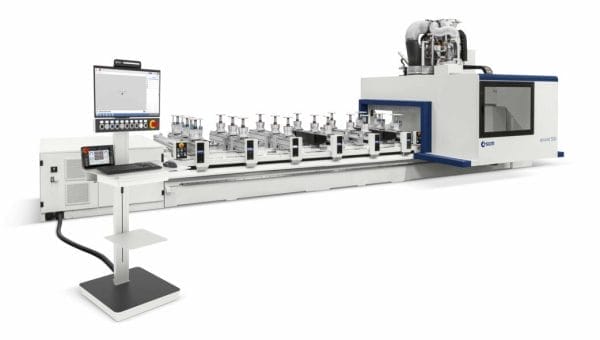

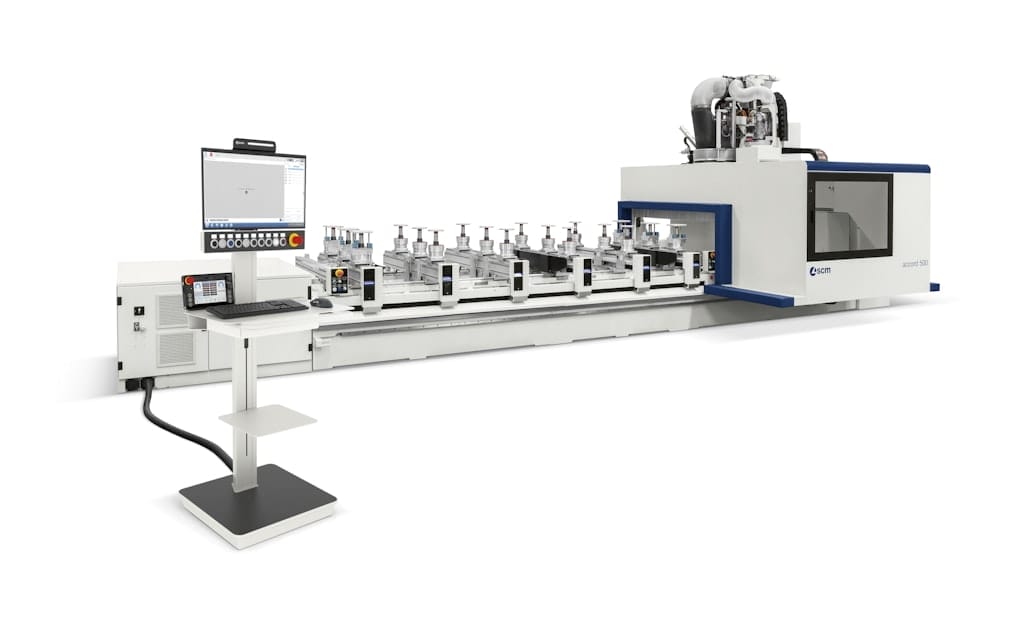

| Â | Â | accord 500 | ||
| Working areas | ||||
| X-Y-Z axes dimensions | mm | 3715 x 1600 x 300 3715 x 1900 x 300 5515 x 1600 x 300 5515 x 1900 x 300 6715 x 1600 x 300 6715 x 1900 x 300 | ||
| Axes | ||||
| X-Y-Z axes max. speed (PRO-SPACE) | m/min | 25-80-45 | ||
| X-Y-Z axes max. speed (PRO-SPEED) | m/min | 90-80-45 | ||

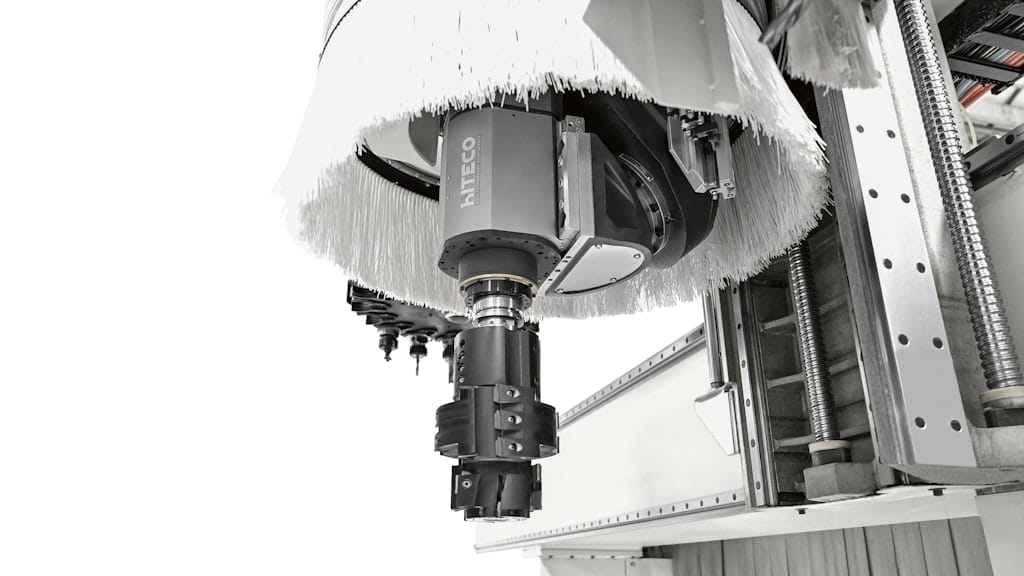

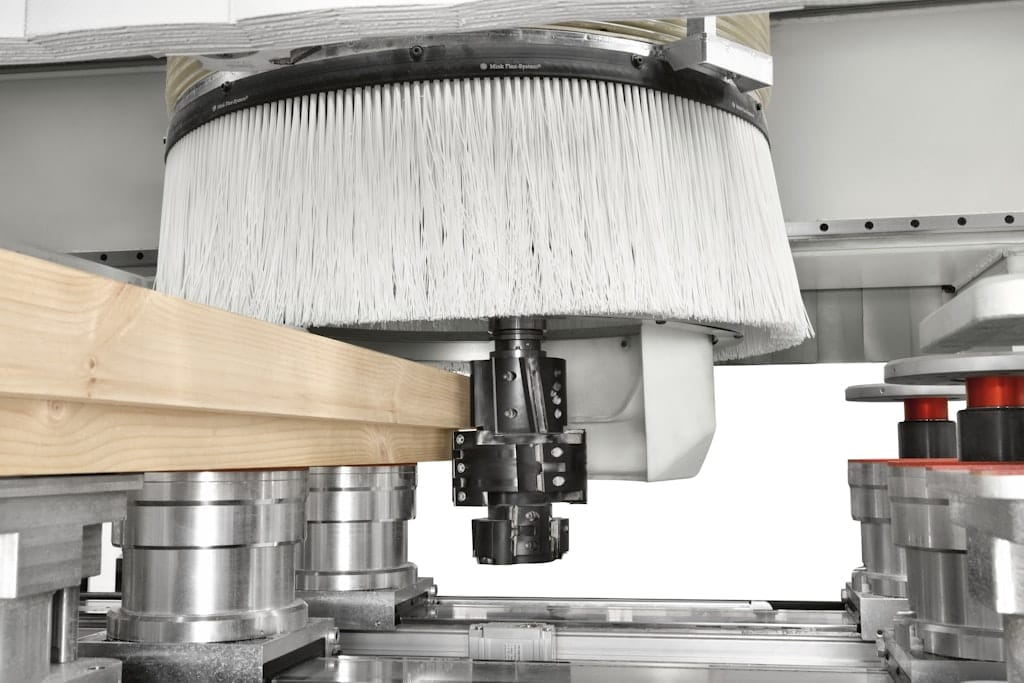

| Routing unit | ||||
| 5 axes electrospindle motor power (max.) | kW (hp) | 20 (27) | ||
| 3/4 axes electrospindle motor power (max.) | kW (hp) | 21 (28,5) | ||
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 | ||
| 3/4 axes electrospindle rotation speed (max.) | rpm | 24000 | ||

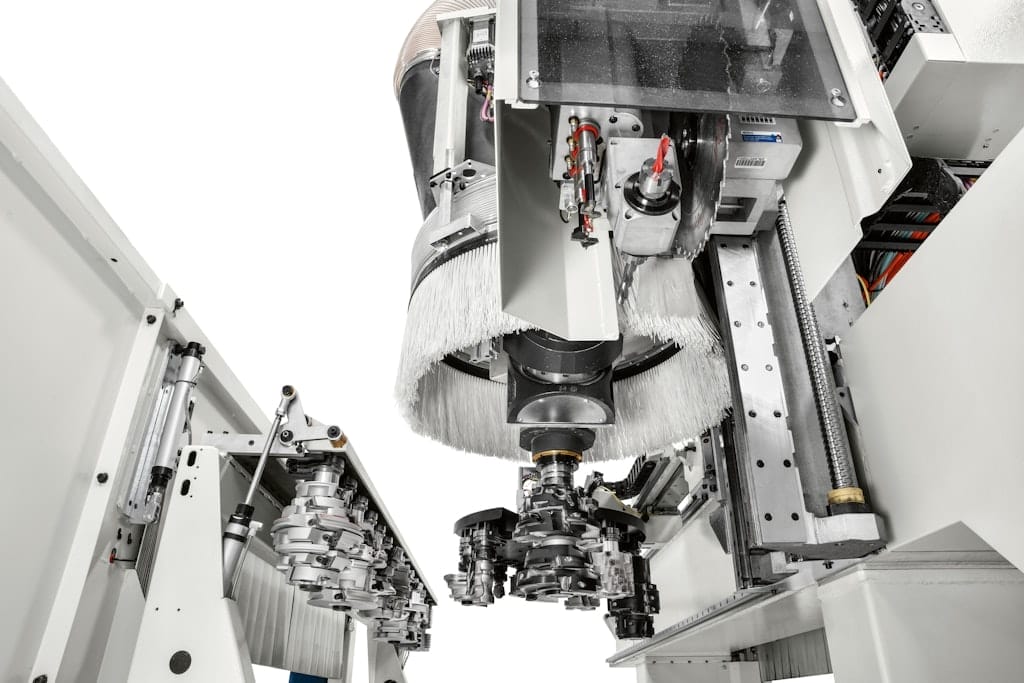

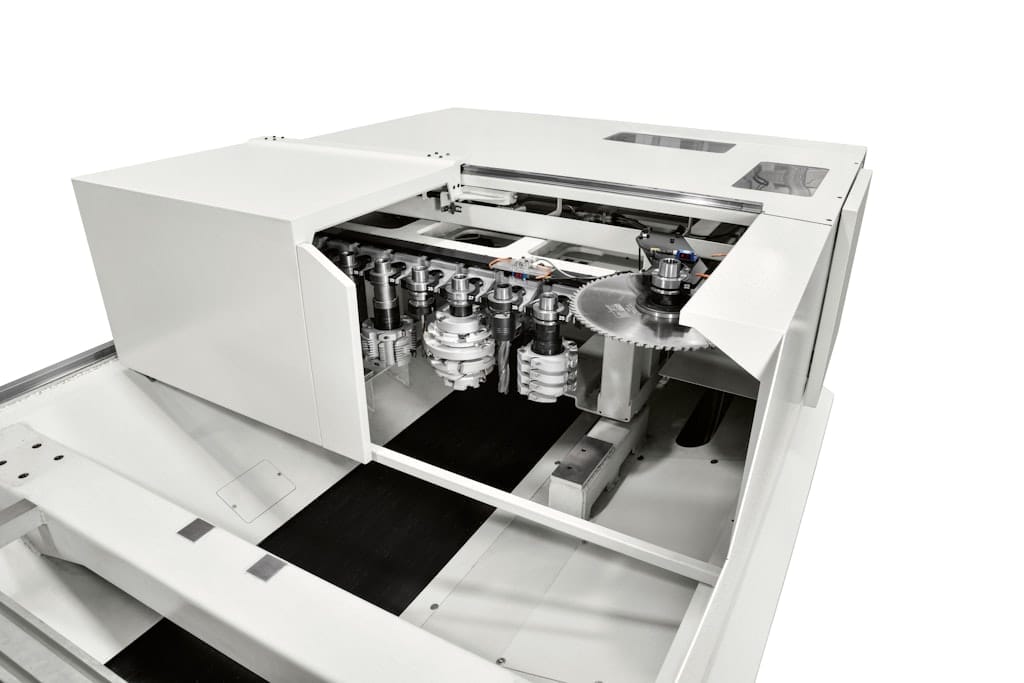

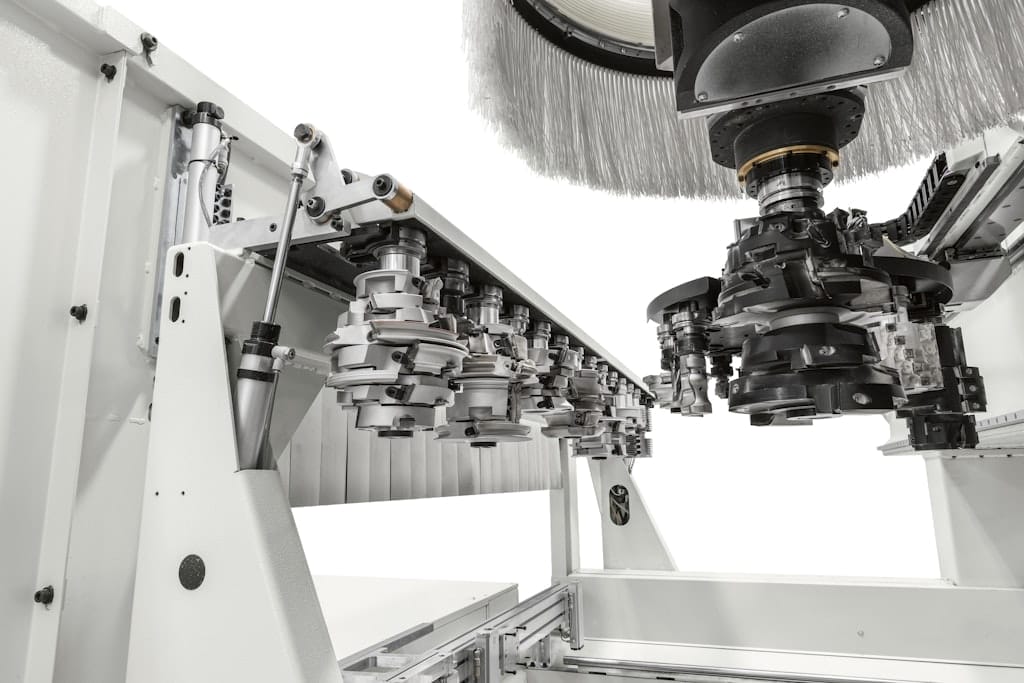

| Tool changers | ||||
| TRB side tool changer | positions | 11 | ||
| CADDY side tool changer | positions | 35 | ||
| RAPID rear tool changer | positions | 16 | ||
| QUADRO rear tool changer | positions | 35 | ||
| FAST on-board tool changer | positions | 16 | ||
| VELOCE on-board tool changer | positions | 16 | ||

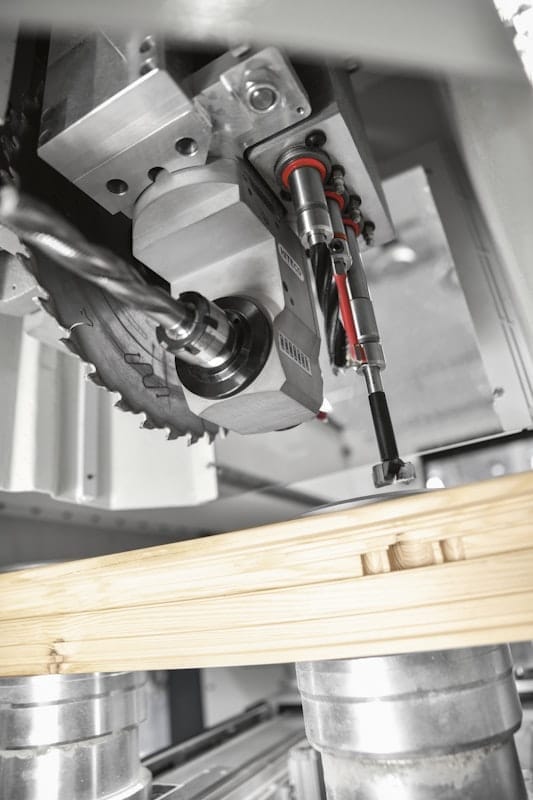

| Drilling unit | ||||
| Vertical and horizontal spindles (up to) | n. | 31 | ||
| Rotation speed (max.) | rpm | 8000 | ||
| Integrated saw blade | Ø | 125 | ||
