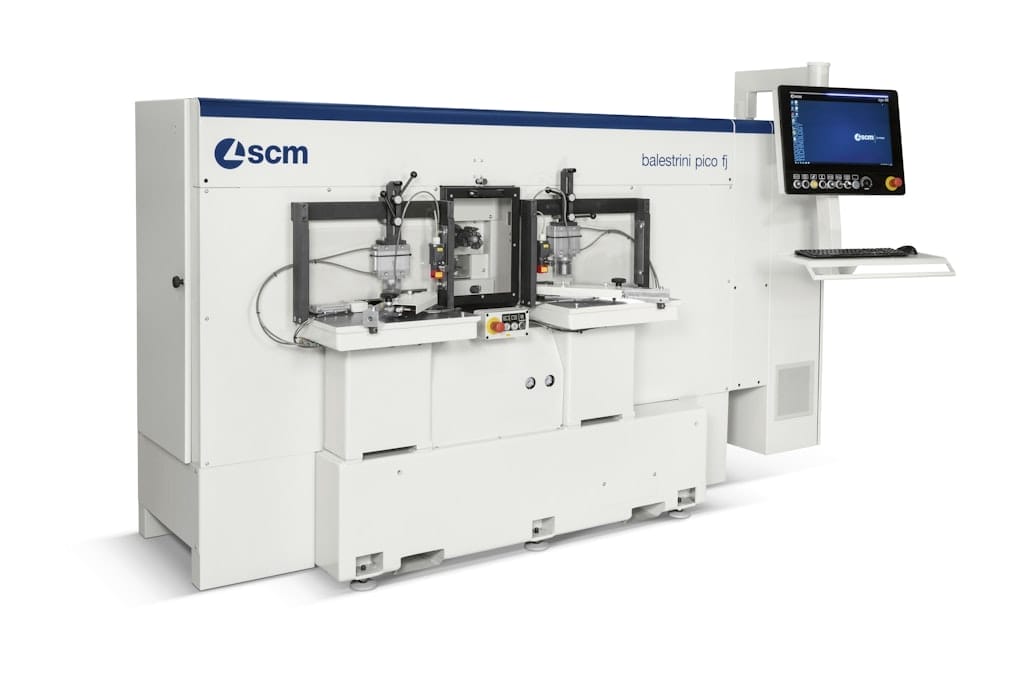

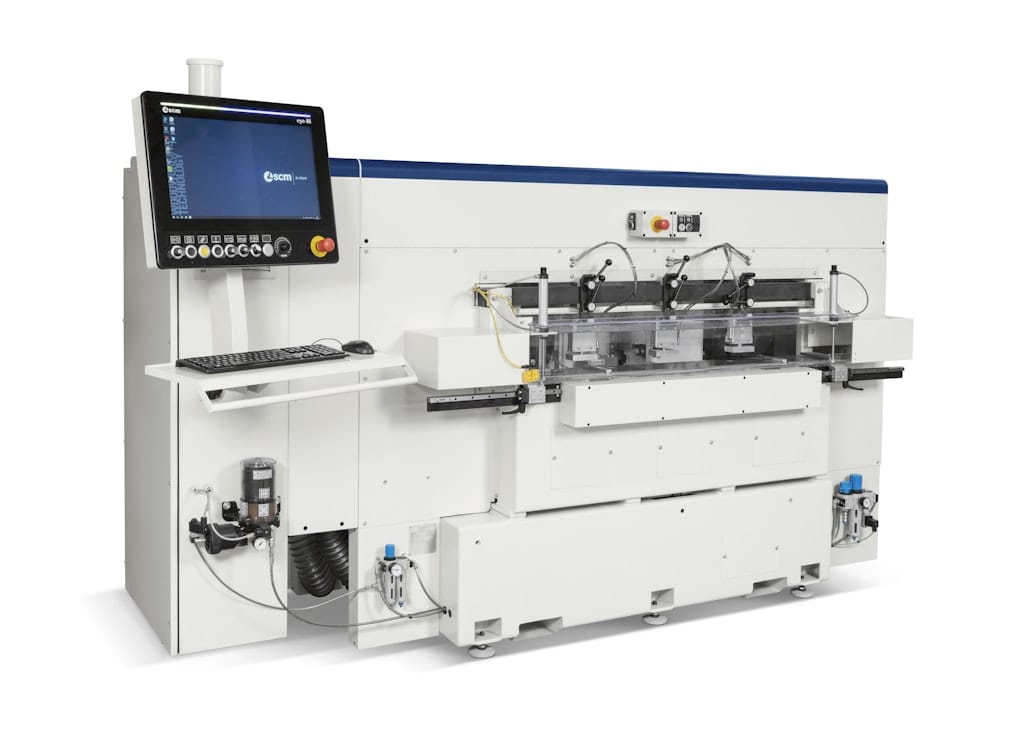

Balestrini pico fj
POA
Product Features
Specifications
Technical data
| MACHINING FEATURES FOR FRONT WORKTABLES | ||
| Workpiece cross-section (widthxthickness) | Min. | 38 x 18 mm |
| Max. with 45° cut | 102 x 28 mm | |
| Max. with 0° cut | 150 x 28 mm | |
| Workpiece length | Min. | 100 mm |
| Max. | Not applicable | |
| Tenon dimensions | Length max. | 150 mm |
| Thickness max. | 12,7 mm (1/2″) | |
| Height | 8 ÷ 26 mm | |
| Hole or mortise dimensions | Hole diameter | 3 ÷ 16 mm (possible interpolation up to 26 mm) |
| Mortise length max. | 150 mm | |
| Mortise thickness | 3 ÷ 16 mm (possible interpolation up to 26 mm) | |
| Hole or mortise depth max. | 12,7 mm (1/2″) | |
| “Miter Door” work cycle time min. | 18s (50 frames for cabinet doors/hour) | |
| MACHINING FEATURES FOR REAR WORKTABLE | ||
| Worpiece cross-section (widthxthickness) | Min. | 38 x 18 mm |
| Max. | 150 x 50 mm | |
| Loadable workpiece length | Min. with 2 pressure cylinders | 220 mm |
| Max. | 1250 mm (STD) 1370 mm (OPT) | |
| Machinable workpiece length for Face Frame | Min. | 220 mm |
| Max. | 1100 mm | |
| Specifications for French Joint | Machinable workpiece length min. | 220 mm |
| Machinable workpiece length max. | 760 mm | |
| Notching depth | 8 ÷ 20 mm | |
| Notching angle | 45° | |
| Hole or mortise dimensions | Hole diameter max. | 16 mm (doubling by interpolation) |
| Mortise length max. | 960 mm | |
| Mortise thickness | 3 ÷ 16 mm (doubling by interpolation) | |
| Hole or mortise depth max. | 50 mm | |
| Holes centre-distance max. (in X axis) | 960 mm | |
