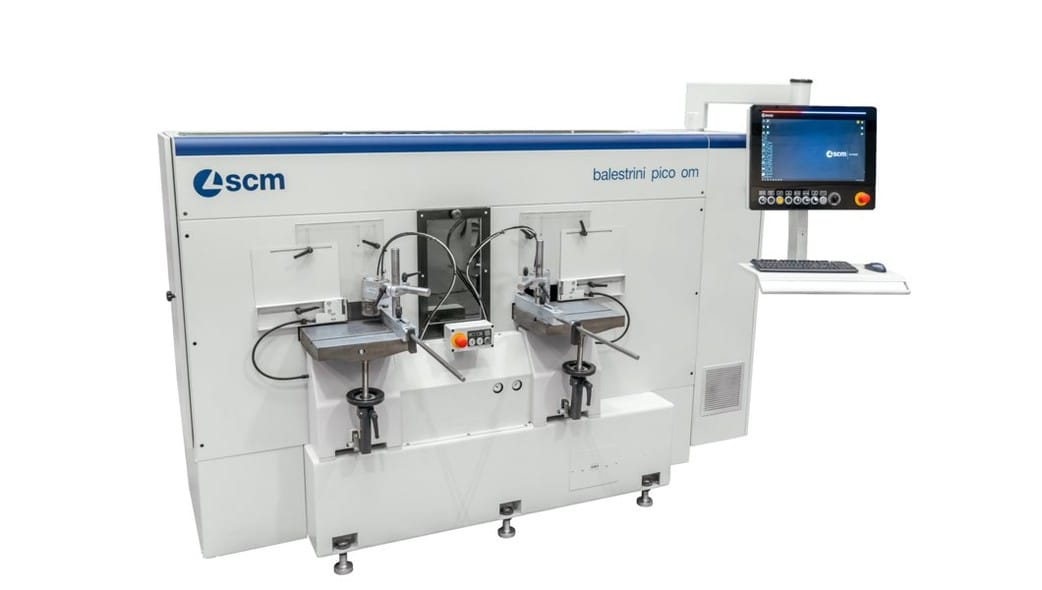

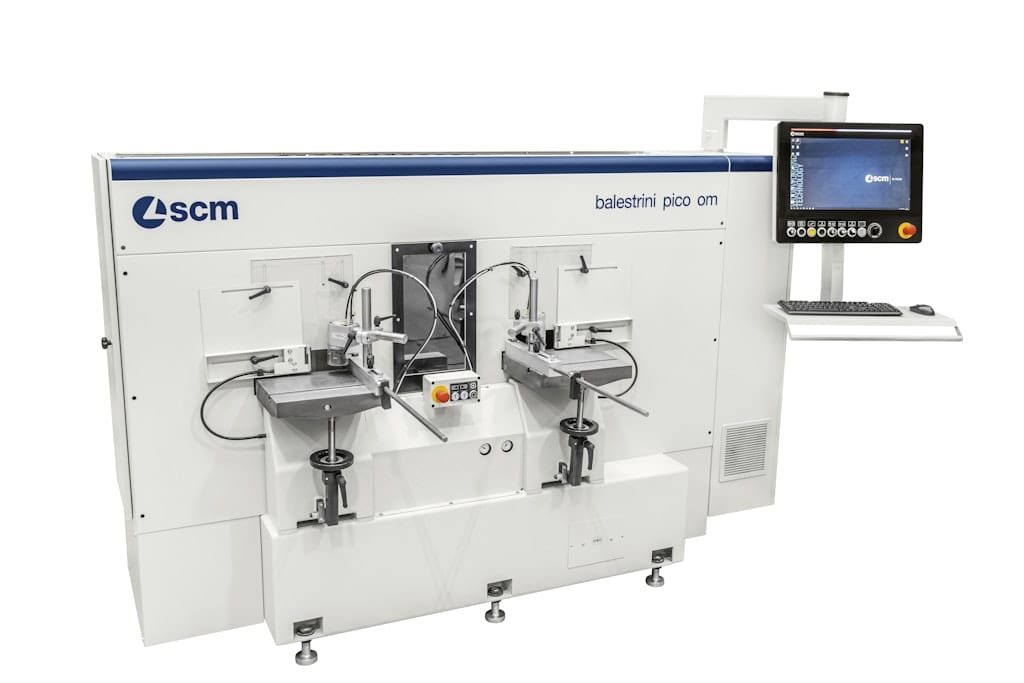

Balestrini pico om
POA
Product Features
Specifications
Technical data

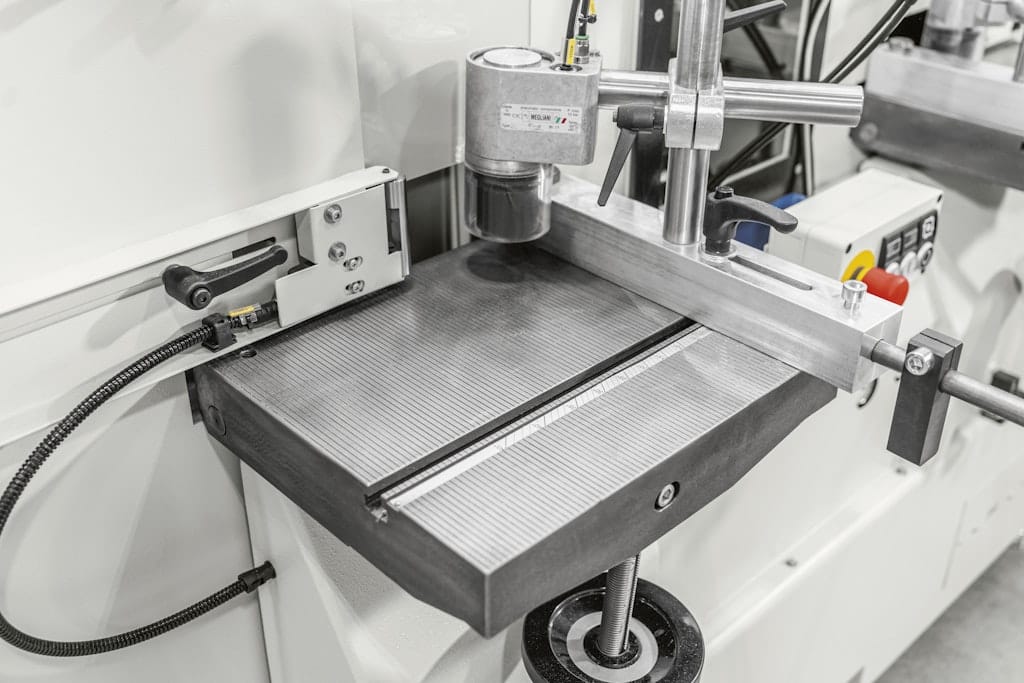

| MACHINING FEATURES FOR FRONT WORKTABLES | ||
| Workpiece cross-section (widthxthickness) | With straight cut min. | 10 x 10 mm |
| With straight cut max. | 200 x 60 mm | |
| Workpiece length | Min. | 100 mm |
| Max. | 880 mm | |
| Tenon dimensions | Horizontal length max. | 200 mm |
| Thickness max. | 30 mm | |
| Height | 8 ÷ 50 mm | |
| Tenon inclination | 0° ÷ 90° | |
| Productivity max. | 720 tenons/hour | |
| Hole or mortise dimensions | Hole diameter max. | 16 mm (doubling by interpolation) |
| Mortise length max. | 140 mm | |
| Mortise thickness | 0 ÷ 16 mm (doubling by interpolation) | |
| Hole or mortise depth max. | 30 mm for pieces to be cut off 50 mm for cut off pieces | |

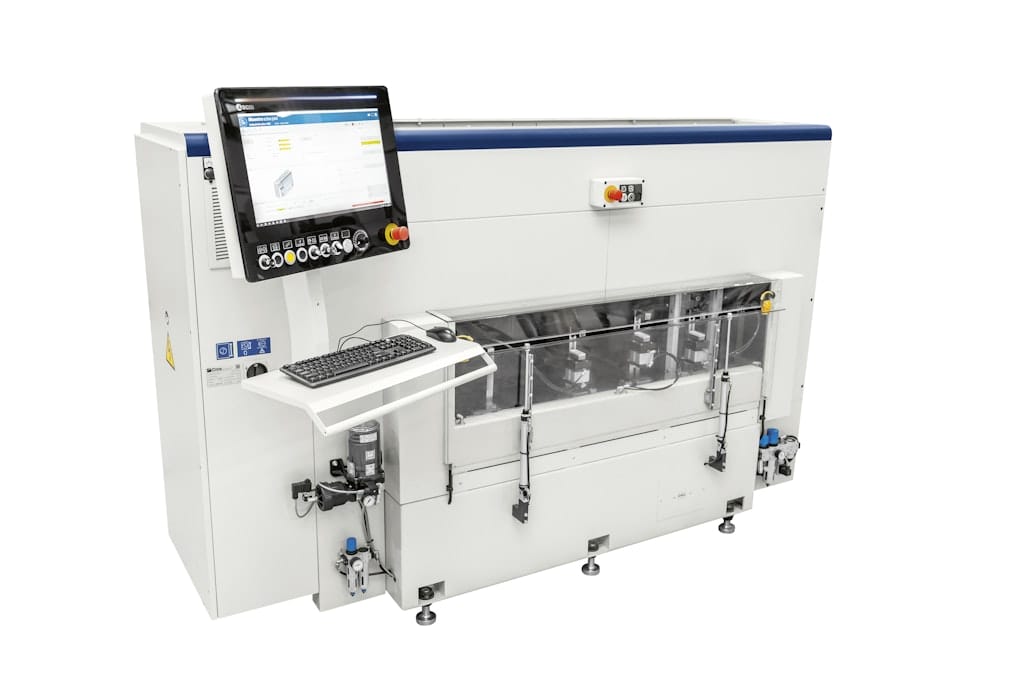

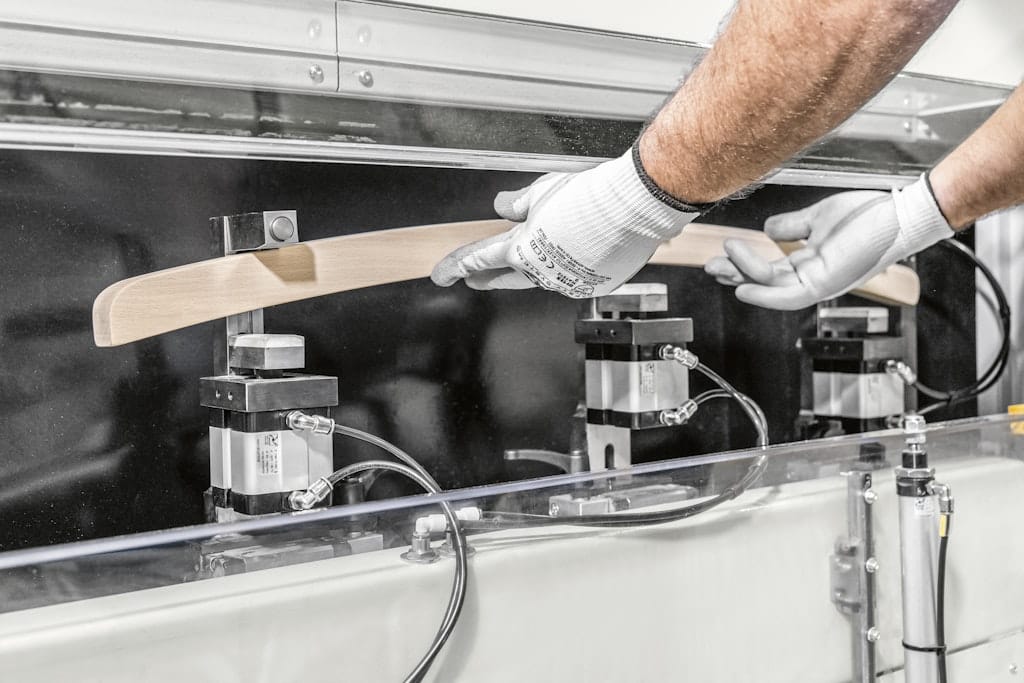

| MACHINING FEATURES FOR REAR WORKTABLE | ||
| Worpiece cross-section (widthxthickness) | Min. | 15 x 15 mm |
| Max. | 100 x 60 mm | |
| Loadable workpiece length | Min. with 2 JIG FREE COMPACT | 180 mm |
| Max. | 1350 mm | |
| Machinable workpiece length | Min. with 2 JIG FREE COMPACT | 180 mm |
| Max. | 1100 mm | |
| Hole or mortise dimensions | Hole diameter max. | 16 mm (doubling by interpolation) |
| Mortise length max. | 1100 mm | |
| Mortise thickness max. | 16 mm (doubling by interpolation) | |
| Hole or mortise depth max. | 50 mm | |
