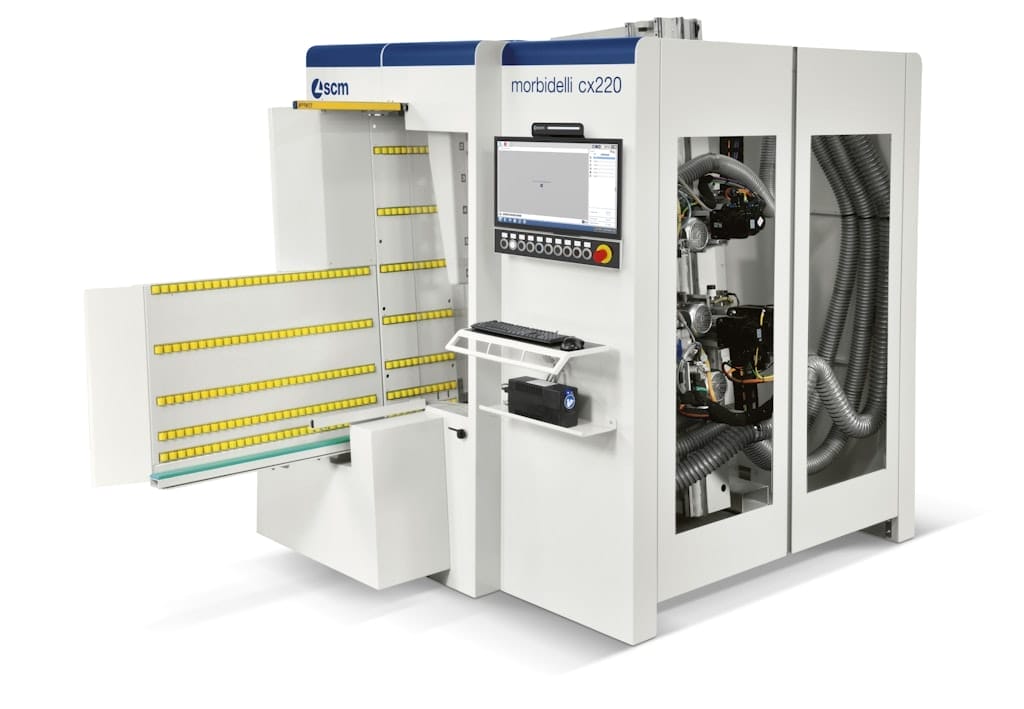

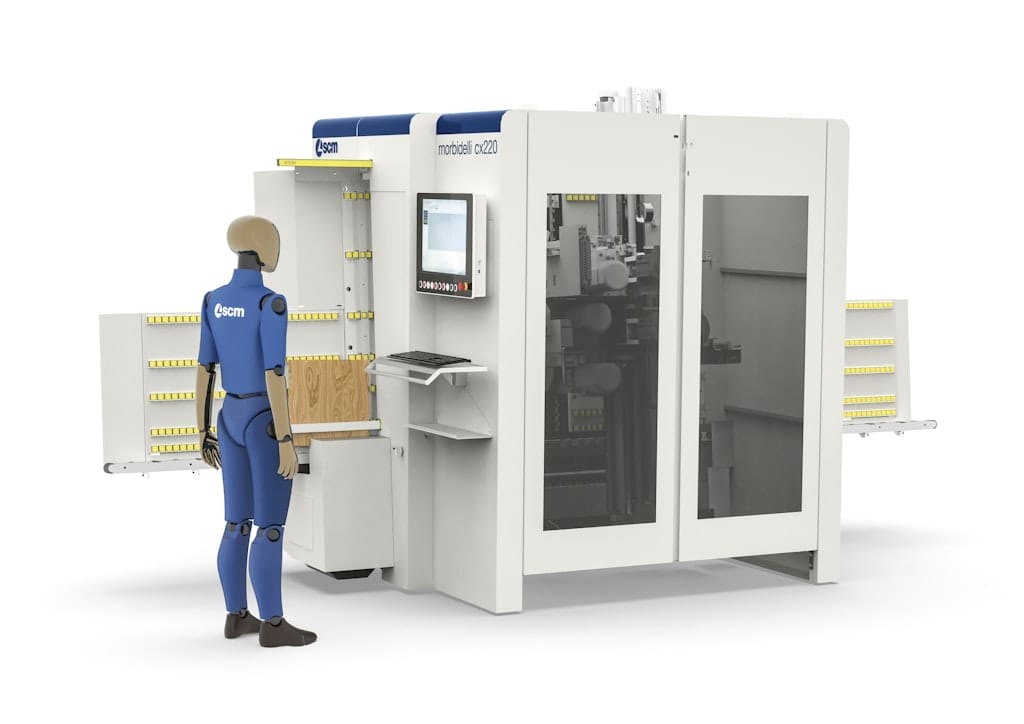

morbidelli cx210/cx220

POA

Out of stock

In Stock

For more information

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance available on this machine working alongside our partner One Funding.

IMPORTANT

Technical Specifications

FEATURES

		cx210	cx220
Axes
Panel length (max.)	mm	3050
Panel width (max.)	mm	1300
Panel thickness (max.)	mm	95
Panel weight (max.)	kg	70
X-Y-Z axes speed (max.)	m/min	70 – 40 – 30

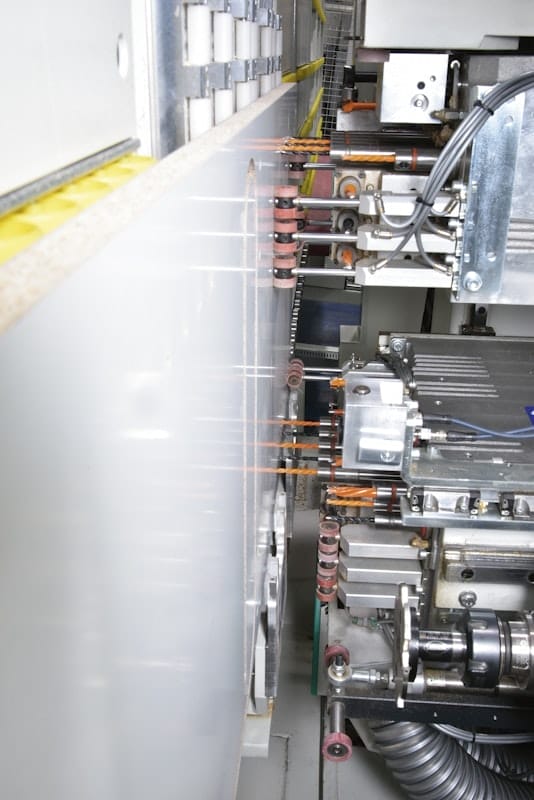

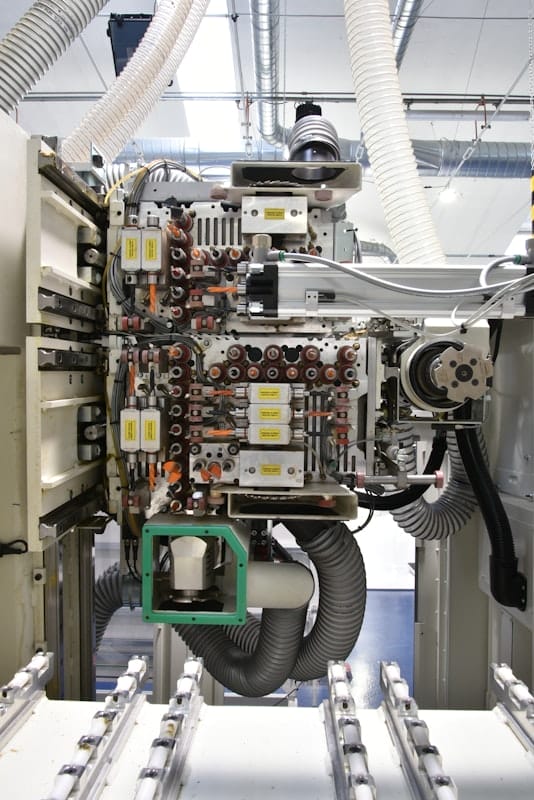

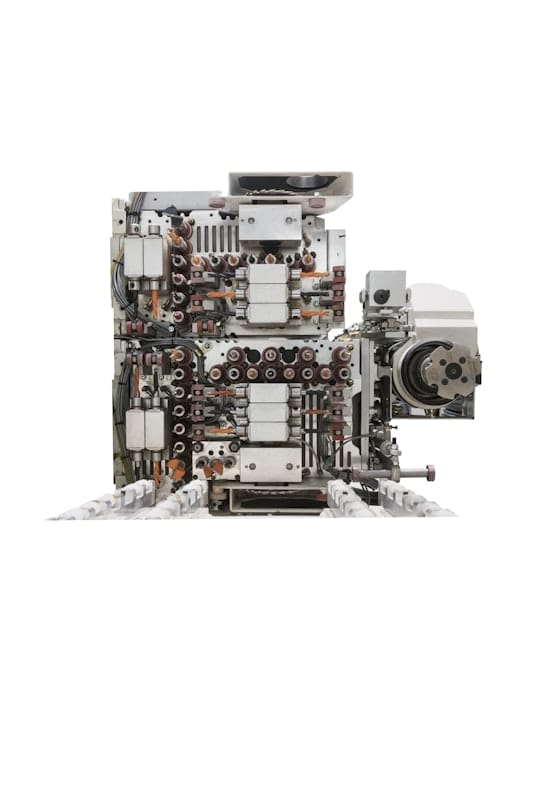

F31LTC drilling head
Vertical spindles	no.	21
Horizonal spindles in X – Y directions	no.	6 – 4
Spindles rotation speed	rpm	up to 8000 with optional inverter
Integrated blade in X axis	Ø mm rpm	125 up to 9700 with optional inverter
Motor power	kW (Hp)	2,2 (3)
F21L drilling head
Vertical spindles	no.	–	13
Horizonal spindles in X – Y directions	no.	–	6 – 2
Spindles rotation speed	rpm	–	up to 8000 with opt. inverter
Integrated blade in X axis	Ø mm rpm	–	125 up to 8000 with opt. inverter
Motor power	kW (Hp)	–	2,2 (3)
0-90° saw-blade/clamex unit
Diameter	mm	125
Rotation speed	rpm	5500

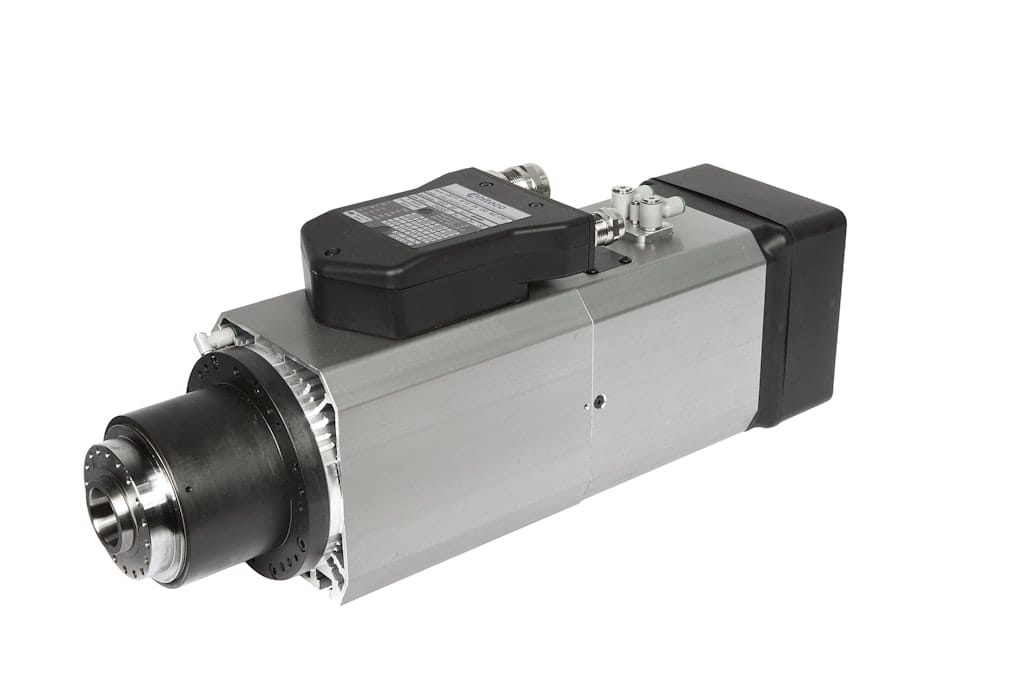

Electrospindle
Motor power (max.)	kW	7,5
Rotation speed	rpm	up to 24000
Dowel insertion unit
Supply system		water/vinyl glue

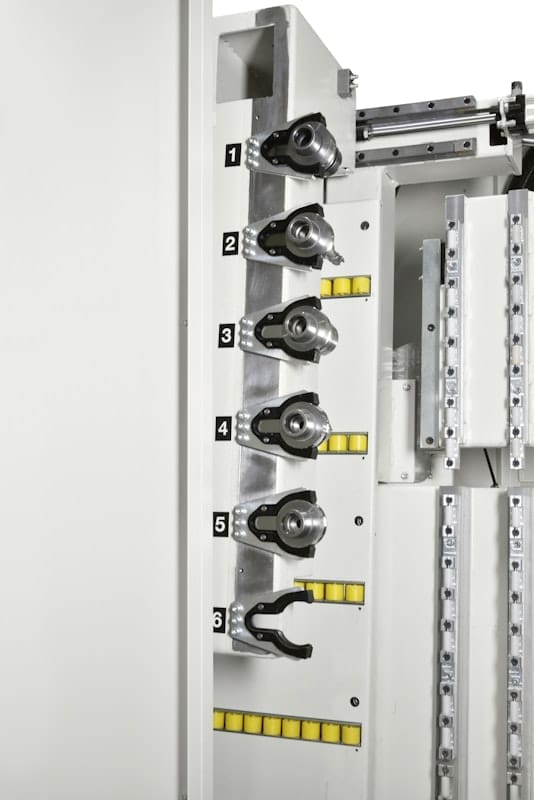

Available tools on tool changer	no.	6
