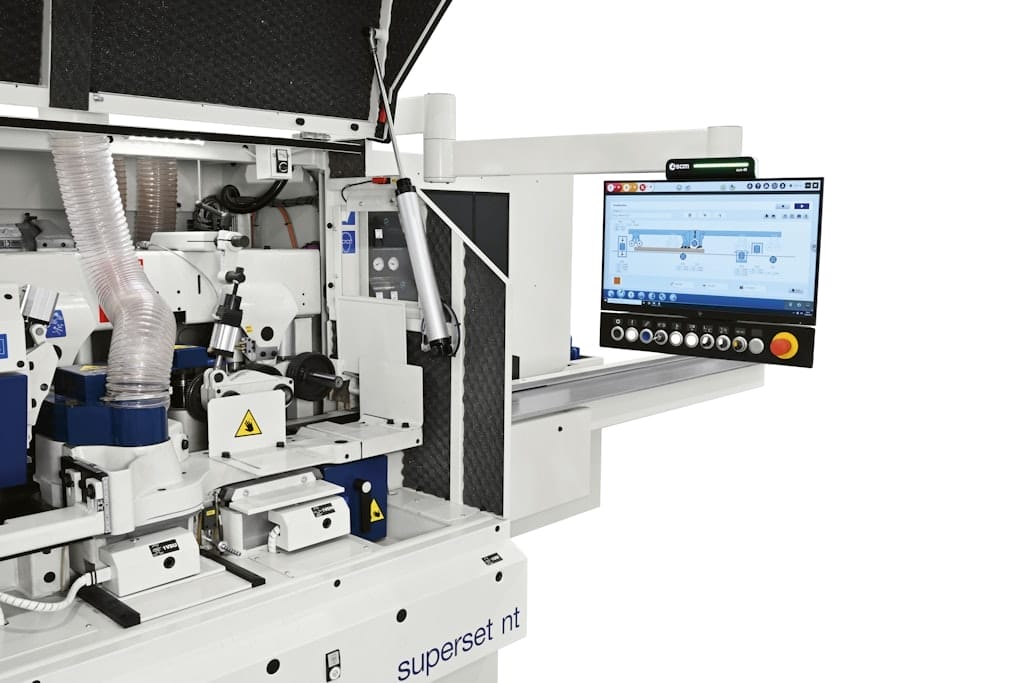

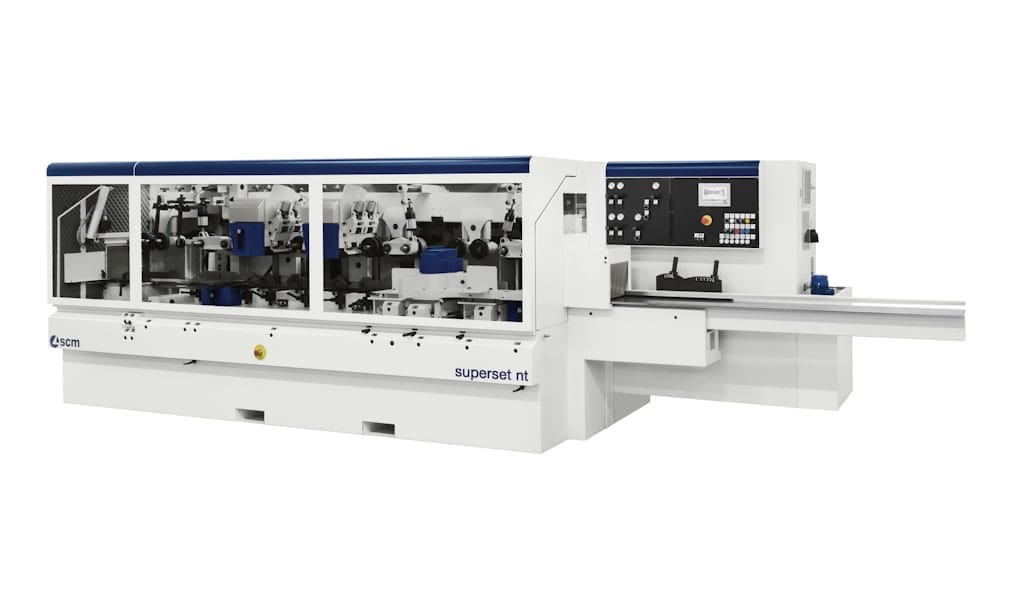

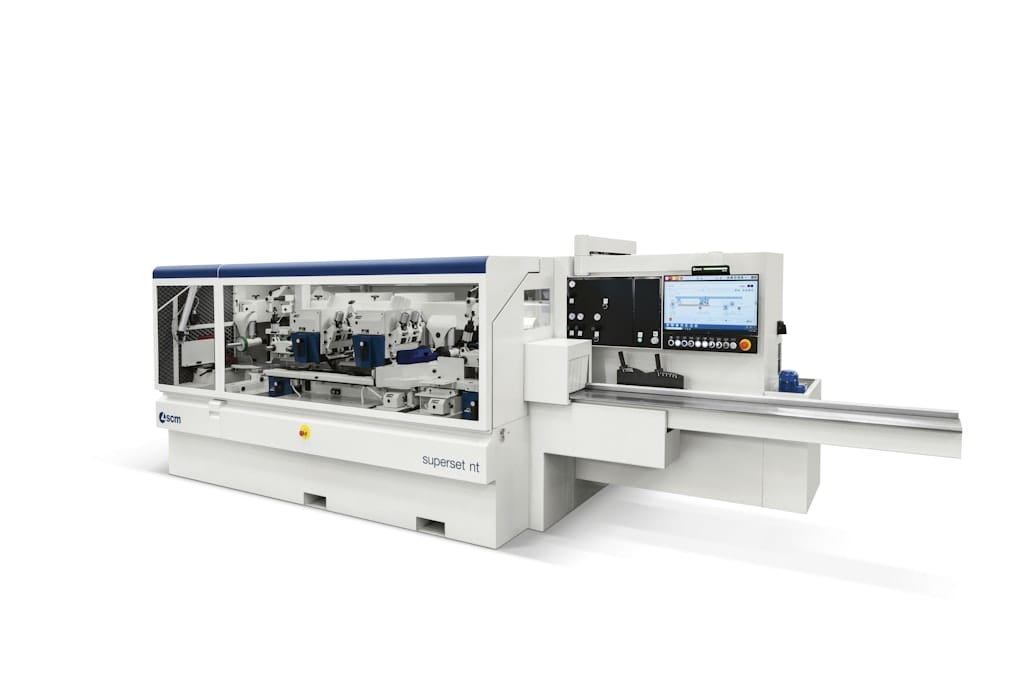

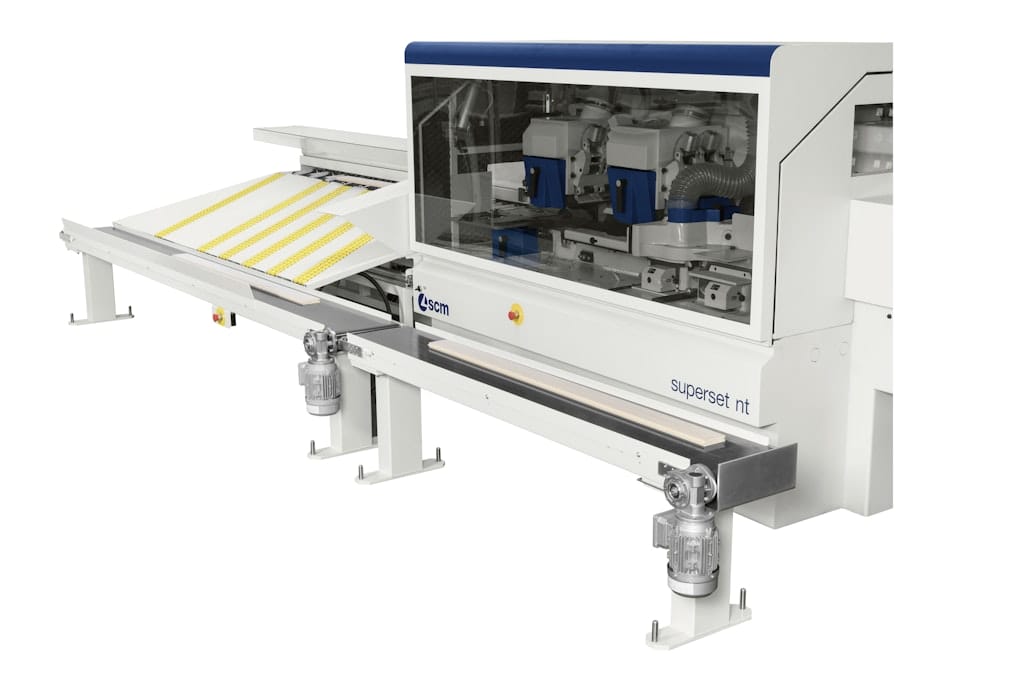

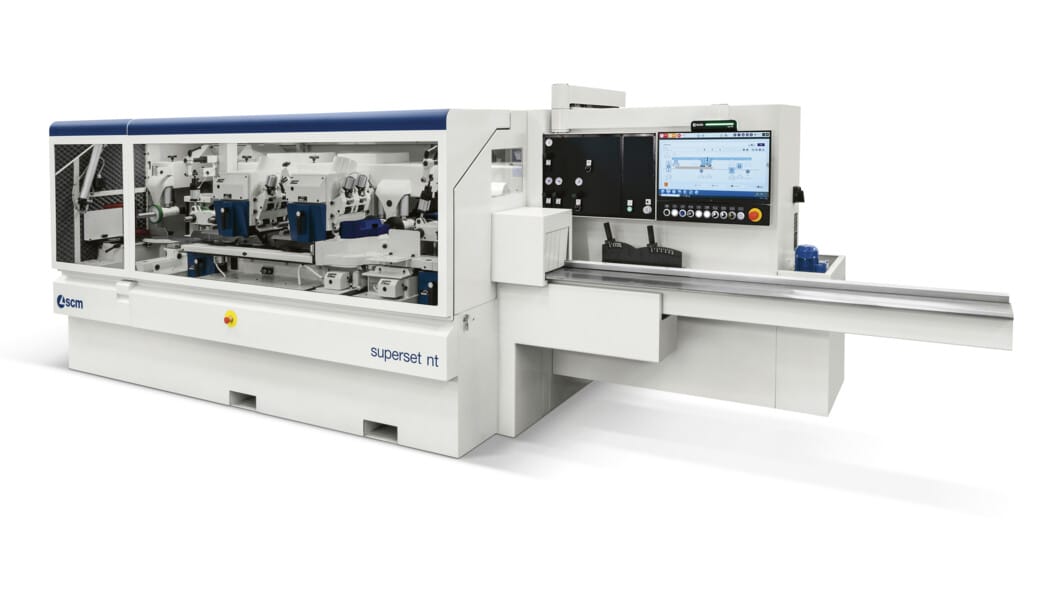

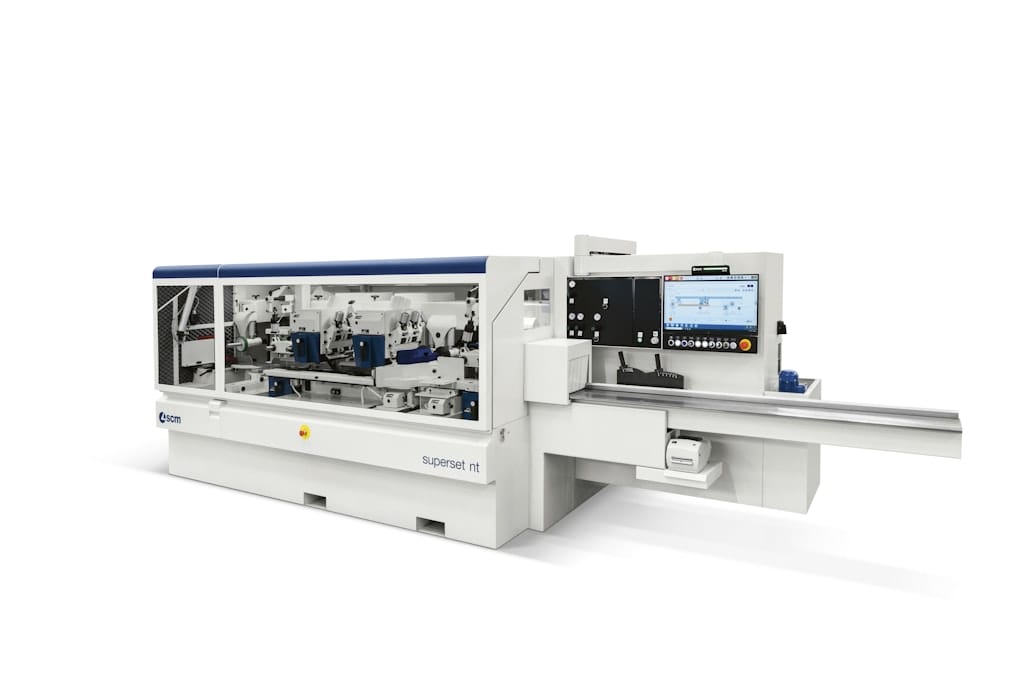

Superset nt
POA
Product Features
Specifications
Technical data
| superset nt | |||

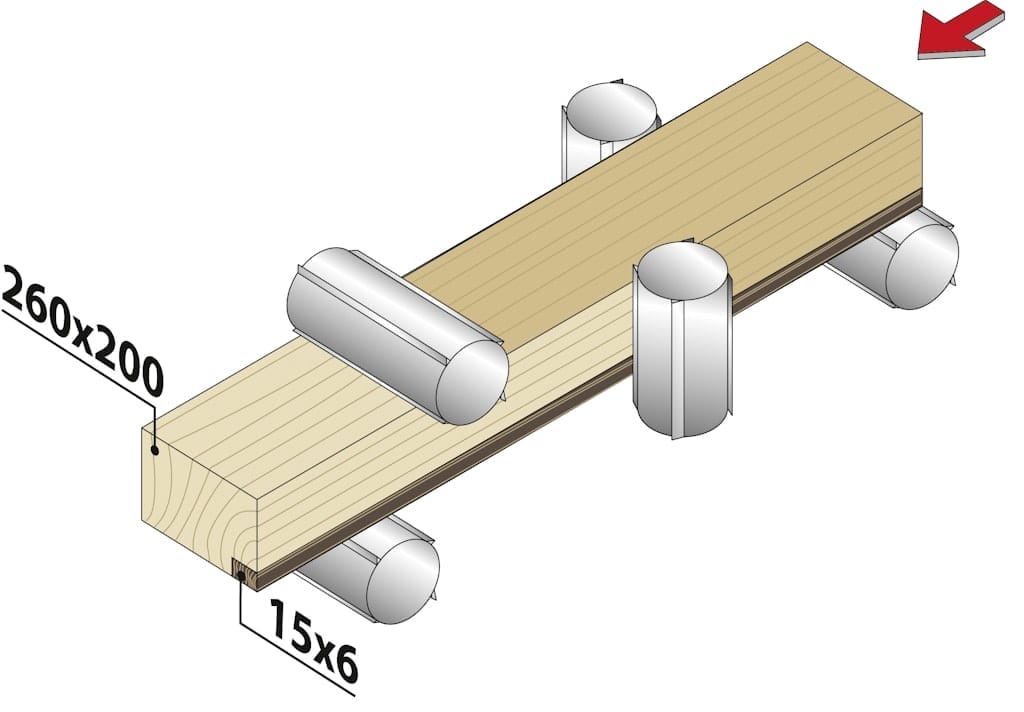

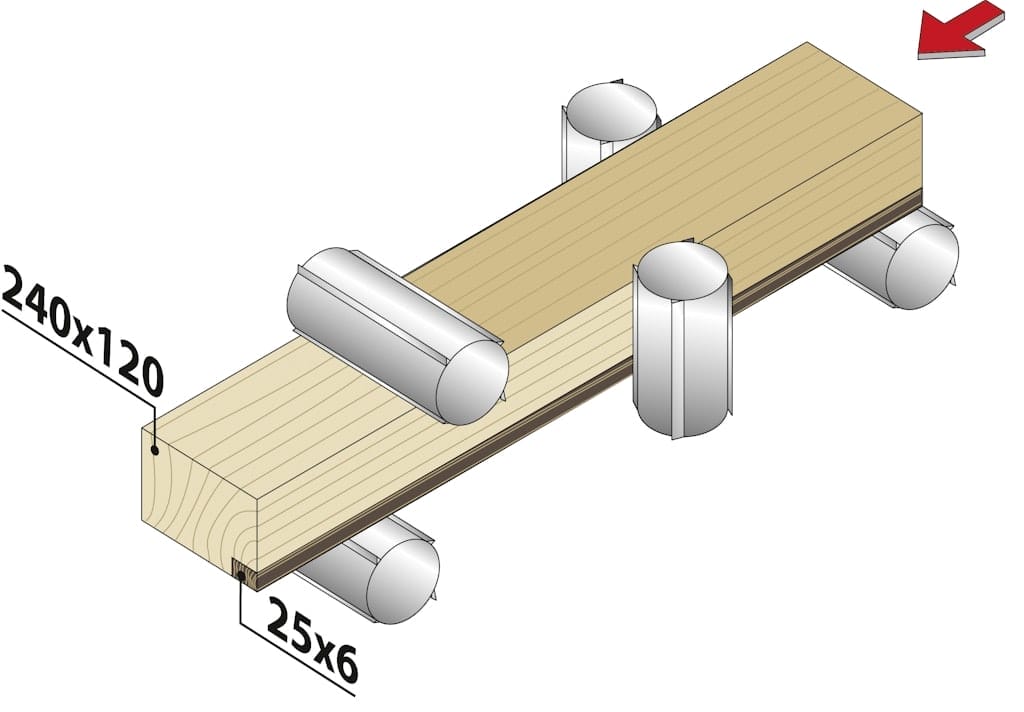

| Minimum working width (finished section) | mm | 25 [15 opt.] | |
| Maximum working width (finished section) | mm | 240 [260 opt.] | |
| Minimum working thickness (finished section) | mm | 6 | |
| Maximum working thickness (finished section) | mm | 120 [200 opt.] | |
| Feed speed | m/min | 5 ÷ 25 [6 ÷ 40 opt.] | |

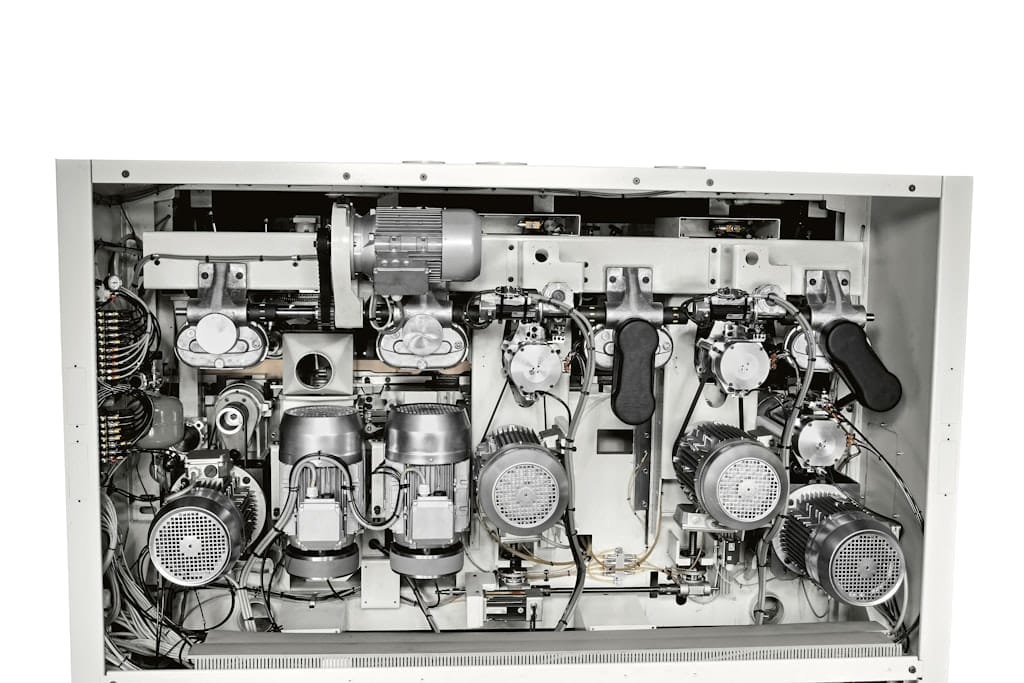

| Motors power | kW (HP) | 4 (5,5) [up to 18,5 (25) opt.] | |

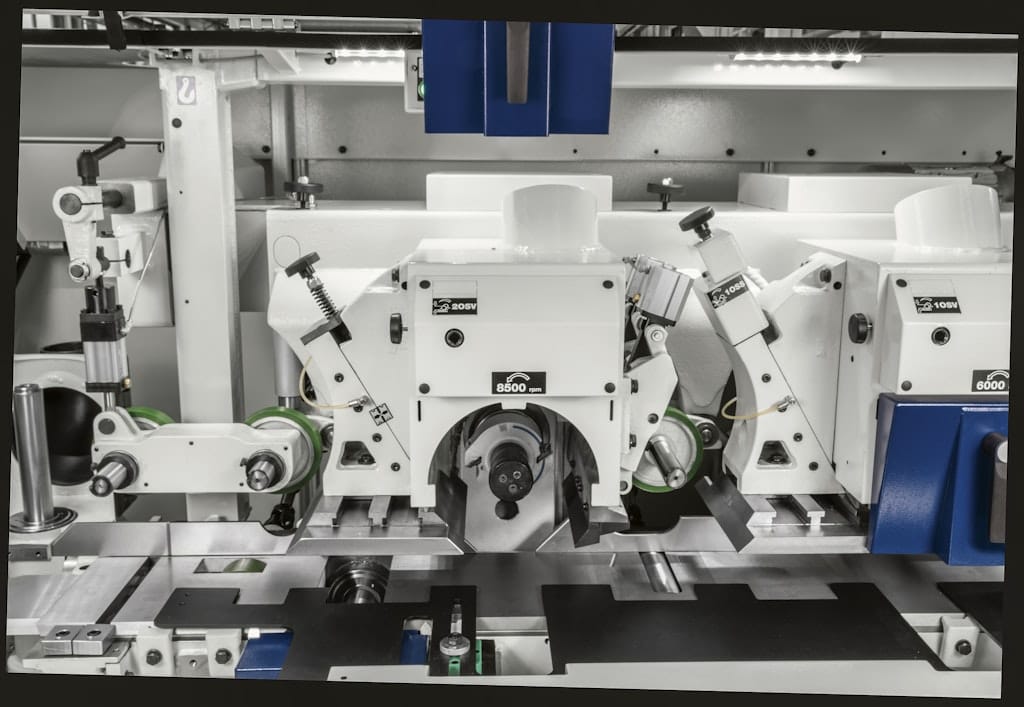

| Spindles rotation speed | rpm | 6000 [8500 opt.] | |

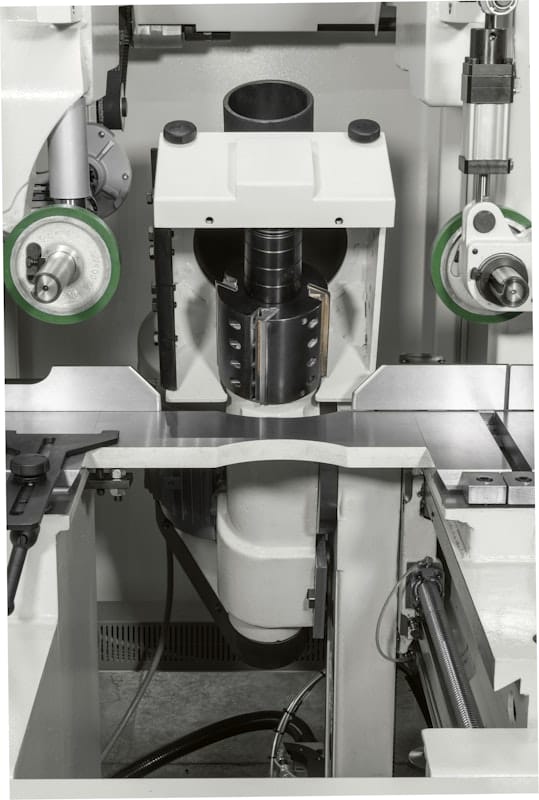

| Tool-holder spindles diameter | mm | 40 [50 opt.] | |

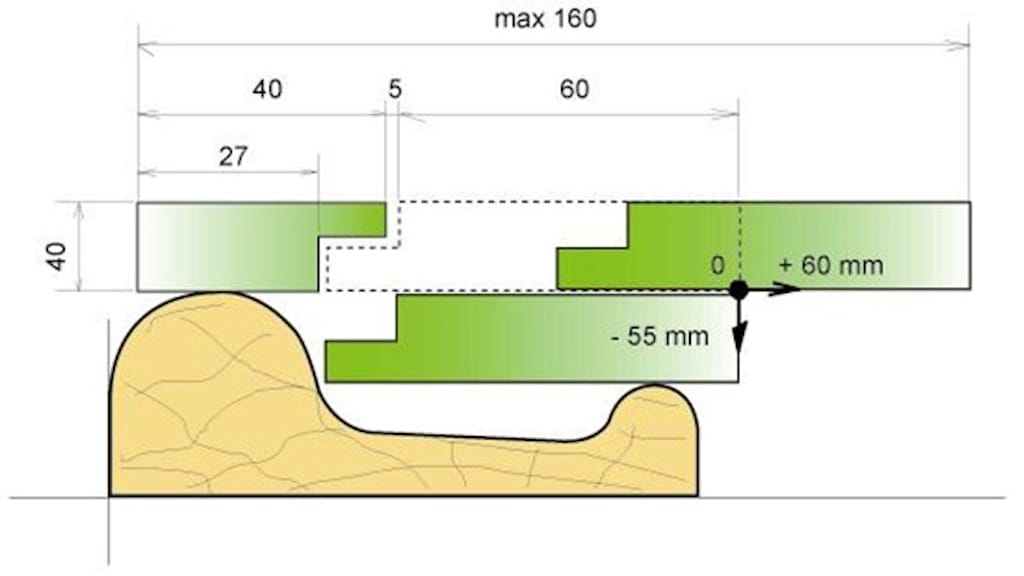

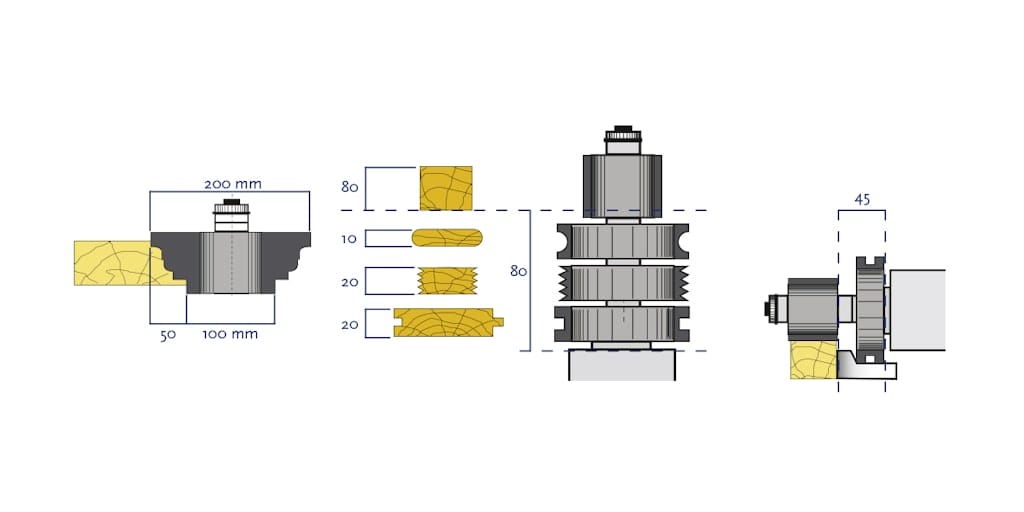

| Axial adjustment of vertical spindles from worktable | mm | 80 [75 opt. with HSK] | |
| Axial adjustment of horizontal spindles from right fence | mm | 45 | |

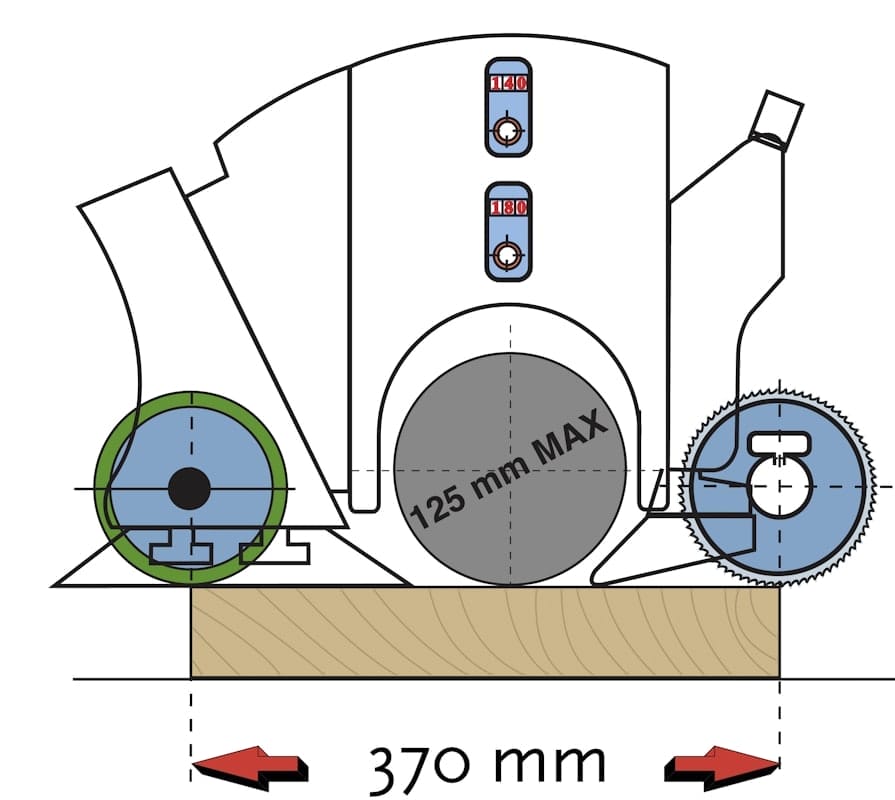

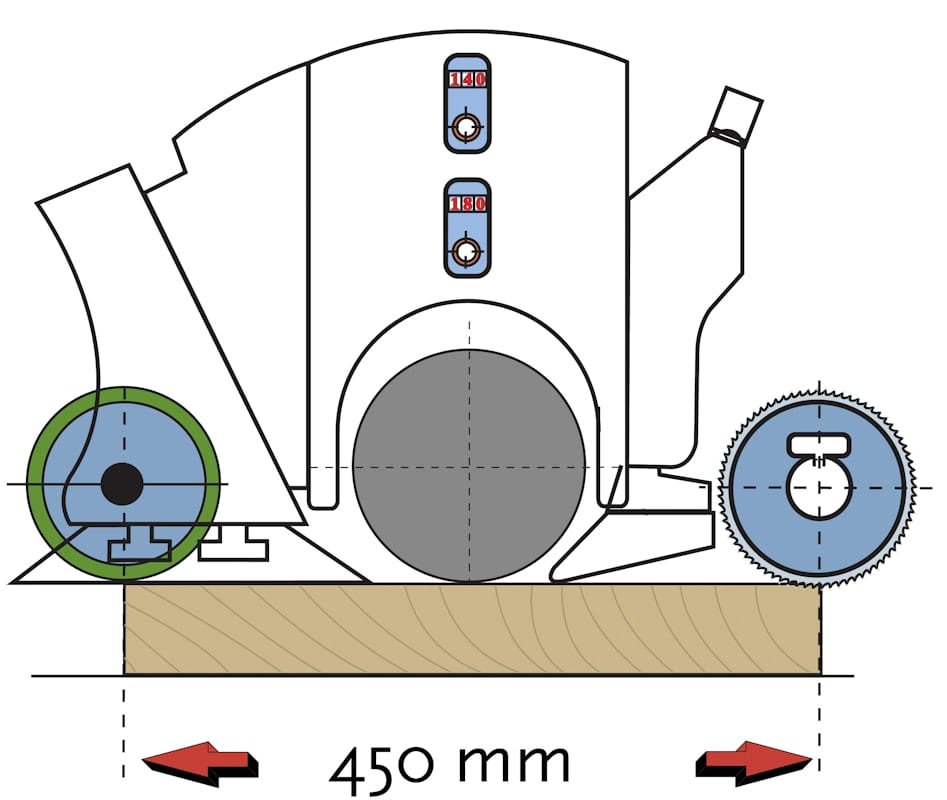

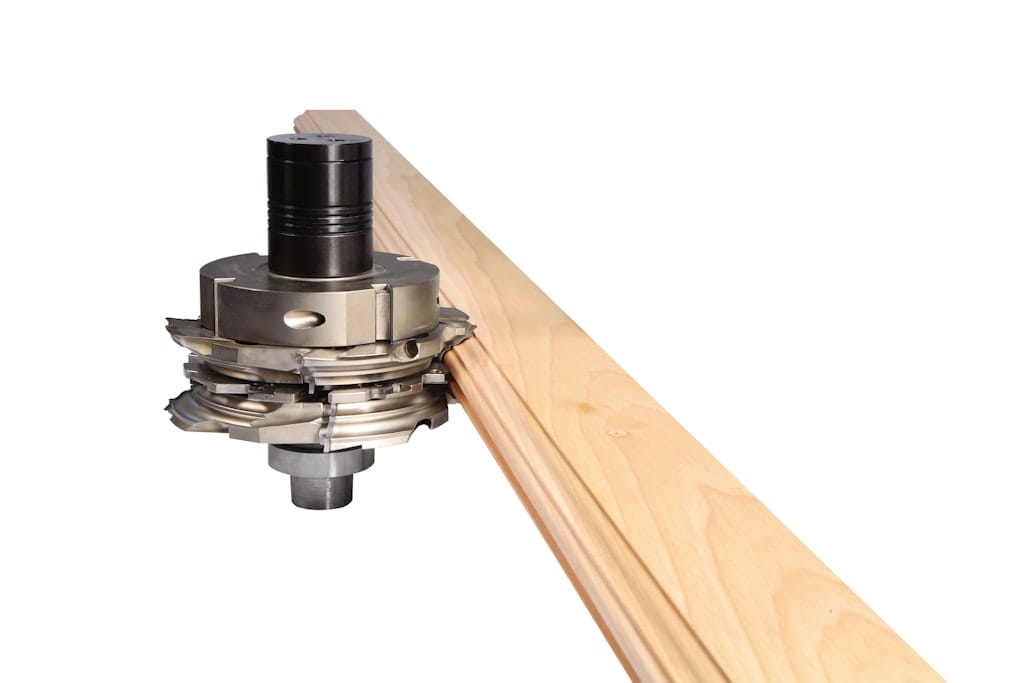

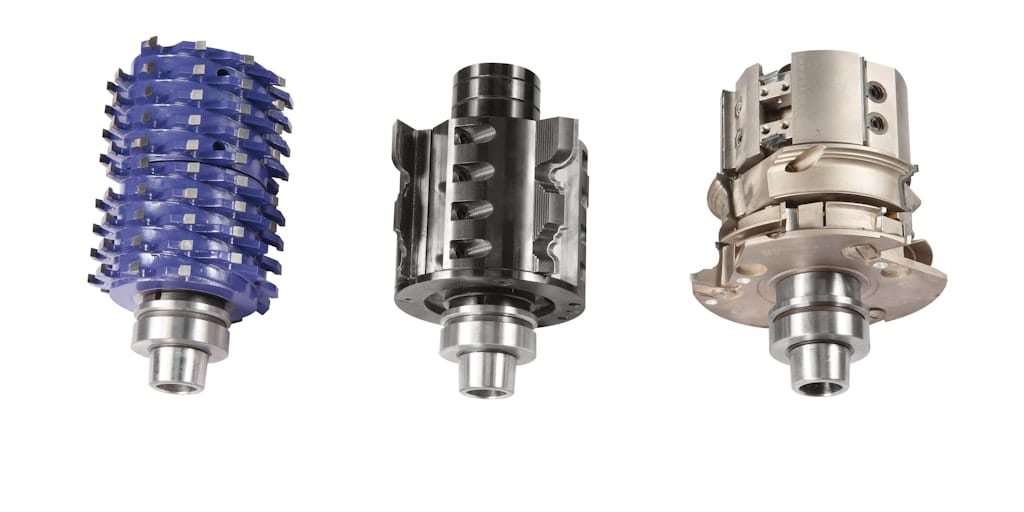

| Min./max. profiling tool diameter | mm | 100/200 | |

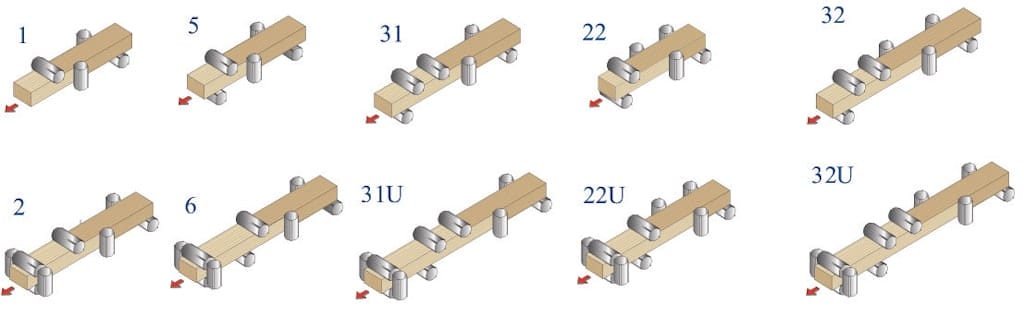

| Available units | n. | 4 ÷ 8 | |
Brochure
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
