Minimax CU 410 Classic Universal Combined Machine (Planer, Saw & Spindle Moulder)

This multi-function Minimax CU 410 Classic Universal Combined Machine (Planer, Saw & Spindle Moulder) woodworking centre combines the functions of a spindle moulder, a 300m surface planer, thicknesser and a sliding table saw into one neatly structured, ergonomic, compact workstation. The alloy sliding table has a 1660mm travel as standard – but can be upgraded to 2250, 2600 or 2800mm to suit your requirements.

With the high standard of Minimax quality combined with an affordable, value-for-money price, this workstation should be an excellent choice for both hobbyists and woodworkers alike. The ease-of-use factor is greatly enhanced thanks to some useful additions: the anodized-extruded guides with support plus rapid locking and an effective, efficient feeding system for the planer. A new scoring unit has also been added which can be adjusted from outside the machine.

Features:

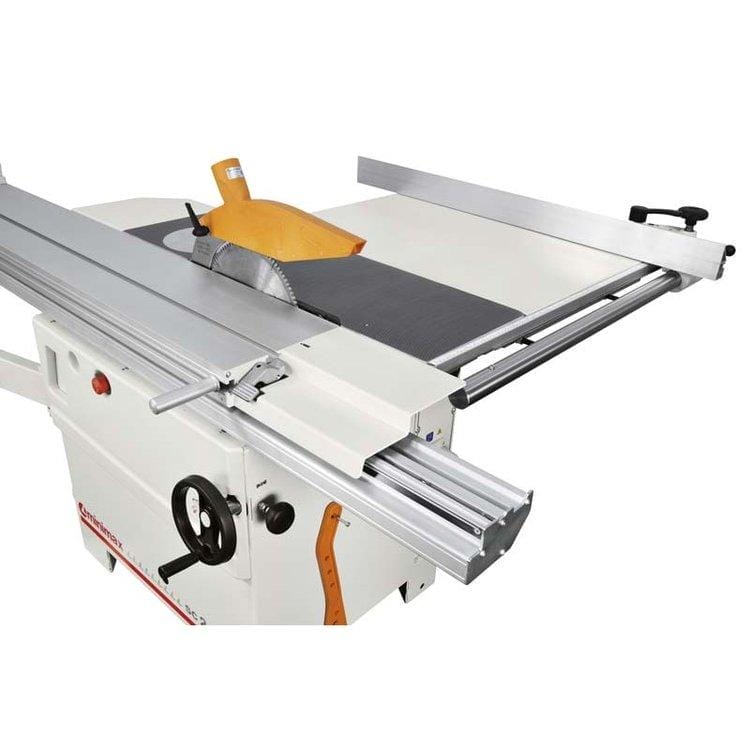

• Extruded anodized aluminium sliding table (270mm x 124mm x 1600mm)
• Support table complete with a telescopic fence with 2 retractable stops and eccentric clamp

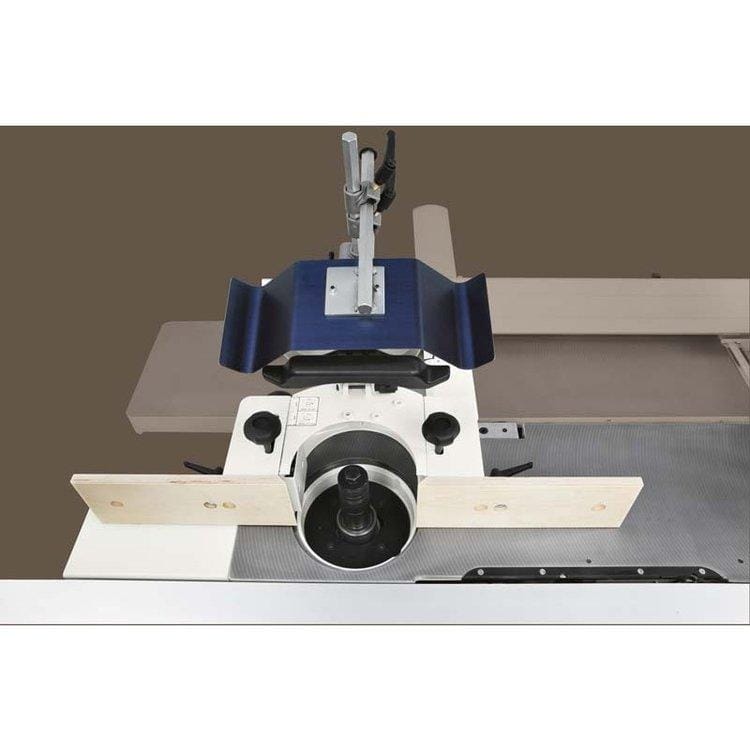

• Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers
• Pre-setting for morticer
• Tersa Knives
• Bridge Planer protection
• Scoring blade

Specifications

• Surfacer
• Working width 410mm
• Total length of worktables 1800mm
• Surfacer fence tilt angle 90 / 45 degrees
• Cutterblock diameter 72mm
• No. of cutterblock knives 3
• Thicknesser
• Thicknesser table dimensions 605 x 410mm
• Feeding speed 7m/min
• Work height min/max 3 / 230mm
• Maximum stock removal 4mm
• Circular saw
• Max. blade diameter with scoring
• saw mounted 315mm
• Scoring blade diameter 80mm
• Max. blade projection at
• 45 and 90 degrees 100 / 78mm
• Cutting width at parallel fence 900mm
• Carriage stroke 1600mm
• Spindle moulder
• Speeds 3500-7000-10000rpm
• Max. tool diameter when profiling 210mm
• Max. tool under table 180mm
• Net weight standard machine 560kg
• Packed dimensions 270 x 150 x 145cm, 560kg
• List and offer prices are for a basic specification machine, just including 58.10.17 belt drive scoring saw, and 240v motors
• Tersa or XYLENT cutter head, and a range of options are also available

Optional Equipment:

• 58.03.85 Version with maximum squaring stroke 2250 mm
• 85.03.86 Version with maximum squaring stroke 2600 mm
• 58.01.17 “Tersa” cutter block ¥ 72 mm with 3 knives with rapid locking system
• 58.04.84 “Xylent” spiral knife cutterblock with 3 series of knives
• 58.10.17 Belt driven scoring unit complete with blade
• 58.03.45 Additional table on the sliding table
• 58.02.13 Angular cutting device with flip-over stops
• 58.00.37 2 extra handwheels for the movement of the operating unit
• 58.01.15 Professional fences complete with:
• saw fence with quick locking device and micrometric adjustment
• surfacing fence with 90 degrees ÷ 45 degrees continuously adjustment
• 58.02.46 Cast iron mortiser
• 58.02.24 Anodized aluminium tables for spindle moulder fence
• 58.00.15 Tenoning table and protection hood max. tool ¥ 275 mm
• 58.02.49 Electric pre-setting and flip over support for feeder
• 58.03.38 Wheels for machine movement
• 58.02.28 Reverse spindle rotation (CE)
