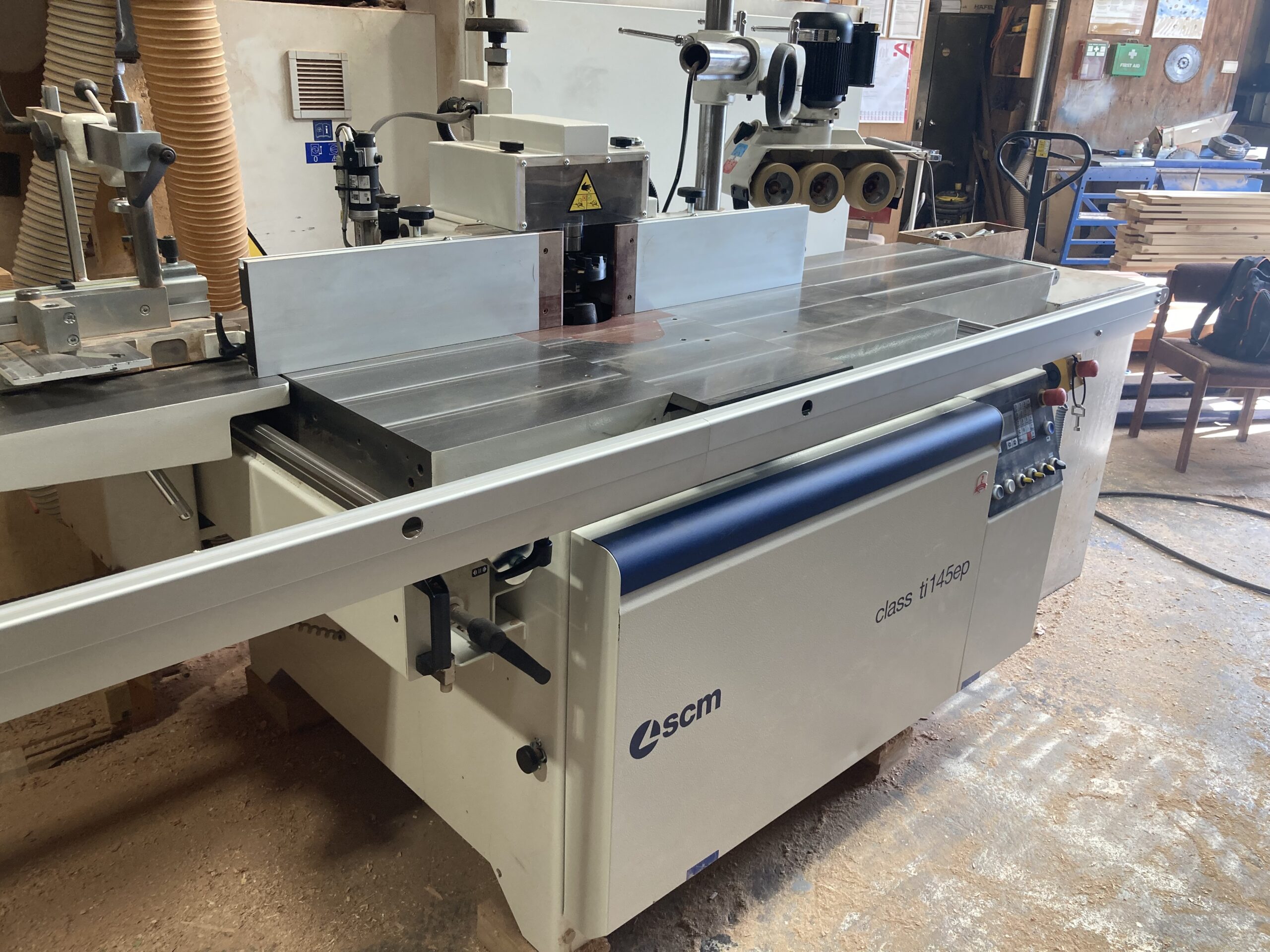

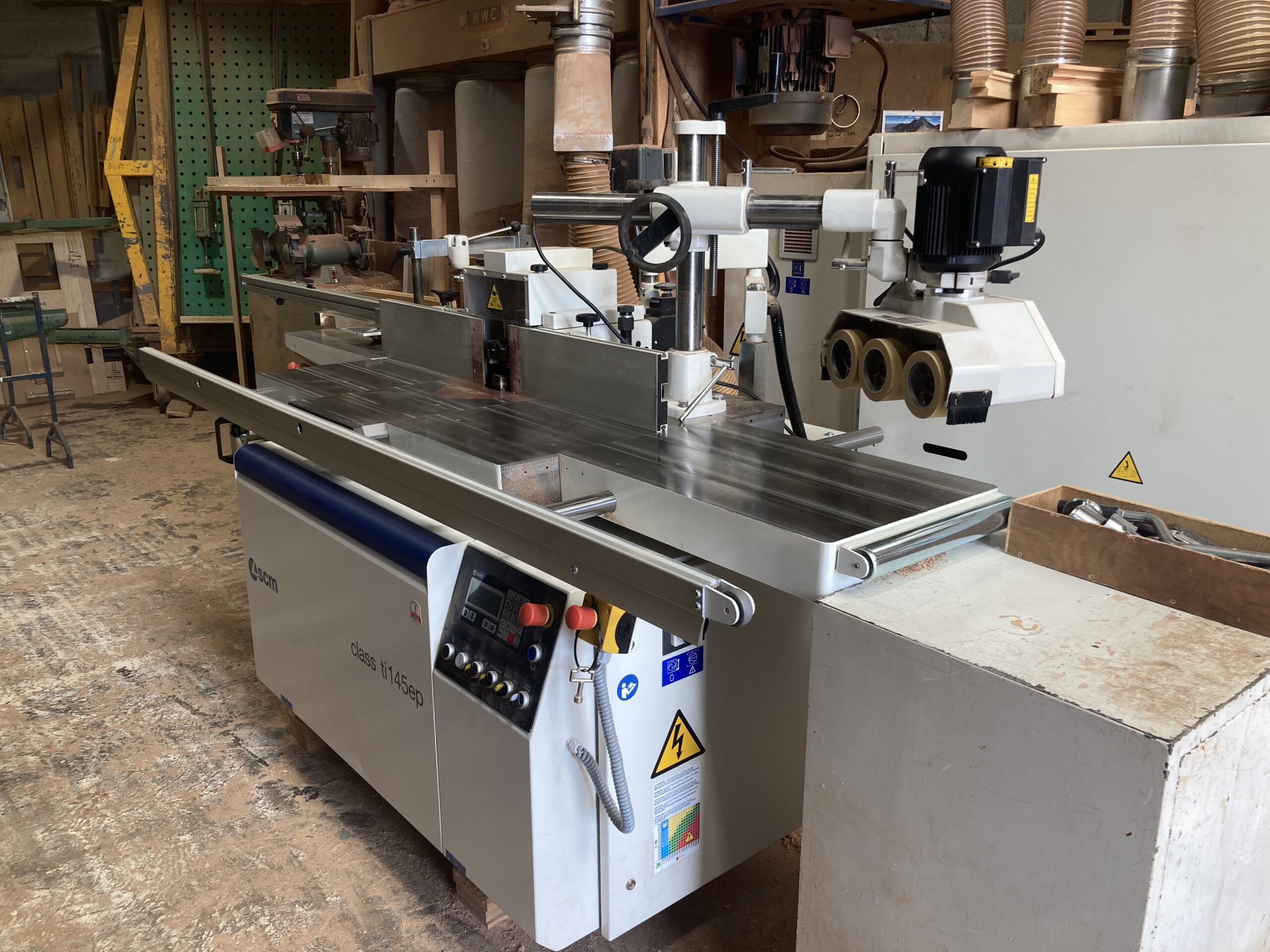

Used SCM Ti145 EPTL Class Tilting Spindle Moulder with Sliding Tenoning table
POA
Product Features
READY 3″ version complete with:
“Flex One” spindle moulder fence
* automatic movement of the entire fence with respect to
the tool diameter
* manual adjustment of the infeed table (removal) by
means of handwheel complete with mechanical numerical
readout
* work table exclusion system
* aluminium tables with connecting bars
* 250 mm max. too l diameter
9kW Hz50 motor power with automatic
star delta start: 9kW 1 2HP 50Hz

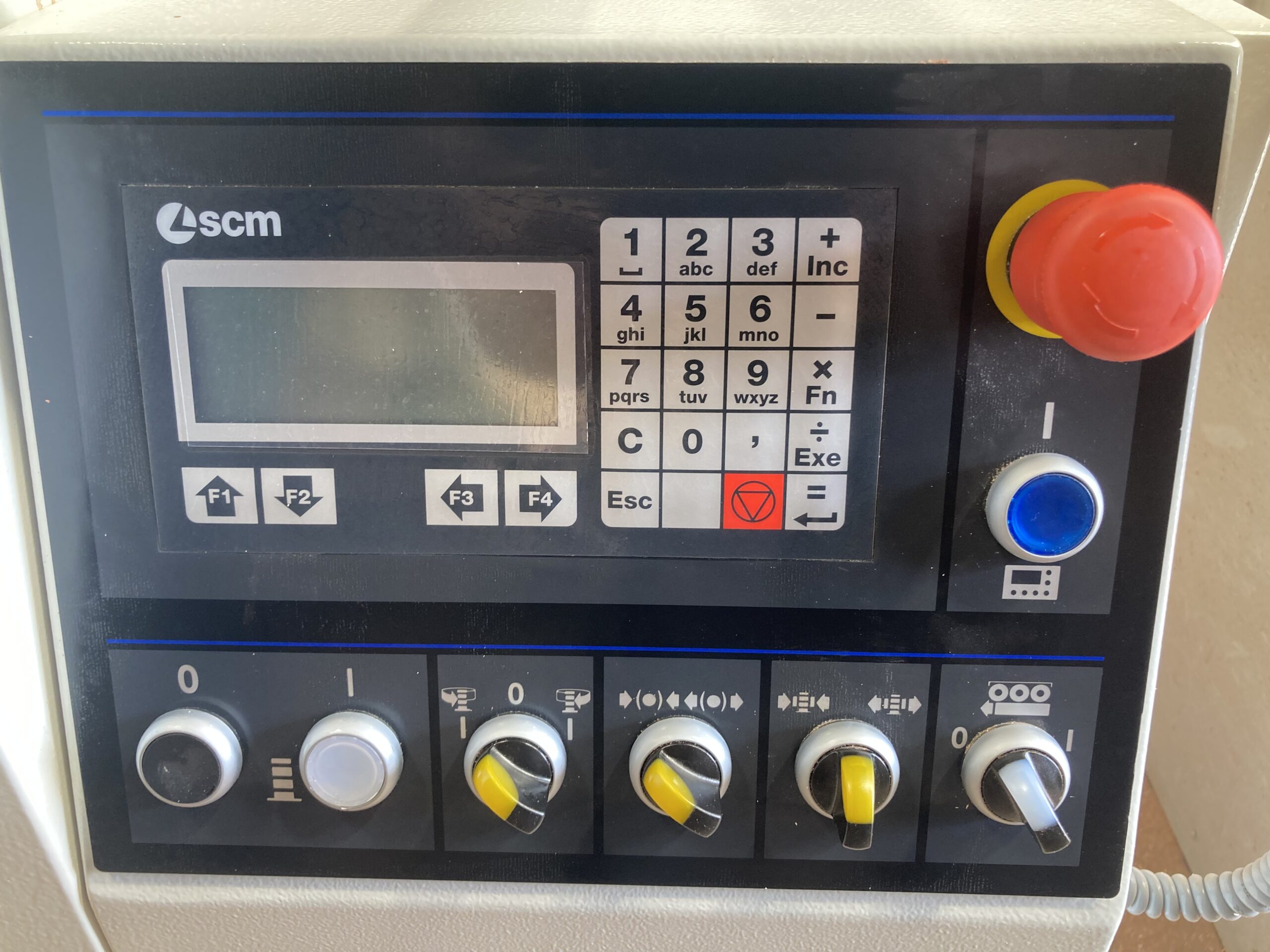

“Ready” electronic control Electronic programmer with 2 or 3 axes which selection by keyboard and
digital display:
management of spindle lifting and tilting
storage capacity up to 300 working programs
MK5 interchangeable spindle The MK5 interchangeable spindle includes the presetting for the “T SET”
rapid tool locking.

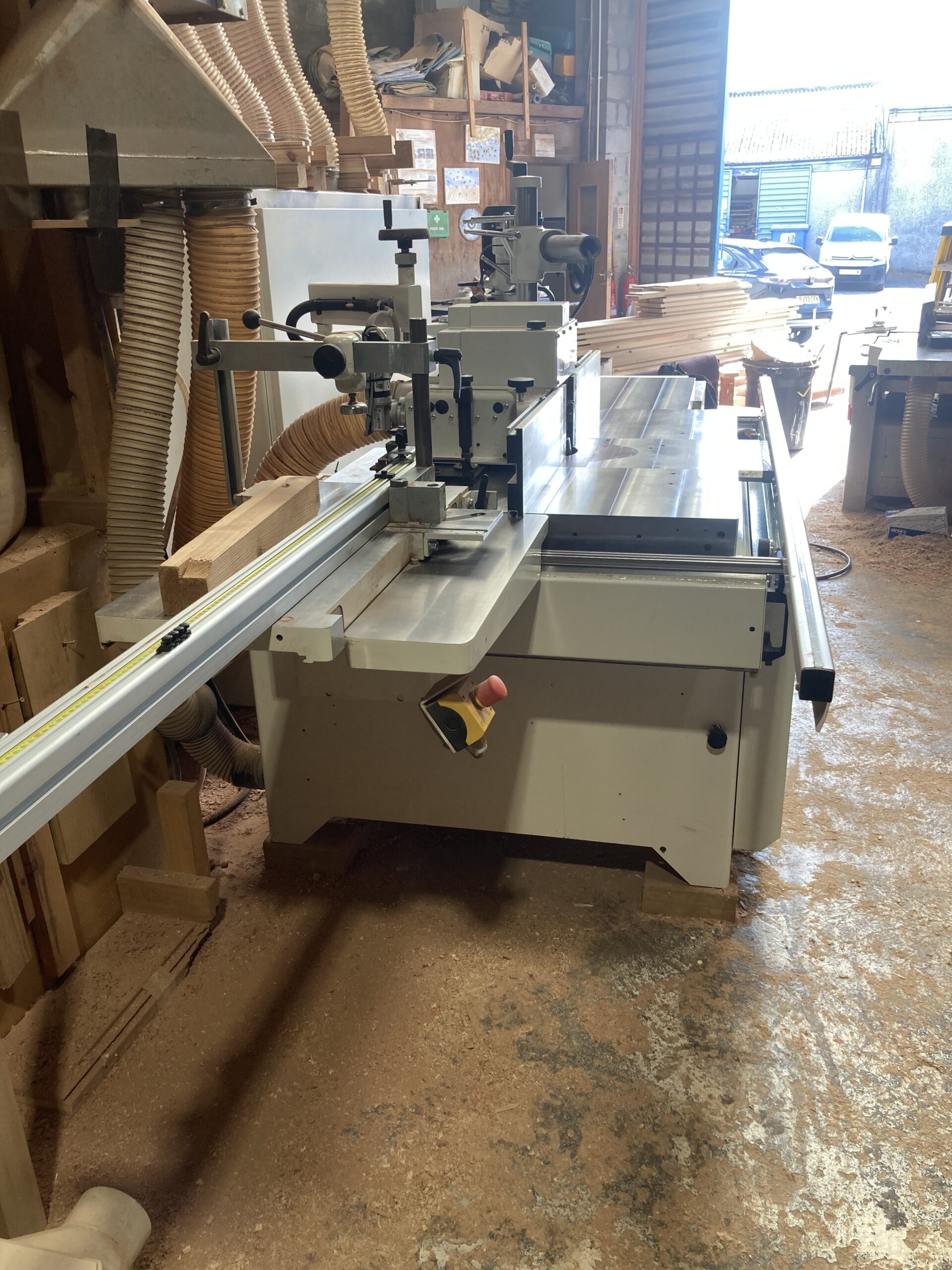

“TL” version for tenoning-profiling (C.E.) with manual feed tenoning carriage,
eccentric clamp,
telescopic tilting fence with 4 reference stops for workpiece length
programming,
no. 1 anti splinter device on fence with reference stop,
no. 1 infeed table extension complete with adjustable front support bar for
large workpieces,
teno ning hood with exhaust hood:
* with rapid tool change, max tool diam.300
* with spindle from 30 to 35 mm, max tool diam.300 mm
* with spindle from 40 to 50 mm, max. tool diam.
emergency pushbutton,
operator arm protection,
microswitches

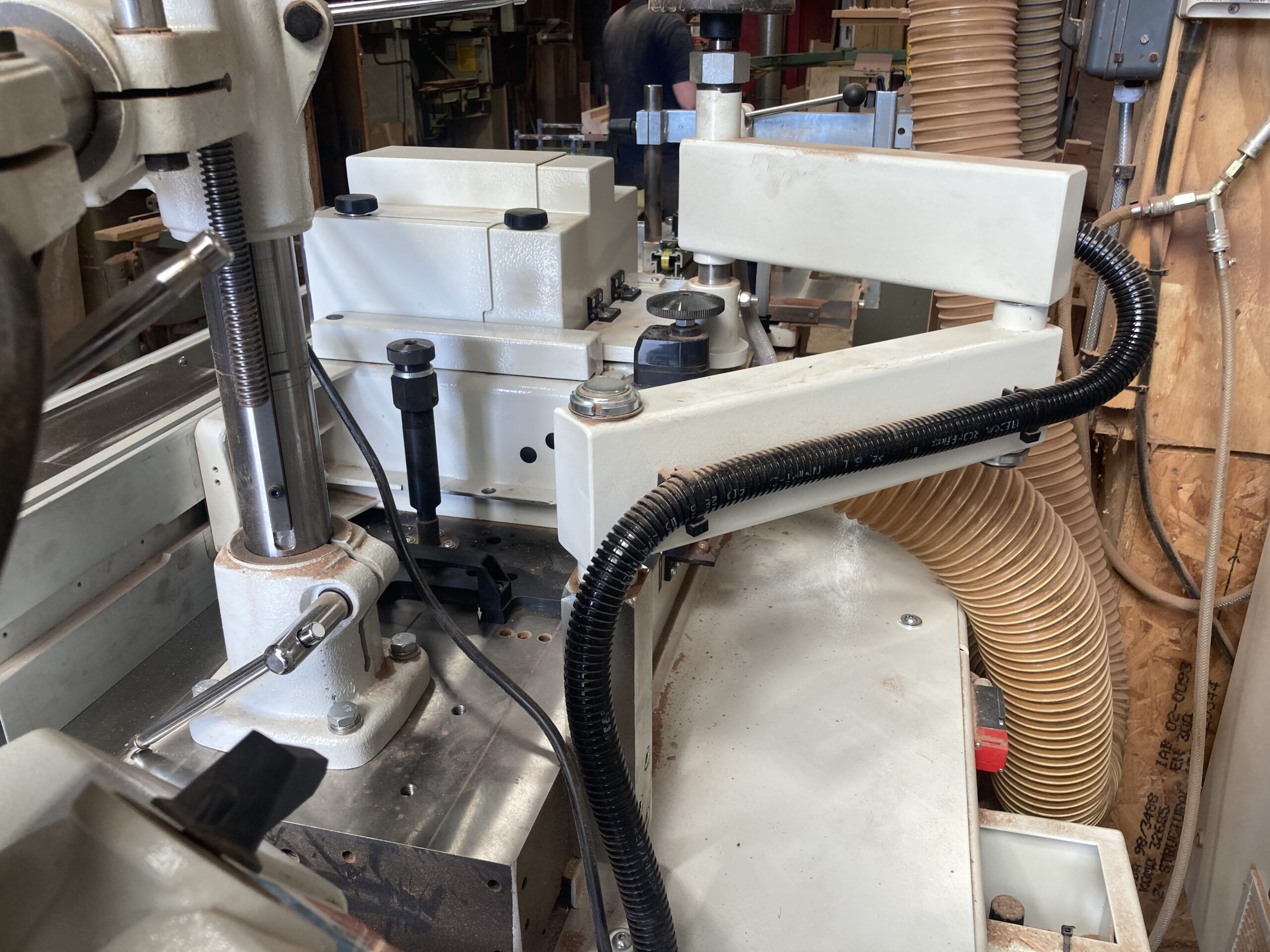

3 Roller Power feed unit

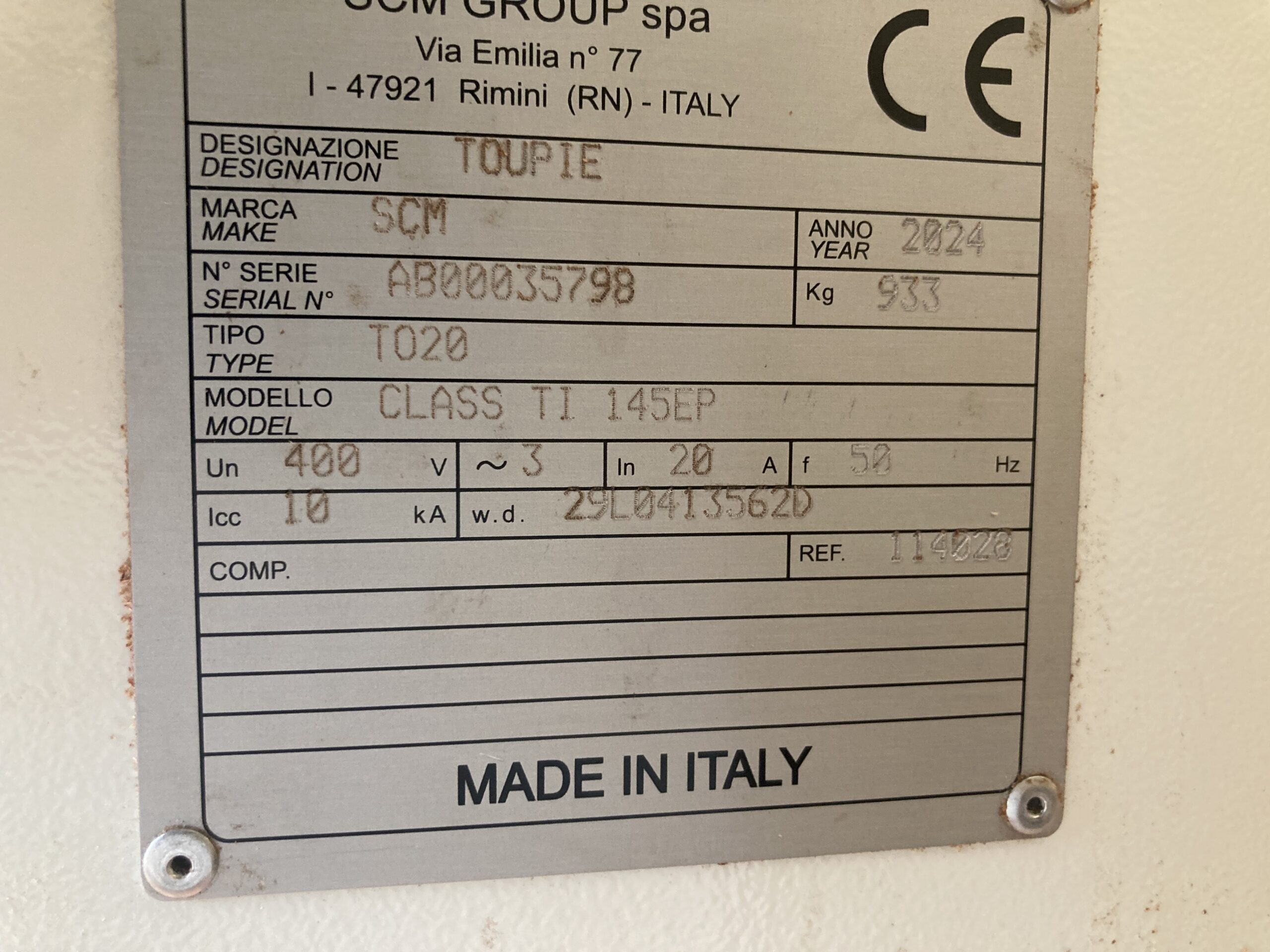

YEAR 2024
The SCM Class TI 145EP LL is a high-performance electronic tilting spindle moulder designed for precise shaping, profiling and tenoning in professional and production environments. Built with advanced control systems and a rigid structure, it delivers fast setup times and consistently accurate results.
Product Features
- Electronic tilting spindle from approximately -45° to +45°
- Programmable control with memory for repeatable setups
- Manual, semi-automatic and automatic operating modes
- Five spindle speeds up to 10,000 rpm
- “FAST” sectional worktable for improved workpiece support
- “FLEX” fence system for quick and accurate positioning
- TL version
- Mechanical and electronic positioning with digital readouts
- Compatible with advanced tooling and rapid tool systems
- Heavy-duty construction for professional and production use
