POA
Ideal solution for small-sized companies.

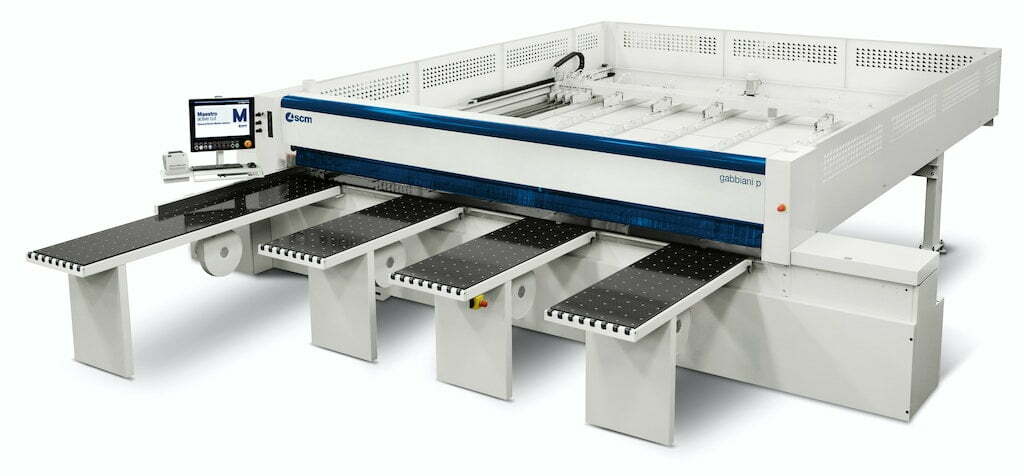

Single-blade beam saw controlled by PC/PLC control system, designed to cut solid wood panels or panel stacks and its products (chipboards, MDF panels, multilayer panels, plywood panels and fiber panels). The solution to integrate the beam saw inside a flexstore el storage.
Selectable air blowing table: an essential tool.
The possibility to enable/disable the air blowing device on each table section via independent motors, ensuring optimal sliding of the panels only where it is needed and avoids accidental falling of cut panels temporarily stored on the tables.
Saw carriage with independent raise of the blades.
Essential tool for machining post-formed panels in order to optimise cycle-time machine and enhance cut finish.
Floating clamps: the guarantee of the end result.
The special shape of the clamps allows safe grip of panels at the maximum speed and perfect parallelism even when panels are not perfectly planar.
| gabbiani p 60 | gabbiani p 80 | ||
| Cutting length | mm | 3300/3800/4300 | 3200/3800/4500 |
| Blade projection | mm | 60 | 80 |
| Saw carriage variable speed (option) | m/min | 6 – 60 (0 – 120) | |
| Pusher variable speed (option) | m/min | 0 – 60 (0 – 70) | |
| Main blade motor S6 – 40% (option) | kW | 7 (9) | 7 (9) (11) |
| Scoring unit blade motor 50 Hz (option) | kW | 1,5 | |
| Main blade / scorer speed 50 Hz | rpm | 4650/5850 | |
| Main blade / scorer blade diameter | mm | 300/200 | 340/200 |
| Number of clamps | std | 5 | |
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
R0.04.83 gabbiani p80 (33) N. 1
MAESTRO ACTIVE Human Machine interface software (HMI) N. 1
Maestro pattern N. 1
59.01.34
Cutting depth 3200 mm (for Version 33) N. 1
58.04.57
Fixed air floating table with fence 2500×600 mm with rollers and enlarged fan N. 1
58.04.58
Mobile air floating table 2500×600 mm with rollers and enlarged fan N. 2
59.01.64

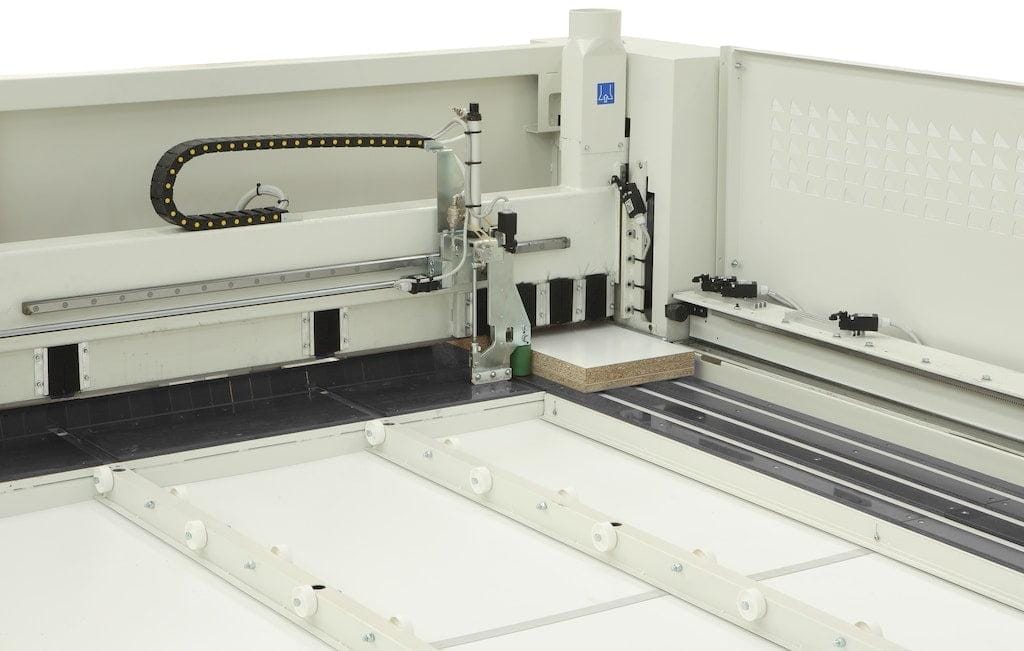

Double automatic side alignment device N. 1
30.12.30
Start/Stop cycle pedal N. 1
97.05.06
Main blade motor power 9kW (12HP) (S6-40%) 50hz N. 1
59.01.43
Execution of grooves with manual height setting of main blade. N. 1
59.02.44
Carriage with independent raising of main sawblade and scoring blade N. 1
59.02.45
Optimised blade lifting on 2 levels (intermediate/maximum) N. 1
90.00.88
Magnetic band N. 1
59.01.44

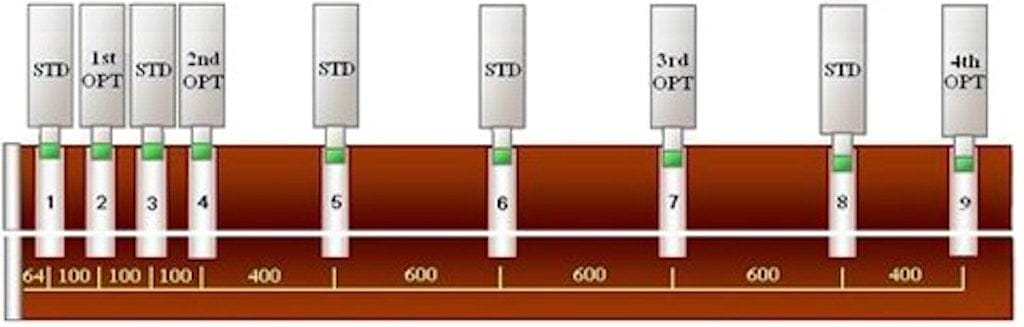

Extra clamp each N. 3
Console with integrated PC “eye M” N. 1
11.05.11

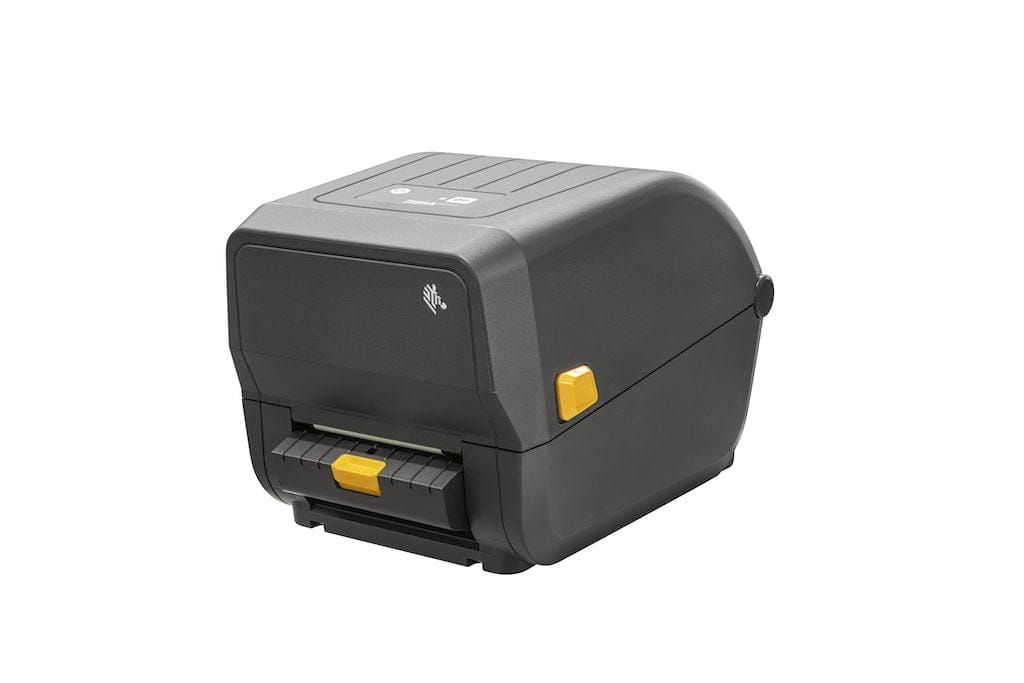

Label printer labels printing with bar code N. 1
59.02.61
Cut editor N. 1
59.02.64
Maestro pattern import N. 1
59.02.71
Maestro connect: Basic set up (cabling only, for later gateway installation) N. 1
10.20.15
European safety regulations (CE Norms) N. 1
93.07.31
Volt 400 EU N. 1
