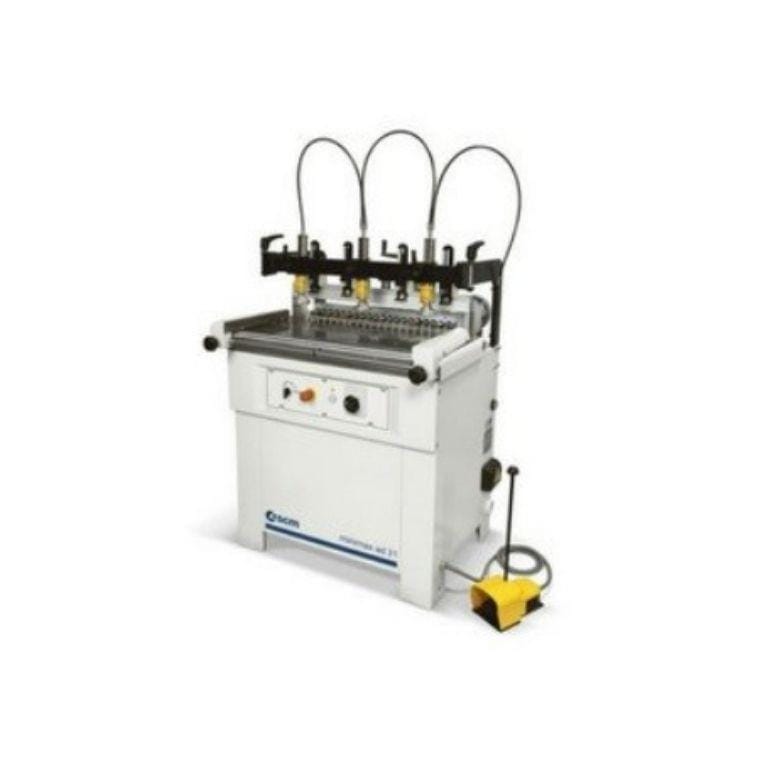

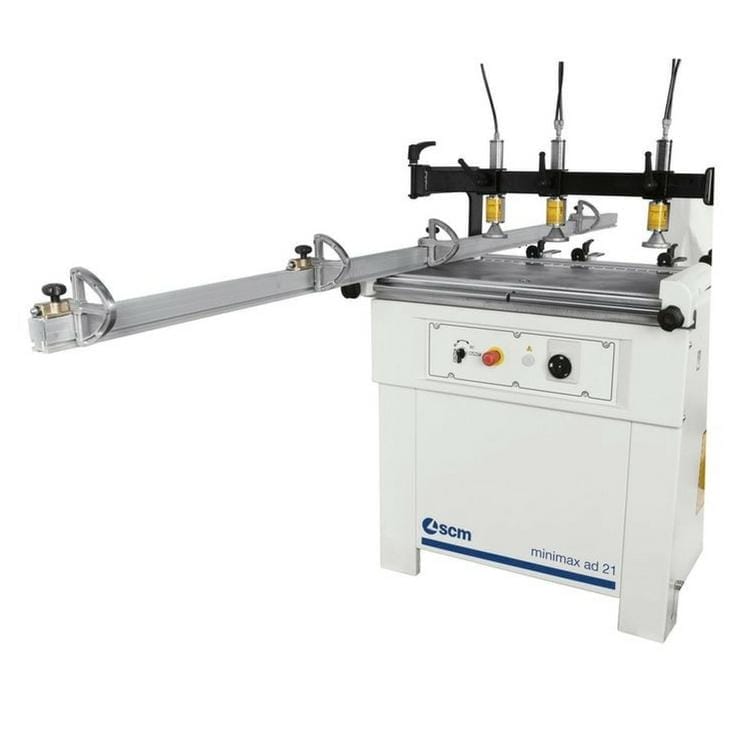

The Minimax Advance 21 Multiboring Machine with 21 Spindles is a single-head, multiple boring machine with 21 spindles. An ample choice for professional woodworkers and craftsmen alike.

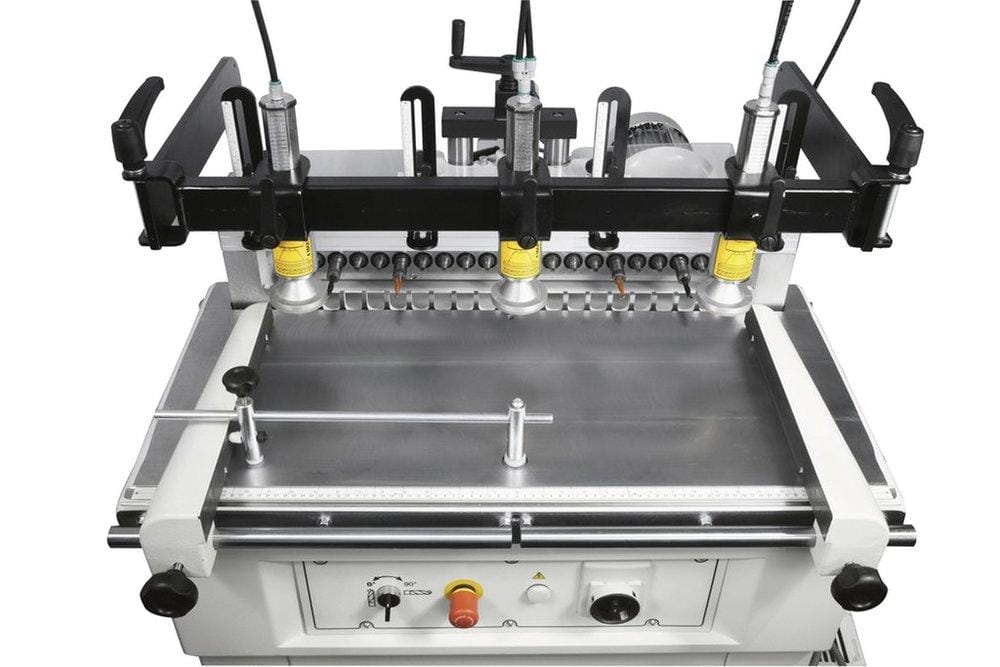

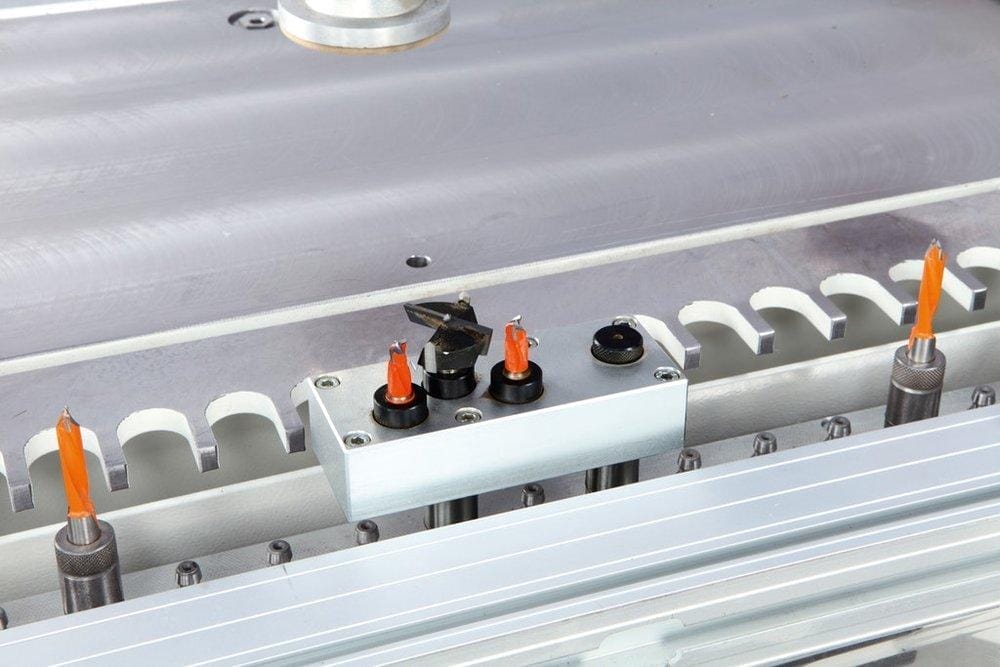

Guaranteeing the absence of disruptive vibrations, the drilling head is made from single-piece aluminium casting. Stability and precision are also assured thanks to the two rectified cylindrical guides on which the boring machine runs. The mechanical revolver has a range of 5 differing boring depth adjustments for flexible working and the new dust extraction system has a great emphasis on efficiency – making for a cleaner, healthier working environment.
With a focus on ergonomics and ease of use, all controls are conveniently placed on the front of the machine. This includes all controls which allow for a quick changeover of settings between operations.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
Max. panel width 833mm
Work Table dimensions905 x 372mm
Work Table height 900mm
Max. tool diameter40mmMin. ÷
max. panel height 10 ÷ 85mm
Spindles speed 2800m/min
Standard machine with manual head positioning from vert/horizontal
Includes-
| Max. panel width | mm / inches | 833 / 32.75 |
|---|---|---|
| Worktable dimensions | mm / inches | 905 x 372 / 35.6 x 14.6 |
| Worktable height | mm / inches | 900 / 35.5 |
| Max. tool diameter | mm / inches | 40 / 1.57 |
| Min. – max. panel height | mm / inches | 10 – 85 / .375 – 3.25 |
| Laughing Bacchus Winecellars | Yoshi Tannamuri | Canada |
| # of Spindles | # | 21 |
| Spindle Spacing (center-to-center) | mm | 32 |
| Spindle speed | rpm | 2800 |
